Removing a fuel injector harness can be crucial for diagnosing engine issues, performing maintenance, or making upgrades. It is a delicate process that requires careful attention to avoid damaging the wires or connectors. Before beginning, it is important to gather the necessary tools, such as a socket set, a ratchet wrench, a Torx driver, a flathead screwdriver, wire cutters, gloves, and eye protection. It is also essential to disconnect the battery to prevent electrical shock and ensure the vehicle is parked on a level surface. Once the fuel injector wiring harness is located, the process involves releasing the locking mechanism, gently pulling the connector apart, and then carefully removing the harness from the engine bay.
Explore related products
What You'll Learn
- The right tools for the job: flathead screwdriver, ratchet wrench, wire cutters, gloves, and eye protection
- Disconnect the battery to prevent electrical shock
- Locate the connector, usually a multi-pin connector with a locking mechanism
- Release the locking mechanism by pressing or pulling a tab or clip
- Pull the connector apart gently, being careful not to damage the wiring or pins
The right tools for the job: flathead screwdriver, ratchet wrench, wire cutters, gloves, and eye protection
To remove a fuel injector wiring harness, you will need a few essential tools to get the job done safely and effectively. These include a flathead screwdriver, a ratchet wrench, wire cutters, gloves, and eye protection.
The flathead screwdriver is a versatile tool that can be used to pry open clips or connectors. Its thin, flat blade can easily reach tight spaces and release the locking mechanism that secures the harness in place. This tool is especially useful for wedging under the red lock and popping it up, as some connectors have a locking tab that needs to be released.
The ratchet wrench is another crucial tool for loosening and tightening bolts that secure the harness. It provides leverage and makes it easier to work with bolts in tight or hard-to-reach places.
Wire cutters are essential if you need to cut any wires during the removal process, such as when replacing the harness. They ensure a clean and precise cut, reducing the risk of damaging the wires.
Gloves and eye protection are critical for your safety. Gloves protect your hands from dirt, grease, and potential electrical hazards. They provide insulation and reduce the risk of electric shocks. Eye protection, on the other hand, shields your eyes from debris, sparks, and other foreign objects that might fly off during the removal process.
By having these tools on hand, you can confidently tackle the task of removing the fuel injector wiring harness, ensuring a smooth and safe process.
When to Use Royal Purple Fuel Injector Cleaner?
You may want to see also
Explore related products
Disconnect the battery to prevent electrical shock
Disconnecting the battery is a crucial safety precaution when working on your vehicle's fuel injector wiring harness. By disconnecting the negative battery terminal, you eliminate the risk of electrical shock, ensuring a safer working environment. This is especially important when dealing with the intricate network of electrical wires that connect the fuel injectors to the engine's electronic control unit (ECU).
Before you begin any work on the fuel injector wiring harness, locate the battery and identify the negative terminal. The negative terminal will be clearly marked, typically with a "-" symbol or a black cover. Once located, you can proceed to disconnect it from the battery.
It is important to use the appropriate tools and safety equipment when performing this task. Wear protective gloves and eye protection to shield yourself from potential electrical hazards and debris. Additionally, ensure you have the necessary tools to safely disconnect the battery terminal, such as a socket set, ratchet wrench, or any other specific tools recommended by your vehicle's manufacturer.
After disconnecting the battery, you can proceed with the removal of the fuel injector wiring harness. This process typically involves locating the harness, releasing any locking mechanisms or retainer clips, and gently pulling the connector apart, being cautious not to damage the wiring or pins. Refer to your vehicle's repair manual for detailed instructions specific to your make and model.
By prioritizing safety and following the recommended steps, you can effectively remove the fuel injector wiring harness while preventing electrical shocks and ensuring a smoother overall process.
Testing Fuel Injectors: Multimeter Usage Guide
You may want to see also
Explore related products
Locate the connector, usually a multi-pin connector with a locking mechanism

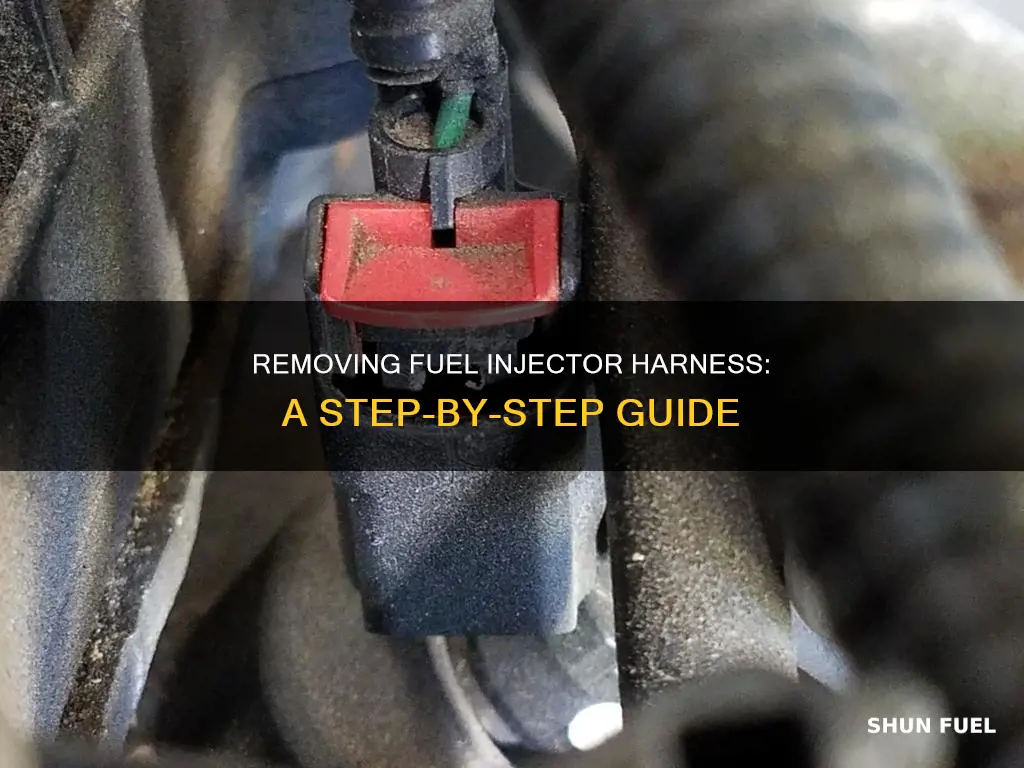

To remove the fuel injector wiring harness, you must first locate the connector. This is usually a multi-pin connector with a locking mechanism. The locking mechanism is typically a tab or clip that needs to be pressed or pulled to release it. The connector may also have a red lock, which you can get under using a thin-tipped flathead screwdriver. You can then wedge the screwdriver between the red lock and the connector body to release it.
