If you're looking to remove the fuel injector harness from your 1998 Chevy S10, you've come to the right place. This guide will walk you through the process step by step, ensuring you can tackle this task with confidence. But before we begin, it's important to understand the role of fuel injectors and the importance of the wiring harness. Fuel injectors are vital components in your car's engine, responsible for delivering precise amounts of fuel to the combustion chambers. The wiring harness acts as the conduit for electrical signals, ensuring the injectors operate correctly. Now, let's get started with the removal process.
Explore related products
What You'll Learn
Identify the fuel injectors and harness mounting points
To identify the fuel injectors and harness mounting points of your 1998 Chevy S10, you'll need to locate the fuel injectors and the fuel injector wiring harness.

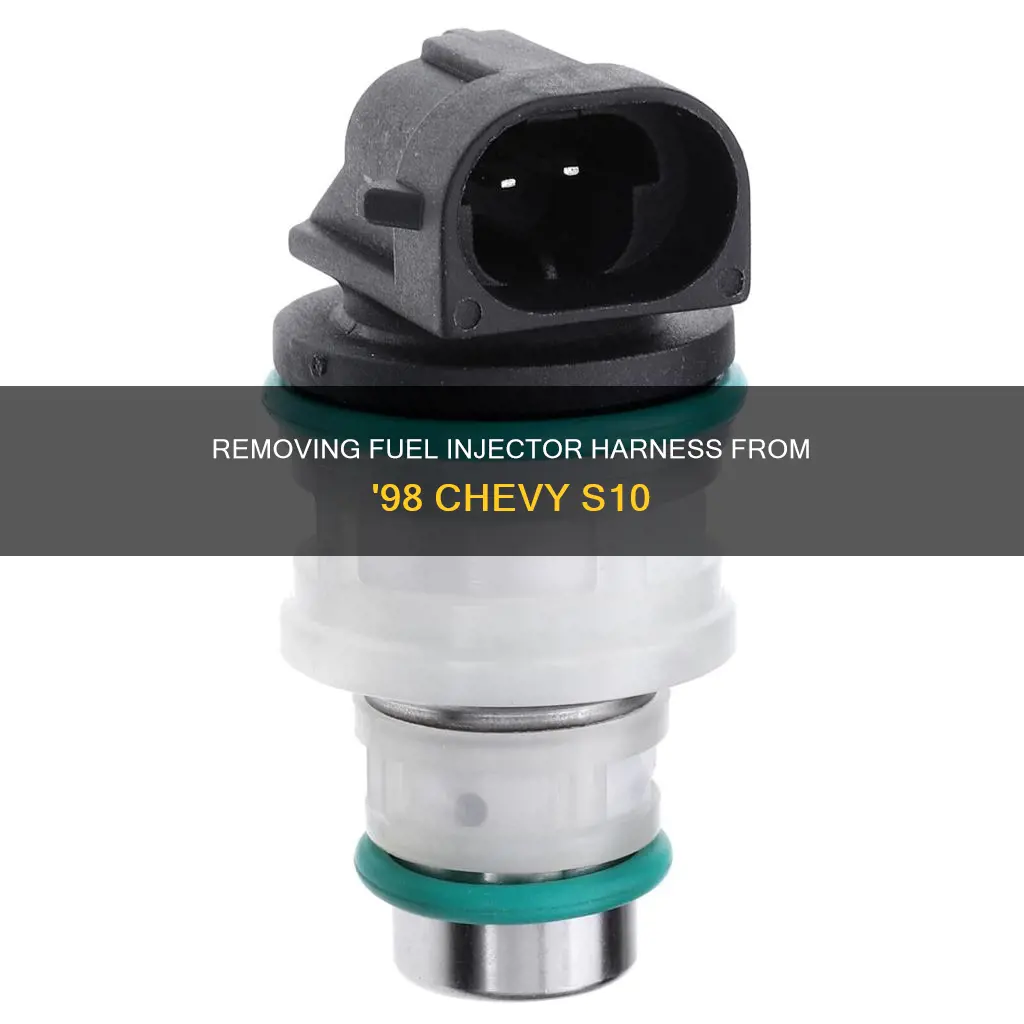

The fuel injectors are usually mounted on the intake manifold, near the cylinder head. They are often cylindrical in shape with a wiring connector attached.
Once you've located the fuel injectors, you can identify the fuel injector wiring harness by following these steps:
- Trace the wires from the fuel injectors. You should find a bundle of wires leading to a larger connector, which is part of the fuel injector wiring harness.
- The connector is typically a multi-pin connector with a locking mechanism.
- To release the locking mechanism, you'll need to press or pull a tab or clip.
- Use a flathead screwdriver or another appropriate tool to release the clips or clamps holding the harness in place.
The fuel injector wiring harness may be secured to the engine bay by these clips or clamps, so be sure to carefully loosen them before gently pulling the harness free.
Ford Freestar's Fuel Injectors: A 2006 Model Mystery
You may want to see also
Explore related products
Disconnect the battery to prevent electrical shock
Disconnecting the battery is an important step when removing the fuel injector harness from your 1998 Chevy S10. This safety precaution helps prevent electrical shock and reduces the risk of short circuits during the process. Here are some detailed instructions to guide you through this step:
Paragraph 1:
Locate the battery in your Chevy S10. It is usually found in the engine bay, close to the fender or firewall. Before you begin, make sure you have the necessary tools, such as a suitable wrench or socket set. Ensure you are wearing appropriate safety gear, including gloves and eye protection, to avoid any potential hazards.
Paragraph 2:
Start by identifying the negative terminal of the battery, which is typically marked with a "-" sign or black color-coding. Using your wrench or socket, carefully loosen the nut or bolt securing the negative cable to the terminal. Be cautious not to let the wrench come into contact with the positive post or any live wires during this process. Even though live wires are usually well-insulated, accidental contact could lead to electrical shorts or arcing.
Paragraph 3:
Once the negative terminal is disconnected, move on to the positive terminal, marked with a "+" sign or red color-coding. Disconnecting the negative terminal first is crucial because it ensures that the positive terminal will not transmit current to ground if you accidentally knock against something metal while working. By disconnecting the negative terminal first, you eliminate the risk of causing a short circuit or damaging sensitive electronic components.
Paragraph 4:
After both terminals are disconnected, you may want to consider securing or covering the battery terminals to prevent accidental contact or short-circuiting. This step is especially important if there is any risk of the positive and negative terminals coming into contact with metal components or each other. You can use electrical tape or specialized battery terminal covers for this purpose.
Paragraph 5:
Now that the battery is disconnected, you can proceed with the removal of the fuel injector harness, knowing that the risk of electrical shock has been significantly reduced. Remember to work carefully and methodically, following the specific steps required for your vehicle. Always refer to a trusted repair manual or seek advice from a qualified mechanic if you are unsure about any part of the process.
How Optimax Engines Cope with Faulty Fuel Injectors
You may want to see also
Explore related products
Release the clips or clamps holding the harness in place
To release the clips or clamps holding the harness in place, you will need to locate the connector. This is usually a multi-pin connector with a locking mechanism. Most connectors have a tab or clip that needs to be pressed or pulled to release the locking mechanism.
A flathead screwdriver or appropriate tool can be used to release the clips or clamps holding the harness in place. With a rather thin-tipped flathead screwdriver, you can get under the lock and wedge between it and the connector body to pop it up. You can also try pushing on the red portion between the inside of the black upside-down "U" as well as prying from the top.
If you are struggling to release the clips, a nylon pry tool can be used. Alternatively, you can use a quick connect release tool to release the connection.
Pour-in Fuel Injector Cleaners: Safe or Risky?
You may want to see also
Explore related products
Disconnect the wiring harness at the fuel rail
To disconnect the wiring harness at the fuel rail of your 1998 Chevy S10, you will first need to remove the intake assembly. Loosen all four hose clamps down to the air filter and don't forget the one under the upper radiator hose on the left side. Now, take the 10mm bolt and PVC hose off the upper intake box and pull it out. Next, use a clip release tool to remove the three clips holding the intake hose to the fan shroud and pull out the hose. You can now remove the fan shroud by taking out the six 10mm bolts (three on the core support and two down on each side).
Now, you will need to work on the fuel system. Start by releasing the flexible fuel line from the hard line that goes to the fuel rail. Take the clip off the connection and unbolt the bracket that holds the line to the intake manifold. You can use a quick-connect release tool to make this step easier. The tricky part is getting the fuel rail disconnected. Start by disconnecting the wiring harness at the fuel rail right on top of the valve cover towards the rear. Then, release the two 10mm bolts holding the rail to the intake manifold. These bolts can be difficult to access, so be sure to have the right tools and take your time.
Once the fuel rail is unbolted, carefully pull on it until you hear the injectors pop out. You can now slide it out from the front of the intake, being careful not to snag the injectors. Finally, release each injector by unplugging the wire to each one.
Note: Some people have found it challenging to disconnect the wiring harness at the injectors, and it may be necessary to use a tool to help release the connectors.
Identifying Pounds on Fuel Injectors: A Comprehensive Guide
You may want to see also
Explore related products
Remove the fuel rail by loosening and unbolting the bracket
To remove the fuel rail by loosening and unbolting the bracket, you will need to follow a few important steps. Firstly, locate the fuel injector wiring harness, which is typically found within the engine bay, running from the fuel injectors to the engine control unit (ECU). You will likely see a bundle of wires leading to a larger connector, which is part of the harness. Before starting any work, it is important to disconnect the negative battery terminal to prevent electrical shock.
Now, you need to release the clips or clamps holding the harness in place. You can use a flathead screwdriver or another appropriate tool for this step. Be cautious, as these clips can be challenging to remove, and it is easy to break them. Once the clips are released, carefully remove the harness by gently pulling it free from the engine bay, being careful not to damage the wires or connectors.
With the harness removed, you can now focus on the fuel rail. Start by disconnecting the wiring harness at the fuel rail, which is located on top of the valve cover towards the rear. Then, you need to release the bolts holding the rail to the intake manifold. There will be two 10mm bolts, which can be difficult to access, so having the right tools and taking your time is crucial.
Once the bolts are released, you can carefully pull on the fuel rail until you hear the injectors pop out. At this point, you can slide the fuel rail out from the front of the intake manifold. Be extremely cautious during this step to avoid snagging and damaging the injectors.
Fuel Injectors: Regular Gas and Longevity
You may want to see also
Frequently asked questions
The fuel injector wiring harness is typically located within the engine bay, running from the fuel injectors to the engine control unit (ECU). You will likely find a bundle of wires leading to a larger connector, which is part of the fuel injector wiring harness.
You will likely need a variety of socket sizes, including a 10mm socket for most fuel injector connectors. You will also need a ratchet wrench, an extension, a Torx driver, a flathead screwdriver, wire cutters, and gloves.
First, disconnect the battery to prevent electrical shock. Next, identify the harness mounting points and release the clips or clamps holding the harness in place with a flathead screwdriver or another appropriate tool. Then, carefully remove the harness by gently pulling it free from the engine bay, being careful not to damage the wires or connectors.
