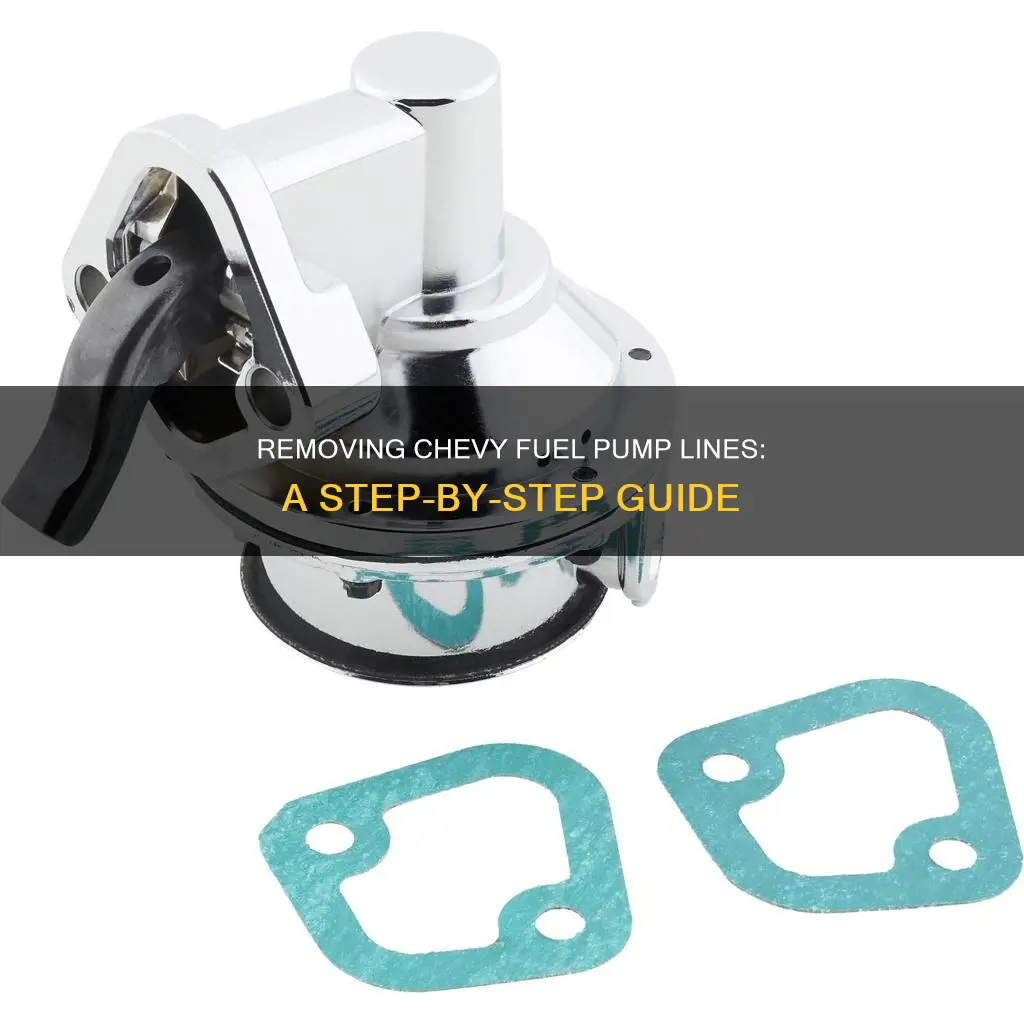

Chevy Fuel Pump Lines: A Step-By-Step Removal Guide

Removing the fuel pump lines from a Chevy vehicle can be a straightforward process if you follow the right steps. This guide will provide a detailed, step-by-step approach to safely and efficiently disconnect the fuel pump lines, ensuring you have the necessary tools and knowledge to complete the task without causing any damage to the vehicle's components. It's important to exercise caution and take your time to avoid any potential hazards.

Preparation: Gather tools: wrench, pump, cleaner, rags, and safety gear

Before you begin the process of removing the fuel pump lines from your Chevy vehicle, it's crucial to prepare the necessary tools and safety equipment. Here's a detailed guide on what you need to gather:

Wrenches: You will require a set of wrenches, preferably a combination of different sizes. This is essential for loosening and tightening the nuts and bolts that secure the fuel pump lines. Wrenches are available in various types, such as open-end, box, and adjustable wrenches, so ensure you have a variety of sizes to accommodate different bolt and nut sizes.

Fuel Pump: A fuel pump is a critical component in the fuel system, and it's important to have a backup or an alternative pump in case you need to replace the old one. This is especially useful if you plan to perform a complete fuel system overhaul.

Fuel System Cleaner: Cleaning the fuel system is an important step to ensure proper removal and installation of the fuel pump lines. A fuel system cleaner will help remove any debris, varnish, or contaminants that may have accumulated over time. Look for a cleaner specifically designed for fuel systems, as it will be effective in dissolving and removing these substances.

Rags and Cleaning Materials: Rags, preferably old t-shirts or towels, are essential for wiping down surfaces and cleaning up any spills or leaks. You might also consider using paper towels or disposable rags to avoid contamination. Additionally, have some cleaning cloths or brushes to assist with removing dirt and grime from the fuel pump and surrounding areas.

Safety Gear: Safety should always be a priority when working on vehicles. Wear safety goggles to protect your eyes from any potential debris or fuel splashes. Gloves are also recommended to protect your hands and provide a better grip when handling tools. Ensure you have a dust mask or respirator to avoid inhaling any harmful fumes or fuel vapors.

By gathering these tools and safety gear, you'll be well-prepared to tackle the removal of the fuel pump lines. It's always a good idea to have a well-organized workspace and a systematic approach to ensure a smooth and efficient repair process.

Location: Identify fuel pump lines under hood, near tank, or in engine bay

To locate the fuel pump lines on a Chevy vehicle, you'll typically find them in one of three areas: under the hood, near the fuel tank, or in the engine bay. Here's a step-by-step guide to help you identify and access these lines:

Under the Hood:

Start by opening the hood of your Chevy car. Locate the engine compartment, where you'll find the fuel pump, which is usually mounted near the front of the engine. The fuel pump lines will be connected to the pump and will run along the frame rail or directly to the fuel tank. These lines are often made of rubber or plastic and can be quite flexible. You might need to lift or remove some engine components to get a better view and access.

Near the Fuel Tank:

The fuel tank is usually located in the front or rear of the vehicle's underbody. If the fuel pump is electric, it might be mounted directly on or near the fuel tank. The lines will connect the pump to the tank, often running along the frame or under the vehicle. In some cases, you might need to remove the underbody panels or trim to access the lines.

In the Engine Bay:

If the fuel pump is mechanical, it might be located in the engine bay, often near the front of the engine. The lines will connect the pump to the fuel filter and then run to the fuel tank. These lines are usually more rigid and made of metal or reinforced plastic. You may need to move or remove engine components to access them.

When identifying the fuel pump lines, look for the following:

• Rubber or plastic hoses with metal fittings.
• Metal lines with clips or brackets holding them in place.
• Connections to the fuel pump, filter, and tank.
• Any signs of damage, leaks, or corrosion.

Remember, the specific location and configuration of the fuel pump lines can vary depending on the Chevy model and year. Always refer to your vehicle's manual or consult a professional mechanic if you're unsure about any step during the removal process.

Disconnection: Loosen lines with wrench, disconnect from pump and tank

To begin the process of removing the fuel pump lines from your Chevy vehicle, you'll need to carefully disconnect the lines from both the fuel pump and the fuel tank. This step requires a systematic approach to ensure you don't damage any components.

First, locate the fuel pump lines, which are typically rubber or plastic hoses that run from the fuel tank to the engine. These lines can be quite tight, so you'll need a wrench to loosen them. Start by identifying the lines that connect the fuel pump to the tank. These lines often have quick-connect fittings or clips that hold them in place. Use a wrench to turn the fittings counterclockwise to loosen them. Be cautious not to over-tighten, as this can damage the fittings.

Once the lines are loosened, you can begin the disconnection process. For the line connected to the fuel pump, you might need to pull it straight to release the connection. If it's a quick-connect fitting, simply pull it apart. For the line connected to the fuel tank, you may need to lift the tank slightly to access the fitting. Again, use a wrench to carefully disconnect the fitting from the tank.

When disconnecting the lines, ensure that you have a clear understanding of the fuel flow direction to avoid any spills. It's a good practice to place a drain pan or rags under the vehicle to catch any fuel that might leak during the process.

After successfully disconnecting the lines, you can now proceed to the next step of the removal process, which may involve further disassembly or access to the fuel pump itself. Always take your time and be gentle with the components to ensure a successful and safe fuel pump line removal.

Cleaning: Soak lines in cleaner, scrub, rinse, and reinstall after drying

To effectively clean and maintain your Chevy fuel pump lines, a thorough cleaning process is essential. Here's a step-by-step guide to ensure a successful outcome:

Soaking and Cleaning: Begin by acquiring a suitable fuel line cleaner, preferably one designed for automotive use. These cleaners are typically powerful yet safe for various materials. Soak the fuel lines in the cleaner for an extended period, allowing the solvent to penetrate and dissolve any accumulated dirt, grime, or deposits. This process can take anywhere from 30 minutes to an hour, depending on the severity of the contamination.

Scrubbing: After soaking, it's time to scrub the lines vigorously. Use a stiff-bristled brush or a specialized fuel line cleaning tool to remove any stubborn deposits. Pay close attention to the areas where the lines connect to the fuel pump and the engine. Ensure you scrub every inch of the lines to eliminate any hidden contaminants.

Rinsing: Rinsing is a crucial step to ensure no cleaner residue remains. Use a garden hose with a gentle spray setting to rinse the fuel lines thoroughly. Work from one end of the line to the other, ensuring that all cleaner is washed away. This step helps to prevent any potential issues with the fuel pump's functionality.

Drying and Reinstallation: Once the lines are thoroughly rinsed, it's essential to dry them completely. Use a clean cloth or towel to wipe away any remaining moisture. Ensure the lines are completely dry before proceeding with the final step. After drying, carefully reinstall the fuel pump lines, ensuring they are securely connected and aligned with their respective ports.

By following these cleaning procedures, you can maintain the optimal performance of your Chevy fuel pump system, ensuring reliable fuel delivery to the engine. Regular cleaning will also help extend the lifespan of the fuel pump lines, contributing to overall engine health and efficiency.

Reassembly: Ensure proper alignment, tighten connections, and test fuel flow

Reassembly is a crucial step in the process of replacing or repairing the fuel pump lines in a Chevy vehicle. It requires careful attention to detail and a systematic approach to ensure the system functions optimally. Here's a step-by-step guide to reassembling the fuel pump lines:

Alignment and Installation: Begin by referring to the vehicle's manual or the online resource you consulted during the removal process. Each component of the fuel system, including the fuel pump, lines, and connections, should be installed in a specific order. Proper alignment is essential to prevent leaks and ensure efficient fuel delivery. Carefully slide the fuel pump lines back into their designated positions, ensuring they are routed correctly and securely attached to the pump and the fuel tank. Pay close attention to the direction of the lines to avoid any kinks or obstructions.

Tightening Connections: Once the lines are in place, it's time to secure them with the appropriate fasteners. Tighten all connections securely but be cautious not to over-tighten, as this can damage the threads or cause strain on the lines. Use the recommended torque settings for the fasteners to ensure a proper seal and prevent fuel leaks. Check that all bolts and clips are tightened to the specified torque values, often found in the vehicle's service manual. This step is critical to maintaining the integrity of the fuel system.

Fuel Flow Testing: After reassembly, it's essential to test the fuel flow to ensure the system is functioning correctly. Start the engine and monitor the fuel gauge to check for any unusual fluctuations or drops in fuel pressure. Listen for any hissing or roaring sounds, which could indicate a leak. If everything is functioning as expected, the fuel pump should be delivering the correct amount of fuel to the engine. Test the fuel pressure using a gauge to ensure it meets the manufacturer's specifications. This step is vital to identifying any potential issues before the vehicle is driven.

Final Inspection: Before starting the vehicle, perform a final inspection to ensure all connections are secure and there are no visible signs of damage or leaks. Check for any loose fasteners and retighten if necessary. Verify that the fuel lines are not pinched or obstructed, as this can affect performance. A thorough inspection will help prevent any future problems and ensure the vehicle's fuel system operates reliably.

Remember, proper reassembly and testing are essential to maintaining the performance and safety of your Chevy vehicle's fuel system. Always refer to the manufacturer's guidelines and seek professional assistance if you encounter any challenges during the reassembly process.
