The 1992 Chevrolet S10 pickup truck is a popular vehicle with a dedicated online community. Owners of this vehicle may encounter issues with the fuel lines, such as the need for replacement or modification. Fuel line products for the 1992 Chevrolet S10 are available from various retailers, with prices starting at $18.99. This article will explore the process of locating and maintaining the fuel lines in the 1992 Chevrolet S10.
| Characteristics | Values |
|---|---|
| Fuel line set | 1992 Reg Cab 7.5 ft Bed FL425-D1A |
| Supply line | 3/8" (in 2 sections) |
| Return line | 5/16" |
| Hoses | To sending unit connection; to join rear and front section |
| Fuel filter | 15661005, 15661004, 15700822 |
| Line construction material | Galfan® coated steel tubing |
| Hose construction material | Stainless Steel Braided Teflon |
| Fittings | OE style |
| Fuel filter location | Along the inside of the left frame underneath the cab of the blazer |
| Fuel filter replacement | Loosen the fastener(s) and remove the filter; position the new filter with the directional arrow facing away from the fuel tank, towards the carburetor or throttle body; tighten the filter/bracket retainer(s); connect the fuel lines to the filter |
| Fuel line products price range | $18.99 |
Explore related products
What You'll Learn
Fuel filter replacement
To replace the fuel filter on a 1992 Chevy S10, you will first need to purchase a replacement filter. You can find these online or at an auto parts store. Once you have the new filter, follow these steps:
First, locate the fuel filter. It is usually found near the fuel tank, connected to the fuel lines. The fuel lines are constructed from Galfan-coated steel tubing and should be rust-protected. The supply line is 3/8" and the return line is 5/16".
Next, disconnect the fuel lines from the old filter. You may need to loosen fasteners or remove the clamp and filter assembly to do this. Be sure to have a backup wrench on hand to prevent damage.
Now, position the new filter and retaining bracket. The directional arrow on the filter should face away from the fuel tank and towards the carburetor or throttle body.
After that, install and tighten the filter/bracket retainer(s). Then, connect the fuel lines to the new filter and tighten them with a wrench.
Finally, connect the negative battery cable and tighten the fuel filler cap. Start the engine and check for leaks.
It is important to note that you should always consult a certified mechanic or a professional if you are unsure about any of the steps or procedures.
Additionally, you can find aftermarket Fuel Lines products online or at auto parts stores to keep your 1992 Chevrolet S10 running smoothly.
Fuel Pump Lines: What You Need to Know
You may want to see also
Explore related products
Fuel line size
The 1992 Chevrolet S10 pickup truck's rear fuel line set includes a 3/8" supply line (in 2 sections) and a 5/16" return line. The lines are constructed from Galfan-coated steel tubing for rust protection and are CNC-bent for an easy, precise installation. All hoses are made from stainless steel braided Teflon with OE-style fittings. The fuel line set also includes hoses to join the rear and front sections and a fuel filter.
The Chevy S10 Pickup Rear Fuel Line Set is available for the regular cab with a 7.5 ft bed (FL425-D1A) and the extended cab with a 6 ft bed (FL425-J1A). The fuel line set for the regular cab with a 6 ft bed (FL425-K1B) has the same specifications as the other two, except it does not mention the inclusion of hoses to join the rear and front sections.
It is important to ensure that you are ordering the correct parts for your vehicle. If you are unsure, it is recommended that you consult with a professional or a trusted auto parts retailer.
The Best Sealants for Fuel Line Threads
You may want to see also
Explore related products
Fuel line material
The 1992 Chevy S10 pickup truck's fuel line is constructed from Galfan-coated steel tubing for rust protection. The coating is an alloy of zinc, aluminium and gallium, which provides superior corrosion resistance compared to regular galvanised coatings. This coating is applied to the steel tubing, which is then bent using CNC (Computer Numerical Control) for precise installation.
The fuel line consists of a supply line and a return line, with a fuel filter and hoses to connect the sending unit and the front and rear sections. The supply line is 3/8" in diameter and comes in two sections, while the return line is 5/16" in diameter.
The hoses that connect the different components of the fuel system are made from stainless steel braided Teflon. Teflon, or PTFE, is a synthetic material known for its chemical inertness and non-stick properties, making it ideal for use in fuel systems. It is also flexible and durable, able to withstand the high temperatures and pressures present in the engine compartment.
The use of Galfan-coated steel and Teflon hoses in the fuel line of the 1992 Chevy S10 ensures the fuel system is protected from rust and corrosion, while also providing ease of installation and reliable performance.
Locating the Fuel Line: Carburetor Foxbody Guide
You may want to see also
Explore related products

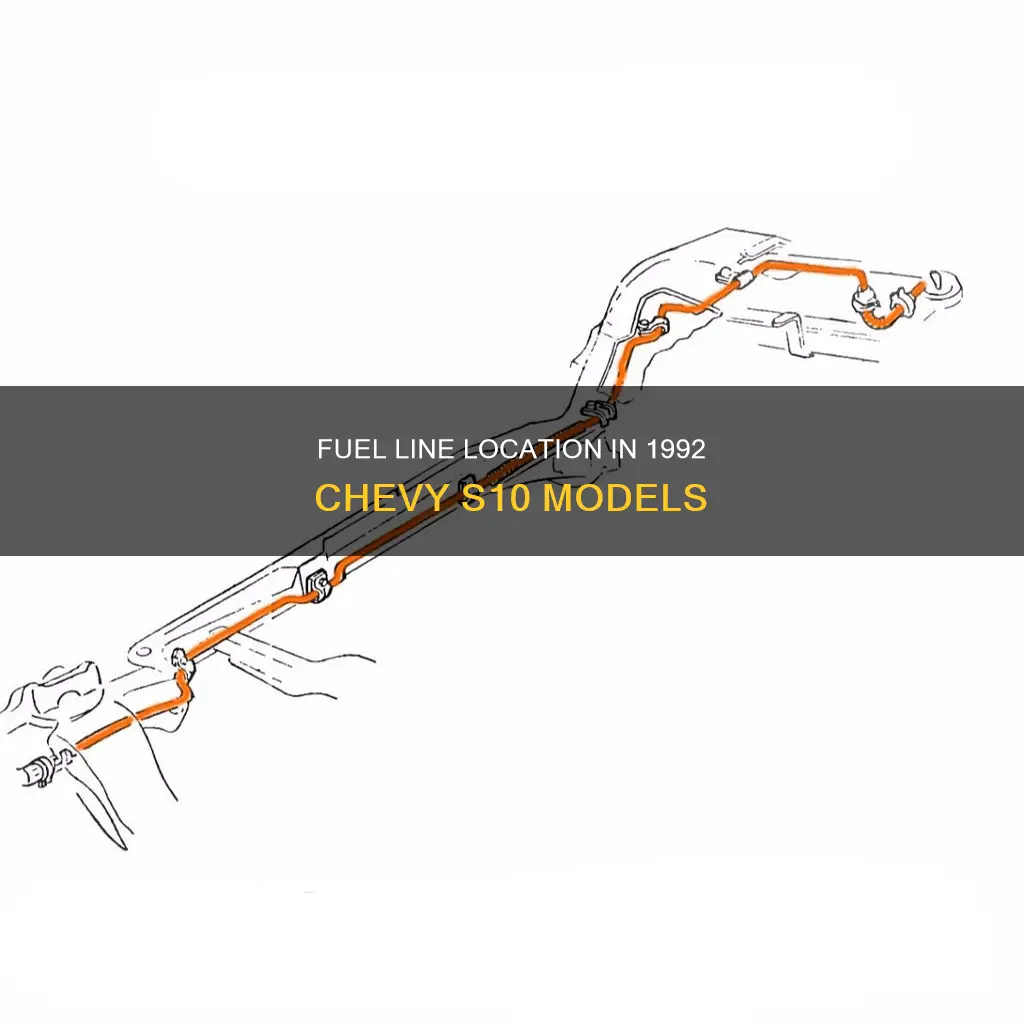

Fuel line routing
The fuel line routing on a 1992 Chevy S10 is an important aspect of the vehicle's fuel system, providing a pathway for fuel to travel from the tank to the engine. Here is a detailed guide on the fuel line routing for this specific vehicle:
Components and Connections:
The fuel line system in the 1992 Chevy S10 consists of several key components and connections. It includes:
- Supply Line: This is the main fuel line that carries fuel from the tank to the engine. It is typically 3/8" in diameter and may be divided into two sections.
- Return Line: This line returns excess fuel from the engine back to the tank and is usually 5/16" in diameter.
- Hoses: There are hoses connecting the rear and front sections of the fuel line, as well as hoses for the sending unit connection.
- Fuel Filter: The fuel filter is a crucial component that filters impurities from the fuel before it reaches the engine. It is typically located along the fuel line, with an arrow indicating the correct fuel flow direction.
Installation and Routing:
The fuel lines in the 1992 Chevy S10 are constructed from Galfan-coated steel tubing, which provides rust protection. The lines are bent using CNC (Computer Numerically Controlled) technology to ensure precise and easy installation. Here's how the routing works:
- The supply line originates from the fuel tank and runs towards the engine, supplying fuel.
- The return line begins near the engine and returns unused fuel to the tank to prevent waste.
- Hoses are used to connect the rear and front sections of the fuel lines, ensuring a continuous pathway for fuel flow.
- The sending unit connection hoses play a crucial role in monitoring fuel levels and relaying that information to the fuel gauge.
- The fuel filter is positioned along the fuel line, typically with the directional arrow facing away from the fuel tank and towards the carburetor or throttle body.
Maintenance and Replacement:
Proper maintenance and replacement of fuel lines are essential for the vehicle's performance and safety:
- When replacing the fuel filter, it is important to loosen the fasteners or, if necessary, remove the entire clamp and filter assembly.
- Always position the new filter correctly, with the arrow facing away from the fuel tank, to ensure proper fuel flow.
- After installing the filter, connect the fuel lines securely and use a backup wrench to prevent damage during tightening.
- Check for leaks by connecting the negative battery cable and tightening the fuel filler cap before starting the engine.
- In some cases, additional in-line fuel filters may be installed before the carburettor, requiring careful tube bending or off-the-shelf modifications.
Compatibility and Parts:
Finding compatible fuel line parts for the 1992 Chevy S10 is crucial:
- Ensure that you purchase fuel lines specifically designed for the 1992 Chevy S10 or its variants, such as the Chevy S10 Pickup with a 6-foot or 7.5-foot bed.
- Some sources suggest that fuel lines for the 4.3L engine may differ from those for the 2.8L engine, so verify compatibility before purchasing.
- Companies like Inlinetube offer custom-made stainless steel fuel lines and are recommended by Chevy S10 enthusiasts.
Fuel Line Fittings for FiTech: The Ultimate Guide
You may want to see also
Explore related products
Fuel line connections
The fuel line connections on a 1992 Chevy S10 are an important part of the vehicle's fuel system. The fuel lines are responsible for delivering fuel from the tank to the engine, and they play a crucial role in the overall performance and efficiency of the vehicle.
The Chevy S10 features a fuel system with a supply line and a return line. The supply line is typically 3/8" in diameter and is responsible for delivering fuel from the tank to the engine. It is composed of two sections, which are connected by hoses to the sending unit. The return line, on the other hand, is usually 5/16" in diameter and carries any unused fuel back to the tank. Like the supply line, it also utilizes hoses to connect the rear and front sections of the vehicle.
Both the supply and return lines are constructed from Galfan-coated steel tubing, which provides excellent rust protection. The lines are bent using CNC (Computer Numerical Control) technology, ensuring a precise and easy installation process. The end forms and fittings of the lines are designed to match the original equipment specifications.
Additionally, the fuel line connections on the 1992 Chevy S10 may include a fuel filter. This filter helps to ensure that clean fuel is delivered to the engine, free from contaminants. When replacing the fuel filter, it is important to follow the correct installation procedure. This includes positioning the filter with the directional arrow facing towards the carburetor or throttle body and away from the fuel tank. Proper tightening of the filter and bracket retainers, as well as connecting the fuel lines securely, are also crucial steps in the process.
Automotive vs Marine Grade Fuel Lines: What's the Difference?
You may want to see also
Frequently asked questions
You can find fuel lines for your 1992 Chevy S10 at Advance Auto Parts. They stock 1 different brand with products priced around $18.99.
The fuel line size is 3/8" for the supply line and 5/16" for the return line.
To replace the fuel filter, first, loosen the fastener(s) and remove the filter. Then, position the new filter with the directional arrow facing away from the fuel tank. Install and tighten the filter, connect the fuel lines, and tighten with a backup wrench. Finally, connect the negative battery cable, tighten the fuel filler cap, and check for leaks.
