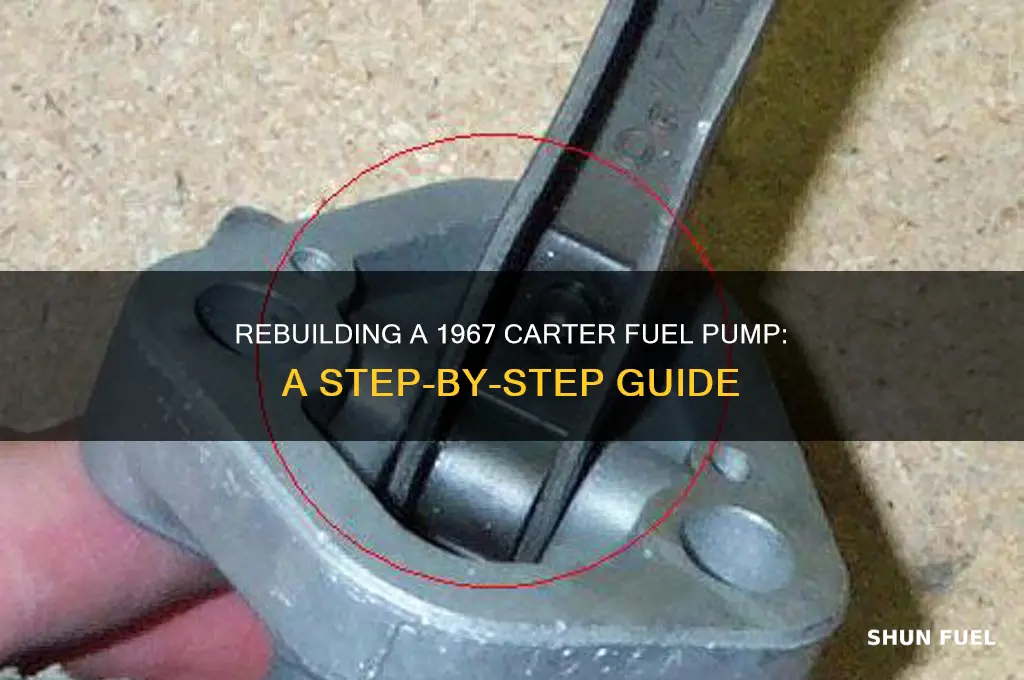

Rebuilding a 1967 Carter fuel pump is a rewarding project for classic car enthusiasts looking to restore their vehicle's original performance and reliability. This mechanical fuel pump, commonly found in vintage American cars, plays a crucial role in delivering fuel from the tank to the carburetor. Over time, wear and tear can lead to reduced efficiency or failure, making a rebuild necessary. The process involves disassembling the pump, inspecting and replacing worn components such as the diaphragm, valves, and gaskets, and reassembling it with precision. By following a step-by-step guide and using the correct tools, you can ensure the pump operates smoothly, keeping your classic car running as it did when it first rolled off the assembly line.
| Characteristics | Values |
|---|---|
| Year of Fuel Pump | 1967 |
| Brand | Carter |
| Tools Required | Socket set, wrenches, screwdrivers, pliers, gasket scraper, cleaning solvent |
| Parts Needed | New diaphragm, check valves, gaskets, O-rings, filter element |
| Disassembly Steps | 1. Relieve fuel pressure 2. Disconnect fuel lines 3. Remove mounting bolts 4. Disassemble pump components |
| Cleaning Process | Use carburetor cleaner to remove debris and varnish from internal parts |
| Inspection Points | Check diaphragm for tears, inspect check valves for wear, ensure gaskets are intact |
| Reassembly Steps | 1. Install new diaphragm and check valves 2. Replace gaskets and O-rings 3. Reassemble pump body |
| Testing Procedure | Bench test the pump for proper operation before reinstallation |
| Reinstallation Tips | Ensure proper alignment, tighten mounting bolts securely, reconnect fuel lines |
| Common Issues | Leaking diaphragms, clogged filters, worn check valves |
| Maintenance Tips | Regularly clean fuel system, replace filters annually, inspect for leaks |
| Safety Precautions | Work in well-ventilated area, avoid open flames, relieve fuel pressure before disassembly |
| Reference Sources | Online forums, Carter service manuals, automotive repair guides |
Explore related products
What You'll Learn
- Disassembly and Inspection: Safely disassemble pump, inspect components for wear, damage, or debris
- Cleaning and Preparation: Clean all parts thoroughly, prepare surfaces for reassembly or replacement
- Replacing Worn Parts: Identify and replace damaged diaphragms, valves, gaskets, or seals
- Reassembly Process: Reassemble pump following correct sequence, ensuring proper alignment and torque
- Testing and Adjustment: Test pump for leaks, pressure, and functionality, adjust as needed
Disassembly and Inspection: Safely disassemble pump, inspect components for wear, damage, or debris
Before diving into the rebuild process, disassembly and inspection are critical steps that can save time, money, and frustration. A 1967 Carter fuel pump is a mechanical marvel, but its components are susceptible to wear, damage, and debris accumulation over time. Start by securing the pump in a vise with protective jaws to prevent marring the surface. Using a 1/2-inch wrench, carefully remove the inlet and outlet fittings, taking note of their orientation for reassembly. Place a drain pan beneath the pump to catch any residual fuel, and ensure proper ventilation to avoid fumes.
Once the fittings are removed, focus on the pump body. With a flathead screwdriver, gently pry off the inspection cover, being cautious not to damage the gasket material. Inside, you’ll find the diaphragm, valves, and rocker arm assembly. Carefully lift the diaphragm, inspecting it for cracks, tears, or hardening—common issues in pumps over 50 years old. A compromised diaphragm will cause inefficient fuel delivery, so replacement is often necessary. Next, examine the valves for pitting or warping, as these imperfections can lead to fuel leaks. The rocker arm should move freely without binding; if it’s stiff or damaged, it may need cleaning or replacement.
Debris is a silent killer of fuel pumps, often originating from rusted fuel tanks or deteriorated fuel lines. As you disassemble, check for particles in the pump’s internal passages and on the diaphragm surface. Use a soft brush and carburetor cleaner to remove any contaminants, ensuring all components are spotless before reassembly. Pay special attention to the inlet and outlet ports, where debris tends to accumulate. A clogged passage can restrict fuel flow, leading to engine performance issues.
During inspection, document the condition of each component with notes or photos. This practice not only aids in reassembly but also helps identify recurring issues if the pump fails again. For instance, consistent wear on the diaphragm’s edges may indicate misalignment or improper installation. By analyzing these patterns, you can address root causes rather than merely replacing parts. Remember, a thorough inspection now prevents costly repairs later.
Finally, organize the disassembled parts in a clean workspace, grouping them by function or location. Labeling small components, such as screws or springs, can prevent confusion during reassembly. If any part is beyond repair, source replacements from reputable suppliers specializing in vintage Carter pumps. With a systematic approach to disassembly and inspection, you’ll gain valuable insights into the pump’s condition and lay the groundwork for a successful rebuild.
