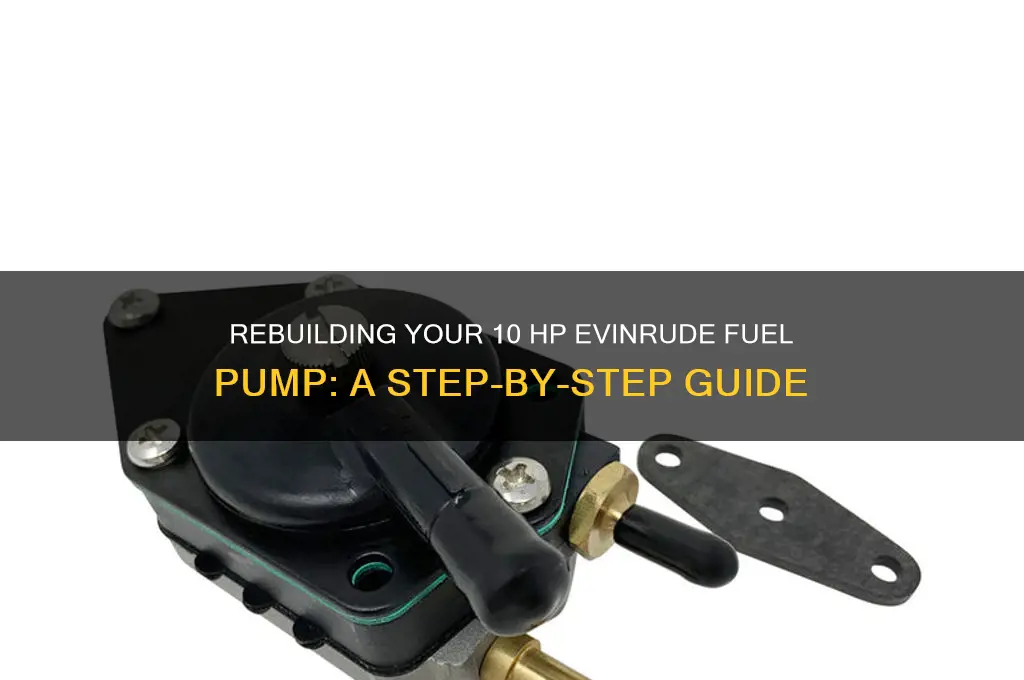

Rebuilding a 10 HP Evinrude fuel pump is a straightforward yet essential task for maintaining optimal engine performance and reliability. Over time, fuel pumps can wear out due to debris, corrosion, or normal use, leading to reduced fuel flow and potential engine issues. This process involves disassembling the pump, inspecting its components for damage or wear, replacing worn parts such as diaphragms, gaskets, or check valves, and reassembling it with precision. By following a step-by-step guide and using the correct tools, you can restore the fuel pump to its original functionality, ensuring your Evinrude outboard motor runs smoothly and efficiently. Proper maintenance not only extends the life of the engine but also prevents costly repairs down the line.
Explore related products
What You'll Learn
- Disassembling the Fuel Pump: Safely remove components, inspect for wear, and prepare for cleaning or replacement
- Cleaning Fuel Pump Parts: Use solvents to remove debris, ensuring all passages and surfaces are clear
- Replacing Worn Components: Identify and replace damaged diaphragms, gaskets, or seals with OEM parts
- Reassembling the Fuel Pump: Follow precise steps to reinstall parts, ensuring proper alignment and tightness
- Testing Fuel Pump Function: Verify operation by checking for leaks, proper pressure, and consistent fuel delivery
Disassembling the Fuel Pump: Safely remove components, inspect for wear, and prepare for cleaning or replacement
Before diving into the disassembly of a 10 HP Evinrude fuel pump, it’s critical to understand that this process requires precision and care. The fuel pump is a delicate assembly of components like the diaphragm, valves, and springs, each playing a vital role in fuel delivery. Mishandling can lead to irreversible damage, so approach this task methodically. Begin by ensuring the engine is off, and the fuel lines are disconnected to eliminate any risk of spillage or pressure buildup.
Step-by-Step Disassembly: Start by removing the pump cover, typically secured with screws or clips. Use the appropriate tools to avoid stripping fasteners. Once the cover is off, carefully lift out the diaphragm and inspect it for cracks, tears, or hardening—common signs of wear in older pumps. Next, extract the valves and springs, noting their orientation for reassembly. Evinrude pumps often use a check valve system, so ensure you identify which valve corresponds to the inlet and outlet ports. Lay out the components in order of removal to maintain clarity.
Inspection and Wear Analysis: Hold the diaphragm up to light to check for thinning or perforations, which can cause fuel leaks. Examine the valves for warping or debris buildup, as these issues can hinder proper sealing. Springs should be checked for fatigue or corrosion; a weakened spring will fail to return the diaphragm to its resting position, disrupting fuel flow. If any component shows significant wear, replacement is recommended. Genuine Evinrude parts are ideal, but high-quality aftermarket options can also suffice.
Preparing for Cleaning or Replacement: With components removed, clean the pump housing thoroughly using a solvent like carburetor cleaner to dissolve varnish and residue. Avoid abrasive materials that could scratch surfaces. For reusable parts, soak them in the same solvent for 15–20 minutes, then scrub gently with a soft brush. Dry all components completely before reassembly or further inspection. If replacing parts, ensure new components match the original specifications, particularly in terms of material and thickness.
Cautions and Practical Tips: Always work in a well-ventilated area when handling fuel system components. Keep a parts diagram handy, as Evinrude pumps can vary slightly between models. If unsure about a component’s condition, consult a service manual or experienced mechanic. Finally, organize small parts in labeled containers to prevent loss during the process. Disassembly is as much about patience as it is about skill—rushing can lead to mistakes that compromise the pump’s functionality.
