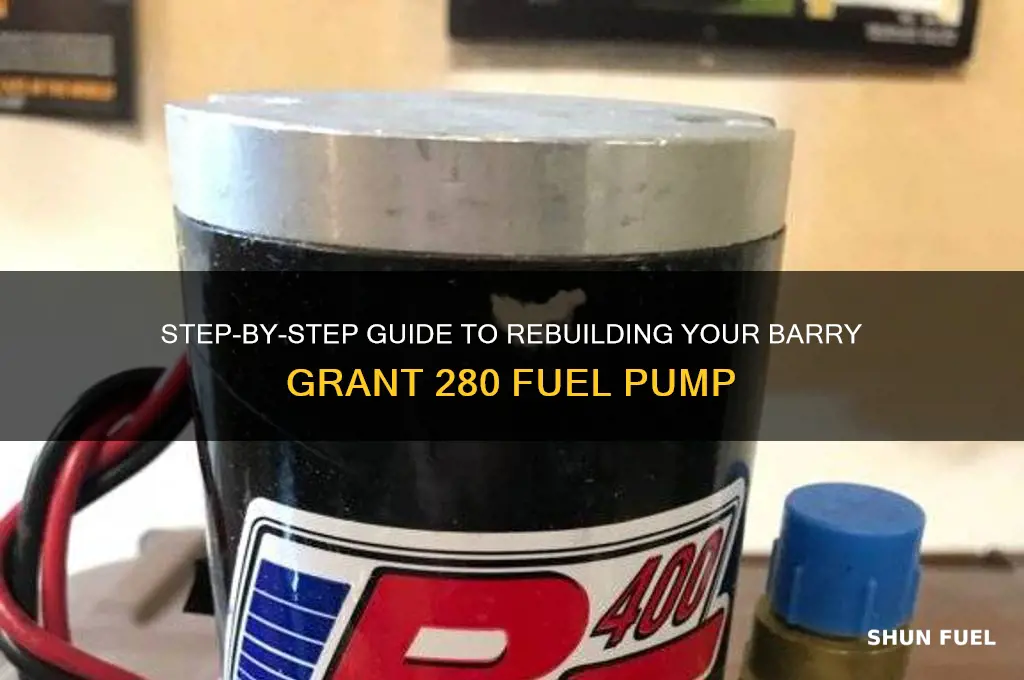

Rebuilding a Barry Grant 280 fuel pump requires careful attention to detail and a methodical approach to ensure optimal performance and reliability. This process involves disassembling the pump, inspecting all components for wear or damage, and replacing any worn parts with genuine Barry Grant replacements. Key steps include cleaning the pump body and internal mechanisms, reassembling with new gaskets and seals, and recalibrating the pressure regulator to factory specifications. Proper tools and a service manual are essential to avoid mistakes, and testing the pump post-rebuild is crucial to verify functionality before reinstallation. Whether for a classic car or high-performance application, a well-executed rebuild will restore the fuel pump’s efficiency and extend its service life.
Explore related products
What You'll Learn
- Disassembly Process: Safely remove and disassemble the Barry Grant 280 fuel pump for inspection
- Inspect Components: Check diaphragm, valves, and gaskets for wear or damage
- Clean and Prepare: Thoroughly clean all parts and prepare for reassembly
- Reassembly Steps: Reinstall components in correct order with new gaskets and seals
- Testing and Adjustment: Test pump operation and adjust pressure for optimal performance
Disassembly Process: Safely remove and disassemble the Barry Grant 280 fuel pump for inspection
Before tackling the disassembly of a Barry Grant 280 fuel pump, it’s crucial to understand that this process requires precision and care to avoid damaging internal components. The pump’s design is robust but intricate, with parts like the diaphragm, valves, and springs working in harmony to deliver fuel efficiently. Mishandling any step can compromise performance or render the pump irreparable. Always work in a clean, well-lit area and use the correct tools to ensure a successful disassembly.
Begin by relieving fuel system pressure to prevent accidental spills or injuries. Disconnect the battery and remove the fuel lines from the pump, ensuring you have a drain pan ready to catch any residual fuel. Next, unbolt the pump from its mounting bracket, taking note of the orientation of the mounting hardware for reassembly. Once removed, inspect the exterior for signs of wear, corrosion, or leaks, as these can indicate internal issues. Clean the pump housing with a solvent to remove dirt and debris, providing a clear view of the components you’ll be working with.
With the pump securely clamped or held in a vise, carefully remove the top cover by unscrewing the retaining bolts in a diagonal pattern to avoid warping. Lift the cover gently to expose the diaphragm and inner workings. Take a moment to observe the condition of the diaphragm—any cracks, tears, or deformities signal the need for replacement. Similarly, inspect the valves and springs for wear or damage. Document the position and orientation of each component as you remove them, using a labeled tray or diagram to keep track of parts and their order of removal.
As you disassemble further, pay close attention to the check valves and their seats. These components are critical for maintaining proper fuel flow and pressure. Use a soft pick or brush to clean any debris from the valve seats without scratching the surfaces. Inspect the springs for fatigue or breakage, as weakened springs can lead to inconsistent fuel delivery. If any parts show significant wear, make a note to replace them during the rebuild process.
Conclude the disassembly by thoroughly cleaning all components with a carburetor cleaner or similar solvent. Allow parts to dry completely before inspection or reassembly. This step ensures no contaminants remain that could hinder the pump’s performance. Once disassembled and cleaned, lay out all components in an organized manner, ready for inspection or replacement. This systematic approach not only simplifies the rebuild process but also ensures you address potential issues before they escalate.
