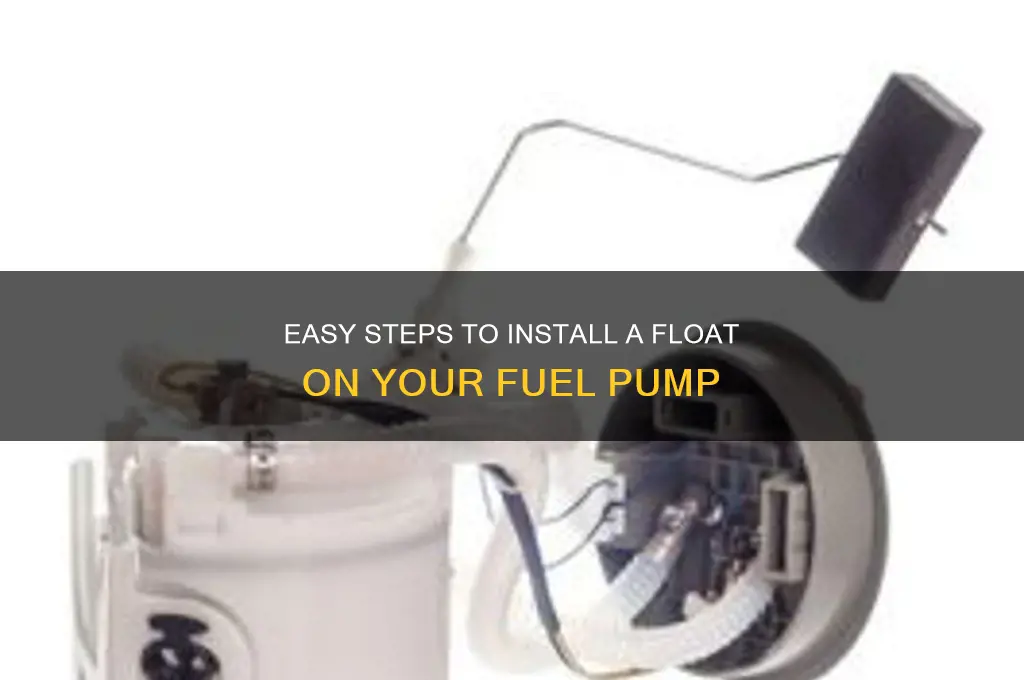

Installing a float on a fuel pump is a critical step in ensuring proper fuel level monitoring and pump functionality in vehicles or machinery. The float, typically made of lightweight material, is designed to rise and fall with the fuel level, activating a mechanism that sends signals to the fuel gauge. To put a float on a fuel pump, start by ensuring the fuel tank is empty and safely disconnected from the fuel lines. Carefully remove the fuel pump assembly, if necessary, and locate the float arm or rod. Gently slide the float onto the arm, ensuring it moves freely and aligns correctly with the fuel level sensor. Secure the float in place according to the manufacturer’s instructions, and reattach the fuel pump assembly. Test the float’s movement and gauge accuracy before reassembling the fuel system to guarantee reliable performance.
| Characteristics | Values |
|---|---|
| Fuel Pump Type | In-tank electric fuel pump (most common) |
| Float Purpose | Maintains consistent fuel level in the pump's reservoir, ensuring proper fuel supply to the engine |
| Float Material | Typically plastic or foam, designed to be buoyant in fuel |
| Float Attachment | Usually snaps or clips onto a designated arm or mechanism on the fuel pump assembly |
| Float Adjustment | Some pumps allow for minor float height adjustment to fine-tune fuel level |
| Tools Required | Basic hand tools (screwdrivers, pliers), possibly a fuel line disconnect tool |
| Safety Precautions | Work in a well-ventilated area, avoid sparks or open flames, disconnect battery before starting |
| Difficulty Level | Moderate - Requires some mechanical aptitude and understanding of fuel system components |
| Common Issues | Float sticking, cracked or damaged float, improper float height leading to fuel delivery problems |
| Replacement Frequency | Typically replaced as part of the entire fuel pump assembly, not individually |
Explore related products
What You'll Learn
- Safety Precautions: Wear gloves, goggles, ensure vehicle is off, and work in well-ventilated area
- Fuel Pump Removal: Disconnect battery, relieve fuel pressure, and remove pump from tank
- Float Installation: Attach float to pump arm, ensuring proper alignment and secure fit
- Reassembly Process: Reinstall pump into tank, reconnect fuel lines, and secure all fittings
- Testing and Verification: Check for leaks, test pump operation, and verify float functionality
Safety Precautions: Wear gloves, goggles, ensure vehicle is off, and work in well-ventilated area
Working on a fuel pump requires a meticulous approach to safety, as the task involves handling volatile substances and delicate components. Wear gloves to protect your skin from fuel exposure, which can cause irritation or absorb harmful chemicals. Nitrile gloves are ideal due to their resistance to petroleum-based products, offering both flexibility and durability. Avoid latex or vinyl gloves, as they degrade quickly when in contact with fuel.
Ensure the vehicle is off before beginning any work on the fuel pump. This prevents accidental activation of the fuel system, which could lead to spills, fires, or injuries. Disconnect the battery to eliminate any risk of electrical sparks, especially in older vehicles where wiring may be frayed or exposed. Even a small spark near fuel vapors can have catastrophic consequences, making this step non-negotiable.
Wear goggles to shield your eyes from fuel splashes or debris dislodged during the process. Fuel in the eyes can cause severe irritation or chemical burns, and the pain can be debilitating. Safety goggles with side shields provide comprehensive protection, ensuring no angle is left exposed. If working in a dimly lit area, consider goggles with anti-fog coating to maintain clear vision throughout the task.
Work in a well-ventilated area to minimize the risk of inhaling fuel vapors, which can cause dizziness, headaches, or more severe health issues. Open windows, use fans, or work outdoors if possible. Avoid using open flames or smoking nearby, as fuel vapors are highly flammable. If working in a garage, ensure proper airflow by keeping doors open and using exhaust fans to disperse fumes.
Combining these precautions creates a safer environment for installing a float on a fuel pump. Gloves, goggles, a powered-down vehicle, and good ventilation form the foundation of a risk-aware approach. Skipping any of these steps increases the likelihood of accidents, turning a routine repair into a hazardous situation. Prioritize safety to ensure the task is completed without harm to yourself or damage to the vehicle.
Do I Need to Bleed a Fuel Pump? Essential Maintenance Guide
You may want to see also
Explore related products
Fuel Pump Removal: Disconnect battery, relieve fuel pressure, and remove pump from tank
Before attempting to install a float on a fuel pump, it's crucial to understand the process of fuel pump removal, as this is often a prerequisite step. The procedure begins with a critical safety measure: disconnecting the battery. This simple action prevents accidental ignition of fuel vapors and protects the vehicle's electrical system. With the battery disconnected, the next step is to relieve the fuel pressure in the system. This can be achieved by locating the fuel pressure relief valve or Schrader valve, typically found on the fuel rail, and pressing the valve stem to release any residual pressure. It's essential to have a container ready to capture any fuel that may spill during this process.
The analytical approach to fuel pump removal reveals a systematic process designed to ensure safety and efficiency. Relieving fuel pressure is not just a precautionary step; it's a necessary measure to prevent fuel from spraying when the pump is removed. This is particularly important in modern vehicles, where fuel injection systems operate under high pressure. Failure to relieve this pressure can result in fuel spills, which pose a fire hazard and can damage the vehicle's components. Therefore, this step should never be overlooked, regardless of the urgency to access the fuel pump.
From an instructive perspective, removing the fuel pump from the tank requires a methodical approach. After disconnecting the battery and relieving fuel pressure, the next step is to access the fuel tank. This often involves removing the rear seat or a dedicated access panel, depending on the vehicle's design. Once accessed, the fuel pump module is typically secured by a locking ring or bolts. Using the appropriate tools, carefully remove these fasteners to avoid damaging the tank or pump. It's advisable to have a drain pan ready to catch any residual fuel that may leak during pump removal.
A comparative analysis highlights the differences in fuel pump removal processes across various vehicle models. For instance, some vehicles may require specialized tools to access the fuel tank or remove the pump assembly. In contrast, others might have more straightforward designs, allowing for easier removal. Additionally, the location of the fuel pump within the tank can vary, with some pumps being part of a modular assembly that includes the sending unit and float. Understanding these variations is essential for a successful removal and subsequent installation of a new float or pump.
In a descriptive context, the fuel pump removal process can be visualized as a delicate operation requiring precision and care. As the pump is extracted from the tank, it's crucial to handle it gently to avoid damaging the internal components, especially if the pump is being refurbished or inspected. The surrounding area should be clean and well-lit to ensure that no debris enters the tank during the removal process. Once the pump is out, take note of its orientation and the position of any attached components, such as the float, as this information will be vital during reinstallation or when transferring components to a new pump. This attention to detail ensures that the fuel system remains functional and safe after the repair or modification is complete.
Practical tips for this process include wearing safety goggles and gloves to protect against fuel exposure and using a non-sparking toolset to minimize fire risks. For vehicles with complex fuel systems, consulting the manufacturer's service manual can provide model-specific guidance. Additionally, if the fuel pump is being replaced, ensure that the new unit is compatible with the vehicle's make and model, and that it includes all necessary components, such as the float, for proper functionality. By following these steps and precautions, the fuel pump removal process can be completed safely and effectively, setting the stage for the successful installation of a new float or pump assembly.
Effective Methods to Unclog a Fuel Pump and Restore Engine Performance
You may want to see also
Explore related products
Float Installation: Attach float to pump arm, ensuring proper alignment and secure fit
Attaching the float to the pump arm is a critical step in fuel pump assembly, as it directly influences fuel level accuracy and pump longevity. Misalignment or a loose fit can lead to erratic readings, fuel starvation, or even mechanical failure. Begin by inspecting the pump arm and float for any signs of wear, corrosion, or debris that could compromise the connection. Clean both components with a solvent-safe cleaner and ensure the pivot point on the pump arm is free-moving but not excessively loose.
The process of securing the float requires precision and attention to detail. Position the float onto the pump arm, aligning the mounting pin or clip with the designated slot or hole. Apply gentle pressure to engage the connection, ensuring the float moves freely without binding. Over-tightening can distort the float’s shape or damage the arm, while insufficient force may result in detachment during operation. Use a torque wrench if specifications are available, typically ranging from 2 to 5 inch-pounds for small automotive pumps.
Proper alignment is equally vital to ensure the float responds accurately to fuel levels. With the pump arm in the "empty" position, verify the float rests horizontally and parallels the fuel tank’s surface. Gradually raise the arm to simulate a full tank, observing that the float tilts smoothly without catching or dragging. Misalignment can cause the pump to shut off prematurely or continue running when the tank is empty, leading to dry pump operation and potential damage.
For added security, consider using a locking mechanism such as a cotter pin or threadlocker on the mounting hardware. This is particularly important in high-vibration environments, like off-road vehicles or marine applications. After installation, perform a bench test by submerging the assembly in a container of fuel or simulated liquid. Manually move the pump arm through its full range of motion, confirming the float responds predictably and maintains its position under varying levels.
In conclusion, attaching the float to the pump arm demands a balance of mechanical precision and practical vigilance. By ensuring cleanliness, alignment, and secure fastening, you safeguard the fuel system’s reliability and extend the pump’s service life. Treat this step as the linchpin of the assembly process, as even minor errors here can cascade into significant operational issues.
Testing Your 3800 Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Reassembly Process: Reinstall pump into tank, reconnect fuel lines, and secure all fittings
The reassembly process begins with carefully lowering the fuel pump back into the tank, ensuring the float arm moves freely and doesn’t catch on any internal components. Position the pump so the fuel lines align with their original ports, avoiding kinks or sharp bends that could restrict fuel flow. This step requires patience—rushing can damage the pump or float mechanism, leading to inaccurate fuel gauge readings or pump failure.
Once the pump is seated, reconnect the fuel lines using the manufacturer’s recommended torque specifications for fittings. Over-tightening can strip threads or crack plastic components, while under-tightening risks leaks. Use a torque wrench for metal fittings and hand-tighten plastic connections, followed by a quarter-turn to ensure a secure seal. Apply thread sealant or Teflon tape to threaded fittings if specified in the repair manual, but avoid over-application to prevent debris from entering the fuel system.
Securing all fittings is critical to prevent leaks and ensure system integrity. Double-check each connection for tightness and inspect for signs of damage, such as cracks or corrosion. If the tank has a locking ring or retainer, reinstall it according to the manual’s instructions, ensuring it engages fully without binding. Failure to secure fittings properly can lead to fuel leaks, which pose a fire hazard and compromise vehicle performance.
Finally, test the system before reinstalling the tank. Cycle the ignition to pressurize the fuel lines and inspect for leaks using a spray bottle of soapy water. If no leaks are detected, proceed with tank installation, ensuring all mounting hardware is tightened to factory specifications. This meticulous approach not only ensures a successful reassembly but also extends the life of the fuel pump and maintains safety standards.
Understanding Fuel Transfer Pumps: Functionality and Operation Explained
You may want to see also
Explore related products
Testing and Verification: Check for leaks, test pump operation, and verify float functionality
Once the float is securely attached to the fuel pump, the real test begins. Before firing up the engine, a meticulous inspection for leaks is paramount. Even a minor seep can escalate into a hazardous situation. Start by pressurizing the fuel system to its operating pressure, typically around 30-60 psi depending on the vehicle. Use a fuel pressure gauge to monitor the system and a spray bottle with soapy water to detect leaks. Any bubbling at connections or seals indicates a problem that needs immediate attention.
With the leak test passed, the next step is to assess the pump’s operational efficiency. Connect a multimeter to the pump’s power terminals and measure the current draw while activating the pump. Compare the reading to the manufacturer’s specifications; deviations could signal internal wear or electrical issues. Simultaneously, observe the fuel flow rate using a graduated container. A healthy pump should deliver fuel at a rate consistent with the vehicle’s requirements, usually 1-2 gallons per minute for passenger cars.
The float’s functionality is the linchpin of the fuel pump assembly. To verify its operation, simulate fuel level changes by manually raising and lowering the float in a controlled environment. The float should respond smoothly, engaging the pump at the correct fuel levels—typically activating at 1/4 tank and disengaging at 3/4 tank. Use a calibrated ruler to measure the float’s movement range, ensuring it aligns with the sender unit’s specifications.
Practical tips can streamline this process. For instance, pre-chill the fuel pump assembly to room temperature before testing to mimic real-world conditions. If using a bench test setup, ensure the fuel tank is at least 1/3 full to provide adequate pressure. Always wear safety goggles and work in a well-ventilated area to mitigate risks associated with fuel vapors. By systematically checking for leaks, testing pump operation, and verifying float functionality, you ensure the fuel system’s reliability and safety before installation.
Hemp Fuel at the Pump: Potential Costs and Benefits Explored
You may want to see also
Frequently asked questions
A float on a fuel pump is a component that regulates the fuel level in the carburetor or fuel system. It ensures the pump delivers the correct amount of fuel, preventing overflow or fuel starvation, which is crucial for engine performance and safety.
To install a float, first disconnect the fuel line and remove the pump cover. Attach the float arm to the pump mechanism, ensuring it moves freely. Adjust the float height according to the manufacturer’s specifications, then secure the cover and reconnect the fuel line.
Basic tools such as a screwdriver, pliers, and an adjustable wrench are typically required. You may also need a fuel line disconnect tool and a torque wrench for precise adjustments.
Check the float height by referring to the manufacturer’s manual or specifications. With the pump installed, the float should allow fuel to flow without overflowing or running dry. Test the system by turning on the ignition (without starting the engine) to ensure proper fuel level regulation.
