Rebuilding a diaphragm fuel pump is a cost-effective way to restore its functionality and ensure reliable fuel delivery in older vehicles or equipment. The process involves disassembling the pump, inspecting its components for wear or damage, and replacing the diaphragm, valves, gaskets, and seals as needed. Begin by relieving fuel system pressure and disconnecting the pump from the fuel lines. Carefully remove the pump cover to access the internal mechanism, taking note of the orientation of parts for reassembly. Clean all components thoroughly to remove debris and inspect the diaphragm for cracks or tears, replacing it if necessary. Reassemble the pump with new gaskets and seals, ensuring all parts are properly aligned and tightened to manufacturer specifications. Finally, reinstall the pump, reconnect the fuel lines, and test the system for leaks and proper operation. This meticulous approach ensures the pump operates efficiently, prolonging its lifespan and maintaining optimal performance.
| Characteristics | Values |
|---|---|
| Tools Required | Screwdrivers, wrenches, pliers, new diaphragm kit, gasket sealant, cleaning solvent |
| Safety Precautions | Work in a well-ventilated area, wear safety goggles, disconnect fuel lines and relieve pressure |
| Disassembly Steps | 1. Remove pump from vehicle/system. 2. Disconnect fuel lines. 3. Remove mounting bolts. 4. Disassemble pump housing to access diaphragm. |
| Cleaning Process | Clean internal components with carburetor cleaner or solvent to remove debris and residue. |
| Inspection Points | Check diaphragm for tears, cracks, or wear. Inspect valves, springs, and gaskets for damage. |

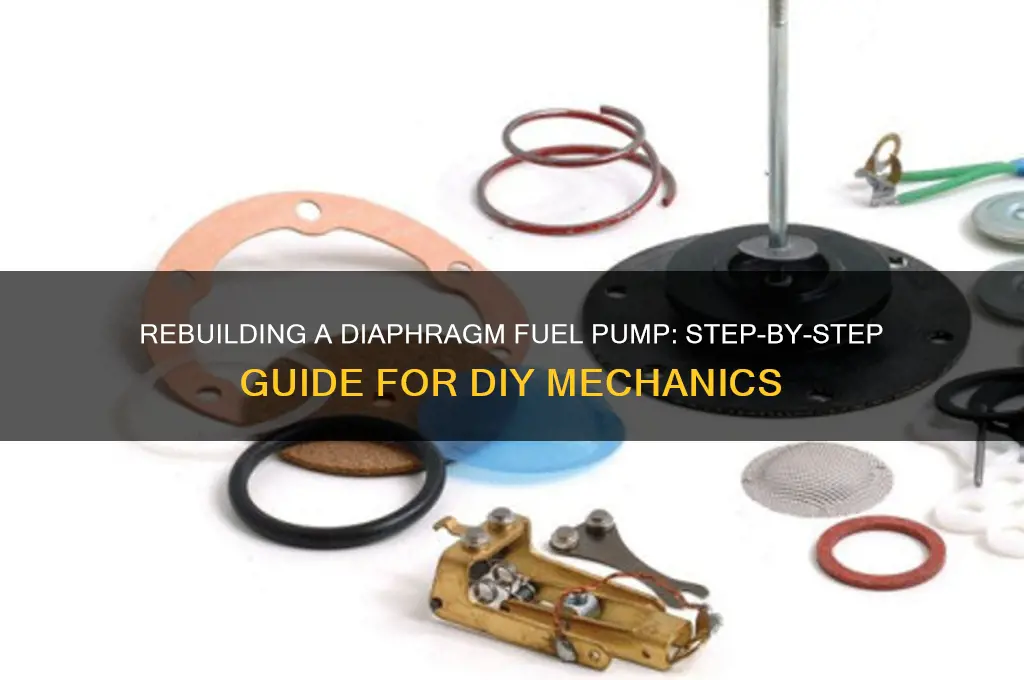

| Replacement Parts | Replace diaphragm, gaskets, O-rings, and any worn components with new parts from the kit. |
| Reassembly Steps | 1. Install new diaphragm and components in reverse order of disassembly. 2. Apply gasket sealant as needed. 3. Reattach housing and secure bolts. |
| Testing Procedure | Reconnect fuel lines, pressurize the system, and check for leaks. Test pump operation for proper fuel flow. |
| Common Issues | Leaks, reduced fuel pressure, diaphragm failure, clogged valves, or worn seals. |
| Maintenance Tips | Regularly inspect and clean the pump. Replace components at the first sign of wear. |
| Compatibility | Ensure the rebuild kit matches the specific make and model of the diaphragm fuel pump. |
| Time Required | Typically 1-2 hours depending on experience and pump complexity. |
| Cost of Rebuild Kit | Varies by brand and model, generally $20-$50 USD. |
Explore related products
What You'll Learn
- Disassembly Process: Safely remove the pump, detach components, and clean parts for inspection
- Inspect Diaphragm: Check for cracks, tears, or wear; replace if damaged or compromised
- Replace Seals/Gaskets: Install new seals, gaskets, and O-rings to ensure leak-free operation
- Reassembly Steps: Reattach components in reverse order, ensuring proper alignment and torque
- Testing Procedure: Verify pump functionality by checking for leaks and proper fuel flow
Disassembly Process: Safely remove the pump, detach components, and clean parts for inspection
The disassembly of a diaphragm fuel pump is a delicate operation that demands precision and care to avoid damage to its intricate components. Begin by ensuring the fuel system is depressurized to eliminate any risk of fuel spillage or injury. Locate the pump and disconnect the fuel lines, taking note of their orientation for reassembly. Use appropriate tools to loosen the mounting bolts, being cautious not to strip the threads or damage the pump housing. Once the pump is free, place it on a clean, flat surface to begin the next phase of disassembly.
Detaching the components of the diaphragm fuel pump requires a methodical approach to preserve the integrity of each part. Start by removing the pump cover, typically secured with screws or clips, and set it aside with its fasteners. Carefully lift the diaphragm assembly, which may be held in place by a retaining ring or plate. Inspect the diaphragm for cracks, tears, or deformities, as these are common failure points. Next, extract the check valves and inlet/outlet ports, noting their positions and conditions. Each component should be handled gently to prevent bending or breakage, especially in older pumps where material fatigue may be present.
Cleaning the parts is a critical step in the inspection process, as it reveals wear patterns and hidden defects. Use a solvent specifically designed for fuel systems to dissolve grime and varnish without damaging rubber or plastic components. For stubborn deposits, a soft-bristle brush can be employed, but avoid abrasive materials that could scratch surfaces. After cleaning, thoroughly dry each part using compressed air or a lint-free cloth. This ensures no moisture remains, which could interfere with the pump’s operation or corrode metal surfaces.
Inspection post-cleaning is where the true value of disassembly becomes evident. Examine the diaphragm for uniformity and flexibility, replacing it if it shows signs of degradation. Check the check valves for proper sealing and the ports for obstructions or corrosion. Pay close attention to the pump housing and mounting surfaces for warping or damage that could compromise performance. Document any findings, as this information will guide decisions on part replacement or repair. A systematic inspection not only ensures the pump’s functionality but also extends its lifespan by addressing issues before they escalate.
Throughout the disassembly process, organization is key to a successful rebuild. Keep fasteners and components grouped according to their original locations, using labeled containers or a workspace layout that mirrors the pump’s design. Take photographs at each stage if needed, particularly for complex assemblies. This attention to detail minimizes the risk of errors during reassembly and transforms a potentially daunting task into a manageable, even rewarding, endeavor. With patience and precision, the disassembly phase sets the foundation for a reliable and efficient fuel pump rebuild.
Testing the Fuel Pump Driver Module in a 1999 Mustang
You may want to see also
Explore related products
Inspect Diaphragm: Check for cracks, tears, or wear; replace if damaged or compromised
The diaphragm is the heart of a diaphragm fuel pump, and its integrity is non-negotiable. Even the smallest crack, tear, or sign of wear can lead to fuel leaks, reduced pump efficiency, or complete failure. Before proceeding with any rebuild, a meticulous inspection of the diaphragm is essential.
Hold the diaphragm up to a bright light source, examining both sides for any visible cracks or tears. Pay close attention to the edges and areas where the diaphragm attaches to the pump body, as these are common stress points. Run your fingers gently over the surface, feeling for any irregularities or thinning areas that could indicate wear.
While visual and tactile inspection are primary methods, consider using a magnifying glass or jeweler's loupe for a closer look, especially if the diaphragm appears aged or has been subjected to harsh conditions. Remember, a compromised diaphragm is a ticking time bomb in your fuel system. Don't risk it – if you detect any damage, replace the diaphragm immediately with a genuine OEM part or a high-quality aftermarket equivalent.
Using a damaged diaphragm, even with minor imperfections, can lead to fuel contamination, engine performance issues, and potential safety hazards.
Think of the diaphragm as the pump's lifeline. A thorough inspection, coupled with prompt replacement when necessary, ensures the longevity and reliability of your rebuilt diaphragm fuel pump. This small investment of time and effort can save you from costly repairs and downtime down the road.
Fuel Pumps and Gasoline: Preventing Explosions in Your Vehicle
You may want to see also
Explore related products
Replace Seals/Gaskets: Install new seals, gaskets, and O-rings to ensure leak-free operation
Seals, gaskets, and O-rings are the unsung heroes of a diaphragm fuel pump, ensuring that fuel flows efficiently without leaks. Over time, these components degrade due to exposure to fuel, heat, and pressure, leading to cracks, warping, or brittleness. Even a minor defect can cause fuel to escape, compromising performance and safety. Replacing these parts during a rebuild is not optional—it’s essential for restoring the pump’s integrity and functionality.
Begin by disassembling the pump carefully, noting the position and orientation of each seal and gasket for reference during reassembly. Clean the mating surfaces thoroughly with a solvent like isopropyl alcohol to remove old residue, ensuring a smooth, debris-free area for the new components. Select replacement parts that match the original specifications, including material type (e.g., nitrile rubber for fuel resistance) and dimensions. Improperly sized seals can lead to leaks or premature failure, so double-check compatibility with your pump model.
Installation requires precision. Lubricate new O-rings lightly with petroleum jelly or a compatible fuel-resistant lubricant to ease fitting and prevent tearing. Avoid over-stretching or twisting the seals during placement. For gaskets, ensure they align perfectly with mounting holes and grooves, using a gentle press-fit technique rather than forcing them into place. Torque bolts or fasteners to the manufacturer’s recommended specifications to avoid warping the housing or crushing the gaskets.
A common mistake is reusing old seals or gaskets, assuming they appear intact. Even if they look fine, microscopic damage can cause leaks under pressure. Another pitfall is over-tightening fasteners, which can deform the seals or damage the pump housing. Always follow a systematic approach: clean, inspect, replace, and reassemble with care.
By prioritizing seal and gasket replacement, you ensure the pump operates leak-free, maintaining fuel efficiency and preventing hazardous spills. This step, though often overlooked, is critical for the longevity and reliability of the rebuilt pump. Treat it as the cornerstone of your rebuild process, and you’ll avoid the frustration of recurring leaks down the road.
Does Fuel Pump Module Assembly Include the Pump? Explained
You may want to see also
Explore related products
Reassembly Steps: Reattach components in reverse order, ensuring proper alignment and torque
Reattaching components during the reassembly of a diaphragm fuel pump is a meticulous process that demands precision and patience. Begin by laying out all disassembled parts in the order they were removed, ensuring nothing is overlooked. This systematic approach not only streamlines the reassembly but also minimizes the risk of misalignment or omission. Start with the innermost components, such as the diaphragm and valves, and work outward toward the housing and mounting brackets. Each step should mirror the disassembly process in reverse, creating a logical flow that ensures every piece is correctly positioned.
Proper alignment is critical to the pump’s functionality and longevity. For instance, the diaphragm must sit flush against the pump body, with no wrinkles or gaps that could compromise its sealing ability. Use a bright light source or magnifying glass to inspect alignment, particularly when reinstalling small components like O-rings or gaskets. Misaligned parts can lead to leaks, reduced fuel pressure, or even pump failure. If a component resists fitting into place, pause and reassess—forcing it can cause damage. Instead, double-check the orientation and ensure no debris is obstructing the assembly.
Torque specifications are equally vital, as overtightening or undertightening fasteners can lead to catastrophic failure. Refer to the manufacturer’s guidelines for precise torque values, typically measured in foot-pounds (ft-lbs) or Newton-meters (Nm). For example, mounting bolts on a typical diaphragm fuel pump may require 10-15 ft-lbs of torque. Use a torque wrench to achieve accuracy, applying force steadily and evenly. If torque values are unavailable, hand-tighten until snug and then give an additional quarter-turn to secure the fastener without overloading it.
Practical tips can further enhance the reassembly process. Apply a thin coat of fuel-resistant lubricant to O-rings and gaskets to ease installation and improve sealing. When reattaching electrical connectors, ensure they click securely into place to prevent intermittent operation. Test the pump’s operation before final installation by manually actuating the diaphragm or using a compressed air source to verify movement and check for leaks. This preliminary test can save time and effort by identifying issues before the pump is mounted.
In conclusion, reassembling a diaphragm fuel pump requires a blend of methodical organization, attention to detail, and adherence to technical specifications. By reattaching components in reverse order, ensuring proper alignment, and applying the correct torque, you can restore the pump to optimal working condition. This process not only extends the pump’s lifespan but also ensures reliable fuel delivery, critical for the performance of any engine system. Approach each step with care, and the reassembled pump will function as efficiently as a newly manufactured unit.
Understanding the 698620 Carb Pump's Fuel Delivery Mechanism
You may want to see also
Explore related products
Testing Procedure: Verify pump functionality by checking for leaks and proper fuel flow
Before reassembling a diaphragm fuel pump, thorough testing ensures reliability and safety. Begin by inspecting all components for signs of wear or damage, particularly the diaphragm, valves, and seals, as these are common failure points. Even minor cracks or deformations can compromise performance, so replace any questionable parts before proceeding. This initial scrutiny sets the stage for a more precise evaluation of the pump’s functionality.
To verify proper fuel flow, connect the pump to a controlled fuel source and monitor its output under simulated operating conditions. Use a pressure gauge to measure the pump’s ability to maintain consistent pressure, typically between 3 and 5 psi for most mechanical fuel pumps. If the pressure fluctuates or fails to reach the specified range, inspect the valves for sticking or the diaphragm for stiffness, as these issues can restrict flow. A steady, uninterrupted stream of fuel indicates that the internal mechanisms are operating as intended.
Leak testing is equally critical and should be performed both statically and dynamically. Start by pressurizing the pump without running it, observing all connections, seals, and joints for fuel seepage. Even a small leak can lead to fuel starvation or safety hazards, so address any issues immediately. Next, run the pump at operating speed and repeat the inspection, as vibrations and pressure changes may reveal leaks that were not apparent at rest. Use a spray bottle with soapy water to detect leaks more easily, as bubbles will form at the escape points.
For a comprehensive assessment, compare the pump’s performance to manufacturer specifications or baseline data from a known-good unit. Note any deviations in flow rate, pressure, or efficiency, as these can indicate residual issues. If the pump fails to meet standards, disassemble and reinspect the components, focusing on areas that may have been overlooked during the initial rebuild. This comparative approach ensures that the pump not only functions but performs optimally.
Finally, consider the operational environment when interpreting test results. Factors such as temperature, fuel quality, and system demand can influence pump behavior. For example, ethanol-blended fuels may require more robust seals to prevent swelling or degradation. By accounting for these variables, you can fine-tune the pump’s performance and extend its service life. A well-executed testing procedure not only confirms functionality but also provides insights into potential long-term maintenance needs.
Fuel Pump Cleaner at Gas Stations: Availability and Benefits Explained
You may want to see also
Frequently asked questions
Common tools required include a screwdriver, wrenches, pliers, a new diaphragm kit, and a clean workspace. Always refer to the pump’s manual for specific tools.
Signs include reduced fuel flow, engine stalling, or visible leaks. Inspect the diaphragm for cracks, tears, or hardening, which indicate the need for rebuilding.
Disassemble the pump, clean all components, replace the diaphragm and any worn parts, reassemble following the manual, and test for proper operation before reinstalling.
