Fuel lines are under high pressure and must be relieved of pressure using a Schrader valve, which is usually located on the fuel rail. However, if you don't have a Schrader valve, there are alternative methods to purge fuel lines. One way is to block off the return side and briefly run the fuel pump, determining the issue by whether the system holds pressure or continues to leak. Another method is to jumper the fuel pump relay or diagnostic connector to get the fuel pump to pump gas out through the fuel line. To ensure the fuel lines are properly purged, repeat the process of re-pressurizing the fuel system and turning the ignition on and off several times. To check if the air has been purged, depress the valve and observe if fuel comes out without bubbles or spurts.
Explore related products
What You'll Learn
- Use a spare car battery and jumper wires to power the fuel pump
- Block off the return side and briefly run the fuel pump
- Use a hose attached via the Schrader valve to collect fuel
- Turn the ignition on and off repeatedly to re-pressurise the fuel system
- Depress the valve to check for fuel or pressure in the system
Use a spare car battery and jumper wires to power the fuel pump
To purge fuel lines without a Schrader valve, one method is to use a spare car battery and jumper wires to power the fuel pump directly. This can be done by connecting the jumper wires to the two larger terminals of the pump motor, which are the power and ground terminals.
Firstly, locate the fuel pump. This can vary depending on the car model, but it is often found in the engine bay or under the back seat. For example, on a 2012 S60 T5 Volvo, the connector is under the back seat on the driver's side.
Once the fuel pump is located, identify the two larger terminals. These are the power and ground terminals for the pump motor. Consult a wiring diagram for your specific vehicle to confirm the correct terminals to power the fuel pump.
After identifying the correct terminals, connect the jumper wires from the spare battery to the identified power and ground terminals. Ensure that the polarity is correct to avoid any damage.
With the jumper wires connected, you can now power the fuel pump directly. This will allow you to purge the fuel lines by running the fuel pump without starting the engine. You can attach a hose via a Schrader valve at the fuel rail to collect the fuel or lower the fuel level to prevent spills.
It is important to exercise caution when working with fuel and electricity. Ensure that you wear the appropriate safety gear, including gloves and goggles, and have rags or a container ready to catch any fuel. Additionally, ensure that you fully charge the battery and repeat the process of turning the ignition on and off to properly bleed the fuel system.
Removing Ford Black Box Fuel Line Clips: A Step-by-Step Guide
You may want to see also
Explore related products
Block off the return side and briefly run the fuel pump
If you're looking to purge your fuel lines without a Schrader valve, one method is to focus on the return side of the fuel system. The Schrader valve, usually located on the fuel rail, is a small valve that helps to relieve pressure in the fuel lines. It's similar to the valve on a bicycle or car tire and plays a crucial role in maintaining the integrity of the fuel system. However, in some cases, you might need to work on the fuel lines without the aid of this valve. Here's where blocking off the return side and briefly running the fuel pump comes into play.
By blocking off the return side, you're essentially creating a temporary restriction in the fuel system. This can be done by using a plug or a clamp to block the fuel line, preventing fuel from flowing back towards the tank. With the return side blocked, the next step is to briefly run the fuel pump. This can be done by turning the ignition to the "Run" or "On" position, just before attempting to start the vehicle. You'll hear the fuel pump activate and try to build pressure in the system.
The key here is to listen and observe. After blocking off the return side and running the fuel pump for a short period, you'll want to pay attention to any sounds or sensations coming from the fuel pump. If the fuel pump sounds like it's struggling or making unusual noises, it could indicate an issue with the pump itself. A healthy fuel pump should run smoothly and efficiently during this process. Additionally, you can use fuel pressure gauges to monitor the pressure build-up in the system.
This procedure helps to identify potential issues in the fuel system. If the fuel pressure holds steady after blocking the return side and running the pump, it suggests that the issue might lie with the pressure regulator. On the other hand, if the fuel pressure continues to leak down, it could point towards a problem with the fuel pump itself or a leak in the fuel lines. It's important to combine this test with other diagnostic techniques, such as checking for leaks or inspecting the fuel hoses and lines, to get a comprehensive understanding of the fuel system's health.
Pinching Fuel Line: Is It Safe?
You may want to see also
Explore related products
Use a hose attached via the Schrader valve to collect fuel

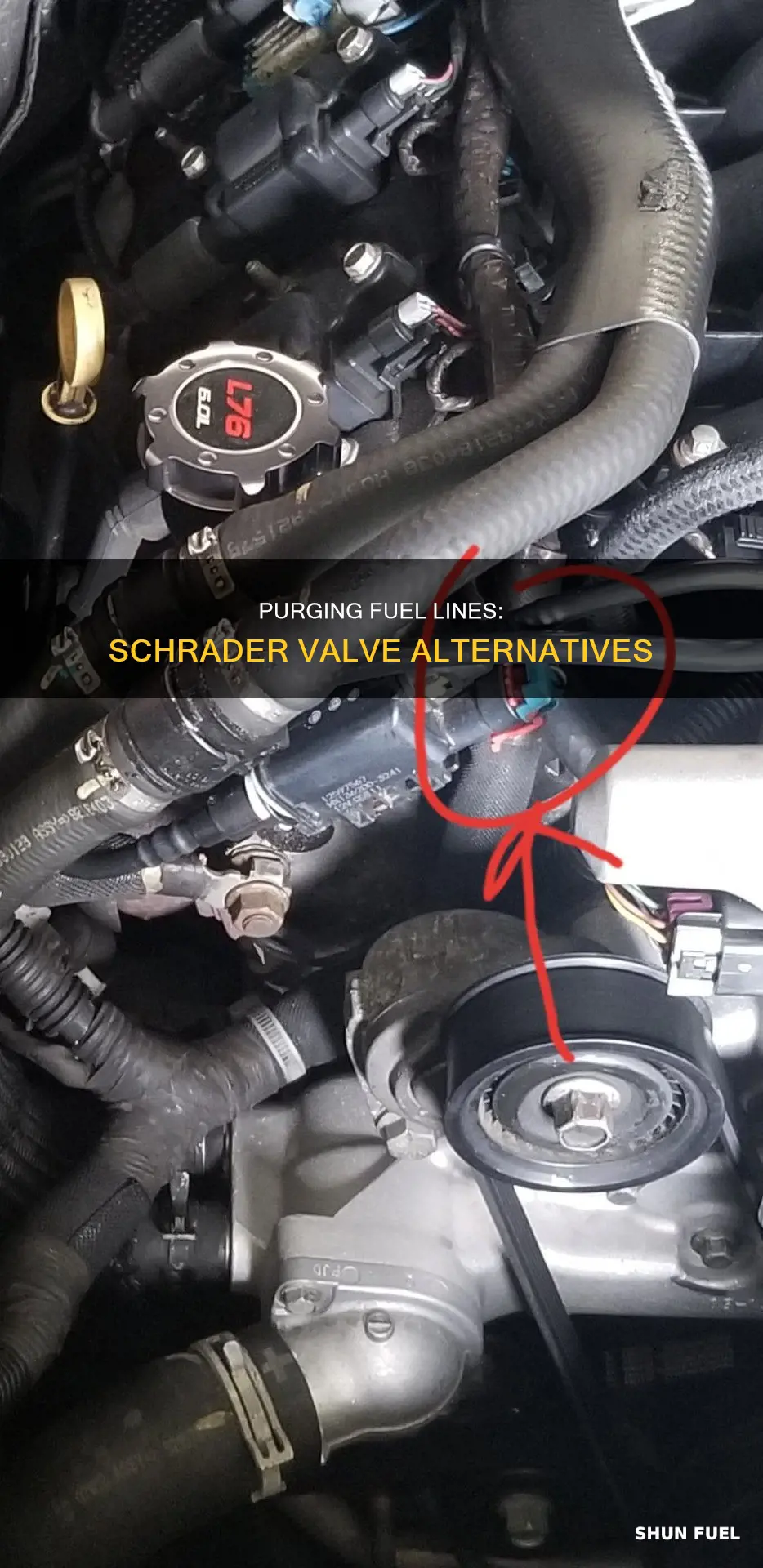

To purge fuel lines, you need to relieve the pressure in the fuel line using a Schrader valve. This is because fuel lines are under high pressure. The Schrader valve is usually located on the fuel rail, which is found at the back of the engine bay, on top of the engine towards the firewall. The Schrader valve looks like a valve stem that you would normally find on a tire.
To use a hose attached via the Schrader valve to collect fuel, you can follow these steps:
- Attach a hose to the Schrader valve: First, locate the Schrader valve on the fuel rail. Then, attach a hose to the valve, ensuring a secure connection. You can use a hose from an old bicycle pump or a spare car battery and jumper wires connected directly to the fuel pump.
- Collect the fuel: With the hose attached, open the Schrader valve to allow fuel to flow through the hose. Place a container, such as a pan or a bucket, at the other end of the hose to collect the draining fuel.
- Drain the fuel: Allow the fuel to drain through the hose into the container for a few minutes. Keep a close eye on the process to ensure the fuel is safely collected and does not overflow.
- Close the valve: After sufficient fuel has been drained, close the Schrader valve to stop the fuel flow.
- Remove the hose: Once the valve is closed, detach the hose from the Schrader valve.
- Dispose of the fuel: Properly dispose of the collected fuel in an environmentally friendly manner. Do not pour it down the drain or into the environment.
- Repeat as needed: If necessary, repeat the process until you have drained the desired amount of fuel or completed the required maintenance task.
It is important to exercise caution when working with fuel lines and flammable liquids. Ensure proper ventilation, avoid open flames or sparks, and wear appropriate safety gear, including gloves and eye protection. Always refer to your vehicle's manual or seek professional guidance if you are unsure about any steps or procedures.
Fuel Pump Bypass: Can External In-Line Pump Work?
You may want to see also
Explore related products
Turn the ignition on and off repeatedly to re-pressurise the fuel system
To purge fuel lines without a Schrader valve, you must first relieve the pressure in the fuel lines. The Schrader valve is usually located on the fuel rail and is used to release pressure and purge air from the system. Once you have done this, you can move on to the next steps.
Now, to re-pressurise the fuel system, locate the valve and shut it. Then, turn the ignition to the "on" position. This is the position just before the crank position, where you attempt to start the vehicle. You will hear the fuel pump prime the system. Once the pump stops, turn the ignition off and then on again, allowing the system to pressurise. Repeat this process several times. This will ensure that your fuel system is properly bled and functioning as it should.
It is important to note that the ignition system plays a crucial role in the combustion process. Ignition systems light the air-fuel combination, starting the combustion process and causing quick combustion and energy release. The timing of the spark is also essential for optimal engine performance, fuel efficiency, and emissions management.
By turning the ignition on and off repeatedly, you are essentially priming the fuel pump and giving it extra revolutions before the engine starts. This can have several advantages, such as improving the starting process and ensuring that the PCM receives all the readings from the various sensors. However, some have argued that this could potentially cause more problems than it prevents.
Air in Fuel Line: Signs and Symptoms to Watch For
You may want to see also
Explore related products
Depress the valve to check for fuel or pressure in the system
Depressing the valve is a crucial step in checking for fuel or pressure in the system. This process involves releasing pressure and purging air from the fuel lines. Here's a detailed guide on how to depress the valve:
Firstly, open the hood of your vehicle and locate the fuel rail, which is typically found towards the back of the engine bay, on top of the engine, near the firewall. The fuel rail is where you'll find the Schrader valve, which plays a key role in pressure release. The Schrader valve resembles a typical valve stem found on a tire.
To depress the valve and check for fuel or pressure, follow these steps:
- Remove the cap from the Schrader valve on the fuel rail. This will expose the valve core.
- Attach a fuel pressure tester or gauge securely to the Schrader valve. Ensure a tight connection to prevent any fuel leaks during the process.
- If your fuel pressure tester is equipped with a pressure relief hose, route it to a suitable container, such as a fuel can, to collect any released fuel. This step ensures that the fuel is safely captured and can be reused if needed.
- With the tester or gauge in place, turn the ignition switch to the "on" position without starting the engine. This will activate the fuel pump, allowing it to pressurize the fuel system.
- Observe the fuel pressure gauge to read the current fuel pressure. If the pressure readings are erratic or outside the specified range, it may indicate an issue with the fuel pressure regulator or sensor.
- After taking the fuel pressure reading, depress the Schrader valve to release the pressure and purge air from the system. This step ensures that any built-up pressure is safely released.
- Repeat the process of pressurizing the system and releasing pressure through the Schrader valve a few times to ensure that the fuel lines are thoroughly purged.
- Once you've completed the pressure release and purging process, remember to wipe up any spilled fuel and securely replace the cap on the Schrader valve.
By following these steps and depressing the valve, you can effectively check for fuel or pressure in the system, ensuring the safe and efficient operation of your vehicle's fuel system.
Understanding Line Fuel Demand Valves: Their Function and Importance
You may want to see also
Frequently asked questions
You can purge fuel lines without a Schrader valve by locating the fuel rail, blocking off the return side, and running the fuel pump. If it keeps leaking, replace the fuel pump. If it holds, replace the pressure regulator.
The fuel rail is usually located towards the back of the engine bay, on top of the engine towards the firewall.
If you are unable to locate the Schrader valve, you can try to jump the fuel pump relay or use a diagnostic connector to get the fuel pump to pump the gas out through a fuel line.
To purge a fuel line, you will need a screwdriver or any pointy object to depress the centre pin on the valve. You will also need a cup to catch any spraying fuel and safety glasses for protection.
