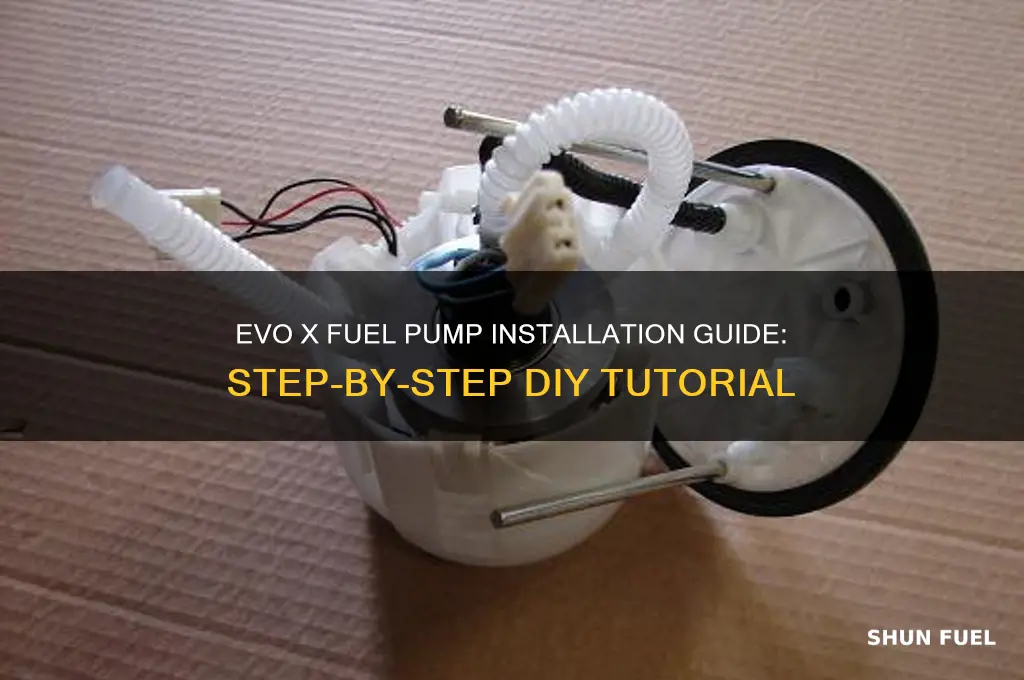

Installing a fuel pump in an Evo X requires careful preparation and attention to detail to ensure optimal performance and safety. Begin by gathering the necessary tools and a compatible fuel pump kit specifically designed for the Evo X. Start by disconnecting the battery to prevent any electrical mishaps. Locate the fuel pump assembly, typically found in the fuel tank, and relieve the fuel system pressure before proceeding. Remove the rear seats and the access panel to gain access to the fuel pump. Carefully disconnect the electrical connectors and fuel lines, taking note of their positions for reassembly. Remove the retaining bolts and extract the old fuel pump, then install the new one, ensuring it is securely seated. Reattach the fuel lines and electrical connectors, double-checking for tightness and proper alignment. Once installed, reassemble the access panel and rear seats, then reconnect the battery. Finally, test the fuel pump by starting the engine and checking for any leaks or abnormalities. Following these steps will help ensure a successful and efficient fuel pump installation in your Evo X.
| Characteristics | Values |
|---|---|
| Vehicle Model | Mitsubishi Lancer Evolution X (Evo X) |
| Fuel Pump Type | In-Tank High-Pressure Fuel Pump (OEM or Aftermarket) |
| Tools Required | Socket Set, Wrenches, Screwdrivers, Pliers, Jack, Jack Stands, Fuel Line Disconnect Tools |
| Safety Precautions | Relieve Fuel Pressure, Disconnect Battery, Work in Well-Ventilated Area |
| Steps | 1. Relieve Fuel Pressure 2. Disconnect Battery 3. Remove Rear Seats and Fuel Pump Access Panel 4. Disconnect Fuel Lines and Electrical Connector 5. Remove Old Fuel Pump 6. Install New Fuel Pump 7. Reconnect Fuel Lines and Electrical Connector 8. Reinstall Access Panel and Seats 9. Test for Leaks and Functionality |
| Estimated Time | 2-4 Hours (Depending on Experience) |
| Difficulty Level | Intermediate to Advanced |
| Common Issues | Fuel Line Leaks, Electrical Connector Malfunction, Improper Sealing |
| Recommended Parts | OEM Fuel Pump, Fuel Filter, Fuel Line Quick Disconnect Tools |
| Additional Tips | Use a Fuel Pressure Gauge to Ensure Proper Installation, Double-Check Connections |
| Reference Sources | EvoXForums, Mitsubishi Service Manual, YouTube Tutorials |
