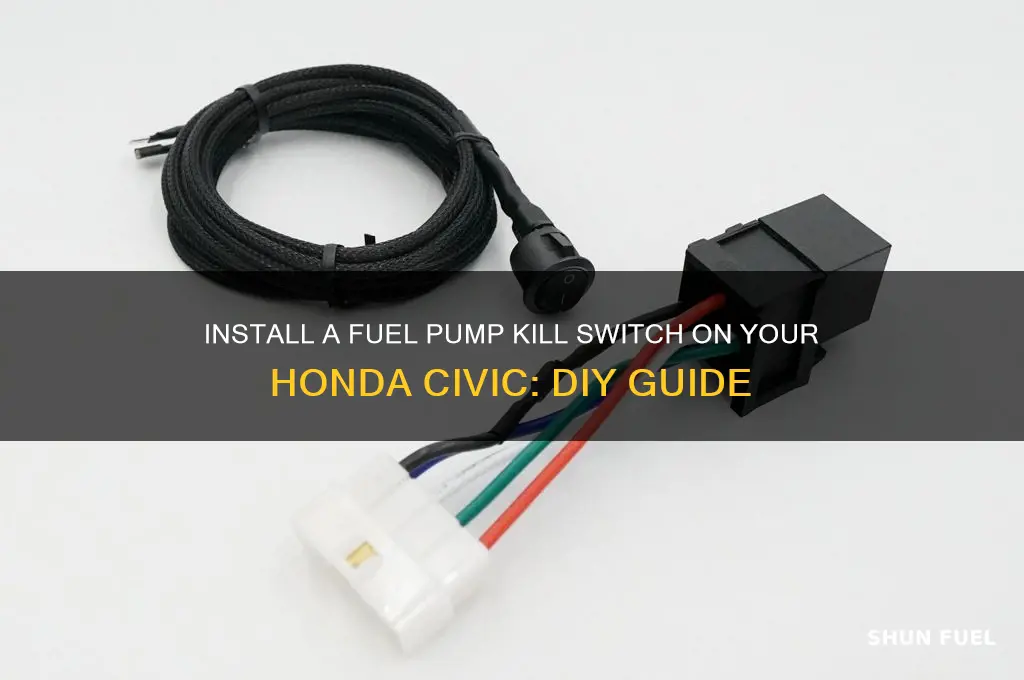

Installing a fuel pump kill switch on a Honda Civic is a practical modification for enhancing vehicle security or for use in racing applications. This switch allows you to quickly cut off the fuel supply to the engine, effectively immobilizing the car. The process involves locating the fuel pump wiring harness, typically found in the trunk area near the fuel tank access panel, and splicing in the kill switch. Before beginning, ensure the car is turned off and the battery is disconnected to prevent electrical hazards. You’ll need basic tools like wire strippers, crimp connectors, and a soldering iron for a clean installation. Properly securing the switch in an accessible yet discreet location is crucial for both functionality and aesthetics. Always test the system thoroughly after installation to ensure it operates as intended.
| Characteristics | Values |
|---|---|
| Vehicle Compatibility | Honda Civic (specific years may vary, typically 1992-2000 models) |
| Tools Required | Wire strippers, crimp connectors, soldering iron, heat shrink tubing, multimeter, screwdriver |
| Parts Needed | Toggle switch, 12-gauge wire, inline fuse holder, 10A fuse, electrical tape |
| Location of Fuel Pump Wire | Typically found in the engine bay fuse box or under the dashboard (consult wiring diagram) |
| Wiring Color | Usually a yellow or blue wire (confirm with vehicle-specific diagram) |
| Switch Installation Location | Under the dashboard or in a discreet, easily accessible area |
| Wiring Configuration | Connect the switch in series with the fuel pump wire to cut power when activated |
| Safety Precautions | Disconnect the battery before starting, ensure proper grounding, and use an inline fuse |
| Testing Procedure | Turn the ignition on, flip the switch to verify fuel pump activation/deactivation |
| Legal Considerations | Check local laws regarding anti-theft devices and vehicle modifications |
| Difficulty Level | Intermediate (basic electrical knowledge required) |
| Estimated Time | 1-2 hours depending on experience and vehicle accessibility |
| Additional Tips | Use heat shrink tubing for waterproof connections, label wires for future reference |
Explore related products
What You'll Learn
- Gather Tools & Materials: Wire cutters, crimpers, switch, fuse tap, electrical tape, and Honda Civic wiring diagram
- Locate Fuel Pump Wire: Identify fuel pump wire in the factory wiring harness near the driver’s seat
- Install Switch Inline: Cut fuel pump wire, connect switch using wire connectors, and secure with electrical tape
- Mount Kill Switch: Choose accessible location (e.g., under dash), drill hole, and secure switch with screws
- Test & Verify: Start car, flip switch to cut power, ensure engine stalls, then restore power
Gather Tools & Materials: Wire cutters, crimpers, switch, fuse tap, electrical tape, and Honda Civic wiring diagram
Before diving into the installation of a fuel pump kill switch on your Honda Civic, it's crucial to assemble the right tools and materials. This step is often overlooked, but it’s the foundation of a successful and safe installation. Wire cutters and crimpers are essential for modifying and connecting wires, ensuring clean cuts and secure joints. A reliable switch, preferably weatherproof, will serve as the control mechanism for your kill switch. A fuse tap allows you to safely integrate the switch into your vehicle’s electrical system without splicing directly into the wiring harness. Electrical tape, while simple, is indispensable for insulating connections and preventing shorts. Lastly, a Honda Civic wiring diagram is your roadmap, providing critical insights into the fuel pump circuit and ensuring you don’t inadvertently damage your vehicle’s electrical system.
Analyzing the tools and materials reveals their interconnected roles in the installation process. Wire cutters and crimpers, for instance, are not just about cutting and connecting wires—they’re about precision. A poorly crimped connection can lead to intermittent functionality or even failure of the kill switch. The fuse tap, often underestimated, acts as a safeguard, allowing you to tap into the fuel pump’s power source without compromising the integrity of the original wiring. Electrical tape, though basic, is a preventive measure against moisture and debris, which can corrode connections over time. The wiring diagram, meanwhile, is your safeguard against costly mistakes, ensuring you target the correct wires and avoid damaging unrelated circuits.
From a practical standpoint, here’s how to use these tools effectively: Start by using the wire cutters to trim the wires to the appropriate length, ensuring enough slack for movement but not so much that they become tangled. When crimping connectors, apply firm, even pressure to create a secure bond. Install the fuse tap by locating the fuel pump fuse in the fuse box and inserting the tap in its place. Connect the switch to the fuse tap, ensuring polarity is correct (typically, the constant power wire is connected to one side of the switch, and the fuel pump wire to the other). Wrap all exposed connections with electrical tape, taking care not to leave gaps. Finally, refer to the wiring diagram throughout the process to verify wire colors and locations, as Honda Civics may vary by model year.
A comparative look at these materials highlights their importance relative to DIY alternatives. For example, while some might attempt to splice wires directly instead of using a fuse tap, this method risks damaging the wiring harness and voiding warranties. Similarly, skipping the wiring diagram could lead to targeting the wrong wires, such as confusing the fuel pump wire with the fuel injector wire. The switch itself, if not weatherproof, could fail prematurely due to moisture exposure, especially in under-hood environments. Each tool and material, therefore, serves a specific purpose that cannot be adequately replaced by improvisation.
In conclusion, gathering the right tools and materials is not just a preliminary step—it’s a critical investment in the longevity and safety of your fuel pump kill switch installation. Wire cutters, crimpers, a switch, fuse tap, electrical tape, and a wiring diagram work in tandem to ensure a clean, reliable, and safe modification. By understanding their roles and using them correctly, you’ll not only complete the installation efficiently but also maintain the integrity of your Honda Civic’s electrical system. Treat this step with the attention it deserves, and the rest of the process will fall into place seamlessly.
