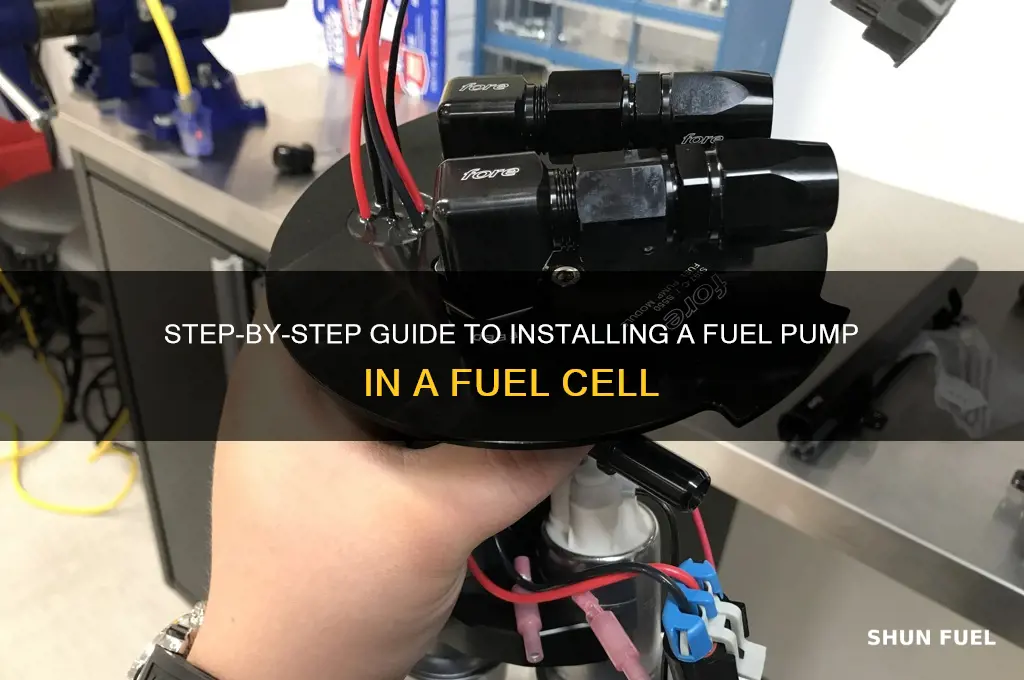

Installing a fuel pump in a fuel cell is a critical process that requires precision and attention to detail to ensure safety, efficiency, and reliability. The first step involves selecting a fuel pump compatible with the fuel cell's size, material, and fuel type, followed by preparing the fuel cell by cleaning it thoroughly to remove any debris or contaminants. Next, the fuel pump must be securely mounted inside the fuel cell, typically using a mounting plate or bracket, ensuring it is positioned correctly to avoid interference with the fuel pickup and to maintain proper fuel flow. Electrical connections should be made carefully, using high-quality wiring and waterproof connectors to prevent fuel contamination or electrical shorts. Finally, the system should be tested for leaks and proper operation, with the fuel pump primed and the fuel lines checked for any signs of damage or improper installation. Following these steps ensures a safe and functional fuel system, essential for optimal vehicle performance.
| Characteristics | Values |
|---|---|
| Fuel Cell Type | Universal (varies by application: racing, marine, automotive, etc.) |
| Fuel Pump Compatibility | Ensure pump is compatible with fuel type (e.g., ethanol, gasoline, diesel) and flow rate requirements |
| Mounting Location | Inside fuel cell (submersible pump) or external (external pump with pickup tube) |
| Pump Orientation | Submersible pumps must be installed upright; external pumps follow manufacturer guidelines |
| Wiring Requirements | 12V or 24V power supply, relay, fuse, and proper grounding |
| Hoses/Fittings | Use fuel-resistant hoses (e.g., rubber or nylon) and AN fittings for secure connections |
| Ventilation | Ensure fuel cell is properly vented to prevent pressure buildup |
| Safety Measures | Install rollover valve (if applicable), use non-sparking tools, and follow local regulations |
| Pump Flow Rate | Match pump flow rate to engine fuel demand (e.g., 30-100+ GPH) |
| Pickup Tube Installation | For external pumps, ensure pickup tube reaches bottom of fuel cell and is secured |
| Sealing | Use fuel-resistant sealant (e.g., RTV silicone) for all connections and mounting points |
| Testing | Pressure test all lines and connections before operation; check for leaks |
| Maintenance | Regularly inspect pump, hoses, and fittings for wear or damage |
| Tools Required | Wrenches, screwdrivers, hose clamps, drill (if mounting externally), and safety equipment |
| Installation Time | 2-6 hours (varies by complexity and experience) |
| Cost | $100-$500+ (pump, fittings, hoses, and additional components) |
Explore related products
What You'll Learn
- Gather Tools and Materials: Fuel pump, fuel cell, wrenches, hoses, clamps, sealant, safety gear
- Prepare Fuel Cell: Clean cell, inspect for damage, ensure proper orientation and mounting location
- Install Fuel Pump: Secure pump inside cell, connect wiring, ensure grounding and waterproofing
- Connect Fuel Lines: Attach hoses, use clamps, check for leaks, ensure proper flow direction
- Test and Verify: Fill cell, check pump operation, inspect for leaks, confirm functionality
Gather Tools and Materials: Fuel pump, fuel cell, wrenches, hoses, clamps, sealant, safety gear
Before diving into the installation of a fuel pump in a fuel cell, it’s critical to assemble the right tools and materials. This step is not just about having what you need—it’s about ensuring safety, efficiency, and longevity of the system. Start by verifying the compatibility of your fuel pump with the fuel cell, as mismatched components can lead to leaks, inefficiency, or even failure. The fuel pump must be rated for the type of fuel you’re using (e.g., gasoline, ethanol, or diesel) and sized appropriately for the cell’s capacity. Similarly, inspect the fuel cell for any damage or wear, as a compromised cell can render the entire setup hazardous.
Next, gather your tools with precision. Wrenches are essential, but ensure they match the size of your fittings—using the wrong size can strip threads or damage connections. Hoses should be fuel-resistant and of the correct diameter to avoid kinking or leakage. Clamps must be tight enough to secure hoses but not so tight as to crush them; a torque wrench can help achieve the right balance. Sealant is another critical component, but use it sparingly—excess can clog lines, while too little may result in leaks. Opt for a high-temperature, fuel-resistant sealant to ensure durability under harsh conditions.
Safety gear is non-negotiable. Fuel systems pose risks of fire, fumes, and chemical exposure, so equip yourself with nitrile gloves, safety goggles, and a fire extinguisher rated for fuel fires (Class B). Work in a well-ventilated area and avoid open flames or sparks. If you’re unsure about any step, consult a professional—compromising on safety can have severe consequences.
Finally, organize your workspace to streamline the installation process. Lay out all tools and materials within reach to avoid mid-task interruptions. Label hoses and fittings if necessary to prevent confusion during assembly. A systematic approach not only saves time but also reduces the likelihood of errors. By meticulously preparing your tools and materials, you set the foundation for a successful and safe fuel pump installation.
Paying with Cash at Fuel Pumps: A Step-by-Step Guide to Filling Gas
You may want to see also
Explore related products
Prepare Fuel Cell: Clean cell, inspect for damage, ensure proper orientation and mounting location
Before installing a fuel pump in a fuel cell, the cell itself must be meticulously prepared to ensure safety, efficiency, and longevity. Start by thoroughly cleaning the fuel cell to remove any debris, dust, or contaminants that could compromise the pump’s performance or clog its internal components. Use a mild solvent or degreaser and a soft cloth, avoiding abrasive materials that might scratch the cell’s surface. Pay special attention to the interior, as even small particles can cause significant issues once the pump is operational.
Inspection for damage is the next critical step. Examine the fuel cell for cracks, dents, or signs of corrosion, particularly around welds and seams. Even minor damage can lead to fuel leaks or structural failure under pressure. If any defects are found, assess whether they can be repaired or if the cell needs replacement. For example, small cracks in aluminum cells can sometimes be TIG-welded, but always consult a professional for such repairs. Remember, a compromised fuel cell is a safety hazard and should never be used in a high-performance or racing application.
Proper orientation and mounting location are equally vital for optimal fuel pump operation. Ensure the fuel cell is installed in the correct position as specified by the manufacturer, typically with the pump inlet submerged in fuel to prevent aeration. Mount the cell securely, using brackets or straps designed to withstand the forces of your vehicle’s intended use. For instance, in racing applications, use aerospace-grade straps and ensure the mounting points are reinforced to handle high G-forces. Improper orientation or mounting can lead to fuel starvation, pump failure, or even dangerous fuel sloshing during hard cornering or acceleration.
Finally, consider the environment in which the fuel cell will operate. If the vehicle is exposed to extreme temperatures, ensure the cell and pump are rated for such conditions. For example, in desert racing, use a fuel cell with a reflective outer coating to minimize heat absorption, and choose a pump with a high-temperature rating. Conversely, in cold climates, insulate the cell to prevent fuel gelling and ensure the pump’s motor is capable of starting in subzero temperatures. By addressing these environmental factors, you’ll maximize the system’s reliability and performance.
Understanding Beckett Fuel Pump Solenoid Valve Functionality and Operation
You may want to see also
Explore related products
Install Fuel Pump: Secure pump inside cell, connect wiring, ensure grounding and waterproofing
Securing the fuel pump inside the fuel cell is the foundation of a reliable installation. Begin by selecting a mounting location that ensures the pump’s intake is fully submerged in fuel, even during aggressive driving or extreme angles. Use stainless steel or aluminum brackets to secure the pump, avoiding any materials prone to corrosion. Fasten the brackets with self-locking nuts or threadlocker to prevent vibration-induced loosening. Ensure the pump’s orientation aligns with the manufacturer’s guidelines, typically with the inlet and outlet ports facing downward to minimize airlock risks. Double-check clearance around the pump to avoid interference with the fuel cell’s internal structure or other components.
Connecting the wiring is a critical step that demands precision and safety. Use high-quality, fuel-resistant wiring rated for automotive applications, such as TXL or GPT wire. Strip and solder the connections, then seal them with heat-shrink tubing to prevent short circuits. Route the wires away from hot surfaces like exhaust systems, using split loom or braided sleeving for added protection. Connect the pump’s power and ground wires to a dedicated relay or fuse, ensuring the circuit is protected against overcurrent. Test the wiring with a multimeter before final installation to confirm continuity and proper grounding.
Grounding is often overlooked but essential to prevent electrical interference and ensure safe operation. Establish a solid ground connection by attaching the pump’s ground wire directly to the vehicle’s chassis or a designated grounding point, avoiding paint or rust that could compromise conductivity. Use a star washer or sand the contact area to improve the connection. Verify the ground path with a multimeter, aiming for a resistance of less than 0.1 ohms. Poor grounding can lead to erratic pump behavior or damage to the vehicle’s electrical system, so this step is non-negotiable.
Waterproofing is the final safeguard against moisture intrusion, which can corrode connections and compromise performance. Apply silicone sealant or RTV around the pump’s wiring entry point into the fuel cell, ensuring a watertight seal. Use waterproof connectors for external wiring, such as Deutsch or Packcon plugs, and seal them with dielectric grease. Inspect all seals and connections periodically, especially after exposure to harsh weather or off-road conditions. Proper waterproofing not only extends the pump’s lifespan but also prevents fuel leaks that could pose a fire hazard.
By meticulously securing the pump, connecting the wiring, ensuring grounding, and applying waterproofing measures, you create a robust fuel pump installation that balances performance and safety. Each step builds on the last, forming a cohesive system that operates reliably under the most demanding conditions. Whether for racing, off-roading, or custom builds, this approach ensures your fuel delivery system remains efficient, safe, and durable.
Choosing the Right Fuel Pump for Your 2001 Chevy Silverado
You may want to see also
Explore related products
$239.99
Connect Fuel Lines: Attach hoses, use clamps, check for leaks, ensure proper flow direction
Connecting fuel lines is a critical step in installing a fuel pump in a fuel cell, as it ensures the safe and efficient transfer of fuel. Begin by attaching the hoses to the fuel pump and fuel cell fittings, ensuring a snug fit to prevent disconnection under pressure. Use high-quality, fuel-resistant hoses designed for your specific fuel type, such as ethanol-compatible hoses for E85 setups. Secure each connection with stainless steel clamps, tightening them evenly to avoid damaging the hoses while maintaining a leak-proof seal. Overtightening can crush the hose, while undertightening risks leaks, so aim for a firm but controlled grip.
Once the hoses are clamped, inspect each connection for potential leaks. A simple yet effective method is to apply a soapy water solution to the joints and look for bubbles, which indicate escaping fuel vapor. For a more thorough check, pressurize the system to its operating pressure and reinspect. This step is non-negotiable, as even minor leaks can lead to hazardous fuel spills or system failures. If leaks are detected, recheck the clamps and hose alignment before reassessing.
Flow direction is another critical aspect often overlooked. Ensure the fuel lines are connected in the correct orientation, typically from the fuel cell to the pump’s inlet and from the pump’s outlet to the engine. Reversed flow can reduce pump efficiency or cause damage. Refer to the pump’s datasheet or markings (often indicated by arrows) to confirm proper direction. In racing or high-performance applications, consider using one-way check valves to prevent backflow, especially during hard braking or cornering.
Practical tips can streamline this process. Pre-assemble and clamp the hoses before final installation to save time and ensure accessibility. Use a hose cutter for clean, perpendicular ends, which improve sealing. Keep a fire extinguisher nearby as a safety precaution, and work in a well-ventilated area to minimize fume exposure. Finally, test the system under simulated load conditions, such as priming the pump or running the engine briefly, to validate flow and detect any hidden issues before full operation.
Understanding Fuel Pump Voltage Requirements for Optimal Vehicle Performance
You may want to see also
Explore related products
$61.02 $65.98
Test and Verify: Fill cell, check pump operation, inspect for leaks, confirm functionality
Once the fuel pump is installed in the fuel cell, the critical phase of testing and verification begins. Start by filling the cell to the recommended level, typically 80-90% of its capacity, to ensure optimal pump performance and prevent air pockets. Use a high-quality fuel resistant to ethanol to avoid compatibility issues that could lead to leaks or pump failure. Observe the fuel level through the sight glass or gauge, if available, to confirm accuracy. This initial step sets the stage for assessing the system’s integrity and functionality.
Next, activate the pump and monitor its operation closely. Listen for unusual noises, such as grinding or whining, which could indicate misalignment or mechanical issues. Measure the fuel pressure using a gauge at the pump outlet; it should match the manufacturer’s specifications, usually between 30-60 PSI for most automotive applications. Compare the flow rate to the expected value by timing how long it takes to fill a calibrated container. Any deviations suggest potential blockages, faulty wiring, or incorrect pump sizing, requiring immediate investigation.
Inspecting for leaks is a meticulous but essential task. Use a spray bottle with soapy water to mist all connections, fittings, and seals while the pump is running. Bubbles forming at any point indicate a leak, even if fuel is not visibly escaping. Pay special attention to areas where the pump mounts to the cell and where hoses connect, as these are common failure points. Address leaks promptly by tightening fittings or replacing damaged components, ensuring all connections are torqued to the manufacturer’s specifications.
Finally, confirm functionality by simulating real-world conditions. Run the pump continuously for 15-20 minutes, monitoring temperature and pressure stability. If the system is part of a vehicle, start the engine and observe fuel delivery under load. Ensure the pump maintains consistent pressure and flow, adjusting the regulator if necessary. This comprehensive verification process not only ensures the installation is correct but also safeguards against failures that could compromise safety or performance.
Step-by-Step Guide to Rebuilding a Dual Fuel Pump Efficiently
You may want to see also
Frequently asked questions
You will need basic hand tools such as wrenches, screwdrivers, a drill (if mounting holes are required), a torque wrench, and safety equipment like gloves and safety goggles. Additionally, ensure you have the correct fittings, hoses, and clamps for the fuel pump and fuel cell.
Ground the fuel pump by securely connecting its ground wire to a clean, unpainted metal surface on the vehicle’s chassis or the fuel cell itself. Use a grounding strap or terminal for a reliable connection, and ensure there is no corrosion or paint interfering with the contact.
The fuel pump should be installed with the inlet facing downward to ensure it remains submerged in fuel, preventing airlocks and ensuring consistent fuel delivery. Follow the manufacturer’s instructions for specific orientation requirements.
Use the mounting bracket provided with the fuel pump or fabricate a custom bracket to secure it in place. Ensure the bracket is firmly attached to the fuel cell and that the pump is not in contact with the fuel cell walls to avoid vibration or damage. Double-check all connections and fasteners for tightness.
