Installing a fuel pump in a 1996 Toyota Camry requires careful preparation and attention to detail. Begin by ensuring the vehicle is safely parked on a level surface, the engine is cool, and the fuel system is depressurized to avoid accidents. Disconnect the negative battery terminal to prevent electrical hazards, then locate the fuel pump, which is typically housed inside the fuel tank. Access the tank by removing the rear seat or trunk lining, depending on the model. Carefully lower the tank after disconnecting the fuel lines and electrical connectors, then remove the old fuel pump and replace it with the new one, ensuring all gaskets and seals are intact. Reinstall the tank, reconnect all components, and test the system for leaks before starting the engine. Always refer to the vehicle’s service manual for specific instructions and safety guidelines.
| Characteristics | Values |
|---|---|
| Vehicle Model | 1996 Toyota Camry |
| Fuel Pump Location | Inside the fuel tank |
| Tools Required | Socket set, wrenches, screwdriver, pry bar, safety goggles, gloves, jack, jack stands |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in well-ventilated area |
| Steps to Access Fuel Pump | 1. Remove rear seat cushion 2. Disconnect fuel pump electrical connector 3. Remove fuel pump access cover |
| Fuel Pump Removal | 1. Disconnect fuel lines 2. Remove retaining ring or bolts securing the pump 3. Lift pump assembly out of the tank |
| Fuel Pump Installation | 1. Install new pump assembly 2. Secure with retaining ring or bolts 3. Reconnect fuel lines and electrical connector |
| Post-Installation | 1. Reinstall fuel pump access cover and rear seat cushion 2. Reconnect battery 3. Check for leaks and test operation |
| Estimated Time | 2-4 hours (depending on experience) |
| Difficulty Level | Intermediate to Advanced |
| Recommended Parts | OEM fuel pump assembly, fuel filter (if replacing) |
| Additional Tips | Use a fuel line quick disconnect tool to avoid damage, ensure proper sealing of all connections |
Explore related products
What You'll Learn
- Gather Tools and Materials: Socket set, wrenches, screwdriver, new fuel pump, safety gloves, and fuel line disconnect tool
- Locate Fuel Pump: Access through the rear seat or fuel tank, depending on model
- Disconnect Battery and Lines: Remove negative terminal, fuel lines, and electrical connectors carefully
- Remove and Replace Pump: Unbolt old pump, install new one, ensuring proper alignment and sealing
- Reassemble and Test: Reconnect lines, battery, and test for leaks and proper operation
Gather Tools and Materials: Socket set, wrenches, screwdriver, new fuel pump, safety gloves, and fuel line disconnect tool
Before diving into the installation of a fuel pump for a 1996 Toyota Camry, it's crucial to assemble the right tools and materials to ensure a smooth and safe process. A socket set, for instance, is indispensable for removing bolts and nuts that secure the fuel tank and pump assembly. Opt for a metric socket set, as Toyota vehicles typically use metric fasteners, and ensure it includes sizes ranging from 8mm to 14mm to cover all potential needs.
Wrenches play a complementary role to the socket set, particularly in tight spaces where a socket wrench might not fit. A combination of open-end and box-end wrenches in metric sizes will allow you to loosen and tighten fasteners efficiently. Additionally, a screwdriver—preferably a flathead and Phillips head—is necessary for removing any screws that hold the fuel pump access panel or other components in place. These tools collectively form the backbone of your toolkit, enabling you to disassemble and reassemble parts with precision.
The new fuel pump is, of course, the star of the show. When purchasing, ensure it’s compatible with your 1996 Toyota Camry, as using the wrong model can lead to inefficiency or damage. Look for OEM (Original Equipment Manufacturer) parts or high-quality aftermarket options that meet or exceed factory specifications. Inspect the pump for any defects before installation, as a faulty unit can cause immediate issues post-installation.
Safety should never be an afterthought. Safety gloves are essential to protect your hands from sharp edges, fuel spills, and chemical exposure. Nitrile gloves are recommended over latex due to their resistance to petroleum-based products and superior durability. Equally important is the fuel line disconnect tool, which allows you to safely release the fuel lines without damaging them or causing fuel spills. This tool is specifically designed to fit the quick-connect fittings on your Camry’s fuel system, ensuring a clean and secure disconnection.
Finally, consider the workspace and additional supplies. While not listed in the core materials, having a drain pan to catch any residual fuel, a clean rag for wiping spills, and a flashlight for better visibility in tight areas can significantly enhance the installation process. By meticulously gathering these tools and materials, you’ll be well-prepared to tackle the fuel pump replacement with confidence and efficiency.
Quick Guide to Repairing Your Motorcycle's Fuel Pump Efficiently
You may want to see also
Explore related products
Locate Fuel Pump: Access through the rear seat or fuel tank, depending on model
The 1996 Toyota Camry's fuel pump location isn't a one-size-fits-all scenario. Unlike some vehicles with a single access point, the Camry's design varies depending on the specific model and trim level. This means your first step in replacing the fuel pump is a crucial one: identifying the correct access point.
Understanding this variation is key to avoiding unnecessary disassembly and potential damage.

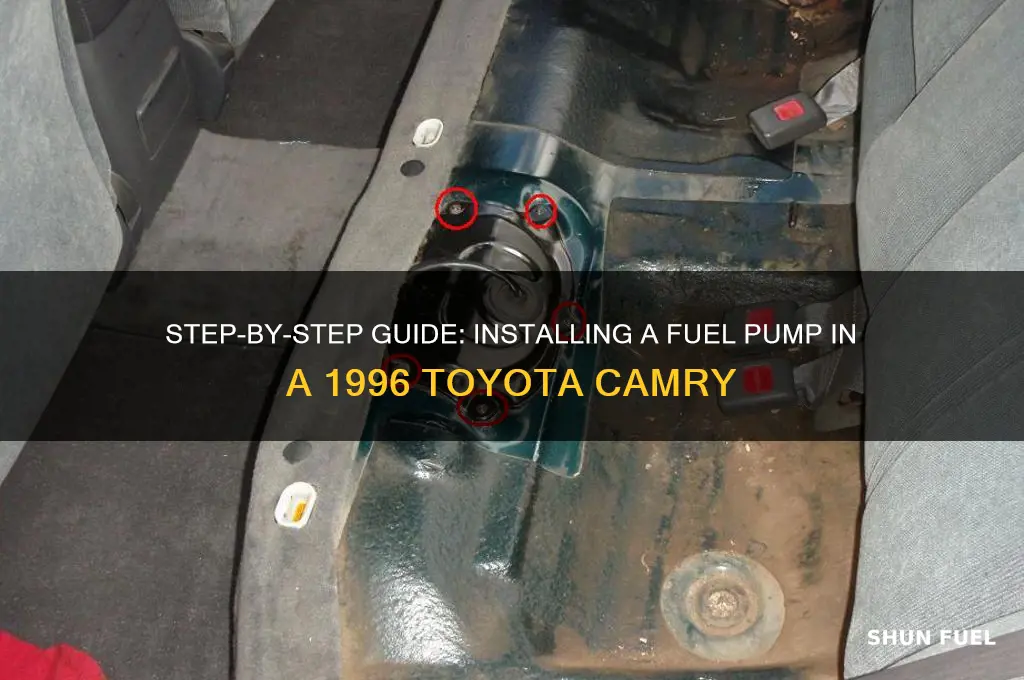

For many 1996 Camry models, the fuel pump is tucked away beneath the rear seat. This design offers a relatively straightforward access point. To locate it, start by removing the rear seat bottom cushion. This typically involves pulling up on the front edge of the cushion and then tilping it forward. Once removed, you'll likely find a metal access panel secured by a few bolts. Removing these bolts will expose the fuel pump assembly.
