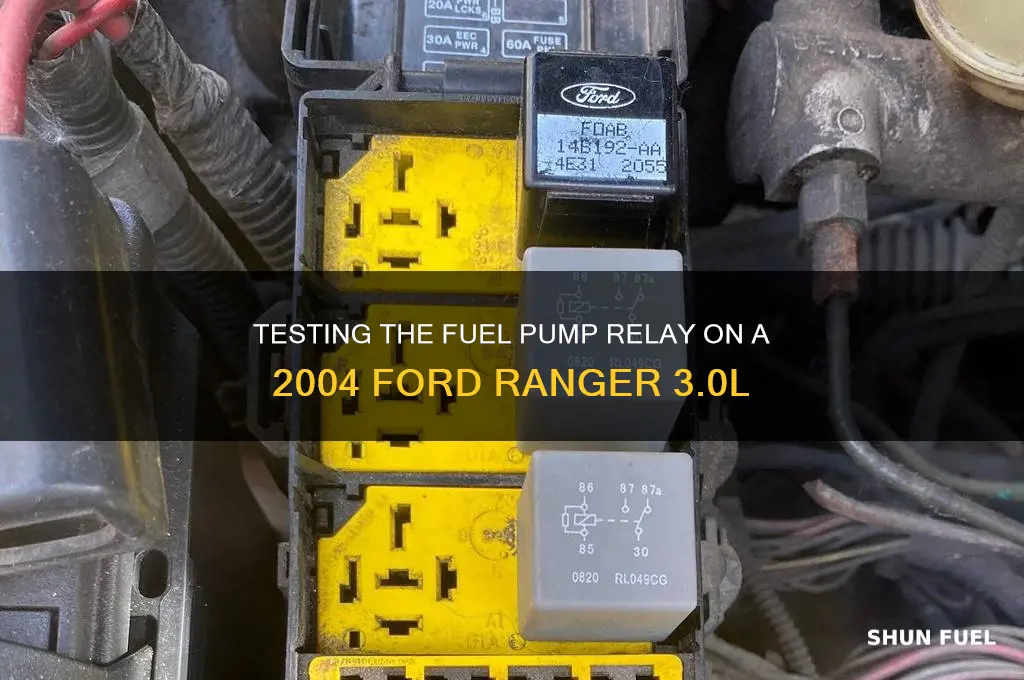

Testing the fuel pump relay on a 2004 Ford Ranger 3.0L is a crucial diagnostic step when troubleshooting fuel system issues such as a no-start condition or erratic engine performance. The fuel pump relay is responsible for controlling power to the fuel pump, ensuring it operates correctly during engine startup and running. To test the relay, locate it in the under-hood fuse box, typically labeled as Fuel Pump Relay. Begin by checking for power at the relay’s input and output terminals using a multimeter, ensuring the ignition is in the ON position. If power is present at the input but not the output, the relay may be faulty. Additionally, swap the fuel pump relay with a similar relay (e.g., the horn relay) to confirm if the issue is relay-specific. If the fuel pump operates after the swap, replace the fuel pump relay. Always consult the vehicle’s service manual for specific relay locations and testing procedures to ensure accuracy.
| Characteristics | Values |
|---|---|
| Vehicle Model | Ford Ranger 2004 3.0L |
| Fuel Pump Relay Location | Typically located in the engine bay fuse box or under the dashboard |
| Relay Terminals | 5 terminals (30, 87, 85, 86, and 87a) |
| Testing Tools Required | Multimeter, jumper wires, battery source |
| Relay Operation | Activates the fuel pump when the ignition is turned on |
| Test Procedure | 1. Locate the relay. 2. Swap with another relay of the same type or use a multimeter to check continuity and voltage. 3. Apply power to terminal 85 and ground to terminal 86. Check for voltage at terminal 30. |
| Common Symptoms of Failure | No start condition, engine cranks but doesn’t start, fuel pump not priming |
| Replacement Relay Part Number | Varies by manufacturer; check Ford OEM or compatible aftermarket part |
| Safety Precautions | Disconnect the battery before testing to avoid electrical hazards |
| Diagnostic Codes Related | P0191 (Fuel Rail Pressure Sensor Circuit Range/Performance) |
| Additional Tips | Ensure the fuel pump fuse is intact before testing the relay |
Explore related products
What You'll Learn
- Locate Relay: Identify fuel pump relay position in fuse box under hood or dashboard
- Test Power Supply: Check for battery voltage at relay coil terminals with multimeter
- Inspect Ground: Verify proper ground connection at relay ground terminal for continuity
- Swap Relays: Test by swapping with similar relay (e.g., horn relay) to check functionality
- Listen for Pump: Turn key to ON and listen for fuel pump hum; relay activates pump
Locate Relay: Identify fuel pump relay position in fuse box under hood or dashboard
The fuel pump relay in a 2004 Ford Ranger 3.0L is a critical component for ensuring your engine receives the necessary fuel. Locating this relay is the first step in diagnosing potential fuel system issues. The relay is typically housed within the fuse box, which can be found either under the hood or on the dashboard, depending on the vehicle’s design. For the 2004 Ford Ranger, the fuse box under the hood is the primary location for the fuel pump relay. This area is designed to protect the relay and other fuses from environmental factors while keeping them accessible for maintenance.
To locate the fuel pump relay, start by opening the hood and identifying the fuse box, usually positioned near the battery or along the inner fender. The fuse box cover often includes a diagram indicating the position of each relay and fuse. Look for the label "Fuel Pump Relay" or a similar designation. If the diagram is missing or unclear, consult the vehicle’s owner’s manual or a repair guide specific to the 2004 Ford Ranger 3.0L. The relay itself is a small, rectangular component with several pins that connect to the fuse box. Its position may vary slightly depending on the trim level or regional specifications of the vehicle.
Once you’ve identified the relay’s location, take note of its orientation and how it fits into the fuse box. This knowledge will be crucial when testing or replacing the relay. A practical tip is to use a flashlight to illuminate the fuse box, as it can be difficult to see in shaded areas under the hood. Additionally, ensure the vehicle is turned off and the ignition key is removed to avoid any electrical hazards while working in this area.
Comparing the fuel pump relay’s location in the 2004 Ford Ranger to other vehicles highlights the importance of familiarity with your specific model. Unlike some vehicles where the relay is located in the cabin, the Ranger’s under-hood placement aligns with Ford’s design philosophy for accessibility and protection. This distinction underscores the need to consult model-specific resources rather than relying on general automotive knowledge.
In conclusion, locating the fuel pump relay in the 2004 Ford Ranger 3.0L is a straightforward task with the right approach. By identifying the fuse box under the hood and referencing the diagram or manual, you can pinpoint the relay’s position efficiently. This foundational step sets the stage for further testing or maintenance, ensuring your vehicle’s fuel system operates reliably.
Mastering Fuel Pump Maintenance: How to Move a Push Rod
You may want to see also
Explore related products
Test Power Supply: Check for battery voltage at relay coil terminals with multimeter
A faulty fuel pump relay can leave your 2004 Ford Ranger 3.0L stranded. Before condemning the relay itself, it's crucial to verify if it's receiving the necessary power. This is where testing the power supply at the relay coil terminals comes in.
A multimeter becomes your diagnostic ally in this step.
Understanding the Relay's Power Needs
Think of the relay as a switch controlled by electricity. The coil terminals are like the switch's trigger. When voltage reaches these terminals, it creates a magnetic field, closing the switch and allowing power to flow to the fuel pump. If no voltage reaches the coil, the relay remains inactive, cutting off power to the pump.
This test isolates the issue: is the problem with the relay itself, or is it lacking the necessary power to function?
Conducting the Test: A Step-by-Step Guide
- Locate the Relay: Consult your Ford Ranger's manual to pinpoint the fuel pump relay's location. It's typically found in the under-hood fuse box.
- Prepare Your Multimeter: Set your multimeter to the DC voltage setting, usually denoted by a "V" with a straight line. Ensure the range is sufficient to measure 12 volts.
- Identify Coil Terminals: The relay will have several terminals. Refer to the relay's diagram (often found on the relay itself or in the manual) to identify the coil terminals. These are usually labeled as "85" and "86".
- Connect the Multimeter: With the ignition in the "ON" position (not started), touch the multimeter's positive lead (red) to one coil terminal and the negative lead (black) to the other.
- Read the Voltage: A healthy relay should show battery voltage (around 12 volts) across the coil terminals. If the reading is significantly lower or zero, there's a problem with the power supply to the relay.
Interpreting Results and Next Steps
- Voltage Present: If you see battery voltage, the relay is receiving power. The issue likely lies elsewhere, such as a faulty fuel pump, clogged fuel filter, or wiring problem.
- No Voltage: If no voltage is detected, the relay isn't getting the signal to activate. This points to a problem in the power supply circuit, such as a blown fuse, a faulty ignition switch, or a broken wire leading to the relay.
Remember, this test is a crucial step in diagnosing fuel pump relay issues. By confirming the presence or absence of power at the coil terminals, you can narrow down the root cause and get your Ford Ranger back on the road.
Understanding Mikuni Single Fuel Pump: Mechanism, Function, and Operation Explained
You may want to see also
Explore related products
Inspect Ground: Verify proper ground connection at relay ground terminal for continuity
A faulty ground connection can mimic symptoms of a failed fuel pump relay, leading to misdiagnosis and unnecessary part replacements. The ground terminal on the fuel pump relay of a 2004 Ford Ranger 3.0L is a critical point in the circuit, ensuring the relay can complete its function of powering the fuel pump. Over time, corrosion, loose connections, or physical damage can compromise this connection, causing intermittent or complete loss of fuel pump operation.
Inspection Process: Begin by locating the fuel pump relay, typically found in the under-hood fuse/relay box. Consult your vehicle’s manual for the exact location. With the ignition off, remove the relay and identify the ground terminal, usually labeled as pin 86 or marked with a ground symbol. Use a digital multimeter set to the continuity or resistance mode. Connect one probe to the relay’s ground terminal and the other to a known good ground, such as the battery negative terminal. A reading of 0 ohms or a beep (on continuity mode) indicates a proper ground. Any significant resistance or no continuity suggests a problem.
Common Issues and Fixes: Corrosion is a frequent culprit, especially in older vehicles exposed to moisture or road salt. Clean the relay terminal and mating connector with a wire brush or fine-grit sandpaper. If the issue persists, inspect the wiring harness for breaks or damage. In some cases, the ground wire itself may be frayed or disconnected from the chassis. Repair or replace the wiring as needed, ensuring a secure connection to the vehicle’s frame or engine block.
Preventive Measures: Regularly inspect the relay and its connections during routine maintenance, particularly in regions with harsh winters or high humidity. Applying dielectric grease to the terminals can prevent corrosion. If you notice symptoms like hard starting, stalling, or a lack of power, the ground connection should be one of the first items to check, as it’s a simple yet often overlooked diagnostic step.
Fuel Pump Count: 2004 F250's Pump Configuration Explained
You may want to see also
Explore related products
Swap Relays: Test by swapping with similar relay (e.g., horn relay) to check functionality
Swapping relays is a straightforward yet effective method to diagnose a faulty fuel pump relay in a 2004 Ford Ranger 3.0L. This technique leverages the fact that many relays in a vehicle share similar pin configurations and current ratings, allowing for a quick functionality check without specialized tools. By temporarily swapping the fuel pump relay with another relay of comparable specifications, such as the horn relay, you can isolate whether the issue lies with the relay itself or another component in the fuel system.
Steps to Perform the Swap:
- Locate the Relays: Consult your Ford Ranger’s manual to identify the fuel pump relay and a suitable swap candidate, such as the horn relay. Both are typically found in the under-hood fuse/relay box.
- Remove and Swap: With the ignition off, carefully pull out the fuel pump relay and the horn relay. Swap their positions in the relay box, ensuring they are fully seated.
- Test Functionality: Turn the ignition to the "On" position (not starting the engine). If the fuel pump now operates (you hear a brief hum), the original fuel pump relay is likely faulty. If the horn stops working, the horn relay may be defective, but this doesn’t affect the fuel pump relay diagnosis.
Cautions and Considerations:
Avoid swapping relays with significantly different current ratings or pin configurations, as this can damage the circuit. For example, do not swap with the A/C compressor relay, which handles higher loads. Additionally, ensure the vehicle is off during the swap to prevent electrical shorts or accidental activation of components.
Takeaway:
Relay swapping is a cost-effective and time-efficient diagnostic method that can save you from unnecessary part replacements. If the fuel pump operates after the swap, replace the fuel pump relay. If not, the issue may lie elsewhere, such as the fuel pump itself, wiring, or the fuel pump fuse. This technique is particularly useful for DIY mechanics troubleshooting a no-start condition in a 2004 Ford Ranger 3.0L.
Understanding the Fuel Pump System in a Mini Cooper
You may want to see also
Explore related products
Listen for Pump: Turn key to ON and listen for fuel pump hum; relay activates pump
One of the simplest yet most effective ways to test the fuel pump relay on a 2004 Ford Ranger 3.0L is to listen for the fuel pump’s hum when you turn the ignition key to the ON position. This method leverages your senses to diagnose whether the relay is functioning correctly. The fuel pump relay is responsible for activating the pump, which pressurizes the fuel system, ensuring the engine receives the necessary fuel for combustion. If the relay fails, the pump won’t engage, and you’ll likely hear silence instead of the expected hum. This test is quick, requires no tools, and can save you from unnecessary part replacements.
To perform this test, start by ensuring the vehicle is in a safe, well-ventilated area. Insert the key into the ignition and turn it to the ON position—one click before starting the engine. At this point, the fuel pump relay should activate the pump for approximately 2 seconds to prime the system. Place your ear near the fuel tank (typically located under the rear seat or bed of the truck) and listen carefully. A healthy fuel pump will produce a faint but distinct humming sound, indicating the relay is working as it should. If you hear nothing, it’s a strong indicator that the relay or pump may be faulty.
While this method is straightforward, it’s important to note its limitations. The absence of a hum doesn’t definitively confirm a relay failure, as the issue could stem from a faulty pump, wiring problem, or blown fuse. However, it serves as a valuable initial diagnostic step. If you don’t hear the hum, proceed to check the fuel pump fuse (typically located in the fuse box under the hood) and inspect the wiring for damage. Additionally, if the vehicle has been running recently, the pump may not prime again immediately, so allow a few minutes before retesting.
For a more thorough diagnosis, combine this listening test with other methods, such as checking for power at the relay or using a multimeter to test continuity. However, for a quick, tool-free assessment, listening for the fuel pump hum remains a reliable starting point. It’s a practical tip that can help narrow down the root cause of fuel delivery issues in your 2004 Ford Ranger 3.0L, saving time and potentially avoiding unnecessary repairs.
Chevy Astro Van Fuel Pump PSI: A Comprehensive Guide
You may want to see also
Frequently asked questions
The fuel pump relay in a 2004 Ford Ranger 3.0L is typically located in the under-hood fuse/relay box. Refer to the diagram on the box lid or the owner’s manual to identify the specific relay.
Common symptoms include difficulty starting the engine, stalling, or no-start conditions. You may also notice the engine cranks but doesn’t fire, or the fuel pump doesn’t prime when the key is turned to the "on" position.
To test the relay, swap it with another relay of the same type in the fuse box (e.g., the horn relay). If the fuel pump operates, the original relay is faulty. You can also use a multimeter to check for continuity in the relay’s terminals when activated.
