The number of injectors in a top-fuel engine varies depending on the number of cylinders in the engine. For instance, a four-cylinder engine will have one injector per cylinder, while a V6 engine will have two injectors per cylinder, and a V8 engine may have four or more injectors per cylinder. The function of a fuel injector is to maintain an optimal air-to-fuel ratio (AFR), which is critical for engine performance and reliability. Selecting the right size of fuel injector is crucial, as bigger injectors do not always equate to more power.

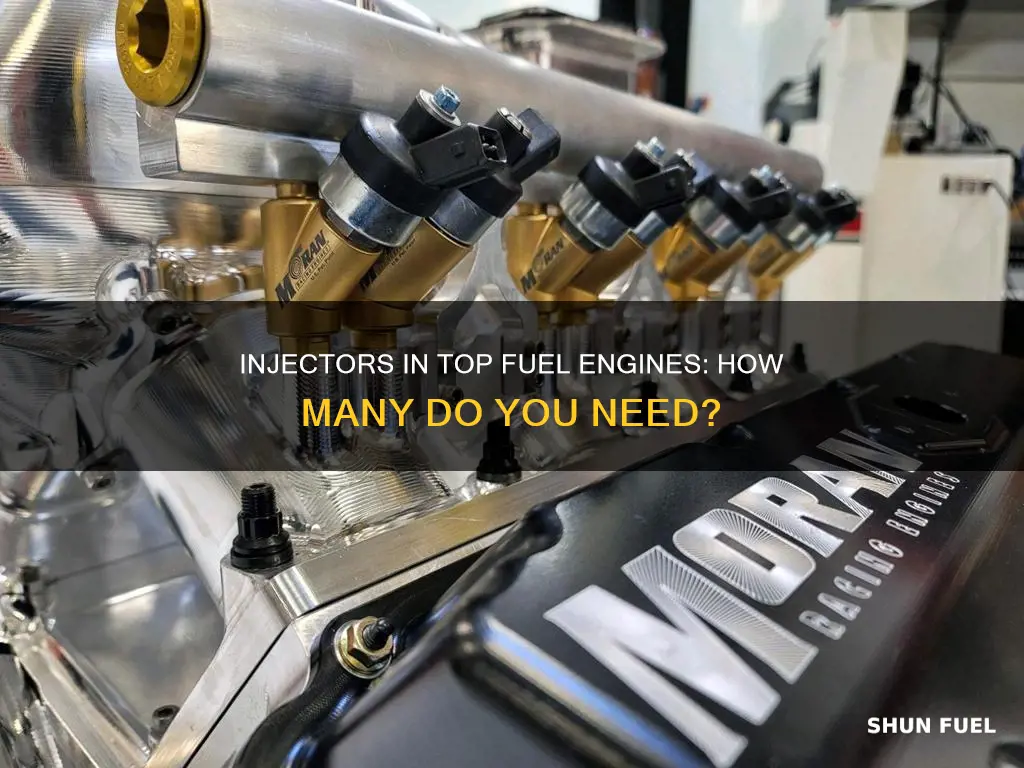

How many injectors in a top fuel engine?
| Characteristics | Values |
|---|---|
| Number of injectors | Depends on the number of cylinders in the engine. A four-cylinder engine will have one injector per cylinder, a V6 engine will have two, and a V8 engine might have four or more. |
| Fuel choice | The type of fuel used determines the volume of fuel needed, which dictates the size of the fuel injector. For example, gasoline has a stoichiometric Air to Fuel Ratio (AFR) of 14.7:1, while methanol is 6.5:1, requiring a larger injector. |
| Induction method | Engines with forced induction will use very little fuel at idle and do not require larger injectors, but will consume much more fuel at peak torque, requiring larger injectors to maintain the optimal AFR. |
| Performance | The role of the injector is to allow for fuel flow accuracy and efficiency. The simplest and longest-standing version is the "needle and seat" or EV1-style fuel injector, which remains the injector of choice for drag racing due to its reliability and design simplicity. |
| Sizing | Bigger injectors do not always equal more power, and unless the engine is set up to handle the extra fuel, it may flood the engine and cause damage. It is critical to select the proper size injector for optimal performance and tuning control. |
Explore related products
$9.49
What You'll Learn
Fuel injector sizing depends on the number of cylinders
Fuel injectors play a critical role in the performance and reliability of modern internal combustion engines. The number of cylinders in an engine determines the number of fuel injectors required. For instance, a four-cylinder engine will have one injector per cylinder, a V6 engine will have two injectors per cylinder, and a V8 engine may have four or more injectors per cylinder.
The fuel injector's primary function is to maintain an optimal air-to-fuel ratio (AFR). The type of fuel used determines the volume of fuel needed inside the cylinder, which, in turn, dictates the size of the fuel injector. For example, gasoline has a stoichiometric AFR of 14.7:1, while methanol has an AFR of 6.5:1, requiring a larger injector.
Injector sizing is also influenced by the engine's displacement and the selected induction method. Engines with larger displacements will generally require larger injectors, and engines with forced induction will consume significantly more fuel at peak torque, necessitating larger injectors to maintain optimal AFR.
Additionally, the fuel choice between gasoline, ethanol, and race gases influences injector sizing. Ethanol, for instance, requires approximately 30% more fuel to produce an equivalent amount of power, resulting in a larger injector size.
It is crucial to select the appropriate fuel injector size to ensure optimal performance and tuning control. Various tools, such as online calculators and formulas, are available to assist in determining the correct injector size based on factors like horsepower, fuel pressure, and brake-specific fuel consumption (BSFC).
Mustang V6 Fuel Injectors: How Many Are There?
You may want to see also
Explore related products
The role of injectors in modern internal combustion engines
There are several types of injectors used in modern internal combustion engines, each serving a specific purpose. Multiport injectors, located in the intake manifold, deliver fuel to multiple cylinders simultaneously, providing efficient fuel distribution and atomization, resulting in optimal combustion and power output. Sequential fuel injectors, commonly used in high-performance and modern engine designs, optimize fuel distribution and improve overall engine performance by precisely timing the fuel delivery to each cylinder. Direct fuel injectors, or gasoline direct injection (GDI) injectors, have gained popularity due to their improved fuel efficiency and performance. They bypass the intake manifold, allowing better control over the fuel-air mixture, enhancing combustion efficiency, and reducing emissions.
Flex fuel injectors are designed for vehicles that can run on different fuel types, such as gasoline and ethanol blends. These injectors are built to withstand the corrosive nature of ethanol, ensuring proper fuel delivery regardless of the blend. Diesel engines require specialized injectors due to the unique characteristics of diesel fuel. They operate at higher pressures as diesel fuel does not ignite easily. Diesel injectors inject fuel directly into the combustion chamber at precise moments during the compression stroke. Third-generation common-rail diesel injectors use piezoelectric injectors for increased precision, with fuel pressures up to 300 MPa or 44,000 psi.
The selection of the appropriate fuel injector is critical for performance and tuning control. Injectors play a significant role in the energy transition from fossil fuels to cleaner energy sources, such as hydrogen fuel cell vehicles, where they accurately regulate the flow of hydrogen to the stack.
Redline Fuel Injector Cleaner: Frequency for Optimal Engine Performance
You may want to see also
Explore related products
Optimal Air to Fuel Ratio (AFR)
The primary function of a fuel injector is to maintain an optimal air-to-fuel ratio (AFR). The AFR is the mass ratio between the amount of air and fuel that are mixed together in the combustion chamber of a vehicle. This ratio needs to be correct for the fuel to burn correctly and efficiently. If the ratio is too rich or too lean, the engine will not optimally burn the air-fuel mixture, which can cause performance issues or use up too much fuel.
The ideal air-fuel ratio that burns all fuel without excess air is 14.7:1. This is referred to as the "stoichiometric" mixture, where you have 14.7 parts of air for every 1 part of fuel. However, this ratio may vary depending on the type of fuel used. For example, gasoline has a stoichiometric AFR of 14.7:1, while methanol is 6.5:1. Thus, the size of the fuel injector required for methanol will be much larger than one that's required for gasoline.
For optimum fuel economy, a lean AFR of 16-17:1 is usually best, as it can be good for fuel economy and emissions. Maximum power is usually found with a rich AFR between 12-14:1, but this may be too lean for safety on many engines. For maximum reliability at full power, AFRs from 10.5-12.5:1 are considered best, depending on the engine.
Maintaining an optimal AFR in your engine plays a critical role in your car's overall performance and longevity. If the engine isn't receiving the ideal mixture, it may exhibit poor throttle response, hesitation, or even stalling. A lean mixture may cause engine damage due to overheating, while a rich mixture may damage the catalytic converter due to unburned fuel entering the exhaust system.
Fuel Injectors for Toyota Camry: How Many Are Needed?
You may want to see also
Explore related products
Injector performance and its impact on fuel delivery
Injector performance is critical to the overall performance and reliability of an internal combustion engine. The primary function of a fuel injector is to maintain an optimal air-to-fuel ratio (AFR). The specific AFR varies depending on the type of fuel used. For example, gasoline has a stoichiometric AFR of 14.7:1, while methanol has an AFR of 6.5:1. The volume of fuel needed in the cylinder, relative to the engine's displacement, dictates the size of the fuel injector required.
Performance injectors deliver more fuel into the combustion chamber, increasing the vehicle's power and performance. This is particularly important for engines with aftermarket turbos or superchargers, as stock fuel injectors may not be able to deliver sufficient fuel, leading to decreased performance. The size of the injector is crucial, as injectors that deliver too much or too little fuel can hinder the engine's performance. Therefore, selecting the proper injector size is essential for achieving optimal performance and tuning control.
The type of fuel injector also impacts fuel delivery. Diesel injectors, for instance, have a significant impact on performance due to their ability to deliver fuel with higher precision and at higher pressures. This optimizes the fuel-air mixture, resulting in more efficient and effective combustion. Additionally, advancements in injector technology have led to smaller injector sizes that can withstand higher injection pressures while maintaining or reducing manufacturing costs.
The age of the injectors also plays a role in fuel delivery. Aged injectors have been found to deliver larger quantities of fuel, leading to higher power output and deviating emissions. This is attributed to changes in the injector actuating characteristics over time. Furthermore, the design of the injector, such as the number of holes, spray angles, and injection pressures, can influence the fuel delivery rate, angle, and precision.
In summary, injector performance directly impacts fuel delivery by determining the amount, precision, and timing of fuel injected into the combustion chamber. Proper injector selection, including size, type, and consideration of age-related changes, is crucial for optimizing engine performance and maintaining the desired air-fuel ratio.
Cleaning Diesel Fuel Injectors: Seafoam Solution for Your Car
You may want to see also
Explore related products
The dangers of incorrectly sized injectors
The fuel injector is a critical component of an internal combustion engine, responsible for metering the amount of fuel entering the engine's combustion chamber. Selecting the correct injector size is essential for achieving optimal performance, fuel efficiency, and tuning control. However, using incorrectly sized injectors can lead to several issues and dangers:
Performance and Efficiency Issues:
The primary goal of a fuel injector is to maintain the optimal Air to Fuel Ratio (AFR) for a given fuel type. Using an incorrectly sized injector can disrupt this ratio, leading to performance and fuel efficiency issues. For example, if the injector is too small, it may not be able to deliver enough fuel during peak torque, resulting in reduced power output. Conversely, an oversized injector can deliver too much fuel, causing excessive fuel consumption and increased emissions.
Engine Damage:
Incorrect injector sizing can lead to engine damage over time. If the injector is too small, the engine may experience lean conditions, where the air-fuel mixture is too lean, leading to increased engine wear and the possibility of engine knocking or detonation. On the other hand, oversized injectors can cause overly rich conditions, resulting in excessive carbon buildup, increased fuel wash, and potential engine flooding.
Tuning and Calibration Challenges:
Fuel injectors work in conjunction with the engine's onboard computer, which sends pulses to control the injector's opening and closing. Incorrect injector sizing can make it challenging for the computer to accurately calibrate and control fuel delivery. This can lead to tuning difficulties and may require specialized knowledge or equipment to correct.
Safety Hazards:
Using incorrectly sized injectors can pose safety hazards. Lean conditions resulting from undersized injectors can increase the risk of engine overheating or, in extreme cases, engine fires. Conversely, overly rich conditions from oversized injectors can lead to excessive fuel buildup, increasing the risk of engine flooding or hydraulic lock, which can cause sudden engine seizure.
Reduced Injector Lifespan:
Incorrect injector sizing can also reduce the lifespan of the injectors themselves. Undersized injectors may be constantly pushed to their limits, leading to premature wear and tear. On the other hand, oversized injectors may deliver fuel at pressures or flow rates beyond the injector's specifications, resulting in increased stress and potential failure.
The Firebird's Fuel Injectors: How Many Does It Need?
You may want to see also
Frequently asked questions
The number of injectors needed depends on the number of cylinders in your engine. A four-cylinder engine will need four injectors, a V6 engine will need six injectors, and a V8 engine will need eight or more injectors.
Fuel injectors maintain an optimal air-to-fuel ratio (AFR) for the specific fuel being used. The AFR varies with the fuel type, for example, gasoline has an AFR of 14.7:1, while methanol is 6.5:1.
Choosing the wrong size of fuel injector can cause your engine to run rough or even ruin it. If the injector is too small, it may not deliver enough fuel, causing the engine to run too lean. If the injector is too big, it can flood the engine, causing it to run too rich, which can lead to fouled spark plugs.
In addition to the number of cylinders and the type of fuel, you should also consider the induction method and the expected horsepower of the engine. At peak torque, when fuel demand and engine stress are highest, larger injectors may be needed to maintain the optimal AFR.
Yes, FuelTech offers a Fuel Injector Calculator that can assist in selecting the proper fuel injector size for your engine. This calculator takes into account factors such as the number of injectors, estimated horsepower, and the type of induction.
