Fuel injectors play a crucial role in ensuring optimal fuel efficiency by delivering the correct amount of fuel to the cylinders. To maintain fuel consistency and engine performance, it is essential to verify that the fuel injectors are receiving the correct voltage. The voltage requirements for fuel injectors vary, with some sources stating a range of 9 to 12 volts, while others recommend a minimum of 9.6 volts during cranking to ensure the injector functions properly. It is important to test the injector resistance and wiring to identify any potential issues.

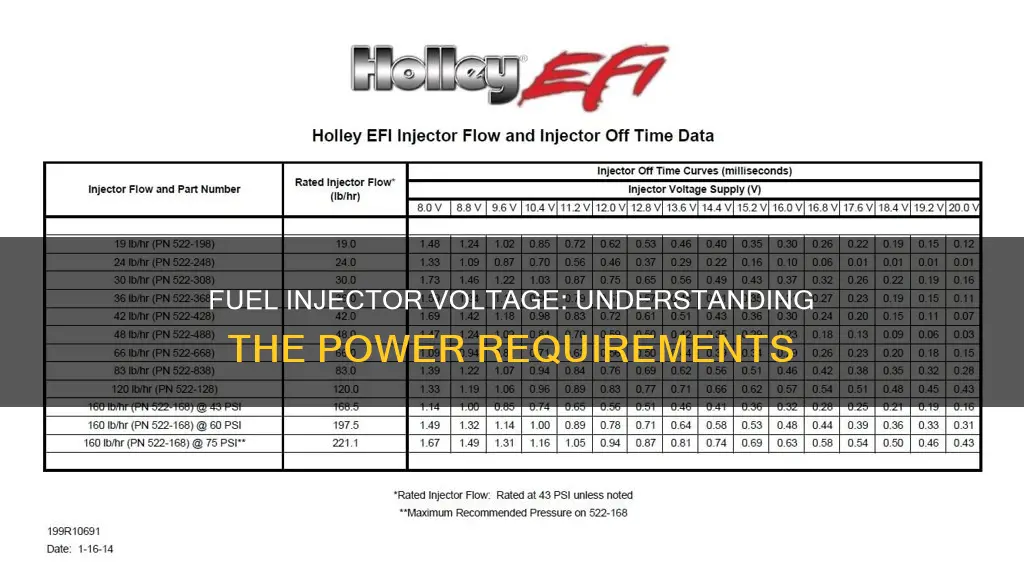

Fuel Injector Voltage Characteristics and Values
| Characteristics | Values |
|---|---|
| Minimum voltage during cranking | 9.6 volts |
| Battery voltage during cranking | 6-7 volts |
| Voltage after charging | 12.6 volts at the terminals, 12.3 volts at the starter |
| Voltage after overnight rest | 11.5 volts at the terminals |
| High impedance injectors resistance | 12-17 ohms |
| Low impedance injectors resistance | 2-5 ohms |
| DVOM setting for testing | DC voltage |
| Voltage for injector to open | 9V or 12V |
| Voltage for injector to operate | 12V |
Explore related products
What You'll Learn
- Fuel injectors need at least 9.6 volts during cranking
- A multimeter can help you determine if your fuel injectors are receiving the correct voltage
- A Digital Volt-Ohmmeter (DVOM) can be used to test fuel injector resistance
- A 12V test light can be used to check if the ground wire is working
- A battery with a full charge should have 12.6V at the terminals
Fuel injectors need at least 9.6 volts during cranking
Fuel injectors are a crucial component of a vehicle's fuel system, and ensuring they receive the correct voltage is essential for optimal performance. The standard voltage for fuel injectors is typically 12 volts; however, during the cranking process, they require a minimum of 9.6 volts to function effectively.
The
Fuel Injector Count for 2004 Chevy Impalas
You may want to see also
Explore related products
A multimeter can help you determine if your fuel injectors are receiving the correct voltage
A multimeter can be used to determine if your fuel injectors are receiving the correct voltage. This tool can help you identify any issues with your fuel injectors, which are responsible for spraying fuel into the engine's cylinders. An issue with these injectors can cause your engine to run poorly or even fail to start.
To use a multimeter to check the voltage, first, ensure the engine is off as you don't need power for this test. If your car has plastic panels covering the injectors, remove them. You can usually do this with a basic socket set, including an extension. Next, remove the injector wiring harness by pressing down on the tabs. If there is a slide lock, remember to move it before pressing the tabs.
Now, set up your multimeter or DVOM (Digital Volt-Ohmmeter) to measure ohms or DC voltage. If the meter doesn't auto-range, set it to the lowest range possible. Touch the negative lead of the multimeter to a ground source, such as an unpainted piece of the car's frame under the hood. Then, place the positive lead on the wiring harness terminal. The wiring harness will have two terminals, and one will be connected to the ground and read 0 volts.
Repeat this process for all injector wiring harnesses, leaving the ground lead in position. Each injector wiring harness should read around 12 volts. If you get a lower reading, it indicates excess resistance in the wire, which could be due to a problem with the wiring or the injector itself.
While this test can help you identify voltage-related issues, remember that fuel injector problems may not always be electrical. If you're unsure or encounter difficulties, it's best to consult a professional mechanic for further diagnosis and repair.
Bleeding Air from a 2590 Case Fuel Injector Pump: A Guide
You may want to see also
Explore related products
A Digital Volt-Ohmmeter (DVOM) can be used to test fuel injector resistance
To test the injector signal from the computer, a test light or DVOM connected to the negative side of the battery can be used. With the key in the 'on' position, both sides of the injector wiring connector can be probed gently, and one of the wires should react by registering around 12 volts on the meter or illuminating the test light. If neither wire reacts, the fuel injector fuse in the PDC should be tested. If the fuse is fine, a fuel injection wiring diagram is needed to trace the wire and repair the connection.
A DVOM can also be used to check the trigger (ground) signal from the PCM, the power circuit, and the operation of the injector itself. The DVOM leads can be connected to the terminals, with the polarity of the leads being irrelevant. This test gives a baseline ohm reading of all injectors, with most injector readings ranging between 11 and 14 ohms. The injector must be removed for this test and inspected for leaks and electrical connectors for corrosion.
Additionally, a DVOM can be used to test the injector spray pattern. By attaching a 12-volt power and ground source to the injector, the valve testing can be performed with the injector still installed. The gauge should fluctuate as you connect and disconnect the circuit if the injector valve is working and not plugged.
Fuel Injectors in Mazda RX8: How Many?
You may want to see also
Explore related products
A 12V test light can be used to check if the ground wire is working
A 12-volt test light is a valuable tool for diagnosing electrical issues in vehicles. It can be used to check if a ground wire is properly connected and if there are any breaks in the circuit. This is important because a faulty ground wire can cause a variety of electrical issues in a car.
To use a 12V test light to check the ground wire, first, confirm that the tool is working by clamping it to a ground source, such as any metal surface on the car or the negative terminal of the battery. Then, press the light's probe to a power source, such as the positive battery cable or terminal. If the light comes on, the tester is working properly.
Now, you can use the test light to check the ground wire. Disconnect the negative battery terminal and place the test light in series between the disconnected cable and the battery post. If the test light illuminates brightly, it indicates excessive current draw, which can help pinpoint the source of any parasitic battery drain issues.
If the test light doesn't illuminate when connected to the ground wire, it suggests a grounding issue. This could be due to a break in the circuit or a faulty connection. In this case, further investigation is needed to identify and address the specific issue. It may be necessary to consult a mechanic or an auto electrician for assistance.
BMW 528i Fuel Injector: Testing and Inspection Guide
You may want to see also
Explore related products
A battery with a full charge should have 12.6V at the terminals
Fuel injectors are responsible for passing the right amount of fuel into the cylinders. They are a crucial component in ensuring fuel efficiency. To ensure that fuel injectors are receiving the correct voltage, you should test the injector resistance and then check them for wiring. This can be done with the engine off using a Digital Volt-Ohmmeter (DVOM) or multimeter with ohms setting.
When testing the voltage, one terminal should read 0 volts, and the other should read 12 volts or around 12. If the reading is around 12 volts for each injector, then they are functioning correctly. However, if the reading is too low, it indicates a problem with the wiring. A significant difference in voltage readings between injectors is also a cause for concern and may indicate a faulty injector.
It is important to note that the voltage requirements may vary depending on the specific injector and vehicle. For example, some sources mention that during cranking, the voltage should not drop below 9.6 volts for automobile EFI systems. In one instance, a user reported that their battery had 12.6V at the terminals, 12.3V at the starter, and the car functioned properly.
To further illustrate the importance of voltage in fuel injectors, consider the following scenario: a user with a Husaberg motorcycle reported a sudden loss of spark, which was attributed to a faulty ECM. After replacing the ECM, the spark returned, but the fuel injector was not functioning despite showing 9 volts across the injector terminal cap. This indicates that while 9 volts may be sufficient to produce a spark, it is insufficient to operate the fuel injector, which typically requires a higher voltage, such as 12 volts.
In summary, ensuring that fuel injectors receive the correct voltage is crucial for optimal fuel efficiency and engine performance. The specific voltage requirements may vary depending on the vehicle and injector type, but it is generally recommended to have around 12 volts at the injector terminals.
Fuel Injector Efficiency: How Long Till It Works?
You may want to see also
Frequently asked questions
The voltage needed by fuel injectors depends on the vehicle and its technology. For example, a 2009 Husaberg motorcycle with a 570 engine has a voltage of 9.0 across the injector terminal cap, which is on the low side. The rule of thumb for automobile EFI is no less than 9.6 volts while cranking.
You can test the voltage of your fuel injectors with a Digital Volt-Ohmmeter (DVOM) or multimeter with ohms setting. Make sure the engine is off since you don’t need power for this checking. One terminal should read 0 volts and the other one 12 volts or around 12.
If the reading is too low, it means there is a problem in the wiring. A major difference between injectors reading is a bad sign. Take your car to a professional repairer to save money in the long run.
Ohms law states that Amp = Volts divided by Resistance. For example, 13 Volts x Resistance of 10.5 Ohms = 1.23 Amps.
To clean your fuel injectors, you can connect 9V or 12V to pin 1&2 at the injector connection when it's removed from the bike. However, make sure to oil the o-ring before putting it back together.
