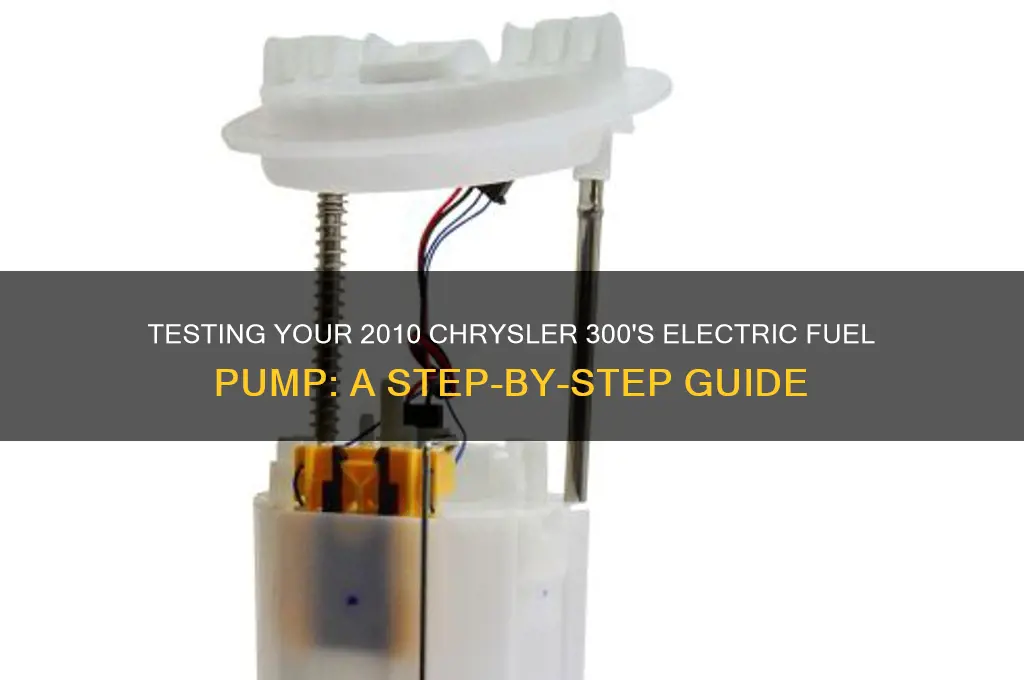

Testing the electric fuel pump on a 2010 Chrysler 300 is a critical diagnostic step to ensure proper fuel delivery and engine performance. To begin, locate the fuel pump, typically found inside the fuel tank, and access it by removing the rear seat or trunk panel. Use a multimeter to check for power and ground at the fuel pump connector while activating the pump relay or cycling the ignition. Additionally, measure fuel pressure using a gauge attached to the fuel rail to verify the pump’s output. If the pump fails to prime or pressure is insufficient, inspect for faulty wiring, a bad relay, or a failed pump, and replace components as necessary. Always exercise caution when working with fuel systems to prevent hazards.
| Characteristics | Values |
|---|---|
| Vehicle Model | 2010 Chrysler 300 |
| Fuel Pump Type | Electric Fuel Pump |
| Tools Required | Multimeter, Fuel Pressure Gauge, Safety Gloves, Safety Goggles |
| Safety Precautions | Work in a well-ventilated area, disconnect the battery before testing |
| Testing Method 1: Listen for Operation | Turn the ignition to the "ON" position and listen for the pump's hum |
| Testing Method 2: Check for Power | Use a multimeter to test voltage at the fuel pump connector (typically 12V) |
| Testing Method 3: Fuel Pressure Test | Connect a fuel pressure gauge to the fuel rail and check pressure (40-60 PSI) |
| Testing Method 4: Resistance Check | Measure resistance across the fuel pump terminals (refer to manual for specs) |
| Common Issues | No power to pump, clogged fuel filter, faulty pump relay |
| Replacement Considerations | Ensure compatibility with 2010 Chrysler 300 fuel pump specifications |
| Professional Assistance | Recommended if unsure about testing or diagnosing issues |
Explore related products
What You'll Learn
- Pre-Test Preparation: Gather tools, locate pump, disconnect battery, relieve fuel pressure, ensure safety
- Check Power Supply: Test pump’s electrical connector for voltage using a multimeter
- Listen for Operation: Turn ignition to ON, listen for pump’s hum
- Measure Fuel Pressure: Attach gauge to rail, check pressure against specifications
- Inspect Fuel Delivery: Disconnect fuel line, crank engine, observe fuel flow
Pre-Test Preparation: Gather tools, locate pump, disconnect battery, relieve fuel pressure, ensure safety
Before testing the electric fuel pump on a 2010 Chrysler 300, proper pre-test preparation is critical to ensure accuracy, safety, and efficiency. Start by gathering the necessary tools: a fuel pressure gauge, a multimeter, safety goggles, gloves, and a wrench or socket set. These tools will enable you to measure fuel pressure, test electrical connections, and safely handle components. Having everything within reach streamlines the process and minimizes the risk of errors or interruptions.
Locating the fuel pump is the next essential step. On a 2010 Chrysler 300, the electric fuel pump is typically housed inside the fuel tank, accessible from beneath the vehicle. Refer to the vehicle’s service manual for precise location details, as this ensures you don’t waste time searching. Once located, mark the area for easy reference during the test. This step is often overlooked but saves significant time and effort later.
Disconnecting the battery is a safety precaution that cannot be skipped. With the vehicle turned off, use a wrench to loosen the battery terminal nuts and remove the negative cable. This prevents accidental electrical shorts or fuel pump activation during testing. Wait at least 10 minutes after disconnecting the battery to allow the fuel system to depressurize fully, reducing the risk of fuel spray or ignition.
Relieving fuel pressure is another critical safety measure. Locate the fuel pressure relief valve or Schrader valve on the fuel rail, typically near the engine bay. Attach the fuel pressure gauge and depress the valve to release pressure from the system. This step ensures that fuel does not spray or leak during pump removal or testing. Always direct the gauge away from your face and body to avoid injury.
Finally, ensure safety throughout the process. Work in a well-ventilated area to avoid inhaling fuel vapors, and keep a fire extinguisher nearby as a precaution. Wear safety goggles and gloves to protect against fuel spills or debris. Double-check that all tools are securely tightened and that the vehicle is on a stable surface, such as jack stands, if accessing the fuel tank from underneath. These precautions transform a potentially hazardous task into a controlled and manageable procedure.
