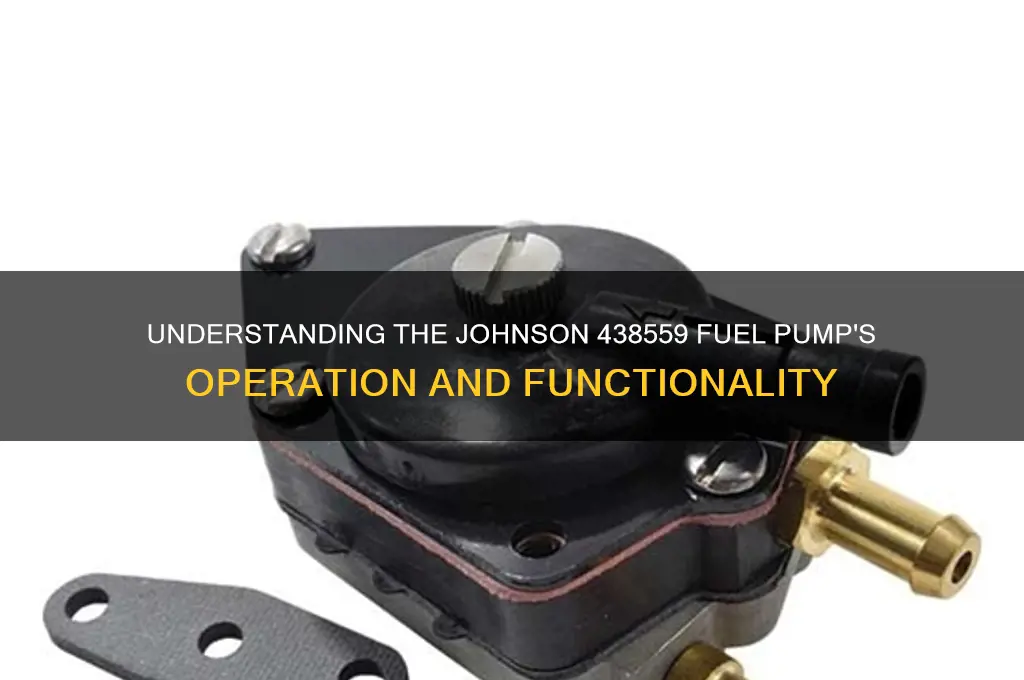

The Johnson 438559 fuel pump is a crucial component in marine engines, designed to efficiently deliver fuel from the tank to the carburetor or fuel injection system. It operates using a diaphragm mechanism, which is actuated by the engine’s camshaft or a dedicated eccentric lobe. As the diaphragm moves, it creates a vacuum that draws fuel into the pump chamber, and then compresses it to push it through the outlet line. This process ensures a consistent and reliable fuel supply, even under varying engine loads and conditions. The pump’s design includes a check valve to prevent fuel backflow and maintain pressure, while its durable construction ensures longevity in harsh marine environments. Understanding its operation is essential for troubleshooting, maintenance, and ensuring optimal engine performance.
Explore related products
What You'll Learn
- Pump Mechanism: Explains the internal workings of the diaphragm and lever system
- Fuel Flow Process: Details how fuel is drawn and delivered under pressure
- Electric vs. Mechanical: Compares the two types of Johnson 438559 fuel pumps
- Common Issues: Identifies typical problems like leaks or diaphragm failure
- Maintenance Tips: Provides steps for cleaning, inspection, and replacement of parts
Pump Mechanism: Explains the internal workings of the diaphragm and lever system
The Johnson 438559 fuel pump operates on a diaphragm and lever system, a design that combines simplicity with reliability. At its core, the diaphragm acts as a flexible barrier, dividing the pump chamber into two sections: one connected to the fuel inlet and the other to the outlet. When the lever system activates, it creates a vacuum on one side of the diaphragm, drawing fuel into the chamber. As the lever reverses its motion, the diaphragm compresses the fuel, forcing it out through the outlet. This alternating suction and compression cycle ensures a steady flow of fuel, making it ideal for small engines like those found in outboard motors or lawn equipment.
Understanding the lever’s role is crucial to grasping the pump’s efficiency. The lever is connected to the engine’s camshaft or a manual actuator, depending on the setup. As the lever moves, it pulls and releases a linkage attached to the diaphragm’s center. This motion mimics the action of a piston, but with less friction and wear due to the diaphragm’s flexibility. The lever’s throw—the distance it travels—determines the volume of fuel pumped per cycle. For optimal performance, ensure the lever’s movement is smooth and free of obstructions, as even minor binding can reduce fuel delivery.
The diaphragm itself is a marvel of engineering, typically made from a durable, fuel-resistant material like nitrile rubber or neoprene. Its flexibility allows it to deform under pressure without losing structural integrity. Over time, however, diaphragms can degrade due to fuel exposure or fatigue, leading to leaks or reduced pumping efficiency. Inspect the diaphragm annually, especially if the pump is used in harsh conditions. Replacement kits are widely available, and swapping out a worn diaphragm is a straightforward task requiring only basic tools and a few minutes of your time.
One practical tip for maintaining this pump mechanism is to monitor fuel quality. Contaminants like water or debris can accelerate diaphragm wear and clog the lever system. Use a fuel filter inline with the pump and drain the fuel tank periodically to remove sediment. If the pump operates manually, apply consistent, even pressure to the lever to avoid overstressing the diaphragm. For engine-driven pumps, ensure the camshaft timing is correct to prevent rapid diaphragm failure. These small precautions can extend the pump’s lifespan significantly, saving both time and money in the long run.
In comparison to electric or rotary fuel pumps, the Johnson 438559’s diaphragm and lever system offers distinct advantages. Its mechanical simplicity means fewer points of failure, and its ability to operate without electricity makes it suitable for off-grid applications. However, its flow rate is generally lower, limiting its use to smaller engines. For those seeking a reliable, low-maintenance fuel delivery solution, this pump’s mechanism is hard to beat. By understanding its internal workings, users can troubleshoot issues effectively and ensure consistent performance in critical applications.
Running on Empty: How Low Gas Affects Your Fuel Pump
You may want to see also
Explore related products
Fuel Flow Process: Details how fuel is drawn and delivered under pressure
The Johnson 438559 fuel pump operates as the heart of the fuel delivery system, ensuring a consistent and pressurized flow of fuel from the tank to the engine. This process begins with the pump’s inlet, which draws fuel from the tank via a low-pressure suction mechanism. As the pump’s diaphragm or rotor moves, it creates a vacuum that pulls fuel through the inlet line, overcoming the resistance of fuel lines and filters. This initial stage is critical, as it must account for varying fuel levels and tank conditions, such as temperature and contamination, to maintain a steady flow.
Once drawn into the pump, the fuel is compressed and pressurized through a series of chambers or gears, depending on the pump’s design. In the Johnson 438559, this typically involves a positive displacement mechanism, where the volume of fuel is precisely controlled to meet engine demands. The pressure generated—often ranging from 3 to 5 psi for small engines—is sufficient to push fuel through the system but not so high as to cause leaks or damage. This pressurized fuel is then directed toward the carburetor or fuel injection system, ensuring a reliable supply for combustion.
A key aspect of the fuel flow process is the check valve system, which prevents backflow and maintains pressure within the lines. This is particularly important during engine shutdown or idle, where fuel must remain under pressure to ensure immediate availability upon restart. The check valve also protects the pump from potential damage caused by reverse flow, extending its lifespan and reliability. Without this mechanism, fuel could drain back into the tank, causing delays in engine response and inefficient operation.
Practical considerations for maintaining optimal fuel flow include regular inspection of fuel lines for cracks or clogs, ensuring the pump’s inlet filter is clean, and verifying that the tank vent is unobstructed to prevent vacuum lock. For users of the Johnson 438559, monitoring fuel pressure with a gauge can help diagnose issues early, such as a failing pump or restricted lines. Additionally, using fuel stabilizers in stored equipment can prevent varnish buildup, which often clogs pumps and filters over time. These steps ensure the fuel flow process remains efficient, delivering fuel under pressure precisely when the engine needs it.
Understanding Fuel Pump Size: Dimensions, Types, and Vehicle Compatibility
You may want to see also
Explore related products
Electric vs. Mechanical: Compares the two types of Johnson 438559 fuel pumps
The Johnson 438559 fuel pump is a critical component in marine engines, ensuring a steady supply of fuel for optimal performance. When considering this pump, a key distinction arises: electric versus mechanical. Each type operates differently, offering unique advantages and trade-offs that cater to specific needs. Understanding these differences is essential for maintenance, troubleshooting, and selecting the right pump for your application.
Mechanical fuel pumps, such as the Johnson 438559 variant, are driven by the engine’s camshaft or crankshaft. This direct mechanical linkage ensures the pump operates in sync with the engine’s RPM, providing a consistent fuel flow without relying on external power sources. The simplicity of this design is its strength—fewer components mean fewer potential points of failure. However, this reliance on engine motion can lead to reduced efficiency at low RPMs or during idle, as the pump’s output is directly tied to engine speed. For boaters who frequently operate at varying speeds, this characteristic may require careful consideration.
In contrast, electric fuel pumps are powered by the boat’s electrical system, offering greater flexibility in fuel delivery. These pumps can maintain a steady pressure regardless of engine speed, making them ideal for high-performance applications or engines that demand precise fuel metering. Electric pumps are also easier to install in remote locations, as they don’t require a direct mechanical connection to the engine. However, this reliance on electricity introduces a new set of considerations. A failing battery or alternator can render the pump inoperable, and the added complexity of wiring and relays may increase maintenance demands.
When comparing durability, mechanical pumps often outlast their electric counterparts due to their straightforward design. Electric pumps, while more versatile, are susceptible to issues like overheating, electrical shorts, or motor wear. For instance, an electric pump may require periodic inspection of its wiring harness and connections, whereas a mechanical pump’s maintenance typically involves checking for leaks or worn diaphragms. Cost is another factor—mechanical pumps are generally more affordable upfront, while electric pumps may incur higher initial and long-term expenses due to their advanced components.
Ultimately, the choice between electric and mechanical Johnson 438559 fuel pumps hinges on your specific boating needs. If simplicity, reliability, and cost-effectiveness are priorities, a mechanical pump may be the better option. For those seeking consistent fuel delivery across all engine speeds or running high-performance setups, an electric pump’s adaptability could justify its added complexity. Regardless of the choice, regular maintenance and understanding the pump’s operational principles will ensure it performs reliably, keeping your marine engine running smoothly.
Does Your Scooter's Fuel Pump Run Constantly or Intermittently?
You may want to see also
Explore related products
Common Issues: Identifies typical problems like leaks or diaphragm failure
The Johnson 438559 fuel pump, a diaphragm-type pump, is prone to leaks, often stemming from worn gaskets or cracked housings. These leaks can occur at the pump’s inlet, outlet, or mounting flange, leading to fuel loss and potential fire hazards. Inspecting the pump for wet spots or fuel residue is the first step in diagnosis. Replacing damaged gaskets or sealing surfaces with OEM parts ensures a proper fit, while tightening mounting bolts to the manufacturer’s torque specifications can prevent further issues. Regularly checking for leaks during routine maintenance can mitigate risks and extend the pump’s lifespan.
Diaphragm failure is another common issue, typically caused by material fatigue, fuel contamination, or excessive pressure. A failing diaphragm may result in reduced fuel flow, engine sputtering, or complete pump failure. Symptoms include difficulty starting the engine or inconsistent fuel delivery. To address this, disassemble the pump and inspect the diaphragm for cracks, tears, or deformation. Replacing the diaphragm with a high-quality, ethanol-resistant component is crucial, especially in modern fuels containing higher ethanol blends. Always clean the pump housing and filter during replacement to prevent immediate recurrence.
Clogged fuel filters or inlet lines can also impair the pump’s performance, mimicking diaphragm failure. Debris or sediment in the fuel system restricts flow, causing the pump to work harder and potentially overheat. Flushing the fuel system and replacing the filter every 100 hours of operation or annually, whichever comes first, is recommended. Using a fuel additive to stabilize ethanol blends can reduce varnish buildup and prolong pump life. If the pump still struggles after cleaning, test the diaphragm’s flexibility by hand—a stiff or brittle diaphragm indicates replacement is necessary.
Overheating is a less obvious but critical issue, often caused by prolonged operation under heavy loads or insufficient ventilation. The pump’s efficiency drops as temperatures rise, leading to vapor lock or fuel aeration. Ensure the pump is mounted in a well-ventilated area, away from heat sources like exhaust manifolds. Installing a heat shield or insulating the pump can provide additional protection. Monitoring engine temperature and avoiding extended idling helps prevent overheating. If the pump feels excessively hot to the touch during operation, shut down the engine and inspect for blockages or improper fuel flow.
Lastly, improper installation or misalignment can cause premature wear and failure. The pump’s mounting surface must be clean, flat, and free of debris to ensure a secure seal. Aligning the pump’s inlet and outlet ports correctly prevents stress on internal components. Double-check hose connections for leaks and secure all fittings with clamps. If the pump vibrates excessively during operation, recheck mounting bolts and consider adding vibration dampeners. Proper installation not only prevents immediate issues but also reduces the likelihood of long-term damage, ensuring reliable fuel delivery for years to come.
Signs Your Fuel Pump is Failing: Mileage and Warning Indicators
You may want to see also
Explore related products
Maintenance Tips: Provides steps for cleaning, inspection, and replacement of parts
The Johnson 438559 fuel pump, a diaphragm-type pump, relies on a flexible membrane to create suction and pressure, drawing fuel from the tank and delivering it to the engine. To ensure its longevity and optimal performance, regular maintenance is crucial. This involves cleaning, inspection, and timely replacement of worn parts. Neglecting these steps can lead to fuel delivery issues, engine misfires, or even complete pump failure.
Cleaning the Fuel Pump: Begin by disconnecting the fuel lines and removing the pump from the engine. Disassemble the pump carefully, taking note of the diaphragm, valves, and inlet/outlet ports. Use a mild solvent, such as carburetor cleaner, to remove dirt, debris, and varnish buildup. Avoid harsh chemicals that may damage the diaphragm or seals. For stubborn deposits, use a soft-bristle brush to gently scrub the affected areas. Rinse thoroughly with clean solvent and allow all components to air dry completely before reassembly.
Inspection and Wear Assessment: During disassembly, inspect the diaphragm for cracks, tears, or excessive wear. Check the valves for proper seating and smooth operation. Examine the inlet and outlet ports for obstructions or damage. Pay close attention to the pump's housing and mounting points for signs of corrosion or physical damage. If any components show significant wear or damage, replacement is necessary to prevent pump failure.
Replacement of Parts: When replacing parts, use only genuine Johnson 438559 fuel pump components or high-quality aftermarket equivalents. Common replacement parts include diaphragms, valves, gaskets, and seals. Follow the manufacturer's torque specifications when reassembling the pump to avoid over-tightening, which can damage the diaphragm or housing. After installation, prime the pump and check for leaks before starting the engine.
Preventative Maintenance Tips: To minimize the need for frequent cleaning and repairs, implement a preventative maintenance routine. Inspect the fuel pump and lines periodically for signs of leakage or damage. Use fuel stabilizers, especially during extended storage periods, to prevent varnish buildup. Ensure the fuel tank is clean and free of debris, as contaminants can accelerate pump wear. By following these steps, you can extend the life of your Johnson 438559 fuel pump and maintain reliable engine performance.
Understanding the PSI Rating of a 1994 Ford F150 Fuel Pump
You may want to see also
Frequently asked questions
The Johnson 438559 fuel pump is a mechanical diaphragm pump that uses engine motion to create a vacuum, drawing fuel from the tank and delivering it to the carburetor.
The Johnson 438559 fuel pump is designed to work with gasoline and is commonly used in outboard marine engines.
The diaphragm flexes up and down with engine movement, creating a vacuum on the downstroke to draw fuel in and pressure on the upstroke to push fuel out to the carburetor.
Common issues include diaphragm failure, clogged fuel lines, or air leaks in the system, which can reduce fuel flow or cause the engine to run poorly. Regular maintenance is key to preventing these problems.
