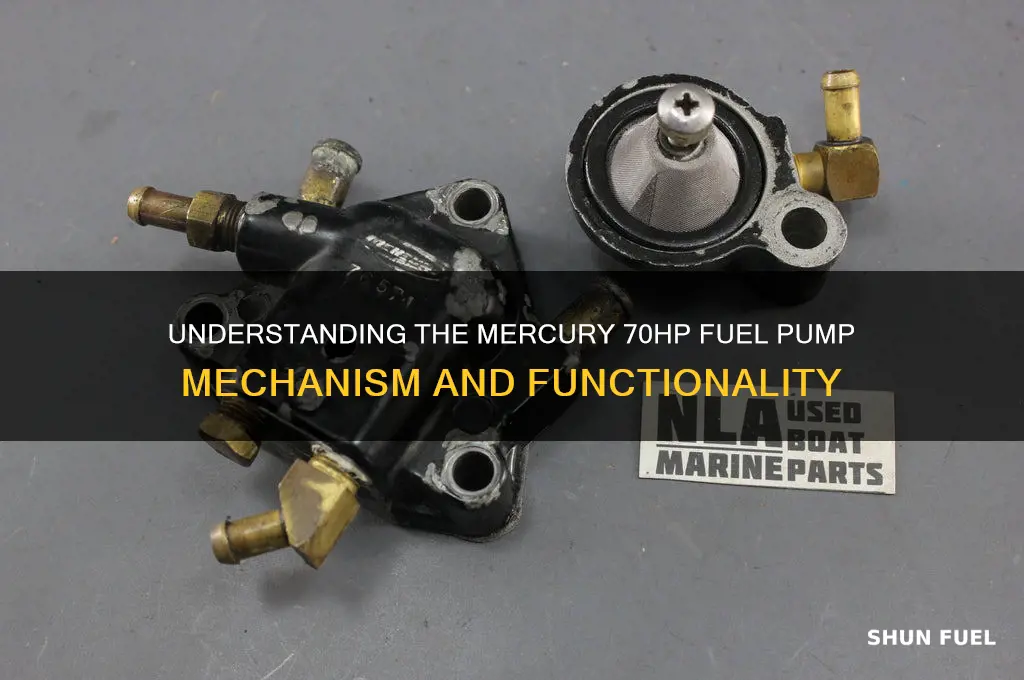

The Mercury 70hp fuel pump is a crucial component in the outboard motor's fuel delivery system, designed to ensure a consistent and reliable supply of fuel to the engine. This mechanical pump operates by drawing fuel from the tank and pressurizing it before delivering it to the carburetor or fuel injectors. It typically consists of a diaphragm or rotary mechanism that creates a vacuum to pull fuel through the lines, with a series of valves and chambers regulating the flow and pressure. The pump is driven by the engine's camshaft or a dedicated drive shaft, ensuring it operates in sync with the engine's demands. Understanding how this fuel pump works is essential for troubleshooting issues like poor engine performance, hard starting, or fuel starvation, as well as for routine maintenance to keep the outboard motor running efficiently.
Explore related products
What You'll Learn
- Pump Type and Design: Overview of the diaphragm or rotary pump mechanism used in the 70hp model
- Fuel Flow Process: How fuel is drawn from the tank and pressurized for engine delivery
- Pressure Regulation: Role of the pump in maintaining optimal fuel pressure for combustion
- Components and Function: Key parts like diaphragms, check valves, and pulsation dampers explained
- Maintenance and Troubleshooting: Common issues, inspection tips, and steps to ensure pump longevity
Pump Type and Design: Overview of the diaphragm or rotary pump mechanism used in the 70hp model
The Mercury 70hp outboard motor relies on a diaphragm-type fuel pump to deliver a consistent fuel supply to the engine. This design choice is critical for maintaining performance across varying operating conditions, from idle to full throttle. Unlike rotary pumps, which use rotating components to generate pressure, diaphragm pumps employ a flexible membrane that moves back and forth, creating a vacuum to draw fuel and then compress it for delivery. This mechanism is particularly suited to marine environments due to its simplicity, reliability, and resistance to contamination from water or debris.
Understanding the diaphragm pump’s operation begins with its core components: the diaphragm itself, a set of check valves, and a cam-driven actuator. As the engine runs, the camshaft activates the actuator, which flexes the diaphragm inward and outward. During the inward stroke, fuel is drawn into the pump chamber through an inlet valve. The outward stroke then compresses the fuel, forcing it through the outlet valve and into the carburetor or fuel injection system. This cyclical process ensures a steady fuel flow, even when the engine’s demand fluctuates.
One of the key advantages of the diaphragm pump is its ability to handle low-pressure fuel systems effectively. In the Mercury 70hp model, this pump typically operates at pressures between 3 and 5 psi, sufficient for carbureted engines. However, it’s essential to maintain proper fuel line integrity to prevent air leaks, which can disrupt the pump’s ability to create a vacuum. Regular inspection of fuel lines and connections is a practical tip to ensure optimal performance and avoid issues like engine stalling or rough idling.
Comparatively, rotary pumps, often found in higher-horsepower or fuel-injected outboards, offer higher pressure capabilities but are more complex and prone to wear. The diaphragm pump’s simplicity makes it a cost-effective and durable solution for the 70hp model. Its design minimizes moving parts, reducing the risk of mechanical failure, and its self-priming capability ensures the engine starts reliably, even after periods of inactivity.
In conclusion, the diaphragm pump in the Mercury 70hp fuel system exemplifies a balance of efficiency and robustness. By understanding its mechanism and maintaining its components, boaters can ensure their outboard operates smoothly under all conditions. Whether navigating calm waters or tackling rough seas, this pump’s reliability is a cornerstone of the engine’s performance.
Pump Fuel Insanity: Does It Contain DMAA? Unveiling the Truth
You may want to see also
Explore related products
Fuel Flow Process: How fuel is drawn from the tank and pressurized for engine delivery
The Mercury 70hp fuel pump operates as the heart of the fuel delivery system, ensuring a consistent and pressurized flow of fuel from the tank to the engine. This process begins with the fuel tank, where a low-pressure electric pump, often integrated into the fuel sender assembly, draws fuel through a strainer to prevent debris from entering the system. This initial stage is crucial for maintaining fuel quality and protecting downstream components.
Once drawn from the tank, the fuel travels through a series of lines to the mechanical fuel pump, typically driven by the engine’s camshaft or timing system. Here, the fuel is pressurized to meet the engine’s demands. In the Mercury 70hp, this pump operates via a diaphragm mechanism, which expands and contracts with engine movement, creating a vacuum that pulls fuel in and then forces it out under pressure. This design ensures a steady flow even at varying engine speeds.
Pressure regulation is a critical aspect of this process. A fuel pressure regulator, often located near the engine, maintains optimal pressure by diverting excess fuel back to the tank. This prevents over-pressurization, which could lead to leaks or damage, while ensuring the engine receives the correct amount of fuel for combustion. For the Mercury 70hp, this regulator is typically set to maintain pressure between 28 and 32 psi, depending on the model and application.
Finally, the pressurized fuel is delivered to the carburetor or fuel injectors, where it is mixed with air and atomized for combustion. Proper maintenance of this system, including regular inspection of fuel lines, filters, and pump components, is essential to prevent clogs, leaks, or performance issues. For optimal longevity, replace fuel filters every 50–100 hours of operation and inspect fuel lines for cracks or deterioration annually. Understanding this fuel flow process not only enhances engine efficiency but also ensures reliable operation in marine environments.
Hondata's Role in Fuel Pump Control: Functionality Explained
You may want to see also
Explore related products
Pressure Regulation: Role of the pump in maintaining optimal fuel pressure for combustion
The Mercury 70hp fuel pump is a critical component in ensuring the engine receives fuel at the precise pressure required for efficient combustion. At the heart of its operation is a diaphragm mechanism that responds to engine demands, creating a vacuum to draw fuel from the tank and pressurize it for delivery to the carburetor or fuel injectors. This process is not just about moving fuel; it’s about maintaining a delicate balance of pressure that adapts to varying engine loads, speeds, and conditions. Without this regulation, the engine could run too rich or too lean, leading to poor performance, increased emissions, or even damage.
Consider the pump’s role as a pressure regulator: it must supply fuel at a consistent 3–5 psi (pounds per square inch) for optimal combustion in a Mercury 70hp outboard. This range is critical because too little pressure results in insufficient fuel delivery, causing hesitation or stalling, while excessive pressure leads to over-fueling, fouling spark plugs, and wasting fuel. The pump achieves this through a spring-loaded diaphragm and a bypass valve. When engine demand increases, the diaphragm flexes to draw more fuel, and when demand decreases, excess fuel is rerouted back to the tank via the bypass valve, preventing over-pressurization.
To illustrate, imagine accelerating from idle to full throttle. As the throttle opens, the pump senses increased vacuum from the carburetor or fuel injectors, signaling higher fuel demand. The diaphragm responds by expanding, drawing fuel from the tank and pressurizing it to meet the engine’s needs. Conversely, during deceleration, the bypass valve opens, redirecting excess fuel to prevent pressure spikes. This dynamic regulation ensures the engine receives the right amount of fuel at the right time, optimizing combustion efficiency across all operating conditions.
Practical maintenance tips can enhance the pump’s pressure regulation capabilities. Regularly inspect fuel lines for cracks or leaks, as even small breaches can disrupt pressure. Replace the fuel filter annually or after 100 hours of operation to prevent clogs that could strain the pump. If the engine struggles to maintain RPMs or exhibits erratic performance, test the pump’s output pressure using a gauge; readings outside the 3–5 psi range indicate a malfunctioning pump or bypass valve. Addressing these issues promptly ensures the pump continues to regulate pressure effectively, prolonging engine life and performance.
In summary, the Mercury 70hp fuel pump’s pressure regulation is a finely tuned process that balances engine demands with precise fuel delivery. By understanding its mechanism and maintaining it diligently, boaters can ensure their engines operate at peak efficiency, avoiding common issues like poor fuel economy or rough idling. This component’s role is not just functional—it’s transformative, turning raw fuel into the controlled energy that powers every voyage.
Can a Faulty Fuel Pump Cause Your Gauge to Malfunction?
You may want to see also
Explore related products
Components and Function: Key parts like diaphragms, check valves, and pulsation dampers explained
The Mercury 70hp fuel pump operates as the heart of the fuel system, ensuring a consistent and pressurized flow of fuel to the engine. Central to its function are three critical components: diaphragms, check valves, and pulsation dampers. Each plays a distinct role in maintaining efficiency, reliability, and performance under varying load conditions.
Diaphragms serve as the primary driving force behind fuel movement. Constructed from flexible, durable materials like nitrile rubber or neoprene, these thin, dome-shaped membranes alternate between compression and expansion. When the pump’s camshaft activates the diaphragm, it creates a vacuum that draws fuel into the pump chamber. As the diaphragm returns to its original position, it compresses the fuel, forcing it through the outlet port. This cyclical action ensures a steady fuel supply, even at high engine speeds. Regular inspection for cracks or wear is essential, as a compromised diaphragm can lead to fuel starvation or air infiltration.
Check valves, often overlooked but indispensable, act as one-way gates within the fuel pump. Typically made of stainless steel or hardened plastic, these valves permit fuel flow in a single direction, preventing backflow and maintaining system pressure. The inlet check valve opens during the diaphragm’s expansion phase, allowing fuel to enter the pump, while the outlet check valve opens during compression, directing fuel toward the carburetor or fuel injectors. Malfunctioning check valves can cause erratic fuel delivery, reduced engine power, or hard starting. Replacing these valves during routine maintenance, especially in older pumps, can preempt such issues.
Pulsation dampers address a common challenge in diaphragm-driven fuel pumps: pressure fluctuations. These cylindrical devices, often integrated into the pump housing, contain a spring-loaded piston and a small reservoir of fuel. As the diaphragm cycles, the damper absorbs pressure spikes, smoothing the fuel flow and reducing vibration. This not only enhances engine performance but also prolongs the life of fuel lines and injectors by minimizing stress. If the damper fails, symptoms like engine surging or uneven idle may arise, necessitating immediate replacement.
Together, these components form a synergistic system that balances pressure, direction, and consistency in fuel delivery. Understanding their functions and interdependencies empowers boat owners to diagnose issues accurately and perform targeted repairs, ensuring the Mercury 70hp engine operates at its peak. Regular maintenance, including diaphragm inspections, check valve replacements, and damper checks, is key to avoiding costly downtime and maximizing reliability on the water.
Exploring the Fuel Pump Driver Module in the 2019 F150
You may want to see also
Explore related products
Maintenance and Troubleshooting: Common issues, inspection tips, and steps to ensure pump longevity
The Mercury 70hp fuel pump is a critical component in your outboard motor’s fuel delivery system, but its reliability isn’t guaranteed without proper care. Common issues like fuel starvation, inconsistent pressure, or complete pump failure often stem from neglect or improper maintenance. Understanding these problems and their root causes is the first step in ensuring your pump operates efficiently for years.
Inspection Tips: What to Look For
Regular inspections can preempt major failures. Start by checking the fuel lines for cracks, leaks, or signs of degradation, especially in older models. Inspect the pump’s inlet and outlet ports for debris or clogs, which can restrict fuel flow. Listen for unusual noises during operation, such as whining or grinding, which may indicate internal wear. For electric fuel pumps, test the electrical connections for corrosion or loose wiring. A multimeter can verify voltage supply, ensuring the pump receives the correct 12V power.
Troubleshooting Steps: Diagnosing and Resolving Issues
If your engine sputters or stalls, begin by checking the fuel filter for clogs—replace it every 50–100 hours of operation. Verify fuel tank levels; running on low fuel increases the risk of drawing in sediment. For pressure-related issues, use a fuel pressure gauge to test output against the manufacturer’s specifications (typically 3–5 PSI for this model). If the pump fails to prime, inspect the primer bulb for leaks or collapse. In cases of electrical failure, test the pump’s resistance with a multimeter; values outside the 2–4 ohms range indicate a faulty pump.
Proactive Maintenance: Extending Pump Lifespan
Preventive care is key to longevity. Flush the fuel system annually with a marine-grade cleaner to remove varnish and contaminants. Use ethanol-free gasoline or additives to stabilize fuel, reducing internal corrosion. Lubricate the pump’s diaphragm (if applicable) with a few drops of 2-stroke oil during off-season storage. For electric pumps, apply dielectric grease to terminals to prevent corrosion. Lastly, run the engine periodically during storage to keep internal components lubricated and prevent seals from drying out.
Cautions and Best Practices
Avoid over-tightening fuel line fittings, as this can crack the pump housing. Never run the engine without proper fuel flow, as this can overheat the pump. When replacing components, use OEM parts to ensure compatibility and performance. Keep detailed maintenance logs to track service intervals and identify recurring issues. By combining vigilance with these practices, you’ll minimize downtime and maximize the lifespan of your Mercury 70hp fuel pump.
Dodge Charger Fuel Pump Fires: Investigating the Burning Issue
You may want to see also
Frequently asked questions
The Mercury 70hp fuel pump is a mechanical, diaphragm-type pump driven by the engine's camshaft. It draws fuel from the tank, pressurizes it, and delivers it to the carburetor or fuel injection system for combustion.
The key components include the diaphragm, pump housing, inlet and outlet ports, check valves, and a linkage to the engine's camshaft for operation.
The diaphragm moves up and down via the camshaft linkage, creating a vacuum to draw fuel into the pump and then pressurizing it for delivery to the engine.
Regular maintenance includes checking for leaks, ensuring proper fuel filter replacement, and inspecting the diaphragm and valves for wear or damage. Periodic cleaning and lubrication may also be necessary.
