Regan Brown

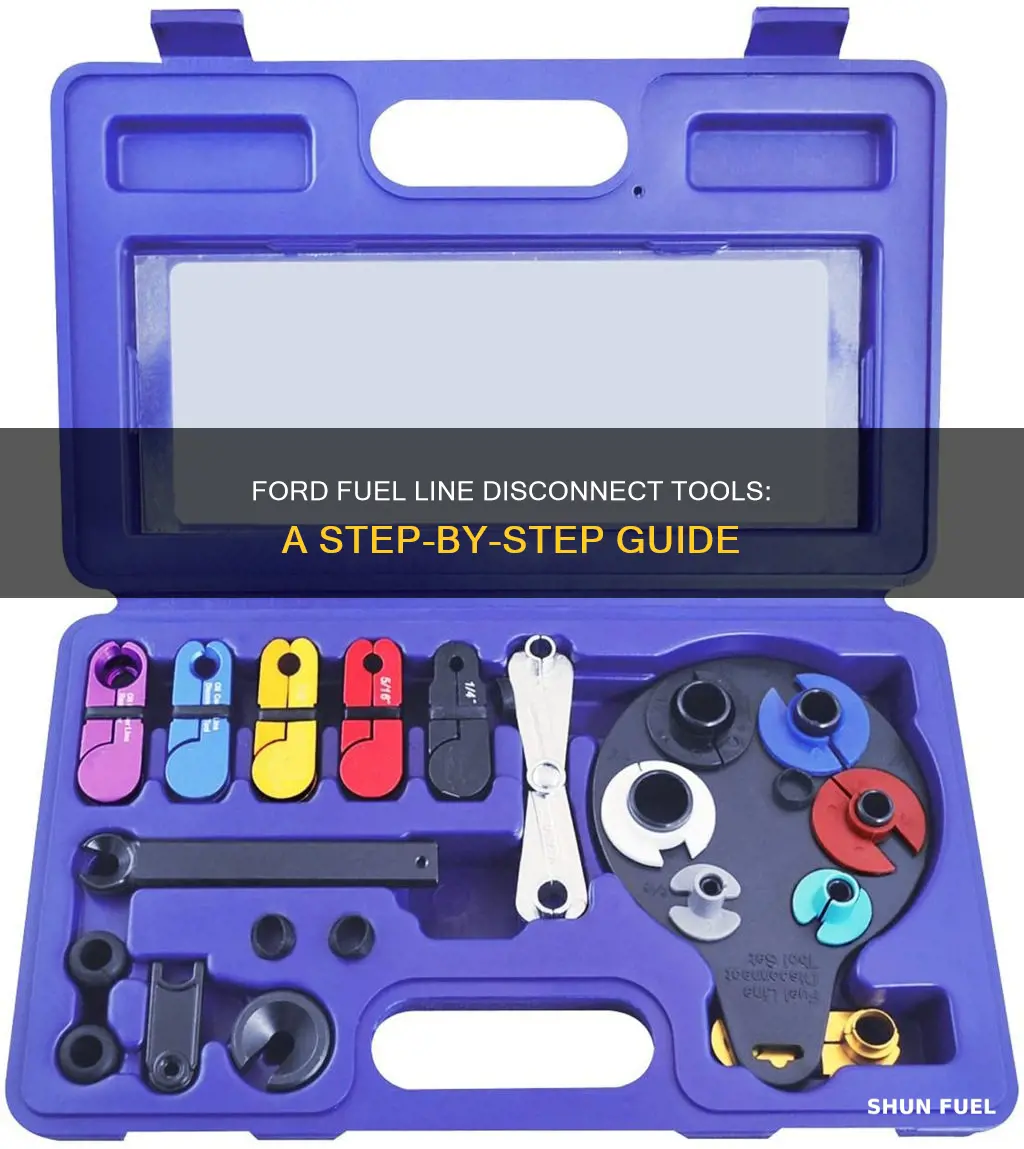

Ford fuel line disconnect tools are used to disconnect the fuel line from the connector without causing damage. The tools help to put the right amount of pressure on the connection to disconnect with minimal effort. There are a variety of tools available, including plastic, metal, aluminum, and steel tools. Some tools are designed to fit over the line and are pulled towards the user to disconnect the line, while others are inserted between the filter nipple and coupling. It is important to get the right tool for the vehicle and to take safety precautions such as wearing safety goggles to protect against dirt and grime.
| Characteristics | Values |
|---|---|
| Tool Type | Metal, Plastic, Steel, Aluminum, "Spreader" pliers |
| Tool Purpose | Disconnecting the fuel line from the connector |
| Tool Function | Puts the right amount of pressure on the connection to disconnect with minimal effort |
| Tool Use | Push the fuel line into the connector, twist the connector side to side to free the teeth inside, insert the tool and push it in, then pull the line off |
| Tool Brands | Lisle, KD-3321, OTC 7337, Autocraft, Pittsburgh |
| Tool Sizes | 3/8", 5/16", 8mm, 10mm |
| Tool Cost | ~$8 for a set of 6 collar tools to ~$25 for the low-profile scissor |
Explore related products
What You'll Learn
Using the right tool
The first step is to identify the type of fuel line connector you are working with. Ford vehicles typically use either the "quick connect" or "snap-on" type connectors. Quick-connect fittings are commonly used in late-model Ford vehicles, and they require a special tool to disconnect the fuel line safely. Snap-on connectors, on the other hand, are often found in older Ford models and can sometimes be removed without specialized tools.
The next step is to select the appropriate disconnect tool for your connector type. For quick-connect fittings, it is recommended to use a tool specifically designed for Ford fuel lines, such as the OTC 7337 or the KD-3321. These tools come in different sizes, such as 3/8" and 5/16", to accommodate different connector sizes. It is important to match the tool size to your connector size for a proper fit.
In some cases, you may need to use a combination of tools. For example, a small pick tool can be used to separate the filter nipple from the coupling, followed by a larger tool to disconnect the fuel line itself. Additionally, some connectors may require lubrication with a product like WD-40 or PB Blaster to help loosen any grime or corrosion before attempting to disconnect the line.
It is worth noting that fuel lines are under pressure, and attempting to disconnect them without the proper tool can cause damage to the system. Using the correct tool ensures that the right amount of pressure is applied to the connection, allowing for a safe and efficient disconnect. Always refer to vehicle-specific repair manuals and consult with automotive experts or mechanics if you are unsure about the correct tool or procedure.
Air in Diesel Fuel Line: Symptoms and Solutions
You may want to see also
Explore related products
Disconnecting the fuel pump fuse
Prepare the Vehicle:
Before attempting any fuel line repairs or maintenance, it's crucial to prepare the vehicle. Park the car in a safe area and run the engine until it stalls to use up any remaining fuel in the lines. This step is essential for your safety, as working on fuel lines with residual pressure can be hazardous.
Disconnecting the Fuse:
- Put on your safety gear, including eye protection and gloves, to protect yourself from any fuel residue or debris.
- Locate the fuel pump fuse. Refer to your vehicle's manual if you're unsure of its exact location.
- Using the appropriate tool, carefully remove the fuse. This action will disable the fuel pump, ensuring that no more fuel is drawn into the lines.
- Allow the engine to cool down before proceeding. Working on hot components can be dangerous and may impact the quality of your work.
Cleaning and Disconnecting Fuel Lines:
- Clean the fuel lines and connections to remove any grime, dirt, or debris. This step is crucial to prevent obstructions and ensure the lines are free of contaminants.
- Choose the correct size of the fuel line disconnect tool for your Ford vehicle. These tools come in various sizes to accommodate different fuel line sizes.
- Position the fuel line disconnect tool over the fuel line, ensuring the open side faces down.
- Squeeze the tool with your fingers to widen its opening, then push it onto the fuel line until it snaps securely around it.
- With the tool in place, push it to one side to release the locking mechanism.
- Pull the fuel lines apart to complete the disconnection.
It is important to note that Ford vehicles typically use similar fuel line disconnect tools due to the special fuel line fittings they employ. These tools are designed to fit into tight spaces and efficiently disengage fuel line fittings near fuel filters, fuel sending units, and the fuel rail.
Additionally, always refer to the manufacturer's instructions or a trusted mechanic if you are unsure about any steps in the process. Working on fuel lines can be dangerous if not performed correctly, so taking the necessary precautions is essential.
Fuel Line Size: Dorman Help 55240 Installation Guide
You may want to see also
Explore related products
Cleaning the connection
When cleaning the connection of your Ford fuel line disconnect tools, it is important to ensure that all dirt, grease, and debris are removed from the fittings. This includes cleaning any fuel deposits that may have built up between the O-rings, which can make it difficult to separate the fittings.
One way to clean the connections is to use a carb cleaner or brake clean. Soak the connections with the cleaner and then use compressed air to blow them out. This will help remove any crud, sand, or grime that has built up. You can also use penetrating oil to help break down any hardened silt or debris that may be packed into the connections.
Another method is to use a Siphon Air Blower and Water, followed by penetrating oil. This combination is especially effective at breaking down hardened silt. Be sure to also clean under the brake/fuel line guards, as fine silt and debris can get packed into these areas.
In some cases, you may need to remove the safety clip from the fuel lines in order to clean the connections properly. The safety clip is attached to a small wire that keeps it from getting lost. Once the clip is removed, you can slide the tool back to unseat the garter spring on the fitting and then pull back on the fuel line to separate them.
It is also important to inspect the O-rings for any damage and replace them if necessary. When installing a new filter, apply clean motor oil to the filter nipples to allow them to slide into the O-rings more easily and prevent any damage.
Clearing Fuel Lines: DIY Lawn Mower Maintenance
You may want to see also
Explore related products
Using a small pick tool
Firstly, locate the filter nipple and coupling assembly on your Ford's fuel line. This is where the small pick tool will be inserted. Before you begin, ensure you are wearing the necessary safety gear, such as safety goggles, to protect yourself from any debris or fluids.
Now, take your small pick tool and carefully insert it into the space between the filter nipple and the coupling. It may require some effort and a bit of wiggling to get the tool in place. Be cautious not to damage any nearby components or o-rings during this process.
Once the pick tool is in position, gently work it back and forth to release the bail from the coupling. You may need to twist and turn the tool to find the right angle and apply some force to free the bail. This step may require some patience and precision.
After successfully releasing the bail, you can now remove the filter. At this point, it is good to inspect the bail for any signs of damage or deformation. If it appears bent or misshapen, take the time to gently bend it back into its original shape.
Finally, with the filter removed, you can reinstall the bail into the coupling to prepare for the new filter. Ensure the bail is securely in place before proceeding with the rest of your maintenance or repair work.
Extending Diesel Fuel Filler Lines: A DIY Guide
You may want to see also
Explore related products
Using a metal disconnect tool
Before attempting to use the tool, it is crucial to ensure that the fuel line does not contain any fuel. To do this, with the car parked safely, start the engine and leave it to idle. This will help use up the remaining fuel. Removing the fuse will stop the pump from working and cut off the fuel supply, causing the engine to stall. Once the engine has stopped, put on your safety gear and allow the engine to cool before proceeding.
The next step is to clean the fuel lines and connections to remove any grime and debris. This will ensure that no debris falls into the fuel lines when they are disengaged and will also make the lines easier to disconnect.
Now, with the open side facing down, position the metal disconnect tool over the fuel line. Squeeze the tool with your fingers to widen its opening and push it so it snaps around the fuel line. Push the tool towards the female side of the connection, or the locking mechanism, and pull the fuel line to one side to disconnect it. The line should come off without much effort.
If the line is particularly stubborn, you may need to use a penetrating oil or cleaner, such as WD-40 or PB-Blaster, to soak the connectors overnight before attempting to disconnect them again. Additionally, some users have reported success by bending up a thin piece of metal to release the springs, or by cutting the screw portion of the clamp and wrapping it tightly around the fuel line.
Using Autocraft Fuel Line Disconnect Tool: A Step-by-Step Guide
You may want to see also
Frequently asked questions
Using a fuel line disconnect tool helps you disconnect the fuel line from the connector without causing damage. Push the fuel line into the connector and twist the connector side to side to free the teeth inside. Then, while holding the pressure, insert your tool and push it in as far as you can.
Make sure you are pushing in to clear the spring/clip before pulling it apart. You can also try using a Siphon Air Blower & Water followed by some penetrating oil to break down hardened silt.
Some users have reported that the tools are not releasing the fuel lines. This could be due to incorrect usage or an issue with the line. It is recommended to try different tools and methods to find what works best for your specific situation.
