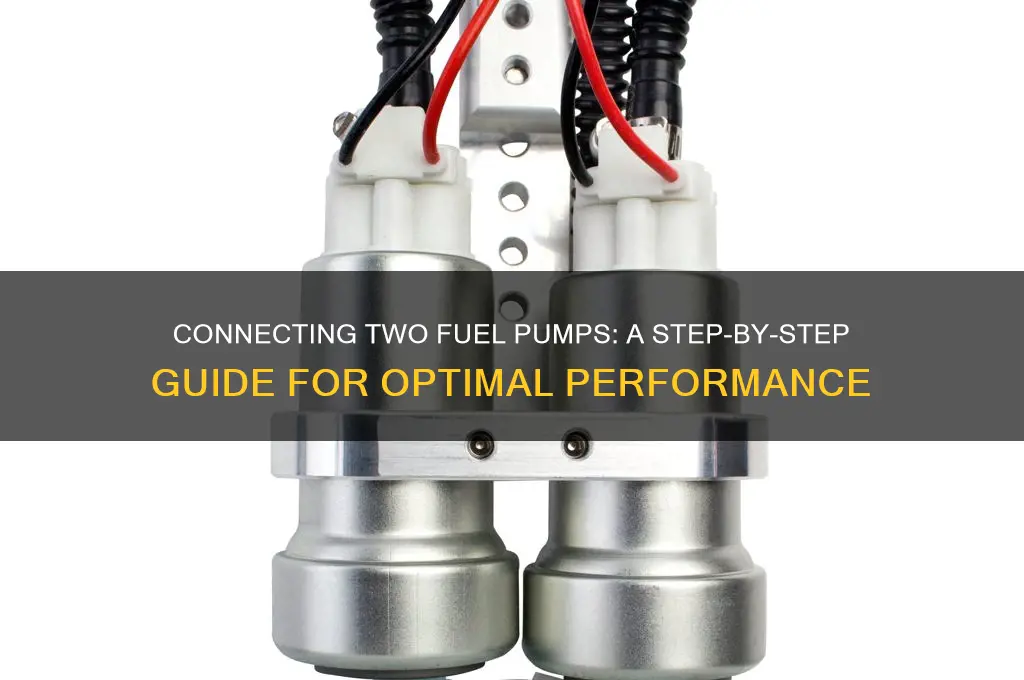

Connecting two fuel pumps together is a task often undertaken to increase fuel delivery capacity in high-performance or modified vehicles. This process involves linking the pumps in either a series or parallel configuration, depending on the desired outcome. In a series setup, the output of one pump feeds directly into the input of the second, boosting pressure, while a parallel configuration combines the flow rates of both pumps to enhance volume. Proper wiring, plumbing, and the use of a fuel pump controller are essential to ensure the system operates efficiently and safely. Careful consideration of the vehicle’s fuel system requirements and compatibility between the pumps is crucial to avoid issues such as overheating, cavitation, or inadequate fuel delivery.
| Characteristics | Values |
|---|---|
| Connection Type | Parallel or Series |
| Purpose | Increase fuel flow rate, provide redundancy, or support high-performance engines |
| Required Components | Fuel pumps, fuel lines, fittings, check valves (optional), relay (for parallel connection), wiring harness |
| Parallel Connection | Both pumps operate simultaneously, increasing flow rate; requires a relay to control power to each pump individually |
| Series Connection | One pump pushes fuel into the other, increasing pressure; less common due to potential strain on pumps |
| Check Valves | Recommended in parallel setups to prevent fuel backflow and ensure proper flow direction |
| Wiring | For parallel: separate power wires to each pump with a relay; for series: pumps can share a single power wire |
| Fuel Lines | Use high-pressure fuel lines and compatible fittings to connect pumps and ensure leak-free operation |
| Compatibility | Ensure both pumps are compatible in terms of voltage, flow rate, and pressure requirements |
| Safety | Follow proper grounding and wiring practices to prevent electrical hazards; use fuel-resistant materials |
| Testing | After installation, test the system for leaks, proper fuel flow, and correct pump operation |
| Maintenance | Regularly inspect connections, lines, and pumps for wear or damage; replace components as needed |
Explore related products
What You'll Learn
- Series Connection Basics: Understand wiring two pumps in series for increased pressure, ensuring compatibility and safety
- Parallel Setup Guide: Learn to connect pumps in parallel for higher flow rate, maintaining balanced operation
- Relay Wiring Diagram: Use relays to control dual pumps efficiently, preventing electrical overload and ensuring reliability
- Fuse and Switch Setup: Install proper fuses and switches to protect the system and enable individual pump control
- Hose and Fitting Tips: Choose correct hoses and fittings to connect pumps securely, avoiding leaks and pressure loss
Series Connection Basics: Understand wiring two pumps in series for increased pressure, ensuring compatibility and safety
Connecting two fuel pumps in series is a strategic approach to amplify pressure in fuel delivery systems, particularly in high-performance or modified vehicles. Unlike parallel connections, which increase flow rate, series connections focus on boosting pressure by linking the output of one pump directly to the input of the next. This method is essential when stock fuel systems fall short of meeting the demands of turbocharged, supercharged, or high-compression engines. However, success hinges on understanding the principles of series wiring, compatibility between pumps, and safety precautions to prevent system failure or hazards.
Steps to Wire Pumps in Series: Begin by selecting pumps with compatible voltage and amperage ratings to ensure seamless operation. Connect the power source to the first pump’s positive terminal and link the first pump’s output to the second pump’s input using appropriately sized wiring. Ground both pumps securely to the vehicle’s chassis to prevent electrical faults. Use relays or a dedicated fuel pump controller to manage power distribution, especially if the pumps draw significant current. Test the system for proper operation and verify pressure levels with a fuel pressure gauge to confirm the desired increase.
Compatibility and Safety Considerations: Not all fuel pumps are suited for series connections. Ensure both pumps are designed for continuous duty and can handle the increased load without overheating. Verify that the combined pressure output does not exceed the fuel system’s safety limits, such as injector or fuel line ratings, to avoid leaks or ruptures. Always install an inline fuel pressure regulator to maintain optimal pressure and protect the system. Additionally, incorporate a fuse or circuit breaker in the wiring harness to safeguard against short circuits or overcurrent conditions.
Practical Tips for Success: When wiring pumps in series, use high-quality, heat-resistant wiring and connectors to handle the electrical load. Position the pumps close to each other to minimize voltage drop and ensure efficient power transfer. If using pumps with different flow rates, place the higher-flow pump first in the series to maintain consistent fuel delivery. Regularly inspect the system for signs of wear, such as frayed wires or fuel leaks, and address issues promptly. For advanced setups, consult a professional to ensure compliance with safety standards and optimal performance.
Takeaway: Wiring fuel pumps in series is a powerful solution for increasing fuel pressure, but it requires careful planning and execution. By prioritizing compatibility, safety, and proper installation, enthusiasts can achieve reliable performance gains without compromising their vehicle’s integrity. Whether upgrading for racing or enhancing a modified engine, understanding series connection basics is key to a successful fuel system upgrade.
