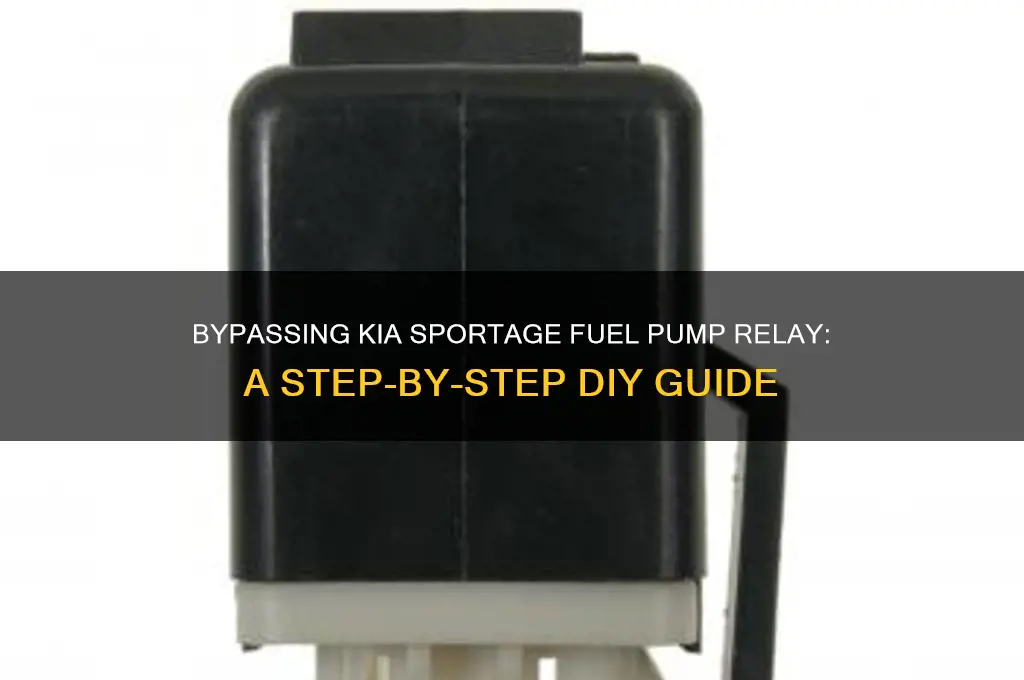

Bypassing the fuel pump relay on a Kia Sportage can be a temporary solution to diagnose or address fuel pump issues, but it should be done with caution as it circumvents safety mechanisms. The fuel pump relay is responsible for controlling power to the fuel pump, ensuring it operates only when the engine is running. To bypass it, you’ll typically need to connect the fuel pump directly to the battery or a constant power source, using a fused wire to prevent electrical hazards. However, this method is not recommended for long-term use, as it can lead to overheating, fuel system damage, or safety risks. Always consult a professional mechanic or refer to a repair manual specific to your Kia Sportage model before attempting this procedure.
| Characteristics | Values |
|---|---|
| Vehicle Model | Kia Sportage |
| Component | Fuel Pump Relay |
| Bypass Purpose | To test fuel pump operation or temporarily bypass a faulty relay |
| Tools Required | Multimeter, jumper wires, pliers, screwdriver |
| Safety Precautions | Disconnect battery, work in a well-ventilated area, avoid sparks |
| Relay Location | Typically found in the engine bay fuse box or under the dashboard |
| Bypass Method | Connect power directly from the battery to the fuel pump connector |
| Wiring Connections | Identify power and ground wires for the fuel pump (refer to manual) |
| Temporary Fix | Not recommended for long-term use; replace relay ASAP |
| Diagnostic Step | Test relay with a multimeter to confirm fault before bypassing |
| Common Symptoms of Faulty Relay | Engine cranks but won't start, no fuel pressure, intermittent starting |
| Professional Advice | Consult a mechanic for proper diagnosis and repair |
| Legal Disclaimer | Bypassing safety components may void warranty or violate regulations |
Explore related products
What You'll Learn
- Identify Relay Location: Locate the fuel pump relay in the fuse box under the hood
- Test Relay Functionality: Use a multimeter to check if the relay is functioning correctly
- Bypass with Jumper Wire: Temporarily bypass the relay by connecting the battery and pump wires
- Replace Faulty Relay: Purchase a compatible relay and install it to restore normal operation
- Check Fuse and Wiring: Inspect related fuses and wiring for damage or corrosion
Identify Relay Location: Locate the fuel pump relay in the fuse box under the hood
The fuel pump relay in a Kia Sportage is a critical component, ensuring your vehicle’s engine receives the necessary fuel for operation. To bypass it, you must first locate it, and this begins under the hood. The fuse box, often a black or gray rectangular unit, houses the relay among other fuses and modules. Pop the hood and secure it in place. Look for a latch or release mechanism near the driver’s side dashboard to access the engine compartment. Once open, identify the fuse box, typically positioned near the battery or along the inner fender wall. It’s a straightforward starting point, but precision is key—misidentifying components can lead to unnecessary complications.
Locate the fuse box cover, which usually has a diagram indicating the position of each relay and fuse. This diagram is your roadmap. In the Kia Sportage, the fuel pump relay is often labeled as "FP RELAY" or "FUEL PUMP." If the diagram isn’t clear, consult the vehicle’s manual for specific guidance. The relay itself is a small, rectangular module with several pins, typically slotted into a designated position within the fuse box. Take note of its orientation before removing it—this ensures proper reinstallation if needed. A flashlight can be invaluable here, as engine compartments often have shadows that obscure smaller components.
Removing the fuel pump relay requires careful attention. Once identified, gently pull it straight out of its slot. Avoid wiggling or forcing it, as this can damage the relay or its housing. If it’s stubborn, use a flathead screwdriver to carefully pry it out, but apply minimal force. With the relay in hand, inspect it for signs of wear, corrosion, or burning, which could indicate underlying issues. This step isn’t just about bypassing the relay—it’s an opportunity to diagnose potential problems affecting your vehicle’s performance.
Bypassing the fuel pump relay involves bridging the power supply directly to the fuel pump. However, this is a temporary fix and should only be done in emergencies. To do this, locate the relay’s power and ground pins, typically marked on the relay itself or in the fuse box diagram. Use a jumper wire to connect these pins, ensuring a secure connection. This activates the fuel pump directly, bypassing the relay’s control. Remember, this method bypasses safety features, so proceed with caution and only when necessary. Always prioritize professional repair for long-term solutions.
In summary, locating the fuel pump relay in your Kia Sportage’s fuse box is the first step in any bypass attempt. It requires familiarity with your vehicle’s layout, attention to detail, and a methodical approach. While bypassing the relay can be a quick fix, it’s not a substitute for proper repair. Treat this as a temporary measure and consult a mechanic to address the root cause of the issue. Understanding your vehicle’s components empowers you to handle emergencies, but safety and precision should always come first.
