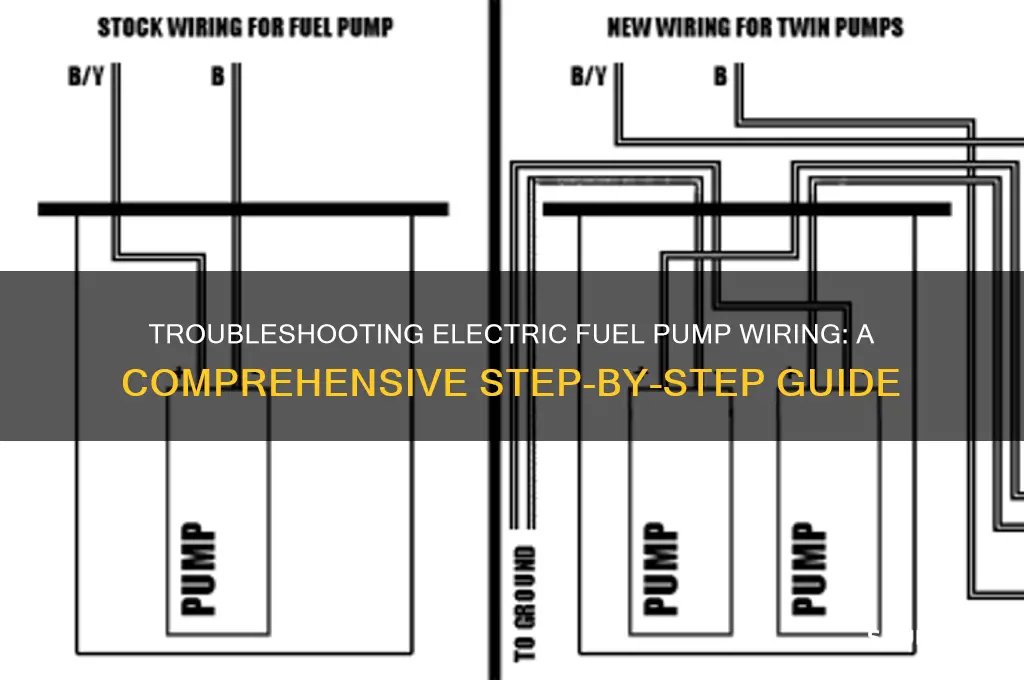

Troubleshooting the wiring of an electric fuel pump is a critical task for diagnosing and resolving issues that can lead to poor engine performance or a complete failure to start. The process involves systematically checking the electrical circuit, including the fuse, relay, wiring harness, and ground connections, to identify any faults such as shorts, open circuits, or corrosion. Key steps include verifying power supply at the pump connector, testing the relay for proper operation, and inspecting for damaged or frayed wires. Additionally, using a multimeter to measure voltage and resistance can help pinpoint the exact location of the problem. Understanding the wiring diagram and following safety precautions, such as disconnecting the battery, are essential to ensure an accurate and safe troubleshooting process.
| Characteristics | Values |
|---|---|
| Purpose | Diagnose and resolve issues with electric fuel pump wiring to ensure proper fuel delivery. |
| Common Symptoms | Engine cranks but doesn’t start, stalling, loss of power, whining noises. |
| Tools Required | Multimeter, wiring diagram, test light, screwdriver, pliers. |
| Safety Precautions | Disconnect battery, work in a well-ventilated area, avoid sparks near fuel. |
| Steps | 1. Check fuse and relay for continuity. |
| 2. Inspect wiring for damage, corrosion, or loose connections. | |
| 3. Test power supply at the pump connector using a multimeter. | |
| 4. Verify ground connection for proper continuity. | |
| 5. Check fuel pump pressure and operation with a pressure gauge. | |
| Voltage Requirements | Typically 12V at the pump connector when the ignition is on. |
| Resistance Range | Fuel pump resistance varies by model; consult the wiring diagram. |
| Relay Operation | Relay should click when ignition is turned on; test with a multimeter. |
| Ground Testing | Ensure ground wire has low resistance (less than 1 ohm) to the chassis. |
| Common Faults | Blown fuse, faulty relay, broken wires, corroded connectors, bad ground. |
| Diagnostic Codes | Check for OBD-II codes related to fuel pump or wiring issues (e.g., P0087). |
| Prevention Tips | Regularly inspect wiring, clean connectors, and replace old components. |
| Professional Help | Consult a mechanic if issues persist or for complex wiring systems. |
Explore related products
What You'll Learn
- Check Fuses and Relays: Inspect for blown fuses or faulty relays in the pump circuit
- Test Power Supply: Verify voltage at the pump connector using a multimeter
- Inspect Ground Connections: Ensure clean, secure grounding points for the pump circuit
- Examine Wiring Harness: Look for damaged, frayed, or corroded wires in the harness
- Diagnose Pump Operation: Listen for pump activation or test its resistance with a multimeter
Check Fuses and Relays: Inspect for blown fuses or faulty relays in the pump circuit
Fuses and relays are the unsung heroes of your vehicle's electrical system, acting as safeguards against overcurrent and ensuring the smooth operation of components like the electric fuel pump. A blown fuse or faulty relay in the pump circuit can lead to a no-start condition or erratic fuel delivery, making them prime suspects during troubleshooting. These components are typically housed in the fuse box under the hood or inside the cabin, often labeled for easy identification. Before diving into complex diagnostics, a visual inspection of these protective devices can save time and frustration.
To inspect fuses, start by locating the fuse box diagram in your vehicle’s manual, which identifies the fuse associated with the fuel pump. Using a fuse puller or needle-nose pliers, carefully remove the fuse and examine it for signs of damage, such as a broken filament or charring. A blown fuse is a clear indicator of an electrical issue, but even a slightly discolored or corroded fuse can cause intermittent problems. Always replace a blown fuse with one of the same amperage rating to avoid further damage. If the fuse blows again immediately, it suggests a short circuit in the wiring, requiring further investigation.
Relays, on the other hand, are electromagnetic switches that control high-current circuits like the fuel pump. A faulty relay may exhibit symptoms such as a clicking noise from the relay box or a fuel pump that doesn’t prime when the ignition is turned on. To test a relay, swap it with a similar one from another circuit (e.g., the horn or cooling fan) and observe if the problem persists. If the fuel pump operates correctly after the swap, the original relay is likely defective. Relays can also be tested using a multimeter to check for continuity in the contacts, ensuring they open and close properly.
While checking fuses and relays is a straightforward task, it’s crucial to approach it methodically. Always ensure the vehicle is turned off before handling electrical components to prevent accidental short circuits. Keep a set of spare fuses and relays in your toolkit for quick replacements. If issues persist after replacing these components, the problem may lie elsewhere, such as in the wiring harness, fuel pump itself, or the pump’s ground connection. This initial step, however, often resolves the issue, restoring your vehicle’s fuel system to proper function with minimal effort.
Nissan SM Pickup: Electric Fuel Pump or Mechanical?
You may want to see also
Explore related products
Test Power Supply: Verify voltage at the pump connector using a multimeter
A faulty electric fuel pump can leave you stranded, but before condemning the pump itself, it's crucial to verify the power supply reaching it. A multimeter becomes your diagnostic ally in this scenario, allowing you to pinpoint whether the issue lies with the pump or the electrical circuit feeding it.
Simply put, if the pump isn't receiving the correct voltage, it won't function properly.
Diagnosing the Power Flow:
To begin, locate the fuel pump connector, typically found near the fuel tank. With the ignition switched on, set your multimeter to the DC voltage setting, selecting a range that exceeds your vehicle's battery voltage (usually 12V or 24V). Carefully connect the multimeter's positive lead to the power wire terminal on the pump connector and the negative lead to a good ground point, such as the vehicle chassis.
A reading close to your battery voltage indicates a healthy power supply.
Interpreting the Results:
If your multimeter displays a voltage significantly lower than the battery voltage, or no voltage at all, the problem likely lies within the wiring harness or the fuse supplying power to the pump. Inspect the wiring for damage, loose connections, or corrosion. Check the fuse box for a blown fuse related to the fuel pump circuit.
If the fuse is blown, replace it and retest. If the fuse blows again, a short circuit exists within the wiring, requiring further investigation.
Precision is Key:
Ensure accurate readings by using a quality multimeter with a suitable voltage range. Double-check your connections to avoid incorrect readings due to loose contacts. Remember, safety is paramount when working with electrical systems. Always disconnect the battery before handling wiring to prevent accidental shorts.
Bypassing the Fuel Pump Relay on a 2006 Hyundai Sonata: A Step-by-Step Guide
You may want to see also
Explore related products
Inspect Ground Connections: Ensure clean, secure grounding points for the pump circuit
Grounding issues are a silent culprit in electric fuel pump failures, often masquerading as more complex problems. A weak or corroded ground connection can restrict current flow, leading to erratic pump operation or complete shutdown. Symptoms like intermittent fuel delivery, stalling, or difficulty starting, especially under load, should prompt an immediate inspection of the ground circuit.
Begin by locating the primary ground point for the fuel pump circuit, typically a bolted connection to the vehicle chassis or engine block. Use a wire brush or sandpaper to remove any rust, paint, or debris from both the terminal and the mating surface. Even a thin layer of oxidation can significantly increase resistance, starving the pump of power. Apply a small amount of dielectric grease to prevent future corrosion, ensuring a stable connection over time.
Next, verify the integrity of the ground wire itself. Frayed strands, cracks in the insulation, or loose crimps can introduce resistance or intermittent contact. If the wire shows signs of damage, replace it entirely rather than attempting a repair. Use a multimeter to test continuity between the pump’s ground terminal and the battery negative post; a reading above 0.1 ohms indicates excessive resistance and warrants further investigation.
For vehicles with secondary grounds or grounding straps, inspect these as well. Overlooked secondary grounds, such as those connecting the fuel tank to the chassis, are common failure points. Ensure all grounding hardware—bolts, washers, and nuts—is tightened to manufacturer specifications. Torque values vary by vehicle, but typically range from 8 to 15 ft-lbs for chassis grounds.
Finally, consider environmental factors. Moisture, road salt, and vibration accelerate corrosion in ground connections, particularly in older vehicles or those operated in harsh climates. Periodic inspections, especially after winter or off-road use, can preempt issues. For added reliability, some enthusiasts install auxiliary grounds using braided copper straps, though this should complement, not replace, factory grounding points.
By systematically addressing ground connections, you eliminate a pervasive yet often overlooked cause of fuel pump wiring issues. This step alone can save hours of diagnostic time and prevent unnecessary component replacements. Clean, secure grounds ensure the pump receives consistent power, restoring reliability to the fuel system.
Step-by-Step Guide to Assembling a Delphi Fuel Pump Diagram
You may want to see also
Explore related products
Examine Wiring Harness: Look for damaged, frayed, or corroded wires in the harness
The wiring harness is the circulatory system of your vehicle’s electrical network, and even minor damage can disrupt the flow of power to critical components like the electric fuel pump. Begin by visually inspecting the harness for any signs of wear, such as frayed insulation, exposed copper, or brittle wires. These issues often occur near high-stress areas like mounting points, sharp edges, or areas exposed to heat or moisture. A single compromised wire can lead to intermittent pump operation or complete failure, making this step a cornerstone of troubleshooting.
Next, focus on corrosion, which thrives in environments where moisture and electrical connections coexist. Look for greenish deposits, white powdery residue, or darkened terminals, particularly at connectors and grounding points. Corrosion increases resistance, reducing the current reaching the fuel pump. To address this, disconnect the harness connectors and clean them with a wire brush or contact cleaner. For severe cases, consider replacing the connector entirely. Regular inspection of these areas can prevent long-term damage and ensure consistent fuel delivery.
A systematic approach is key when examining the harness. Start at the fuel pump connector and trace the wires back to the relay and fuse box, checking for continuity with a multimeter. Pay attention to areas where the harness bends or flexes, as these are prone to cracking. If you find damaged wires, repair them by splicing in new wire and sealing the connection with heat-shrink tubing. However, if multiple wires are affected, replacing the entire harness may be more cost-effective and reliable.
Finally, consider environmental factors that accelerate wiring degradation. Vehicles exposed to road salt, extreme temperatures, or off-road conditions are at higher risk. Proactively protecting the harness with conduit or waterproof wraps can extend its lifespan. Additionally, routing wires away from heat sources like exhaust manifolds or turbochargers minimizes the risk of melting or insulation breakdown. By addressing these vulnerabilities, you not only troubleshoot current issues but also prevent future failures.
Understanding Snowmobile Fuel Pumps: Functionality and Operation Explained
You may want to see also
Explore related products
Diagnose Pump Operation: Listen for pump activation or test its resistance with a multimeter
A humming noise from the fuel tank area upon ignition is the first audible clue that your electric fuel pump is operational. This sound, though brief, confirms the pump’s activation and its attempt to pressurize the fuel system. If silence greets you instead, the issue could stem from a faulty pump, a broken wire, or a failed relay. Before jumping to conclusions, however, ensure the fuel pump fuse and relay are intact, as these are common culprits for silent pumps.
Testing the pump’s resistance with a multimeter is a precise way to diagnose its health. Disconnect the pump’s electrical connector and measure the resistance across its terminals. Consult your vehicle’s service manual for the expected resistance range, typically between 1 to 5 ohms for most pumps. A reading outside this range indicates a malfunctioning pump, while an open circuit (infinite resistance) suggests a broken internal coil. Conversely, a short circuit (zero resistance) points to a damaged winding.
For a practical test, bypass the pump’s wiring harness by connecting its terminals directly to a 12V power source, such as your battery. Ensure the negative terminal is grounded securely. If the pump whirrs to life, the issue lies in the wiring or relay, not the pump itself. Exercise caution during this step, as fuel pumps draw significant current, and improper connections can cause sparks or damage.
Comparing these methods highlights their complementary roles. Listening for activation is quick and non-invasive, offering immediate insight into the pump’s functionality. Resistance testing, on the other hand, provides a definitive diagnosis of the pump’s internal condition. Together, these techniques narrow down the root cause efficiently, saving time and frustration in your troubleshooting process.
In conclusion, diagnosing pump operation through auditory checks and resistance testing is a straightforward yet powerful approach. By combining these methods, you can swiftly determine whether the pump, its wiring, or associated components are at fault. Armed with this knowledge, you’re better equipped to address the issue directly, restoring your vehicle’s fuel system to optimal performance.
Accessing the Fuel Pump in a 1992 Roadtrek Generator
You may want to see also
Frequently asked questions
Common symptoms include the engine not starting, stalling, or misfiring; a whining noise from the fuel tank; or no noise at all when the ignition is turned on, indicating a lack of power to the pump.
Use a multimeter to check for voltage at the pump connector when the ignition is on. Ensure the fuse and relay are functioning, and inspect the wiring for damage, corrosion, or loose connections.
Yes, a poor or corroded ground connection can prevent the fuel pump from receiving adequate power, leading to erratic operation or complete failure. Clean and secure the ground point to resolve this issue.
