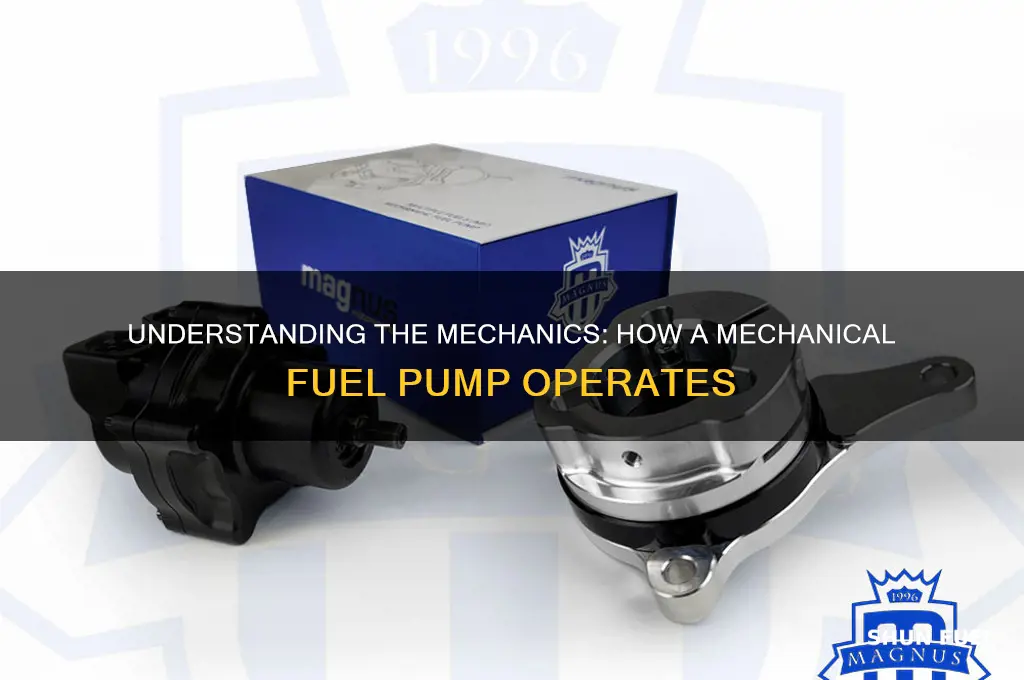

A mechanical fuel pump is a crucial component in internal combustion engines, responsible for delivering fuel from the tank to the carburetor or fuel injection system. Unlike electric fuel pumps, mechanical pumps are driven directly by the engine's camshaft or crankshaft, utilizing a diaphragm or plunger mechanism to create suction and pressure. As the engine runs, the pump's internal components move, drawing fuel into the pump chamber and then forcing it through the fuel lines at the required pressure. This ensures a consistent and reliable fuel supply, which is essential for efficient combustion. Understanding how a mechanical fuel pump works involves examining its design, operation, and integration with the engine's systems, making it a fundamental aspect of automotive engineering and maintenance.
Explore related products
What You'll Learn
- Pump Types: Diaphragm, plunger, and rotary vane pumps explained
- Fuel Intake: How the pump draws fuel from the tank
- Pressure Regulation: Role of the pressure regulator in fuel delivery
- Pump Operation: Mechanical linkage to the engine’s camshaft
- Fuel Delivery: How pressurized fuel reaches the carburetor or injectors

Pump Types: Diaphragm, plunger, and rotary vane pumps explained
Mechanical fuel pumps are the unsung heroes of internal combustion engines, ensuring a steady supply of fuel from the tank to the carburetor or fuel injection system. Among the various types, diaphragm, plunger, and rotary vane pumps stand out for their unique mechanisms and applications. Each operates differently, catering to specific engine requirements and conditions.
Diaphragm pumps, for instance, rely on a flexible membrane that moves back and forth, creating a vacuum to draw fuel into the pump and then push it out. This design is particularly effective in carbureted engines, where a consistent but moderate fuel pressure is needed. The diaphragm’s simplicity and self-priming capability make it reliable, even in older vehicles or small engines like lawnmowers. However, it’s less common in modern fuel-injected systems due to its limited pressure output, typically ranging from 3 to 7 psi. Maintenance is key here—regularly inspect the diaphragm for cracks or wear to avoid fuel leaks or delivery issues.
In contrast, plunger pumps operate on a linear principle, using a reciprocating plunger to pressurize fuel. This type is often found in diesel engines, where high-pressure fuel delivery is essential for efficient combustion. Plunger pumps can generate pressures up to 20,000 psi, making them ideal for direct fuel injection systems. Their robust construction handles the demands of diesel fuel, which is thicker and requires more force to atomize. However, this complexity comes with a trade-off: plunger pumps are more prone to wear and require precise timing to synchronize with the engine’s injection cycle. For DIY enthusiasts, troubleshooting a plunger pump often involves checking the plunger seals and ensuring proper alignment.
Rotary vane pumps, on the other hand, offer a balance between simplicity and performance. They use a rotor with sliding vanes to create chambers that expand and contract, drawing in and expelling fuel. This design provides a smooth, pulsation-free flow, making it suitable for both carbureted and fuel-injected systems. Rotary vane pumps typically operate at pressures between 5 and 10 psi, bridging the gap between diaphragm and plunger pumps. Their compact size and quiet operation make them a popular choice in automotive applications. However, they require clean fuel to prevent debris from damaging the vanes, so installing an inline fuel filter is crucial.
Choosing the right pump depends on the engine’s fuel delivery needs. For low-pressure applications like classic cars, a diaphragm pump is cost-effective and reliable. High-pressure diesel systems demand the robustness of a plunger pump. Meanwhile, rotary vane pumps offer versatility for modern vehicles with moderate pressure requirements. Understanding these differences ensures optimal fuel system performance and longevity. Regular maintenance, such as checking for leaks, replacing worn components, and ensuring clean fuel, will keep any of these pumps running efficiently.
How Many Fuel Pumps Are in a 2010 Dodge Charger?
You may want to see also
Explore related products
$26.98

Fuel Intake: How the pump draws fuel from the tank
The mechanical fuel pump's ability to draw fuel from the tank hinges on a simple yet ingenious principle: creating a low-pressure zone that forces fuel to flow towards the engine. This process begins with the pump's diaphragm, a flexible membrane that moves up and down within a sealed chamber. As the diaphragm rises, it expands the chamber's volume, reducing the internal pressure. This creates a vacuum effect, pulling fuel from the tank through the inlet line. Think of it as sucking liquid through a straw, but on a much larger and more controlled scale.
This vacuum-driven intake is facilitated by a series of one-way valves. The inlet valve, positioned between the tank and the pump, allows fuel to enter the chamber during the diaphragm's upward stroke. Simultaneously, the outlet valve, leading to the engine, remains closed to prevent backflow. This unidirectional flow ensures that fuel moves consistently from the tank to the engine, even as the diaphragm reverses its motion. For optimal performance, ensure the inlet line is free of debris and the valves are not clogged, as even small obstructions can disrupt the vacuum and reduce fuel flow.
Consider the role of the pump's camshaft or eccentric wheel, which drives the diaphragm's movement. In most mechanical pumps, this component is connected to the engine's motion, typically via the camshaft or a dedicated lobe. As the engine runs, the camshaft rotates, causing the diaphragm to oscillate rhythmically. This mechanical linkage is crucial because it synchronizes fuel delivery with engine demand. For instance, at higher RPMs, the camshaft spins faster, increasing the diaphragm's stroke frequency and drawing more fuel to meet the engine's needs.
A practical tip for troubleshooting fuel intake issues: check the fuel line's integrity and the pump's mounting. A loose pump or cracked fuel line can introduce air into the system, breaking the vacuum and causing poor fuel delivery. Additionally, inspect the tank's vent system, as a blocked vent can create a vacuum within the tank itself, hindering fuel flow to the pump. Proper maintenance of these components ensures the pump can effectively draw fuel, maintaining consistent engine performance.
In summary, the mechanical fuel pump's fuel intake process is a masterclass in leveraging pressure differentials and mechanical precision. By creating a vacuum with a moving diaphragm and controlling flow with one-way valves, the pump ensures a steady supply of fuel from the tank to the engine. Understanding this mechanism not only highlights the pump's design elegance but also empowers you to diagnose and resolve common intake issues, keeping your vehicle running smoothly.
