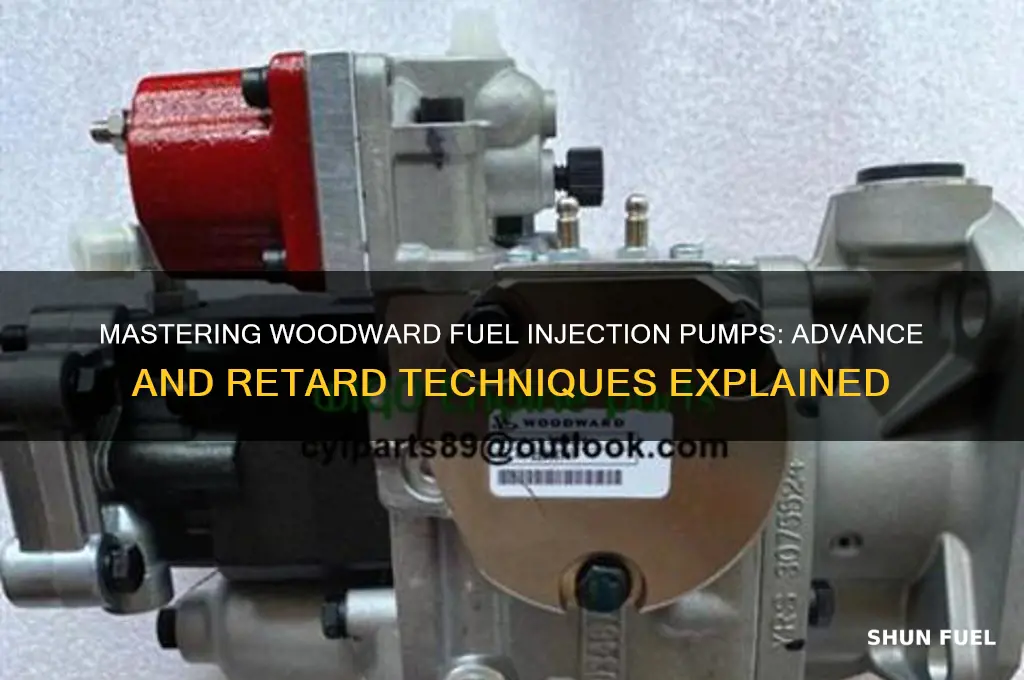

Woodward fuel injection pumps are critical components in diesel engines, responsible for delivering precise amounts of fuel to ensure optimal combustion and engine performance. Advancing or retarding these pumps involves adjusting the timing of fuel delivery relative to the engine's piston position, which can significantly impact power output, fuel efficiency, and emissions. Advancing the pump timing delivers fuel earlier in the combustion cycle, increasing power but potentially causing rough idling or excessive smoke, while retarding the timing delays fuel delivery, improving fuel economy and reducing emissions at the expense of power. Proper adjustment requires a thorough understanding of the pump's mechanical and electronic systems, as well as careful calibration to meet specific engine requirements and operating conditions.
| Characteristics | Values |
|---|---|
| Adjustment Method | Mechanical adjustment via governor linkage or electronic control |
| Timing Adjustment Range | Typically ±5° to ±10° of crankshaft rotation |
| Tools Required | Timing light, wrenches, screwdrivers, and manufacturer's manual |
| Adjustment Points | Governor linkage, timing pin, or electronic control module (ECM) |
| Purpose of Advancing | Increases fuel delivery earlier, improving low-end torque and response |
| Purpose of Retarding | Delays fuel delivery, reducing power and fuel consumption |
| Application | Diesel engines with Woodward mechanical or electronic fuel injection |
| Safety Precautions | Ensure engine is off, follow manufacturer guidelines, and wear PPE |
| Common Models | Woodward 2000, 2100, 2301, and electronic PG/EG series |
| Diagnostic Tools | Timing light, multimeter, and Woodward diagnostic software (for ECM) |
| Adjustment Frequency | As needed based on engine performance or maintenance schedule |
| Impact on Emissions | Advancing may increase emissions; retarding may reduce them |
| Compatibility | Specific to Woodward fuel injection systems and engine configurations |
| Professional Assistance | Recommended for complex electronic systems or precise adjustments |
| Documentation | Refer to Woodward service manuals or technical bulletins for specifics |
Explore related products
What You'll Learn
- Timing Adjustment Basics: Learn how to adjust pump timing for optimal engine performance
- Advance Mechanism Function: Understand the role of the advance mechanism in fuel delivery
- Retard Mechanism Operation: Explore how the retard mechanism controls fuel injection timing
- Troubleshooting Timing Issues: Identify and fix common problems with pump timing adjustments
- Tools for Adjustment: Discover essential tools needed for precise pump timing modifications
Timing Adjustment Basics: Learn how to adjust pump timing for optimal engine performance
Adjusting the timing of a Woodward fuel injection pump is a critical task for optimizing engine performance, efficiency, and longevity. The timing determines when fuel is injected into the cylinders, directly influencing combustion quality. Too early (advanced) or too late (retarded) timing can lead to incomplete combustion, reduced power, increased emissions, or even engine damage. Understanding the basics of timing adjustment ensures your engine operates at its peak, whether for industrial, marine, or power generation applications.
To begin, locate the timing adjustment mechanism on your Woodward pump, typically a screw or lever marked with advance and retard positions. Loosen the lock nut securing the adjustment, but do not remove it entirely. Using a timing light or pressure gauge, observe the current timing marks on the flywheel or pump housing. For most engines, optimal timing falls within a specific range, often between 10° and 15° before top dead center (BTDC) for diesel applications. Consult your engine’s manual for precise specifications, as deviations can vary by model and load requirements.
When adjusting, turn the screw or lever incrementally—no more than 1/8 of a turn at a time—and recheck the timing after each adjustment. Advancing the timing (turning clockwise) injects fuel earlier, beneficial for improving low-end torque and responsiveness. Retarding the timing (turning counterclockwise) delays injection, which can reduce knocking under high loads or temperatures. Over-advancing risks pre-ignition, while over-retarding may cause hard starting or rough idling. Always adjust under operating conditions to account for temperature and load effects.
Caution is paramount during this process. Excessive adjustments can void warranties or cause irreversible damage. If unsure, start with small changes and monitor engine behavior. Use a tachometer to ensure the engine speed remains stable during adjustments. After finalizing the timing, tighten the lock nut securely to prevent unintended shifts. Regularly recheck the timing, especially after maintenance or prolonged use, as vibrations and wear can alter settings over time.
Mastering timing adjustments transforms a Woodward fuel injection pump from a standard component into a finely tuned instrument. By aligning fuel delivery with engine demands, you enhance performance, reduce fuel consumption, and extend the engine’s lifespan. Whether for precision tuning or troubleshooting, this skill is indispensable for anyone maintaining diesel engines equipped with Woodward systems.
