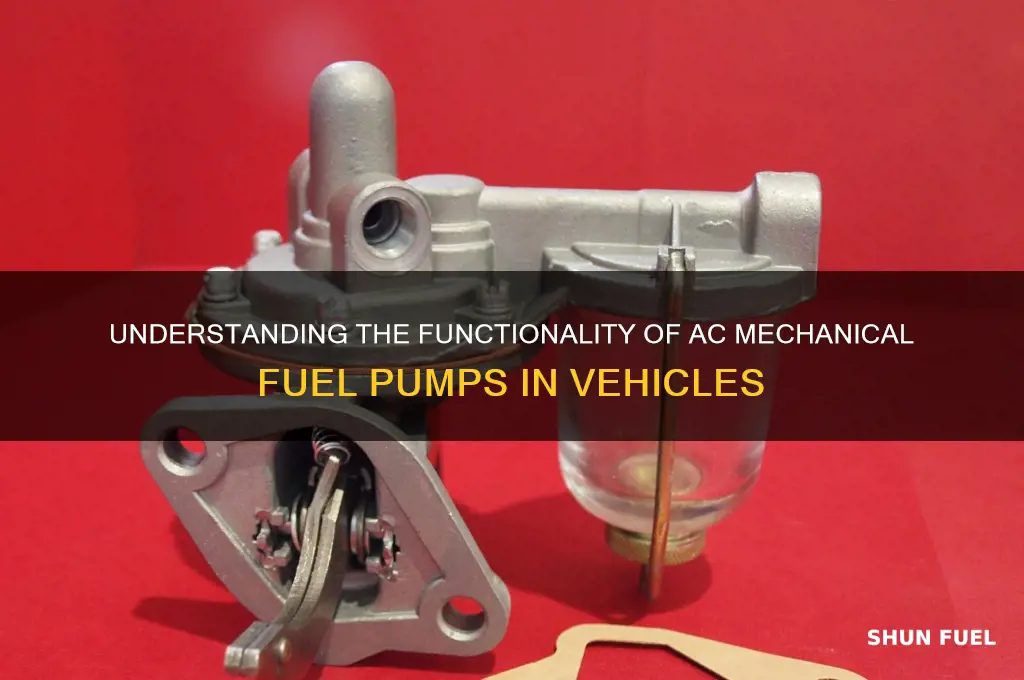

An AC mechanical fuel pump is a crucial component in many internal combustion engines, responsible for delivering fuel from the tank to the carburetor or fuel injection system. Unlike electric fuel pumps, which are powered by the vehicle's electrical system, mechanical fuel pumps are driven by the engine's camshaft or crankshaft, typically via an eccentric lobe or pushrod mechanism. As the engine runs, the pump's diaphragm or plunger is actuated, creating a vacuum that draws fuel through the inlet, pressurizes it, and forces it through the outlet to the engine. This simple yet efficient design ensures a consistent fuel supply, maintaining optimal engine performance. Understanding how an AC mechanical fuel pump works involves examining its internal components, such as the diaphragm, valves, and linkages, as well as its integration with the engine's timing system to synchronize fuel delivery with the combustion cycle.
Explore related products
What You'll Learn
- Pump Components: Diaphragm, rocker arm, camshaft, inlet/outlet valves, and housing explained
- Fuel Flow Process: Suction, compression, and delivery phases of fuel movement
- Camshaft Drive Mechanism: How the camshaft operates the pump via the rocker arm
- Valve Operation: Inlet and outlet valves open/close to control fuel flow
- Pressure Regulation: Role of the pump in maintaining consistent fuel pressure for the engine
Pump Components: Diaphragm, rocker arm, camshaft, inlet/outlet valves, and housing explained
The diaphragm in a mechanical fuel pump is the heart of its operation, flexing to create the pressure differential necessary to move fuel. Made from durable, fuel-resistant materials like nitrile rubber or neoprene, it separates the pump’s air and fuel chambers. As the diaphragm is pushed inward by the rocker arm, it reduces the fuel chamber’s volume, forcing fuel out through the outlet valve. When it retracts, atmospheric pressure pulls fuel into the chamber via the inlet valve. This rhythmic flexing ensures a steady fuel supply, with the diaphragm’s lifespan typically ranging from 50,000 to 100,000 miles, depending on usage and maintenance.
Connected to the camshaft, the rocker arm translates rotational motion into the linear movement required to actuate the diaphragm. Its pivoting action amplifies the camshaft’s lobe profile, ensuring the diaphragm is fully engaged with each rotation. Proper rocker arm alignment is critical; misalignment can lead to incomplete diaphragm travel, reducing fuel pressure by up to 20%. Regular inspection for wear or play in the pivot point is essential, as even minor issues can disrupt fuel delivery. Lubrication with a high-viscosity oil, such as 30-weight non-detergent oil, helps maintain smooth operation and prevents premature wear.
The camshaft drives the entire mechanism, its lobes rotating with the engine to actuate the rocker arm at precise intervals. Each lobe’s profile determines the diaphragm’s stroke and timing, ensuring fuel delivery matches engine demand. In a typical four-cylinder engine, the camshaft rotates at half the crankshaft speed, synchronizing fuel pump operation with the engine’s intake cycle. Upgrading to a performance camshaft with a more aggressive lobe profile can increase fuel flow by 15–25%, beneficial for high-performance applications. However, this modification requires recalibrating the fuel system to avoid over-pressurization or fuel starvation.
Inlet and outlet valves are one-way check valves that ensure fuel flows in the correct direction. The inlet valve opens during the diaphragm’s retraction phase, allowing fuel to enter the chamber, while the outlet valve opens during compression, directing fuel to the carburetor or fuel injection system. These valves are typically made from hardened steel or ceramic to withstand repeated cycling and fuel exposure. A faulty valve can cause symptoms like hard starting or stalling; for example, a stuck inlet valve reduces fuel intake, while a leaking outlet valve allows fuel to backflow. Replacing these valves is straightforward but requires precision to ensure proper seating and sealing.
Encasing all components, the housing provides structural integrity and seals the pump from external contaminants. Typically cast from aluminum or steel, it includes mounting points for engine attachment and ports for fuel lines. The housing’s design must withstand internal pressures up to 5–7 psi, depending on the engine’s requirements. Over time, housing cracks or leaks can develop, often due to corrosion or physical damage. Inspecting the housing during routine maintenance, especially in older vehicles, can prevent fuel leaks that pose safety risks. For DIY repairs, epoxy-based sealants rated for fuel exposure can temporarily address minor cracks, but professional replacement is recommended for long-term reliability.
Understanding Holley Electric Fuel Pump Amp Draw: A Comprehensive Guide
You may want to see also
Explore related products
$21.22 $23.58
Fuel Flow Process: Suction, compression, and delivery phases of fuel movement
The fuel flow process in a mechanical fuel pump is a symphony of precision, ensuring the engine receives the right amount of fuel at the right time. It begins with the suction phase, where the pump creates a low-pressure zone by expanding its internal chamber. This vacuum draws fuel from the tank through the inlet line, relying on atmospheric pressure to push the fuel into the pump. Think of it as a straw drawing liquid—simple yet effective, with no external power required beyond the pump’s mechanical action.
Next comes the compression phase, a critical step where the pump’s diaphragm or plunger contracts, reducing the chamber’s volume and increasing pressure. This transformation turns the fuel from a passive liquid into a pressurized fluid, ready for delivery. The pressure must be sufficient to overcome the resistance in the fuel lines and injectors but not so high as to cause leaks or damage. For example, in a typical carbureted engine, the pump generates around 4–6 psi, ensuring consistent fuel flow without overloading the system.
The final stage is the delivery phase, where the pressurized fuel is pushed through the outlet line toward the carburetor or fuel injection system. A check valve ensures one-way flow, preventing backflow and maintaining pressure. This phase is where the pump’s efficiency is tested—any weakness here results in poor engine performance. Practical tip: Regularly inspect fuel lines for cracks or clogs, as even minor obstructions can disrupt this phase and starve the engine of fuel.
Comparing this process to other fuel systems, such as electric pumps, highlights the mechanical pump’s simplicity and reliability. While electric pumps offer higher pressure and precision, mechanical pumps excel in low-maintenance environments, such as classic cars or small engines, where electrical systems may be less reliable. Their dependency on engine motion also ensures they operate only when needed, conserving fuel and reducing wear.
In conclusion, understanding the suction, compression, and delivery phases of a mechanical fuel pump reveals its elegance and functionality. Each phase is interdependent, requiring precise timing and components to work seamlessly. For enthusiasts or mechanics, mastering this process not only ensures optimal engine performance but also deepens appreciation for the engineering behind these unassuming devices.
Understanding the Fuel Pump System in an Infinity QX56
You may want to see also
Explore related products
Camshaft Drive Mechanism: How the camshaft operates the pump via the rocker arm
The camshaft drive mechanism is a critical component in the operation of a mechanical fuel pump, particularly in older carbureted engines. At its core, this mechanism translates the rotational motion of the camshaft into the reciprocating motion required to operate the fuel pump. The process begins with the camshaft, a rotating shaft featuring lobes that are precisely positioned to correspond with the engine’s firing order. As the camshaft rotates, these lobes make contact with the rocker arm, a pivoting lever that acts as an intermediary between the camshaft and the fuel pump.
To visualize this, imagine the camshaft lobe as a hump on a rotating wheel. As the lobe rises, it pushes the rocker arm upward, which in turn presses down on the fuel pump’s plunger or diaphragm. This action creates suction, drawing fuel from the tank into the pump. When the lobe rotates away, the rocker arm returns to its resting position, allowing a spring to push the plunger back up, forcing fuel out of the pump and into the carburetor. This cyclical motion ensures a steady supply of fuel to the engine, synchronized with its operation.
One practical tip for maintaining this system is to regularly inspect the rocker arm for wear or misalignment. A worn rocker arm can lead to inefficient fuel delivery, causing rough idling or poor engine performance. Additionally, ensure the camshaft lobe and rocker arm contact surfaces are properly lubricated to reduce friction and prolong component life. For engines with adjustable rocker arms, check the clearance specifications in the vehicle’s manual—typically around 0.006 to 0.010 inches—and adjust as needed using a feeler gauge.
Comparatively, modern electronic fuel injection systems eliminate the need for a mechanical fuel pump driven by the camshaft, relying instead on electric pumps and computer-controlled injectors. However, understanding the camshaft drive mechanism remains valuable for diagnosing issues in older vehicles or appreciating the evolution of automotive technology. For instance, the simplicity and reliability of this mechanical system made it a staple in engines for decades, though it requires precise timing and regular maintenance to function optimally.
In conclusion, the camshaft drive mechanism’s role in operating a mechanical fuel pump via the rocker arm is a testament to the ingenuity of early automotive engineering. By converting rotational motion into reciprocating action, it ensures fuel delivery is synchronized with engine demands. Proper maintenance, including lubrication and clearance adjustments, is key to preserving its efficiency. While newer systems have largely replaced this design, its principles remain foundational in understanding engine mechanics.
How Fuel Pump Shutoff Switch Operates Independently of the Battery
You may want to see also
Explore related products
Valve Operation: Inlet and outlet valves open/close to control fuel flow
The rhythmic dance of valves is the heartbeat of an AC mechanical fuel pump's operation. Inlet and outlet valves, precisely timed to open and close, dictate the flow of fuel, ensuring a consistent and controlled supply to the engine. This intricate choreography is governed by the pump's camshaft, which actuates the valves through a series of lobes and followers. As the camshaft rotates, its lobes press against the valve followers, lifting the valves off their seats and allowing fuel to enter or exit the pump chamber.
Consider the inlet valve's role: it opens during the pump's intake stroke, permitting fuel to flow from the tank into the pump chamber. This is a critical moment, as the valve must open fully to minimize flow restriction and ensure the chamber fills completely. The timing of this opening is crucial; too early or too late, and the pump's efficiency suffers. For optimal performance, the inlet valve typically opens when the pump plunger is near the bottom of its stroke, creating a low-pressure zone that draws fuel in.
Now, examine the outlet valve's function in contrast. It remains closed during the intake stroke, sealing the pump chamber to prevent fuel from escaping prematurely. As the pump plunger rises, compressing the fuel, the outlet valve opens, allowing the pressurized fuel to flow into the carburetor or fuel injection system. This valve's opening is equally precise, ensuring that fuel is delivered at the correct pressure and volume. A common specification for outlet valves is a cracking pressure of 2-3 psi, which ensures the valve opens only when sufficient pressure is built up in the pump chamber.
A practical tip for maintaining valve operation is to regularly inspect the valves for wear and ensure they seat properly. Over time, valves can become worn or damaged, leading to leaks or improper sealing. For DIY enthusiasts, replacing worn valves is a straightforward task, typically requiring only basic tools and a valve grinding kit. However, it's essential to follow the manufacturer's specifications for valve clearance, usually set between 0.006 and 0.010 inches, to ensure proper operation.
In the context of AC mechanical fuel pumps, understanding valve operation is key to diagnosing and resolving common issues. For instance, a pump that fails to deliver sufficient fuel may have a stuck or leaking valve. By isolating the problem to the inlet or outlet valve, mechanics can save time and resources, focusing their efforts on the specific component at fault. This targeted approach not only streamlines repairs but also highlights the importance of each valve's role in the overall fuel delivery system.
Walbro Fuel Pump Amperage Guide: Optimal Power for Performance
You may want to see also
Explore related products
Pressure Regulation: Role of the pump in maintaining consistent fuel pressure for the engine
The mechanical fuel pump in an internal combustion engine is not just a delivery system; it’s a precision regulator. Its primary role is to maintain consistent fuel pressure, typically between 3 to 6 psi in carbureted engines and up to 60 psi in fuel-injected systems. Without this regulation, the engine would either starve for fuel under load or flood with excess fuel at idle, leading to inefficiency or failure. The pump achieves this by balancing the demands of the engine with the output of the fuel tank, ensuring a steady flow regardless of speed, altitude, or temperature.
Consider the diaphragm-type mechanical pump, a common design in older vehicles. As the engine runs, a cam-driven linkage moves a diaphragm up and down, creating suction and pressure cycles. During the suction phase, fuel is drawn from the tank through a filter, while the pressure phase forces it through the fuel line to the carburetor or injectors. A check valve prevents backflow, and a pressure regulator bypasses excess fuel back to the tank when the system reaches its target pressure. This mechanism ensures the engine receives a consistent supply, even during rapid acceleration or deceleration.
Modern mechanical pumps often incorporate a spring-loaded pressure regulator, a critical component for fine-tuning fuel delivery. The regulator’s spring is calibrated to a specific pressure threshold; when fuel pressure exceeds this limit, the regulator opens, diverting excess fuel back to the tank. For example, in a fuel-injected system, the regulator might be set to maintain 58 psi. If pressure rises to 60 psi due to increased pump output, the regulator activates, reducing pressure to the desired level. This dynamic adjustment is essential for preventing fuel vaporization in high-pressure systems, which can cause airlocks and disrupt engine performance.
One practical tip for maintaining consistent fuel pressure is to regularly inspect the pump’s diaphragm, check valve, and regulator for wear or debris. A cracked diaphragm or clogged check valve can cause pressure fluctuations, leading to rough idling or stalling. Additionally, ensure the fuel filter is clean, as contaminants can obstruct flow and force the pump to work harder, potentially damaging the regulator. For fuel-injected systems, monitor the pressure regulator’s vacuum hose (if applicable) for leaks or disconnections, as this can cause the regulator to malfunction and deliver incorrect pressure.
In comparison to electric fuel pumps, mechanical pumps offer a simpler, more direct approach to pressure regulation. Electric pumps rely on external sensors and a computer to adjust pressure, whereas mechanical pumps integrate regulation into their design. This makes mechanical pumps more durable in harsh conditions, such as off-road driving, where electronic components might fail. However, their reliance on engine speed means they may struggle to maintain pressure at idle or in high-performance applications. Understanding these trade-offs helps in selecting the right pump for specific engine requirements, ensuring optimal fuel delivery under all conditions.
Bleeding a Fuel Injection Pump: Step-by-Step Guide for Smooth Engine Performance
You may want to see also
Frequently asked questions
An AC mechanical fuel pump is driven by the engine's camshaft or a dedicated eccentric lobe. As the engine runs, the camshaft rotates, causing the pump's diaphragm or plunger to move up and down. This creates a vacuum that draws fuel from the tank, and the pressure pushes it through the fuel lines to the carburetor or fuel injection system.
The main components include the pump body, diaphragm or plunger, inlet and outlet valves, a camshaft-driven lever or rocker arm, and a spring to maintain tension. These parts work together to ensure consistent fuel delivery to the engine.
An AC mechanical fuel pump is driven directly by the engine's motion, while an electric fuel pump is powered by the vehicle's electrical system. Mechanical pumps are simpler and more reliable in carbureted systems, whereas electric pumps are common in modern fuel-injected engines due to their ability to provide higher pressure and better control.
Common signs include difficulty starting the engine, sputtering or stalling during acceleration, reduced fuel pressure, and unusual noises from the pump. These issues often indicate a worn diaphragm, clogged valves, or a weak spring, requiring inspection or replacement.
