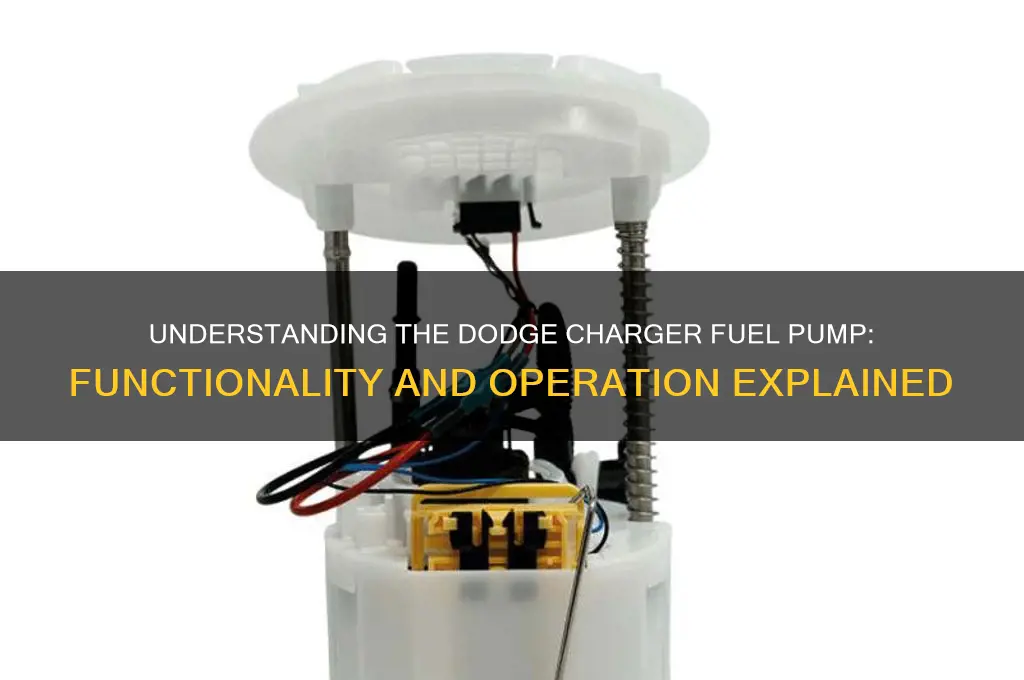

The Dodge Charger's fuel pump is a critical component of its fuel system, responsible for delivering fuel from the tank to the engine at the required pressure and volume. Typically located inside the fuel tank, this electric pump operates by drawing gasoline through a filter, pressurizing it, and sending it through the fuel lines to the engine’s injectors. The pump is controlled by a relay and fuse, which activate it when the ignition is turned on, ensuring fuel is available during engine operation. It also incorporates a check valve to maintain residual pressure in the fuel lines, reducing startup time and preventing fuel from draining back into the tank when the engine is off. Proper functioning of the fuel pump is essential for optimal engine performance, and any issues, such as a weak or failing pump, can lead to symptoms like poor acceleration, stalling, or difficulty starting the vehicle.
Explore related products
What You'll Learn
Fuel Pump Location and Access
The fuel pump in a Dodge Charger is typically located inside the fuel tank, a design choice that offers several advantages. This placement ensures the pump remains submerged in fuel, which helps prevent overheating and extends its lifespan. Additionally, it minimizes the risk of fuel line vapor lock, a condition where fuel turns to vapor due to heat, causing engine performance issues. Understanding this location is crucial for maintenance and troubleshooting, as accessing the fuel pump requires specific steps and precautions.
Accessing the fuel pump in a Dodge Charger involves a systematic process that prioritizes safety and efficiency. First, ensure the vehicle is on a level surface and the ignition is off. Relieve the fuel system pressure by locating the pressure relief valve, typically near the fuel rail, and depressurizing the system. Next, disconnect the negative battery terminal to prevent accidental electrical shorts. Once these safety measures are in place, locate the fuel tank access panel, usually beneath the rear seat or trunk floor. Remove the panel to expose the fuel pump module, which is secured by a locking ring or bolts. Careful removal of these components will grant access to the fuel pump for inspection, replacement, or repair.
Comparing the Dodge Charger’s fuel pump location to other vehicles highlights its practicality. Unlike external fuel pumps, which are more exposed to environmental factors and potential damage, the in-tank design provides better protection. However, this placement also means that replacing the fuel pump is more labor-intensive, requiring fuel tank removal in some cases. For DIY enthusiasts, this underscores the importance of having the right tools, such as a fuel line disconnect tool and a jack to safely raise the vehicle. Professional mechanics often use specialized equipment to streamline the process, making it a quicker task in a well-equipped shop.
A critical takeaway for Dodge Charger owners is the importance of regular maintenance to avoid fuel pump issues. Symptoms of a failing fuel pump include sputtering at high speeds, difficulty starting, or a whining noise from the fuel tank. If these signs appear, prompt inspection is essential. While accessing the fuel pump may seem daunting, following the correct steps ensures a safe and effective repair. For those uncomfortable with the process, consulting a certified mechanic is advisable to prevent further damage or safety risks. Understanding the fuel pump’s location and access requirements empowers owners to make informed decisions about their vehicle’s care.
