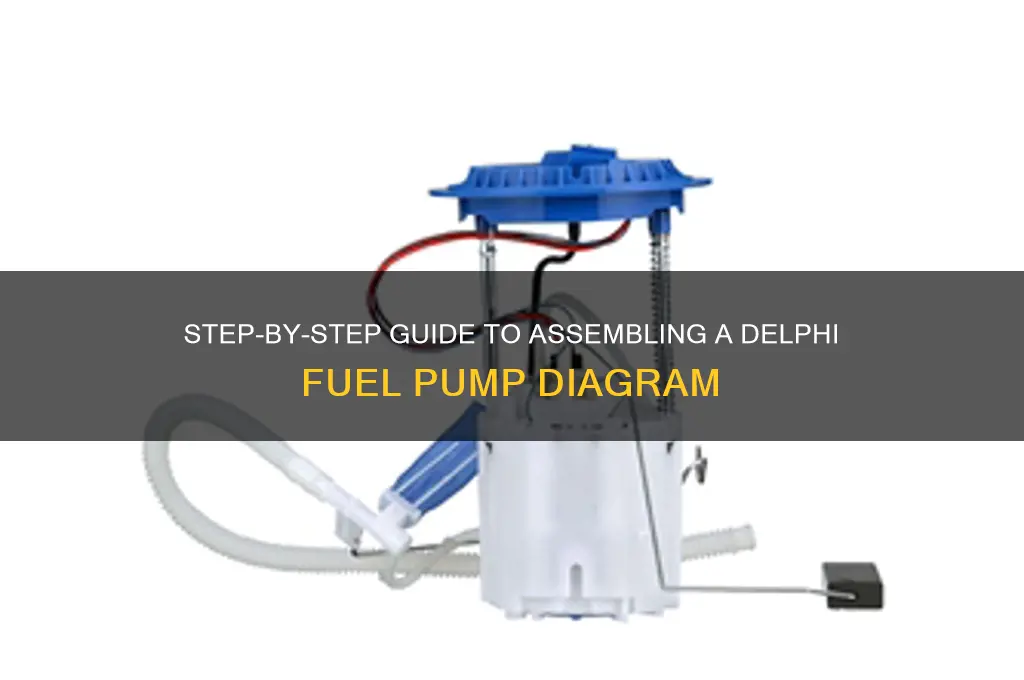

Assembling a Delphi fuel pump requires a clear understanding of its components and their proper arrangement, making a detailed diagram an invaluable tool for the process. A Delphi fuel pump diagram typically illustrates the pump’s key parts, such as the electric motor, impeller, inlet and outlet ports, and mounting brackets, along with their precise positioning and connections. By following the diagram, users can ensure each component is correctly aligned, secured, and sealed to prevent leaks or malfunctions. Additionally, the diagram often includes wiring schematics for the electrical connections, ensuring the pump operates efficiently and safely. Whether for repair or installation, referencing a Delphi fuel pump diagram simplifies the assembly process, reducing the risk of errors and ensuring optimal performance.
| Characteristics | Values |
|---|---|
| Pump Type | Delphi In-Tank Fuel Pump Module |
| Components | Electric Motor, Impeller, Check Valve, Strainer, Float, Sender Unit, Electrical Connector |
| Assembly Steps | 1. Disconnect Battery, 2. Relieve Fuel Pressure, 3. Drain Fuel Tank, 4. Remove Fuel Tank, 5. Disconnect Electrical Connector, 6. Remove Retaining Ring/Lock Ring, 7. Extract Pump Module, 8. Disassemble Module (if needed), 9. Replace Faulty Parts, 10. Reassemble Module, 11. Reinstall Module, 12. Reconnect Electrical Connector, 13. Reinstall Fuel Tank, 14. Refill Fuel Tank, 15. Reconnect Battery, 16. Check for Leaks |
| Tools Required | Socket Set, Wrenches, Screwdrivers, Fuel Line Disconnect Tool, Safety Equipment (Gloves, Goggles) |
| Safety Precautions | Work in Well-Ventilated Area, Avoid Open Flames/Sparks, Use Non-Sparking Tools, Dispose of Fuel Properly |
| Common Issues | Clogged Strainer, Faulty Motor, Worn Check Valve, Corroded Electrical Connections |
| Maintenance Tips | Regularly Inspect Fuel Filter, Check for Leaks, Replace Pump Module as Needed, Follow Manufacturer’s Guidelines |
| Diagram Availability | Delphi Service Manuals, Online Repair Guides, Automotive Forums (e.g., Delphi Technical Support) |
| Compatibility | Specific to Vehicle Make/Model/Year (Check Delphi Catalog) |
| Warranty | Typically 12 Months or 12,000 Miles (Check Manufacturer’s Warranty) |
Explore related products
What You'll Learn
- Gather Tools and Parts: Collect required tools, parts, and safety gear before starting assembly
- Disassemble Old Pump: Carefully remove and disassemble the old Delphi fuel pump unit
- Install New Components: Follow diagram to install new pump components in correct order
- Reconnect Electrical System: Securely reconnect wires, sensors, and electrical connectors as per diagram
- Test and Verify: Perform final checks, test pump functionality, and ensure leak-free operation
Gather Tools and Parts: Collect required tools, parts, and safety gear before starting assembly
Before diving into the assembly of a Delphi fuel pump, it's crucial to ensure you have everything you need within arm's reach. This preparatory step is often overlooked but can save you from unnecessary delays and potential hazards. Start by consulting the Delphi fuel pump diagram specific to your model, as it typically includes a list of required tools and parts. Common essentials include a socket set, wrenches, screwdrivers, and pliers, but the exact tools may vary depending on the pump's design. Additionally, gather all necessary components such as gaskets, seals, and the fuel pump module itself. Verify that each part is compatible with your vehicle’s make and model to avoid costly mistakes.
Safety should never be an afterthought when working with fuel systems. Equip yourself with appropriate safety gear, including nitrile gloves to protect your skin from fuel exposure and safety goggles to shield your eyes from debris or accidental splashes. A fire extinguisher should also be nearby, as fuel is highly flammable. Ensure your workspace is well-ventilated to minimize the risk of inhaling fuel vapors. If working in a garage, open doors or use a fan to maintain airflow. These precautions may seem excessive, but they are essential for preventing accidents and ensuring a smooth assembly process.
Organizing your tools and parts can significantly streamline the assembly process. Lay out all items on a clean, flat surface in the order they will be used, following the sequence outlined in the diagram. This not only saves time but also reduces the likelihood of misplacing small components like screws or O-rings. Consider using a magnetic tray to keep fasteners secure and easily accessible. Labeling parts or taking a quick photo of their original arrangement can also serve as a reference point if you encounter confusion during reassembly.
Finally, take a moment to inspect all tools and parts for damage or wear before beginning. A cracked gasket or a worn-out tool can compromise the integrity of the fuel pump assembly, leading to leaks or malfunctions. If any item appears defective, replace it immediately. This proactive approach ensures that your assembly is not only efficient but also reliable. By meticulously gathering and preparing your tools, parts, and safety gear, you set the stage for a successful and stress-free installation of your Delphi fuel pump.
Understanding Fuel Pump Noise: Optimal Sound Levels for Your Vehicle
You may want to see also
Explore related products
Disassemble Old Pump: Carefully remove and disassemble the old Delphi fuel pump unit
Before embarking on the assembly of a new Delphi fuel pump, a critical precursor is the meticulous disassembly of the old unit. This process demands precision and care to avoid damage to components that may be reused or to ensure a clear understanding of the pump's internal mechanics. Begin by disconnecting the fuel lines and electrical connectors, taking note of their positions for future reference. Use appropriate tools to avoid stripping screws or damaging the pump housing, as Delphi fuel pumps are engineered with tight tolerances.
The disassembly process varies slightly depending on the Delphi model, but a common approach involves removing the pump module from the fuel tank. For in-tank models, this requires lowering the tank, which should be done with the fuel level as low as possible to minimize spillage and safety risks. Once the module is accessible, carefully detach the locking ring or retaining mechanism that secures the pump assembly. This step often requires a specialized tool to prevent warping or cracking of the plastic components, especially in older units that may have become brittle over time.
With the pump module removed, the next phase involves separating its individual components. Start by extracting the fuel pump motor, ensuring not to damage the armature or brushes. Follow this by dislodging the fuel filter and pressure regulator, which are typically held in place by clips or screws. Pay close attention to the O-rings and seals, as these are prone to degradation and should be replaced during reassembly. Document the order and orientation of each part, as Delphi pumps are designed with specific alignments that affect performance and efficiency.
A comparative analysis of the old pump’s condition can provide valuable insights. Inspect the impeller for wear or debris buildup, which could indicate fuel contamination or pump fatigue. Examine the check valve for proper seating, as a malfunctioning valve can lead to fuel pressure loss. If the pump shows signs of corrosion or excessive wear, it may be more cost-effective to replace the entire unit rather than attempt repairs. This step not only aids in troubleshooting but also ensures that the new assembly is free from inherited issues.
In conclusion, disassembling an old Delphi fuel pump is a methodical task that bridges the gap between removal and new assembly. It requires a blend of technical skill and observational acuity to preserve reusable parts and diagnose underlying problems. By approaching this phase with patience and attention to detail, you lay a solid foundation for a successful reassembly, ensuring the new pump operates at optimal performance from the outset.
Understanding the Fuel Pump System in a Lincoln MKT
You may want to see also
Explore related products
Install New Components: Follow diagram to install new pump components in correct order
Assembling a Delphi fuel pump requires precision and adherence to the manufacturer’s diagram to ensure optimal performance and longevity. The diagram serves as a roadmap, detailing the exact sequence and orientation of components. Skipping steps or misplacing parts can lead to leaks, reduced fuel efficiency, or even pump failure. Before beginning, gather all necessary tools, including wrenches, pliers, and a torque wrench, and ensure the workspace is clean and well-lit to avoid contamination.
The first step in installing new components is to identify each part and its corresponding position on the diagram. Delphi fuel pumps typically consist of the pump body, inlet and outlet ports, pressure regulator, and electrical connectors. Start by aligning the pump body with the mounting bracket, securing it with the specified torque values—usually 15 to 20 Nm for most models. Overtightening can damage the threads, while undertightening may cause leaks. Follow the diagram to attach the inlet and outlet ports, ensuring the seals are properly seated to prevent fuel seepage.
Next, install the pressure regulator, a critical component that maintains consistent fuel pressure. The diagram will indicate its exact location and orientation. Secure it with the provided screws, tightening them evenly to avoid warping. Connect the electrical harness according to the diagram, ensuring each wire matches the correct terminal. Incorrect wiring can lead to electrical malfunctions or pump failure. Double-check all connections before proceeding to the final assembly steps.
As you near completion, refer to the diagram to install any remaining components, such as the fuel filter or sensor. These parts often require precise alignment and may include specific torque settings. For example, the fuel filter might need to be tightened to 10 Nm to ensure a secure fit without damaging the housing. Once all components are in place, perform a final inspection, comparing your assembly to the diagram to confirm accuracy. This step is crucial for identifying any overlooked details before testing the pump.
In conclusion, following the Delphi fuel pump diagram is not just a recommendation—it’s a necessity. Each step ensures the pump operates efficiently and safely, from securing the pump body to connecting the electrical harness. By adhering to the diagram’s instructions and torque specifications, you minimize the risk of errors and maximize the pump’s lifespan. Treat the diagram as your trusted guide, and the assembly process will be straightforward and successful.
Understanding 12 Volt Fuel Pump Amp Draw: A Comprehensive Guide
You may want to see also
Explore related products
$61.6
$60.06
$59.75
Reconnect Electrical System: Securely reconnect wires, sensors, and electrical connectors as per diagram
The electrical system of a Delphi fuel pump is a delicate network that demands precision during reassembly. Misaligned wires or loose connectors can lead to erratic fuel delivery, engine stalling, or even fire hazards. Therefore, meticulous attention to the diagram is paramount. Each wire, sensor, and connector is color-coded and positioned for a reason, ensuring optimal performance and safety. Deviating from the diagram, even slightly, can disrupt the pump’s functionality, turning a routine repair into a costly mistake.
Begin by laying out all electrical components in their diagram-designated order before reconnecting anything. This preemptive organization prevents confusion and ensures no part is overlooked. Start with the primary power wires, typically thicker and color-coded for polarity (e.g., red for positive, black for ground). Secure these first, using the torque specifications provided in the diagram to avoid over-tightening, which can damage terminals. Follow with sensor wires, such as the fuel pressure sensor or pump speed sensor, ensuring each is plugged into its corresponding port with an audible click, confirming a secure connection.
A critical yet often overlooked step is inspecting connectors for corrosion or damage before reattachment. Clean terminals with electrical contact cleaner and a soft brush if necessary. For connectors with locking mechanisms, engage them fully to prevent accidental disconnection during operation. If the diagram specifies dielectric grease, apply a thin layer to weatherproof connections, particularly in moisture-prone areas. This small step significantly extends the lifespan of the electrical system.
Finally, perform a continuity test using a multimeter to verify all connections are intact. Check for resistance values within the diagram’s specified range, typically between 0.5 and 2 ohms for most fuel pump circuits. Any reading outside this range indicates a loose connection or damaged wire, requiring immediate correction. This diagnostic step, though time-consuming, is indispensable for ensuring the system operates reliably under all driving conditions. Skipping it risks intermittent issues that are far harder to diagnose post-assembly.
Optimal Fuel Pump Voltage: How Many Volts Should You Expect?
You may want to see also
Explore related products
Test and Verify: Perform final checks, test pump functionality, and ensure leak-free operation
Once the Delphi fuel pump assembly is complete, the critical phase of testing and verification begins. This step is non-negotiable, as it ensures the pump operates efficiently and safely. Start by reconnecting the battery and turning the ignition to the "on" position without starting the engine. Listen for the pump’s priming cycle, a brief humming sound that confirms initial functionality. If no sound is heard, check the fuse, relay, and wiring connections for faults. Use a multimeter to verify power supply to the pump, ensuring voltage matches the manufacturer’s specifications (typically 12V for most vehicles).
Next, conduct a pressure test to validate the pump’s performance. Attach a fuel pressure gauge to the test port, usually located near the fuel rail. With the engine running, compare the pressure reading to the vehicle’s recommended range, often found in the service manual. For example, a Delphi pump in a Ford F-150 should maintain 30–60 PSI at idle. Fluctuations or low pressure may indicate a clogged filter, faulty regulator, or internal pump damage. Address these issues before proceeding to avoid engine damage or poor performance.
Leak detection is equally vital, as even minor fuel leaks pose safety and environmental risks. With the engine off, inspect all connections, hoses, and seals for wet spots or drips. Use a spray bottle with soapy water to highlight leaks under pressure. Pay close attention to the pump’s inlet and outlet ports, as well as the fuel lines. Tighten loose fittings with a torque wrench, following Delphi’s recommended torque values (e.g., 15–20 ft-lbs for most fittings). If leaks persist, replace damaged components immediately.
Finally, perform a road test to ensure the pump operates seamlessly under real-world conditions. Drive the vehicle at varying speeds, monitoring for hesitation, stalling, or unusual noises. Modern Delphi pumps are designed for durability, but even high-quality components can fail if not installed or tested correctly. This final verification step not only confirms the pump’s reliability but also provides peace of mind, knowing the vehicle is safe and efficient for daily use.
In summary, testing and verifying a Delphi fuel pump assembly is a meticulous process that combines technical precision with practical vigilance. By systematically checking functionality, pressure, leaks, and real-world performance, you ensure the pump meets both manufacturer standards and operational demands. Skipping this step risks costly repairs or safety hazards, making it the cornerstone of a successful installation.
Step-by-Step Guide to Removing the Fuel Pump in a 2013 Chevy Captiva
You may want to see also
Frequently asked questions
Delphi fuel pump diagrams are typically available in the vehicle’s service manual or on Delphi’s official website. You can also check automotive forums or repair databases like Haynes or Chilton for detailed diagrams specific to your vehicle.
A Delphi fuel pump diagram usually includes the fuel pump module, fuel lines, electrical connectors, fuel filter, and pressure regulator. The diagram will show how these components connect, with arrows indicating fuel flow and wiring paths for electrical connections.
Yes, you’ll need basic tools like wrenches, screwdrivers, and possibly a fuel line disconnect tool. Always relieve fuel system pressure before starting, work in a well-ventilated area, and follow the diagram closely to ensure proper assembly and avoid leaks or electrical issues.
