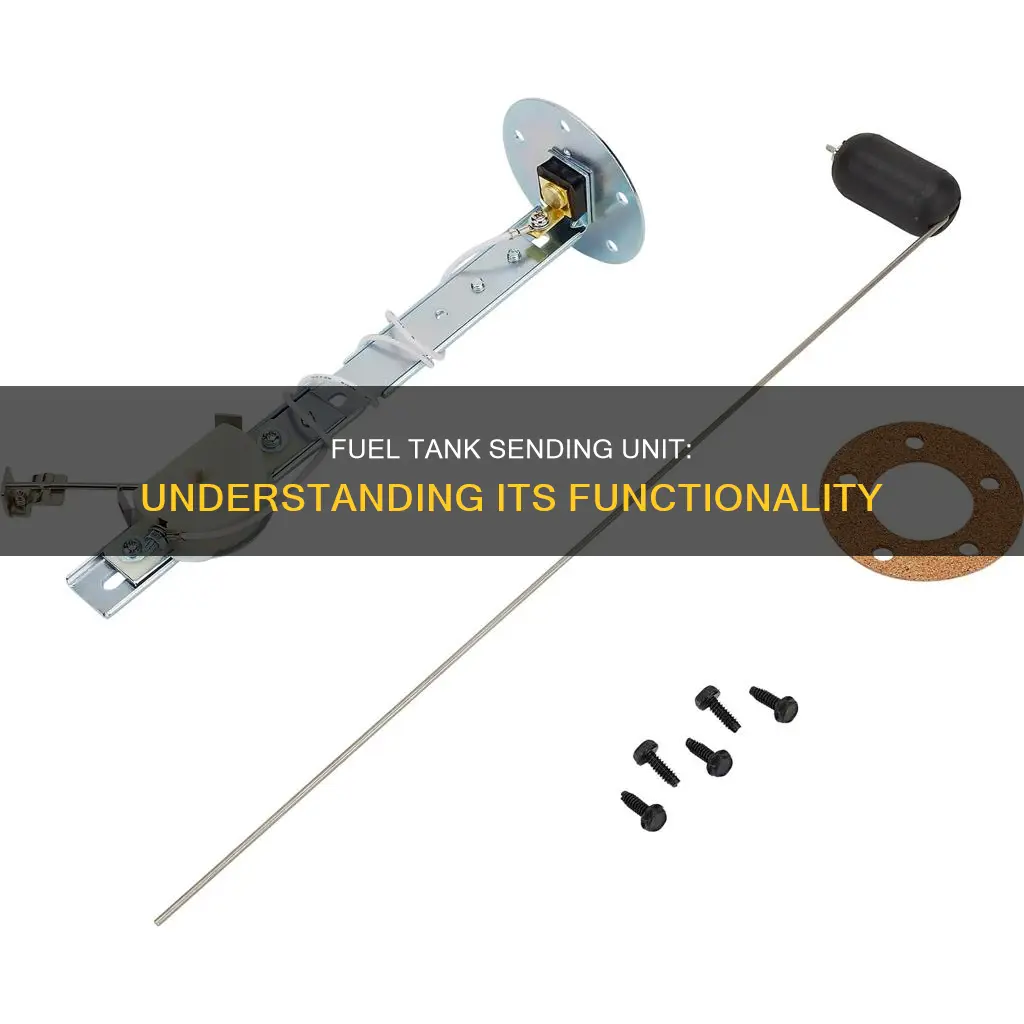

A fuel tank sending unit, also known as a fuel sensor, fuel sender, or fuel probe, is a device that measures the quantity of fuel remaining in a tank. It is a vital part of automotive gauge systems, providing information that is displayed on the fuel gauge. The sending unit is located inside the fuel tank and consists of a float, an arm, and a variable resistor. The float is a buoyant object that floats inside the tank, attached to the arm, a thin metal rod. The arm is then connected to the variable resistor, which moves up and down with the fuel level, translating resistance into voltage signals that are sent to the fuel gauge. This mechanism allows the gauge to display the level of fuel in the tank. While simple in design, the sending unit must be robust and resistant to corrosion, pressure, and wear.
| Characteristics | Values |
|---|---|
| Location | Inside the fuel tank |
| Parts | Float, metal rod, variable resistor, wiper, gauge |
| Function | Measures and transmits fuel level information to the gauge |
| Mechanism | The float rises and falls with the fuel level, causing the wiper to move along the variable resistor and changing the amount of current sent back to the gauge |
| Calibration | Involves setting the range of values corresponding to various fuel levels to ensure accurate readings |
| Types | Float-based, probe-based, remote sensing |
| Technologies | Magnetic resonance, capacitance, resistance, ultrasonic principles |
| Applications | Automobiles, aircraft |
Explore related products
What You'll Learn
Sender unit construction
Car Fuel Sender Unit Construction
Car fuel sender units are located inside the fuel tank and consist of a float, usually made of foam, connected to a thin metal rod. The end of the rod is mounted to a variable resistor, which is an electrical device that resists the flow of electricity. The variable resistor consists of a strip of resistive material connected on one side to the ground. A wiper connected to the gauge slides along this strip, conducting the current from the gauge to the resistor. The position of the float on the metal rod determines the resistance, which affects the amount of current sent back to the gauge.
Aircraft Fuel Sender Unit Construction
Aircraft fuel sender units, also known as fuel sensors, fuel senders, or fuel probes, measure the quantity of fuel remaining in the tank. There are three main types of construction for aircraft fuel sender units: floats, probes, and remote sensing. Float-based sender units consist of a float, electronics, wiring, and a fuel gauge. Probe-based sender units, also known as fuel level sensors, use modern technologies such as capacitance, resistance, or ultrasonic principles to measure fuel levels. Remote sensing is another technology used in aircraft fuel sender units, although the specifics of its construction are not readily available.
Upgrading Sender Units
It is possible to upgrade sender units, as demonstrated by the example of upgrading a '66 Chevelle to a floatless fuel sending unit from TANKS INC. This new unit is secured in place using a gasket and bolts, and the wiring is then connected. The TANKS INC sending units are available in different lengths to accommodate different tank depths.
Draining the Amarok Fuel Tank: Step-by-Step Guide
You may want to see also
Explore related products
Sender unit calibration
Understanding the Sender Unit:
The sender unit, located inside the fuel tank, typically consists of a float attached to a metal rod. The rod is connected to a variable resistor, which regulates the electrical current flowing to the fuel gauge. The position of the float relative to the fuel level determines the resistance in the circuit, which corresponds to the displayed fuel level.
Calibration Techniques:
- Resistor Values: Calibration often involves adjusting the resistance values of the sender unit to match specific ohm readings. Common resistance values used for calibration include 20 Ohms, 35 Ohms, 65 Ohms, 105 Ohms, and 222 Ohms. Adjusting the sender unit to these values helps ensure accurate readings.
- Potentiometer Adjustment: Instead of manually wiring resistors, a variable potentiometer can be used for calibration. By adjusting the potentiometer to different resistance values, you can fine-tune the sender unit's readings without the need for complex wiring.
- Sender Unit Testing: Before installing a sender unit, it is crucial to test its accuracy. This can be done by connecting the sender to the tank connector and ground, and then observing the gauge readings as the sender unit is slowly moved through its range from FULL to EMPTY. By noting the gauge positions and corresponding float arm positions, you can identify any discrepancies and make adjustments as needed.
- Gauge Calibration: In some cases, the issue may lie with the fuel gauge itself rather than the sender unit. If the sender unit appears functional but the gauge readings are inaccurate, you may need to calibrate or replace the gauge. Refer to your vehicle's manual or seek professional assistance for gauge calibration.
- Aftermarket Considerations: When dealing with aftermarket sending units, it's important to be cautious. Quality control may vary, and some units may require significant adjustments to achieve accurate readings. Testing and calibrating aftermarket units before installation can help avoid potential issues.
Troubleshooting and Maintenance:
- Float Arm Adjustment: In some cases, adjusting the float arm or the stop tabs may help improve the accuracy of the sender unit. However, this may not always resolve the issue, especially if there is a significant discrepancy in the readings.
- Clean and Reuse: Before opting for a new sender unit, consider cleaning and recalibrating the existing one. In some cases, a simple fix and calibration may extend the life of the unit and provide accurate readings.
- Vendor Quality: It is worth noting that some vendors may supply sending units that require calibration out of the box. While this adds an extra step, it can be a worthwhile trade-off for a more affordable or readily available unit.
Switching Fuel Tanks: Installing an Electric Switch
You may want to see also
Explore related products
Sender unit maintenance
Troubleshooting and Diagnostics
Before concluding that the sender unit requires maintenance or replacement, it is essential to perform some basic inspections and tests to streamline the repair process:
- Check the fuel gauge readings: If the gauge reads "full" or "empty" constantly or has an erratic needle movement, it could indicate a faulty sender unit or fuel gauge.
- Observe the check engine light: If the check engine light illuminates on the dashboard, use an OBD-II scanner to read the codes through the vehicle's OBD port and identify any issues with the fuel level sensor circuit.
- Inspect the fuel tank wiring: Ensure the electrical connection between the sender unit and the fuel gauge is secure, and check for any kinks, traps, or broken insulation that could lead to a short circuit.
Replacing the Sender Unit
If the sender unit is indeed faulty, follow these steps for replacement, keeping in mind the necessary safety precautions:
- Disconnect the fuel-gauge wire from the sender unit and earth it by scratching its bare end against the tank or any bare metal on the chassis. If the gauge needle swings to "full," it indicates a mechanical fault in the sender unit.
- Remove the sender unit carefully: Take precautions to avoid spilling fuel. Disconnect the fuel pipe if necessary and block it. Label the pipes if there are two. Then, disconnect the electric wires.
- Unscrew carefully: The sender unit may be fixed with screws, studs, and nuts. Be cautious when unscrewing, as snapping a stud could lead to replacing the entire tank.
- Install a new sender unit: Ensure the gas tank is clean before installing the new part to protect it from damage caused by old debris and contaminants. Secure the new unit according to the manufacturer's instructions.
Alternative Solutions
In some cases, the issue may not be with the sender unit itself but with other components. Here are some alternative solutions to consider:
- Check the fuel gauge: The problem could be with the fuel gauge or a break in the wiring between the gauge and sender. Inspect for any faults in the insulation of the wiring, which could result in a short circuit.
- Verify the float mechanism: If the sender unit is mounted through the tank wall, a detached float could cause issues. Ensure the float is not bent, as this will result in false readings.
- Consider a floatless sending unit: As an alternative to traditional sending units, floatless sending units provide more accurate readings and have no moving parts that can break or wear out.
By following these maintenance instructions and troubleshooting tips, you can ensure the proper functioning of your vehicle's sender unit and fuel gauge, making your driving experience safer and more reliable.
Testing Fuel Tank Sender Ohms: A Step-by-Step Guide
You may want to see also
Explore related products
Sender unit replacement
The first step is to disconnect the fuel pipe(s) and electrical wires. It may be necessary to block the fuel pipe with a plug or an old pencil to prevent spilling fuel. If there are two pipes, they should be marked to avoid confusion when reassembling. The sender unit is often held in place by screws or by studs and nuts around the edge, which must be carefully unscrewed. If the unit has a bayonet fitting, a locking ring can be released by turning it anticlockwise with a C-spanner, or by holding a metal bar against a lug and gently tapping it with a hammer. Once the sender unit is removed, care should be taken not to bend the long arm attached to the float, as this will affect the accuracy of the gauge.
Next, the new sender unit can be installed. The gasket or O-ring should be fitted to the new unit, ensuring proper alignment with the tank and sender unit. If replacing a fuel pump sender unit, the fuel line retainers should be transferred over. The sender unit arm should be guided in first, and the retaining ring can then be reinstalled. If screws are used, the included washers should be tightened in a star pattern to prevent leaks. All electrical connectors should be reconnected, and the fuel lines snapped back into place. Finally, it is important to check for leaks and ensure that the fuel gauge is functioning properly.
In some cases, it may be necessary to drop the fuel tank in order to access the sender unit. This involves disconnecting the wires and clamps holding the fuel lines, placing a floor jack under the tank, and unbolting the straps holding the tank in place. After replacing the sender unit, the tank can be lifted back into position and secured.
A Guide to Installing Your Boat's Fuel Tank
You may want to see also
Explore related products
Sender unit technologies
In aircraft, there are at least three types of fuel sensors: floats, probes, and remote sensing. Float-based senders provide information to the fuel gauges, allowing pilots to monitor fuel levels. Older float-based systems are prone to early failure and high error rates due to electronics in the fuel tank. Newer technologies, such as magnetic resonance, keep electronics out of the fuel tank and offer consistently high accuracy.
Fuel sender probe systems, also known as fuel level sensors, employ modern technologies such as capacitance, resistance, or ultrasonic principles. Capacitance-based systems rely on the ability of a capacitor to store an electric charge between two conductive plates separated by a dielectric. Resistance-based systems likely utilize similar principles to automotive sending units, where a variable resistor and a wiper are used to measure fuel levels.
Additionally, there are floatless" fuel sending units available, which may provide more accurate readings as fuel cannot slosh towards the sending unit as it does in traditional units. These floatless units also have no moving parts, reducing the likelihood of breakage or wear over time.
Building a Fuel Cell Gas Tank: A Comprehensive Guide
You may want to see also
Frequently asked questions
A fuel tank sending unit is a device that measures the fuel level in a tank and relays this information to the fuel gauge.
A fuel tank sending unit typically uses a float system that rises and falls with the level of fuel in the tank. The float is attached to a metal rod or arm, which is connected to a variable resistor. As the float height changes, the electrical resistance changes, which is interpreted by the fuel gauge to display the fuel level.
Common issues that can cause a fuel tank sending unit to fail include a loose or fuel-saturated float, a worn-out or loose arm, and issues with the variable resistor. Electrical issues, contaminated fuel, accident damage, and driving on rough terrain can also shorten the lifespan of a fuel tank sending unit.
Fuel tank sending units are typically made from materials that can withstand the harsh conditions inside a fuel tank, such as stainless steel, brass, and high-quality polymers.
Yes, while the float system is the most common design, there are alternative designs available, such as probe, ultrasonic, and reed switch systems. Additionally, some newer units are floatless, which can provide more accurate readings and have fewer moving parts that can break or wear out.
