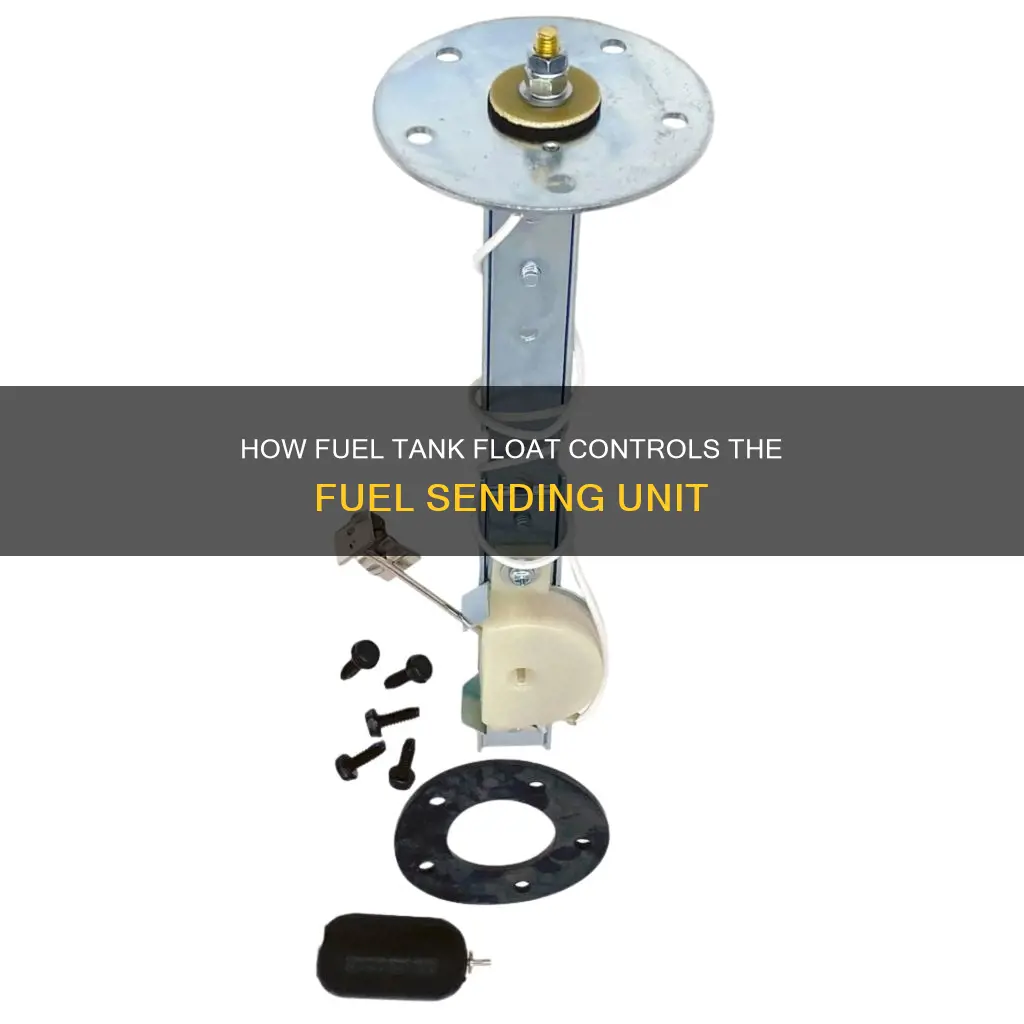

The fuel tank float and the fuel sending unit work together to measure and communicate the amount of fuel in a vehicle's fuel tank. The float, made of buoyant composite or foam, sits on top of the fuel and moves up and down as fuel levels change. This movement is tracked by the fuel sending unit, which consists of a metal rod/arm and a variable resistor. The metal rod pivots with the float, moving the wiper inside the variable resistor, which adjusts the electrical resistance. This resistance is then translated into a fuel level reading on the vehicle's fuel gauge. While the float and sending unit work together, it is important to note that issues with the float, such as those mentioned in the provided links, can lead to inaccurate fuel level readings.
| Characteristics | Values |
|---|---|
| Purpose | To measure the amount of fuel in the fuel tank and communicate the fuel level to the fuel gauge on the vehicle dashboard |
| Components | Float, metal rod/arm, variable resistor |
| Functionality | The float moves up or down according to the fuel level, causing the metal rod to pivot and the wiper inside the variable resistor to move, adjusting the electric current |
| Fuel Sending Unit Types | Resistive, capacitive, ultrasonic, radar, LiDAR, reed switch, magneto-resistive |
| Fuel Gauge Display | The fuel gauge displays the fuel level, which may be delayed and averaged by a tiny computer in newer cars to provide a more stable reading |
| Fuel Sending Unit Problems | A faulty resistor or issues with the float not floating in gas can cause incorrect readings or the gauge to malfunction |
Explore related products
What You'll Learn
- The float in the fuel tank moves up or down according to the fuel level
- The metal rod pivots in relation to the float, which causes the wiper inside the variable resistor to move
- The wiper's position determines the strength of the electric current from the resistor
- The fuel sending unit is used to measure the amount of fuel in the tank
- The fuel sending unit communicates the fuel level to the fuel gauge
The float in the fuel tank moves up or down according to the fuel level
The fuel sending unit, also known as a fuel sensor, fuel sender, or fuel probe, is responsible for measuring the fuel quantity remaining in the tank. It is usually attached to the fuel pump assembly but can also be a standalone unit. The sending unit consists of a float, a metal rod or arm, and a variable resistor. These components work together to measure the fuel level and relay this information to the fuel gauge, ensuring the driver is aware of the fuel level and can refuel when necessary.
The float in the fuel tank is typically made of a buoyant composite or foam, allowing it to float on top of the fuel. As the fuel level decreases, the float descends accordingly. This downward movement is transferred to the metal rod or arm, which pivots in relation to the float's position. The metal rod or arm is connected to a wiper or contact inside the variable resistor. The wiper moves along a strip of resistive material, and its position relative to the ground determines the strength of the electric current from the resistor.
The variable resistor plays a crucial role in translating the mechanical movement of the float into an electrical signal for the fuel gauge. By adjusting the resistance voltage, the wiper's position on the resistive element affects the electrical current flowing to the gauge. This current is then interpreted as a specific fuel level, providing an accurate reading of the fuel remaining in the tank.
While traditional fuel sending units rely on the float mechanism, modern technologies offer alternative methods for measuring fuel levels. Ultrasonic, LiDAR (Light Detection and Ranging), and radar systems employ remote sensing principles to measure fuel levels without requiring physical contact with the fuel. These systems emit ultrasonic waves or signals and calculate fuel levels based on the echoes or received data. Despite advancements, the float-based system remains prevalent in many vehicles, including classic cars, where it continues to play a vital role in monitoring fuel levels and ensuring a reliable driving experience.
Cost of a Large Double-Wall Fuel Tank: What's the Price Tag?
You may want to see also
Explore related products
The metal rod pivots in relation to the float, which causes the wiper inside the variable resistor to move
The fuel sending unit in a gas tank is used to measure the fuel level and communicate the fuel level to the fuel gauge on the vehicle dashboard. This unit is made up of three components: a float, a metal rod, and a variable resistor. The float is made of a buoyant composite or foam and floats on the fuel in the tank. The metal rod is connected to the float and the variable resistor. As the fuel level changes, the float in the tank rises or falls, and the metal rod pivots in relation to the float. This movement of the metal rod causes the wiper inside the variable resistor to move up or down.
The variable resistor is an electrical device that resists the flow of electricity. It is designed to change its resistance as the wiper arm moves along its surface. The wiper is connected to the fuel gauge either directly by wire or indirectly through an electronic device. As the wiper moves, it changes the amount of electric current sent to the fuel gauge, which results in the fuel gauge displaying the fuel level.
When the fuel tank is full, the wiper is closest to the ground, resulting in the least amount of resistance. As the fuel level decreases, the wiper moves further from the ground, increasing the resistance. The fuel gauge then displays the fuel level accordingly. If the fuel sending unit malfunctions, the fuel gauge may display incorrect readings.
The metal rod plays a crucial role in connecting the float to the variable resistor and enabling the movement of the wiper. By pivoting in relation to the float, the metal rod ensures that the wiper accurately reflects the fuel level in the tank. This mechanism allows for a continuous measurement of the fuel level and provides essential information for drivers to manage their fuel consumption effectively.
In summary, the metal rod's pivoting action in relation to the float is a critical aspect of the fuel sending unit's functionality. This movement directly influences the position of the wiper within the variable resistor, ultimately determining the accuracy of the fuel gauge reading. Understanding this interconnection between the metal rod, float, and variable resistor is essential for maintaining the proper functioning of the fuel sending unit in vehicles.
Clearing Out Old Sta-bil: Cleaning Your Fuel Tank
You may want to see also
Explore related products
The wiper's position determines the strength of the electric current from the resistor
A fuel sending unit is a device that measures the quantity of fuel remaining in a tank. It is also referred to as a fuel sensor, fuel sender, or fuel probe. The fuel sending unit employs various technologies to measure and transmit fuel level information to the fuel gauge. Some common technologies include resistive, capacitive, ultrasonic, radar, LiDAR, reed switch, and magneto-resistive systems. The fuel sending unit is typically mounted within the fuel tank or reservoir.
One of the measurement techniques used by the fuel sending unit is the float-based system. In this system, a float moves up or down according to the fuel level in the tank. When the tank is full, the float is at its highest position, and as fuel is consumed, the float drops. The float is connected to a metal rod, also known as a wiper or wiper arm, which extends further or closer to the ground as the float moves.
The wiper is an essential component in determining the strength of the electric current from the resistor. The wiper is connected to a variable resistor, and as it moves along the surface of the resistor, the resistance changes. This change in resistance is due to the varying length of the resistive path that the wiper contacts. When the wiper moves in one direction, it lengthens the path for electricity, increasing the resistance and decreasing the current flow. Conversely, when the wiper moves in the opposite direction, it shortens the path, lowering the resistance and increasing the current.
The variable resistor is connected in an electrical circuit with the fuel gauge, which typically operates as a voltmeter. The current flows through the resistor, and the voltage across it changes with the varying resistance. This variation in voltage is translated into a digital gauge or needle position within the engine and car system, providing an accurate reading of the fuel level in the tank.
In summary, the wiper's position on the resistor plays a crucial role in determining the strength of the electric current. By moving along the surface of the resistor, the wiper adjusts the resistance, which in turn affects the voltage and current flowing to the fuel gauge, ultimately resulting in an accurate display of the fuel level.
Cleaning Sugar from Fuel Tank: Step-by-Step Guide
You may want to see also
Explore related products
The fuel sending unit is used to measure the amount of fuel in the tank
The fuel sending unit is a critical component in any vehicle, as it is responsible for measuring the amount of fuel in the tank and ensuring the driver is aware of the fuel level. This unit is located in the gas tank and consists of a float, a metal rod or arm, and a variable resistor. These components work together to provide an accurate reading of the fuel level, which is then communicated to the fuel gauge on the dashboard.
The float is a crucial element in the fuel sending unit, as it directly indicates the fuel level. Made from buoyant composite or foam, the float rests on the fuel's surface, moving up and down as the fuel level changes. This movement is transmitted to the metal rod or arm, which is connected to the float. As the rod pivots with the float, it adjusts the position of the wiper within the variable resistor.
The variable resistor is an electrical device that controls the flow of electricity. By sliding a contact (the wiper) over a resistive element, the variable resistor can adjust the amount of resistance voltage encounters. The position of the wiper in relation to the ground determines the strength of the electric current from the resistor. This information is then translated into a fuel level reading by the vehicle's electrical and electronic components, which is then displayed on the fuel gauge.
While the basic mechanism of the fuel sending unit remains consistent, there are variations in its design and functionality across different manufacturers. For instance, in a Ford fuel sending unit, the unit is furthest from the ground when the tank is full, while in a GM fuel sending unit of the same year, it is closest to the ground when full. Understanding the specific characteristics of the fuel sending unit in your vehicle is important for accurate fuel level readings.
In recent times, advancements have been made to enhance the accuracy and reliability of fuel sending units. For example, TANKS INC has introduced floatless fuel sending units that offer a drop-in solution, eliminating the need to figure out the arm and float configuration. These units provide ease of installation and are designed to work regardless of the wiring configuration, making them a convenient upgrade for modern fuel injection tanks.
Repairing Fuel Tank Corrosion: DIY Guide
You may want to see also
Explore related products
The fuel sending unit communicates the fuel level to the fuel gauge
The fuel sending unit, also known as a fuel sensor, fuel sender, or fuel probe, is an important component in a vehicle's fuel system. Its primary function is to measure the amount of fuel in the fuel tank and communicate this information to the fuel gauge on the dashboard. This real-time data helps drivers stay informed about their fuel levels, enabling them to refuel when necessary and avoid running out of fuel unexpectedly.
The fuel sending unit typically consists of three main components: a float, a metal rod or arm, and a variable resistor. These components work in harmony to provide accurate fuel level readings. The float, made of buoyant composite or foam, sits atop the fuel in the tank and moves up or down according to the fuel level. As the float rises or falls, it triggers a corresponding movement in the attached metal rod or arm.
The metal rod or arm is connected to a wiper, which is a crucial part of the variable resistor. The wiper slides over a resistive element, adjusting the resistance voltage. This movement influences the electric current flowing to the fuel gauge, resulting in an accurate reading of the fuel level. When the fuel level decreases, the wiper moves closer to the ground, increasing the electrical resistance and reflecting a lower fuel level on the gauge.
In newer vehicles, a small computer, or electronic control unit (ECU), is often integrated between the sensor and the fuel gauge. This ECU processes the signals from the variable resistor, calculating the precise fuel level, and then transmits this data to the fuel gauge for display. This additional component helps stabilise the reading, reducing the impact of factors like acceleration, deceleration, and driving on hilly terrain.
While the traditional float-based system is widely used, there are also alternative technologies employed in fuel sending units. These include ultrasonic, LiDAR (Light Detection and Ranging), radar, reed switch, and magneto-resistive systems. Each of these technologies offers its own advantages and may be preferred in certain vehicle types or situations where float-based systems are impractical.
Additive Power: How Much Diesel Fuel Additive?
You may want to see also
Frequently asked questions
A fuel sending unit is an auto part that measures the fuel quantity remaining in a tank and communicates the fuel level to the fuel gauge on the vehicle dashboard.
A fuel sending unit typically consists of a float, a metal rod/arm, and a variable resistor. The float sits on top of the fuel in the tank and moves up or down according to the fuel level. The metal rod pivots in relation to the float, causing the wiper inside the variable resistor to move. The wiper's position determines the strength of the electric current from the resistor, which is then translated into a digital gauge or needle position via the car's electrical and electronic components.
While you cannot directly control the fuel sending unit, you can influence it by ensuring that the fuel measurement is accurate and reliable. This may involve upgrading the parts measuring fuel quantity or physically removing the hazard of fuel starvation.
Ultrasonic, LiDAR (Light Detection and Ranging), and radar systems are alternative technologies used to measure fuel levels in a vehicle's fuel tank without making contact with the fuel. These systems employ sensors that emit ultrasonic waves or light and calculate the fuel level based on the echoes or reflected signals.
If your fuel sending unit float doesn't float in gas, you may need to replace the float or the entire unit. In some cases, letting the unit dry out or reattaching dislodged components can also resolve the issue.
