A fuel gauge is an instrument used in vehicles to indicate the amount of fuel in a fuel tank. It consists of two parts: the sender, which measures the level of fuel in the tank, and the gauge, which displays that level to the driver. The sender unit is located inside the fuel tank and consists of a float, usually made of foam, connected to a thin metal rod. The end of the rod is mounted to a variable resistor, which resists the flow of electricity. As the fuel level changes, the float rises or falls, causing the wiper in the variable resistor to move, thereby changing the resistance and the current. The calibrated gauge then displays the amount of fuel in the tank.
| Characteristics | Values |
|---|---|
| Number of components | 2 |
| Name of components | Sender and gauge |
| Location of sender | Inside the fuel tank |
| Composition of sender | Float, metal rod, variable resistor, wiper |
| Function of sender | Measures fuel level |
| Function of gauge | Displays fuel level to driver |
| Composition of gauge | Dash unit, two coils, armature, pointer assembly |
| Gauge display type | Analog or digital |
| Analog display | Needle across a dial |
| Digital display | Set number of bars |
| Fuel tank shape impact | Inaccuracy |
| Fuel gauge failure impact | Risk of running out of fuel |
| Fuel gauge maintenance | Self-test/reset, fuse box check |
Explore related products
$65.31 $71.01
What You'll Learn
The sender and the gauge
The sending unit has a float arm that sits in the liquid gas. When the arm moves up and down, it changes the resistance to the ground on a variable resistor. That resistance is then translated and sent through the car’s wiring and electronics to determine where the needle or digital gauge is positioned. When the tank is full, it registers a high resistance, and when it’s low, it registers a low resistance. The float is connected to the resistor using an arm. The change in current is then read by the dashboard’s indicator and finally, we get the reading.
Modern vehicles also work with the same principle, but they have a microprocessor to read the resistance or current in the circuit. They can also compensate for the shape of the tank and calculate the volume of fuel remaining very accurately. The microprocessor can also 'dampen' needle movement. This means that your fuel gauge doesn’t swing abruptly as you turn corners or climb hills, which sloshes the fuel in the tank, along with the float, exposing more of the rod. These things can cause errors in reading and indication.
In a car with an analog gauge, the needle moves up and down across a dial to show how much fuel is left. When the tank switches to its reserves, it will prompt a fuel light to display. In a car with a digital gauge, a set number of bars display how much fuel is left.
Checking Fuel Tank Pressure: A Step-by-Step Guide
You may want to see also
Explore related products
How the sender works
The sender, or sending unit, is located inside the fuel tank of a car. It consists of a float, usually made of foam, attached to a thin, metal rod. The end of the rod is mounted to a variable resistor, which is an electrical device that resists the flow of electricity. The more resistance there is, the less current will flow.
The float arm sits in the liquid fuel and moves up and down as the fuel level changes. This changes the resistance to ground on the variable resistor. That resistance is then translated and sent through the car’s wiring and electronics to determine where the needle or digital gauge is positioned. When the tank is full, it registers a high resistance, and when it’s low, it registers a low resistance.
The variable resistor consists of a strip of resistive material connected on one side to the ground. A wiper connected to the gauge slides along this strip of material, conducting the current from the gauge to the resistor. If the wiper is close to the grounded side of the strip, there is less resistive material in the path of the current, so the resistance is small. The strength of the electrical current from the resistor is determined by the location of the wipers to the ground.
The sending unit is connected to the gauge, or indicator unit, which is usually mounted on the dashboard. The indicator unit measures and displays the amount of electric current flowing through the sending unit. When the tank level is high and maximum current is flowing, the needle points to "F" or full. When the tank begins to empty, the float drops and the resistance of the unit drops. This increases the resistance, which reduces the current and causes the needle to move towards an "E" or empty position.
Cleaning Old Gas Out of Your Fuel Tank
You may want to see also
Explore related products

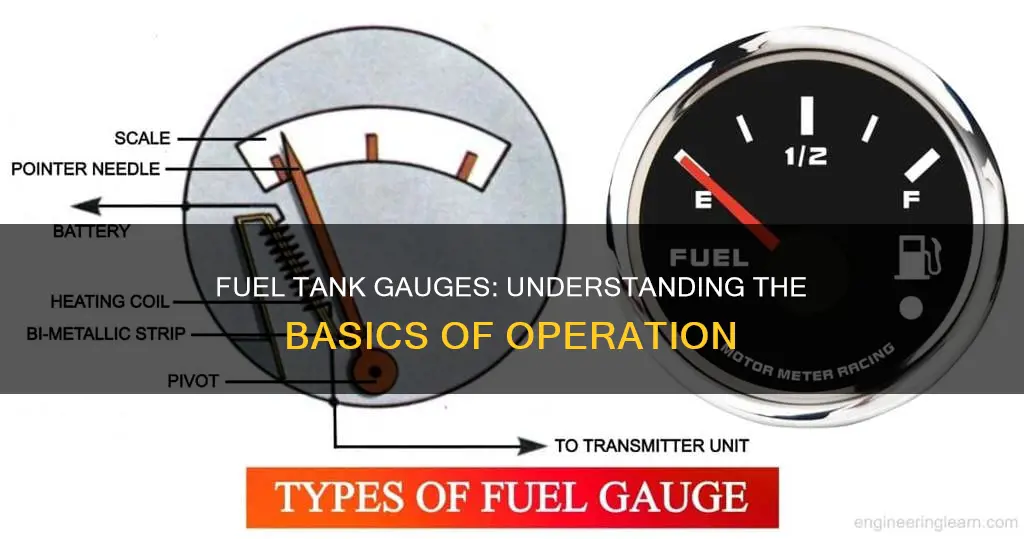

How the gauge works
A fuel gauge is an instrument used to indicate the amount of fuel in a fuel tank. It consists of two parts: the sender and the gauge. The sender measures the level of fuel in the tank, while the gauge displays that level to the driver. The sender unit is located inside the fuel tank and consists of a float, usually made of foam, connected to a thin metal rod. This rod is mounted to a variable resistor, which resists the flow of electricity. The more resistance there is, the less current will flow.
The float arm sits in the liquid fuel and moves up and down as the fuel level changes. This movement changes the resistance to the ground on the variable resistor. That resistance is then sent through the car's wiring and electronics to determine the position of the needle or digital gauge. When the tank is full, it registers a high resistance, and when it's low, it registers a low resistance. This change in resistance results in a change in the value of the current in the circuit. The current is typically lower when the level drops, and higher when the level is up.
The calibrated dashboard then gives the amount of fuel in the tank. In modern vehicles, a microprocessor reads the resistance or current in the circuit and can compensate for the shape of the tank to calculate the volume of fuel remaining accurately. This microprocessor can also 'dampen' needle movement, preventing abrupt swings as the vehicle turns corners or climbs hills, which would otherwise cause errors in the reading.
In magnetoresistive fuel gauges, there is a magnet in the float arm. Its position is transmitted from the magnetic field when it moves inside the tank due to the change in level. This type of sensor has very good accuracy and is very safe.
Oil Tanker Fuel Consumption: Hourly Breakdown
You may want to see also
Explore related products
The fuel gauge sending unit
The sending unit consists of a float, usually made of foam or another buoyant composite material, connected to a thin metal rod or arm. This float sits in the liquid fuel, allowing it to accurately detect the fuel level. As the fuel level changes, the float rises or falls accordingly. The metal rod or arm connects the float to a variable resistor, which is an electrical device that resists the flow of electricity.
The variable resistor is a critical component in translating the mechanical movement of the float into an electrical signal that can be interpreted by the fuel gauge. It consists of a strip of resistive material connected on one side to the ground. A wiper, or sliding contact, connected to the gauge, moves along this strip of material. The position of the wiper in relation to the ground affects the resistance in the circuit, which is then translated into a fuel level reading. When the tank is full, the wiper is closest to the ground, resulting in the least resistance, while the opposite is true when the tank is empty.
In addition to the basic components described above, modern vehicles often incorporate a microprocessor into the sending unit. This microprocessor enhances the accuracy of fuel level readings by compensating for the shape of the tank and calculating the volume of fuel remaining. It also helps to stabilise the needle movement, preventing abrupt swings as the vehicle turns corners or climbs hills, which can cause errors in the fuel gauge reading.
The Massive Fuel Capacity of Shipping Tankers
You may want to see also
Explore related products
How fuel gauges operate and fail
A fuel gauge is an instrument used to indicate the amount of fuel in a fuel tank. It consists of two parts: the sender or sending unit, and the gauge or indicator unit. The sender measures the level of fuel in the tank, while the gauge displays that level to the driver. The sender is located inside the fuel tank and consists of a float, usually made of foam, connected to a thin, metal rod. The end of the rod is mounted to a variable resistor, which consists of a strip of resistive material connected on one side to the ground. The float arm moves up and down with the fuel level, changing the resistance to ground. This resistance is then translated and sent through the car's wiring and electronics to determine the position of the needle or digital gauge. When the tank is full, it registers a high resistance, and when it's low, it registers a low resistance.
While fuel gauges are fairly simple mechanisms, they can sometimes malfunction. One common issue is a faulty sending unit, which can cause the gauge to read empty or full regardless of the actual fuel level. This may be due to the float separating from the arm, a faulty resistor, or corroded wires. Another issue could be a circuit problem, such as a lack of source voltage or an interrupted ground, which can lead to inaccurate readings. In some cases, the shape of the fuel tank itself can affect the accuracy of the gauge, as the fuel level may not correspond exactly to the halfway point on the tank due to its shape.
To diagnose a malfunctioning fuel gauge, there are several steps you can take. First, check the fuse for the fuel gauge and replace it if necessary. Modern cars often have built-in testing procedures that can be activated using various dashboard buttons. You can also check your owner's manual for specific instructions on how to access and test the fuel gauge sending unit. This may involve removing certain panels and parts to access the unit and checking the ground wiring for any issues. If the sending unit is built into the fuel pump, you may need to check the voltage of the wiring and/or connector that provides power to the unit.
It is important to note that a faulty fuel gauge can lead to unexpected issues, such as running out of fuel and causing damage to the fuel pump. Therefore, it is recommended to always fill the tank and be aware of the fuel level to avoid potential problems.
Measuring Fuel Tank Capacity: Gallons Simplified
You may want to see also
Frequently asked questions
A fuel tank gauge is an instrument used to indicate the amount of fuel in a fuel tank.
A fuel tank gauge consists of two parts: the sender and the gauge. The sender, which is attached to the fuel tank, measures the level of fuel in the tank. The gauge then displays that level to the driver. The sender usually consists of a float, a metal rod, and a variable resistor. The float is connected to the variable resistor by a thin metal rod. As the level of fuel in the tank changes, the float rises or falls, causing the metal rod to pivot and the wiper in the variable resistor to move, which changes the resistance and the current. The current is then translated and sent through the car's wiring and electronics to determine the position of the needle or digital gauge.
An incorrect fuel gauge is most commonly caused by a malfunctioning fuel sending unit. If you suspect your fuel gauge is malfunctioning, you can refer to your owner's manual for information on how to run a self-test. You can also check the wiring connecting the battery to the gas gauge and the fuel tank and replace any damaged wires.
You can calculate how much fuel you have left when your gauge shows empty by checking your owner's manual for the exact volume of your fuel tank, filling up your tank the next time your needle shows empty, and then subtracting the number of gallons it takes to fill your tank from the volume stated in the owner's manual.
