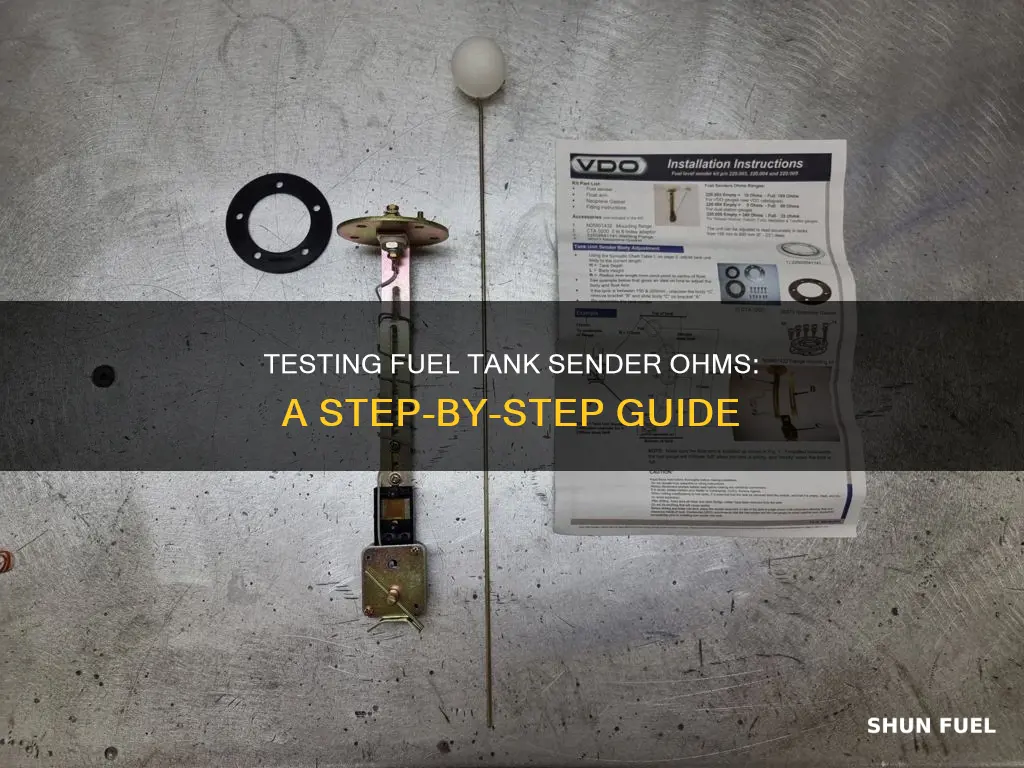

The fuel gauge sender is a crucial component in a vehicle, as it measures the fuel level and sends this information to the fuel gauge for the driver to see. The fuel gauge sender uses a float attached to a metal rod to determine the fuel level, and this float system is affected by the resistance in the circuit. This resistance can be measured in ohms, and it is important to check the ohms of a fuel gauge sender to ensure it is compatible with the gauge and to troubleshoot any issues.
| Characteristics | Values |
|---|---|
| Fuel gauge reading issues | Fuel gauge reads full or empty |
| Fuel sender ohm range | 0-30, 0-90, 10-180, 240-33, 73-10, 0-90 |
| Fuel gauge and sender compatibility | Ohms on the sending unit and fuel gauge must be the same |
| Fuel sender testing | Use a multimeter to check ohms when the tank is empty and full |
| Fuel sender resistance | Measured using a digital volt ohm meter (DVOM) or a multimeter |
| Fuel sender maintenance | Clean or refurbish the sender due to corrosion, residue buildup, or debris |
| Fuel sender issues | Inconsistent ohm values, no change in resistance, erratic electrical signals |
Explore related products
What You'll Learn
Check the ohm range
To check the ohm range of a fuel tank sender, you will need to use a multimeter. This is important when replacing the fuel sending unit, as the new unit must be compatible with the fuel gauge in terms of ohms or resistance.
First, consult your car's manual to learn how to remove the fuel sending unit from your fuel tank. Disconnect the unit's plug and set your multimeter to ohms. If the fuel sending unit is grounded through the fuel tank, connect one multimeter lead to the sender wire and the other lead to the body of the sender.
Now, check the resistance level of the fuel gauge sender when the fuel tank is empty and again when it is full. Note the resistance range reading on your multimeter for both. You now know the ohm range of your fuel sending unit.
If you are experiencing issues with your fuel gauge, it may be due to inconsistent ohm values, which could be caused by metal corrosion, residue buildup, or foreign object debris intrusion.
Factorio Tank Fuel: Efficient Strategies to Keep Your Tanks Fueled
You may want to see also
Explore related products
Disconnect the fuel sending unit
Disconnecting the fuel sending unit is a crucial step in checking the ohms of a fuel tank sender. Here is a detailed guide on how to do it:
Firstly, it is important to refer to the car's manual for specific instructions on removing the fuel sending unit from the fuel tank, as the process may vary depending on the car model. Once you have located the fuel sending unit, the next step is to disconnect it safely.
Before disconnecting the unit, ensure that you take precautions to avoid spilling fuel. The fuel level should be well below the sender hole to prevent petrol from gushing out. You may need to drain the tank if all other methods, such as using a dipstick or disconnecting the fuel pipe, are unsuccessful.
Now, let's move on to disconnecting the electrical connections. Disconnect the fuel-gauge wire from the sender unit. This step may require unscrewing screws, studs, or nuts, so use the appropriate tools and be gentle to avoid damaging the components. If the sender has a bayonet fitting, you may need to use a C-spanner or a hammer and a drift to release the locking ring. Be cautious not to bend any components, especially the float arm, as it can cause the gauge to give false readings.
After disconnecting the electrical connections, you may need to remove the fuel lines. Ensure that you block the fuel pipe to prevent any fuel spillage. Once the fuel lines and electrical connections are disconnected, you can proceed to remove the old fuel sending unit from the tank.
It is important to note that this process may vary slightly depending on your vehicle's specific make and model. Always refer to your vehicle's service manual for detailed instructions and take the necessary precautions to ensure a safe and successful disconnection of the fuel sending unit.
Fuel Tank Aluminum Thickness: How Thick is Enough?
You may want to see also
Explore related products
Use a multimeter to measure ohms
To use a multimeter to measure ohms, you will need to set up the device and prepare the circuit you are testing. First, set your multimeter to the ohm meter setting on the selector knob. This may be labelled with the omega symbol (Ω). Plug the black probe into the common port, and insert the red probe into the jack marked for ohms.
Before testing, ensure that the circuit is disconnected from any power source. When testing, always start with a high range and dial it down, as a range that is too low can cause problems. Gently tap the red and black tips together, ensuring you do not touch the metal parts with your fingers. Your reading should be 0.5 ohms or less. If your reading is higher than that, replace the probes.
When testing the circuit, place the probes at the two points between which you wish to measure the resistance. The resistance of the entire circuit between those two points will be measured. If you are testing a plug, place the red probe into the hot slot and the black probe into the neutral slot, which is the wider prong on a polarized plug.
Digital multimeters apply a constant current and read the voltage. They will display a number when you measure. Analog multimeters, on the other hand, have a meter and an indicator pointing to a number. They apply a voltage and attempt to read back the current.
Identifying Baffle Issues in Fuel Tanks
You may want to see also
Explore related products
Check for grounding issues
If your fuel gauge is not reading correctly, there may be a problem with the grounding of your fuel sender. Fuel senders have a rheostat that provides a resistance to ground. As the fuel arm moves from the empty to the full position, a contact is moved across the board on the rheostat, which varies the resistance seen by the fuel gauge. Therefore, proper grounding of the sending unit is essential to get an accurate reading on your fuel gauge.
To test for grounding issues, you can use a multimeter to check the ohms or resistance of the fuel sender. Set your multimeter to ohms and follow the steps below:
- Remove the fuel sending unit from your car's fuel tank by consulting your car's manual.
- Disconnect the fuel sending unit's plug.
- If the fuel sending unit is grounded through the fuel tank, connect one lead of the multimeter to the sender wire and the other lead to the body of the sender.
- Take note of the resistance range reading on your multimeter when the tank is empty and full.
- Compare the readings with the expected ohms or resistance values for your specific vehicle.
- If there is a significant discrepancy between the readings and the expected values, it indicates a possible grounding issue with the fuel sender.
It is important to note that the resistance level of the fuel sender will depend on your vehicle, so refer to your car's manual or a mechanic for specific details. Additionally, ensure that you take the necessary safety precautions when working with fuel systems and electricity.
If you suspect a grounding issue, you can try the following:
- Check the continuity between the spade terminal and the ground screw. If there is no continuity, it indicates a lack of connection, which may be due to a faulty wire or loose connection.
- Inspect the wiring for any signs of damage, such as kinks, trapped wires, or broken insulation, as these can cause short circuits.
- Verify that the fuel sender is properly earthed by touching the wire to an unpainted point on the car body. If the gauge needle moves, it indicates that the tank was not properly earthed.
- Clean the mounting bolts or screws and ensure proper connections.
- Refer to a mechanic or a specialist for further diagnosis and repair if the issue persists.
Fuel Tank Strap Silverado: Installation Guide
You may want to see also
Explore related products
Observe resistance value
To check the ohms of a fuel gauge sender, you will need to use a multimeter. This is important when replacing the fuel sending unit, as the new unit must be compatible with the fuel gauge in terms of ohms or resistance.
First, consult your car manual to learn how to remove the fuel sending unit from your fuel tank. Disconnect the fuel sending unit's plug. Set your multimeter to ohms and ground one of the probes somewhere on the vehicle's chassis, body, or tank. If the fuel sending unit is grounded through the fuel tank, connect one lead of the multimeter to the sender wire and the other lead to the body of the sender.
Now, observe the resistance value on the multimeter. It should change consistently as you slowly move the float arm from its lowest to highest position. Check your maintenance manual for the expected values and directions of change. If no value is displayed, adjust the lead positions until you get a reading. Ensure that the multimeter is set correctly.
If you observe inconsistent ohm values, this may indicate the need for cleaning or refurbishing the sender due to issues like metal corrosion, residue buildup, or foreign object debris intrusion. No change in resistance suggests a problem with the resistance wiper, such as a bent wiper or one that has worn through the resistance card.
Draining a Ford Focus Fuel Tank: Step-by-Step Guide
You may want to see also
Frequently asked questions
The fuel gauge sender is responsible for measuring how much fuel you have left and sending the signal to the fuel gauge. Checking the ohms of a fuel gauge and the sending unit is important when replacing the fuel sending unit because the two must be compatible with one another in terms of ohms or resistance.
You will need to consult your car manual on how to remove the fuel sending unit from your car's fuel tank. Once you have removed the unit, you can use a multimeter to check the ohms when the tank is empty and when it is full.
If your fuel gauge only reads empty, and you have a 0-30, 0-90, or 10-180 Ohm sender, then your sender lead wire may be grounding out somewhere. If you have the same ohm range and your gauge only reads full, then the sender may not have a proper ground or there is a break in the sender lead wire.
Inconsistent ohm values may indicate the need for cleaning or refurbishing the sender due to issues like metal corrosion, residue buildup, or foreign object debris intrusion.
The resistance of your fuel sender should match that of your gauge. For example, the resistance of the stock gauge in a 55 Chevy has a value of zero ohms when empty and 30 ohms when full.
