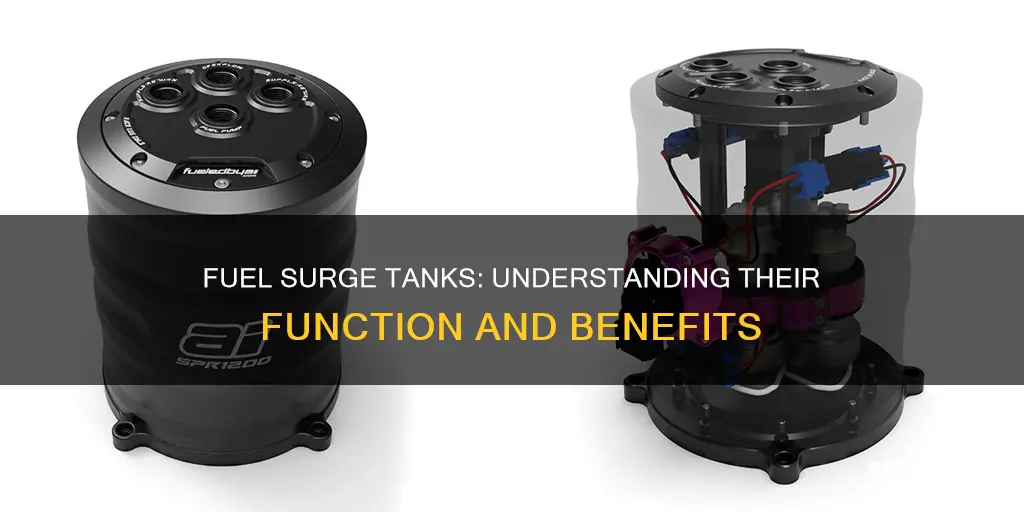

Fuel surge tanks have been around for a while, but many car enthusiasts are still unclear about their purpose and functionality. A fuel surge tank is designed to ensure a constant supply of fuel to the engine, preventing fuel starvation during high lateral Gs, tight corners, or rapid acceleration. The tank is always filled with fuel, either from the return line or a dedicated pump, maintaining pressure and reducing fuel surge. The size of the surge tank depends on how long you want to prevent fuel starvation at the main fuel tank, with most holding a quart or two.
Explore related products
What You'll Learn
The primary role of a fuel surge tank is to reduce fuel surge
A fuel surge tank is a secondary fuel tank that is placed somewhere suitable to gravity feed the EFI pump. The EFI pump runs at very high pressure, and the fuel is circulated to the fuel rail and back very rapidly. The surge tank ensures that the EFI pump always has enough fuel to feed the engine, even during hard cornering, drag racing, or when the fuel level is low.
The fuel system works as follows: the fuel starts at the factory tank and gets drawn into the low-pressure pump. The pressurized fuel then flows into the surge tank and out toward the engine. Along the way, the fuel goes into an inline high-pressure EFI pump and out to the injectors. The pressure of the fuel is controlled by the fuel pressure regulator and feeds the engine. Any remaining fuel then returns to help refill the surge tank. As the surge tank reaches its maximum capacity, the excess fuel returns to the main fuel tank.
By having a separate surge tank, the EFI pump always has enough fuel to supply the engine, even when the main fuel tank is less than full. This helps to prevent fuel starvation and engine damage.
Drilling a Fuel Tank: Safe Techniques and Methods
You may want to see also
Explore related products
$69.69
The tank works to maintain a constant supply of fuel
A surge tank is a secondary fuel tank that is placed somewhere suitable to gravity-feed the EFI pump. The fuel first goes from the tank to the surge tank, then from the surge tank to the engine, and then back from the engine to the surge tank. This way, by returning the fuel from the engine to the tank, the tank will always be full. An overflow line feeds back into the gas tank, so the intank pump is always feeding fuel into the surge tank. This ensures that the surge tank is always being filled and maintains pressure.
The fuel is then sent from the surge tank to a high-pressure EFI pump and out to the injectors. The pressure of the fuel is controlled by the fuel pressure regulator and feeds the engine. Any remaining fuel then returns to help refill the surge tank. As the surge tank reaches its maximum capacity, the excess fuel returns to the main fuel tank.
Surge tanks are also useful for preventing fuel starvation on carburetor to fuel injection conversions. Carbureted cars have a built-in fuel bowl, which stores enough fuel to keep a constant fuel supply, even if the pump runs dry for a short period. In contrast, most fuel-injected cars are designed with a reservoir built around an in-tank pump to ensure a constant supply of fuel to the engine.
Fuel Tanks: Filling the Main Tank from External Sources
You may want to see also
Explore related products
Fuel is drawn into a low-pressure pump and flows into the surge tank
A fuel surge tank is a secondary fuel tank that helps to maintain a consistent supply of fuel to the engine. Fuel is drawn into a low-pressure, high-volume pump, also known as a lift pump, which is used to fill the surge tank. This process ensures that the surge tank is always kept full, providing a constant supply of fuel to the engine.
The pump is typically mounted next to the tank, with the supply from the tank relatively low on its side, keeping the pump at a lower potential than the fuel. This setup allows the pump to effectively draw fuel into the surge tank. The surge tank then acts as a reservoir, providing a steady flow of fuel to the engine as needed.
In addition to the lift pump, the excess fuel returned from the fuel pressure regulator is also circulated back into the surge tank. This two-way flow helps to ensure a constant supply of fuel, even under extreme conditions or when fuel levels in the main tank are low. By utilising both the lift pump and the excess fuel return, the surge tank can maintain a consistent fuel level, preventing fuel starvation to the engine.
The surge tank also plays a crucial role in reducing fuel surge, which can occur when the fuel surges inside the main tank, causing the pickup line to suck at a pocket of air instead of fuel. The surge tank's narrow design helps to minimise internal surge, ensuring that the inlet to the fuel pump always has access to fuel. This is particularly important in vehicles with electronic fuel injection or high lateral acceleration loads, where fuel starvation can have significant consequences.
Draining the Holden Colorado Fuel Tank: A Step-by-Step Guide
You may want to see also
Explore related products
![A-Premium Engine Coolant Overflow Recovery Reservoir Tank [with Cap & Sensor] Compatible with Saturn SC 1992, SC1/SC2 1993-2002, SL/SL1/SL2 1992-2002, SW1 1993-1999, SW2 1993-2001, 1.9L - Front](https://m.media-amazon.com/images/I/61QyFA2SIML._AC_UY218_.jpg)
![A-Premium Coolant Overflow Recovery Reservoir Tank [W/ Sensor & Cap] Compatible with Chevrolet Silverado 1500 2500 3500, Suburban, Tahoe & GMC Sierra, Yukon & Cadillac Escalade, Replace# 15203949](https://m.media-amazon.com/images/I/713ka2gIduL._AC_UY218_.jpg)
Any remaining fuel returns to the surge tank to keep it full
A fuel surge tank is designed to maintain a constant and stable fuel supply to the engine, ensuring that the engine never runs out of fuel, especially during acceleration or cornering. When the vehicle is in motion, the fuel pump supplies fuel from the main tank to the surge tank, which is typically located closer to the engine. This ensures that the surge tank always has enough fuel to meet the engine's demands.
As the engine runs and fuel is consumed, the surge tank provides a steady supply of fuel to the injectors or carburetor. This is where the magic happens; any fuel that is not used by the engine returns to the surge tank. This return fuel line ensures that the surge tank remains full at all times. By having this returning unused fuel, the surge tank acts as a reservoir, always ready to provide additional fuel when needed.
This returning fuel also serves another important purpose. It helps to cool the fuel system, including the pump and the injectors or carburetor. The returning fuel absorbs heat from these components, ensuring that the fuel remains at an optimal temperature. This is crucial for consistent engine performance and fuel efficiency.
Additionally, this returning fuel helps to prolong the life of the fuel pump. By keeping the surge tank full, the fuel pump never runs dry, which could lead to pump damage or reduced lifespan. This continuous flow of fuel also ensures that the pump remains lubricated, reducing wear and maintaining its efficiency.
The Art of Dropping a 19-Wheeler Fuel Tank Safely
You may want to see also
Explore related products
A fuel surge tank can be built into the main tank
The fuel surge tank ensures that there is enough fuel available for the high-pressure fuel pumps to provide fuel to the engine. This helps to prevent fuel starvation and ensures that the engine always has a steady flow of fuel, even during high-performance driving scenarios that can cause the main fuel tank to slosh. The lift-fuel pump provides fuel from the fuel tank, while the excess fuel returned from the fuel pressure regulator is circulated back into the surge tank. These two flows generate a constant supply of fuel under any conditions, even if the fuel delivery from the fuel tank is reduced due to starvation during low fuel levels or extreme conditions.
The primary role of a surge tank is to reduce fuel surge. Carburetors have a built-in float bowl that acts as an internal fuel storage system, but most fuel-injected cars are designed with a reservoir built around an in-tank pump to ensure a constant supply of fuel to the engine. A surge tank is often used to facilitate gravity feeding an EFI fuel pump, as mounting the EFI pump under the fuel tank is not ideal in most cars. The EFI pump is usually placed somewhere suitable to gravity feed the EFI pump.
A surge tank is also used to prevent fuel starvation on a carburetor-to-fuel injection conversion. Carbureted cars' fuel tanks are not designed to support a fuel-injected engine, as they have a built-in fuel bowl that stores enough fuel to keep a constant fuel supply, even if the pump runs dry for a short period. In contrast, most fuel-injected cars have a reservoir to ensure a constant fuel supply to the engine.
Installing Chinese Diesel Heater Fuel Tanks: A Step-by-Step Guide
You may want to see also
Frequently asked questions
A fuel surge tank is a small tank that holds a small amount of fuel and ensures a constant supply of fuel to the engine.
Fuel starts at the factory tank and gets drawn into the low-pressure pump. The pressurized fuel then flows into the surge tank and out toward the engine. The fuel then goes into an inline high-pressure EFI pump and out to the injectors. The pressure of the fuel is controlled by the fuel pressure regulator and feeds the engine. Any remaining fuel then returns to help refill the surge tank.
The primary role of a fuel surge tank is to reduce fuel surge and prevent fuel starvation.
A fuel surge tank helps to maintain a good head of fuel and can be useful for track racing. It also helps to prevent fuel starvation when running at a low fuel level, under hard cornering, and drag racing.
