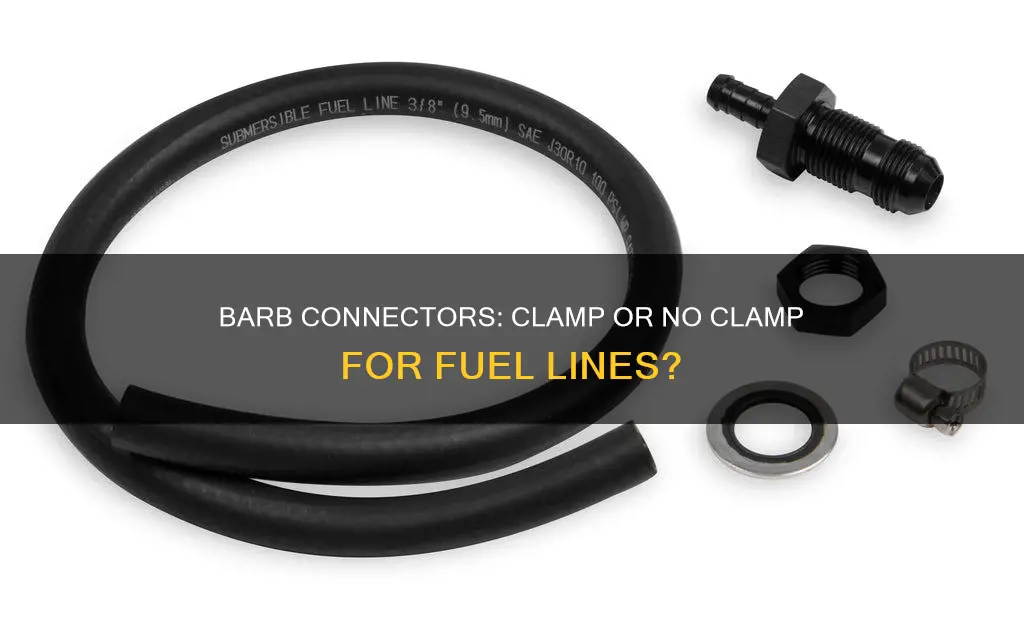

Barb connectors, also known as hose barb fittings or barbed fittings, are essential components in fluid transfer systems. They are commonly used for low to medium-pressure fluid transfer applications. The type of barb connector depends on the specific fluid transfer needs, including hose size, angle requirements, and whether multiple hoses need to be connected. When it comes to fuel lines, the use of clamps with barb fittings is a matter of some debate. While some sources suggest that clamps are necessary to prevent leaks and ensure a secure connection, others claim that certain types of hoses, such as push-loc hoses, are not designed to be clamped and can be damaged by the addition of a clamp. The decision to use a clamp with a barb connector in a fuel line depends on factors such as pressure, hose type, and personal preference.
Do barb connectors need a clamp fuel line?
| Characteristics | Values |
|---|---|
| Use of clamps | Recommended for safety, especially for high-pressure fuel lines |
| Types of clamps | Fuel injection clamps, worm gear clamps, Oetiker clamps, Corbin clamps, stainless steel clamps, hose clamps, spring clamps |
| Barb connector types | Straight, elbow (90-degree or 45-degree bend), union |
| Barb connector materials | Plastic, Brass, Stainless Steel |
| Pressure compatibility | Plastic: 20-100 psi, Brass: higher pressures, Stainless Steel: exceeding 150 psi |
| Cost | Plastic: $1-$5, Brass: $5-$20+, Stainless Steel: $10-$30+ |
Explore related products
What You'll Learn
- Fuel line barb fittings are essential for fluid transfer systems
- Fuel injection clamps are recommended over worm gear clamps
- Plastic barb fittings are for low-pressure applications, while brass and steel fittings can handle higher pressures
- Barb connectors come in different types, including straight, elbow, and union
- Clamps should be compatible with the hose and barb to avoid leaks
Fuel line barb fittings are essential for fluid transfer systems
Fuel line barb fittings are essential components in fluid transfer systems. They are commonly used for low to medium-pressure fluid transfer applications, such as connecting a vehicle's low-pressure fluid systems. The maximum pressure they can handle depends on factors like the material, design, and size of the fitting. For example, plastic barb fittings are typically used for low-pressure applications, while brass and stainless steel barb fittings can handle higher pressures.
When using fuel line barb fittings, it is crucial to choose the correct type of fitting for your specific application and fluid transfer needs. Different types of barb connectors include straight barb connectors, elbow barb connectors, and union barb connectors. Straight barb connectors have a straight, unangled barb for connecting hoses of the same diameter, while elbow barb connectors allow for connections at angles with their 90-degree or 45-degree bend. Union barb connectors enable easy disconnection and reconnection of hoses without cutting.
In addition to selecting the appropriate type of barb connector, it is also important to ensure that the fitting is compatible with the hose size and angle requirements of your system. Incompatible hose and barb sizes can lead to leaks and fitting failures, compromising the integrity of your fluid transfer system. Therefore, it is recommended to refer to the manufacturer's specifications when choosing a barb fitting.
While some sources suggest that clamps are not necessary for all fuel line barb fittings, it is generally recommended to use clamps for added security. Fuel injection-type clamps, such as Mikalor Supra Clamps, are often preferred over conventional jubilee-style clamps to prevent cutting into the hose. However, it is crucial to ensure that the clamps are the correct size and do not hang over the barb, as this can also lead to leaks.
Fuel Line and EVAP Leak: Holes and Repairs
You may want to see also
Explore related products
Fuel injection clamps are recommended over worm gear clamps
Fuel injection clamps are also preferred because they are made of a material that is compatible with alcohol and ethanol, which are common components of modern fuel. Old hoses that are not compatible with these fuels can cause issues, and it is essential to check the date code on the hose to ensure compatibility. Additionally, fuel injection clamps are often lined with fluorinated material, which provides extra protection against high-pressure fuel.
Another advantage of fuel injection clamps is their ease of use. They are designed to be easily installed and removed, and they create a reliable seal to prevent leaks. Spring clamps, for example, have tabs that can be pressed together to enlarge the clamp's diameter, making it simple to secure the hose in place. In contrast, worm gear clamps can be challenging to access, especially if they are overtightened or not properly indexed, which can cause issues for mechanics or anyone working on the vehicle.
Furthermore, spring clamps, a type of fuel injection clamp, are known to last longer than worm gear clamps. This is because worm gear clamps have screws that tend to get loose over time, leading to leaks. Spring clamps, on the other hand, always create tension and are less likely to fail, providing a more reliable solution for fuel line connections.
Removing Honda Fuel Lines: A Step-by-Step Guide
You may want to see also
Explore related products
Plastic barb fittings are for low-pressure applications, while brass and steel fittings can handle higher pressures
Barb connectors, also known as hose barb fittings or barbed fittings, are used to connect a vehicle's low-pressure fluid systems. They are commonly used for low to medium-pressure fluid transfer applications. The maximum pressure for barbed fittings can vary depending on factors like the material, design, and size of the fitting.
Plastic barb fittings are typically used for low-pressure applications and are not suitable for high-pressure systems. They are the most affordable option, starting at around $1 to $5 per fitting. These fittings are lightweight and resistant to a wide range of chemicals. They can handle pressures ranging from 20 to 100 psi (pounds per square inch).
Brass barb fittings are more robust and can handle higher pressures. They are suitable for applications where moderate pressure and temperature ranges are involved, as they offer good resistance to water and non-corrosive liquids. Brass fittings are mid-range in terms of cost and can range from $5 to $20 or more per fitting, depending on size and complexity.
Stainless steel barb fittings are highly durable and can withstand even higher pressures, often exceeding 150 psi. They are suitable for more demanding environments, including those involving corrosive fluids, high pressures, and extreme temperatures. Stainless steel fittings are at the higher end of the price range and can range from $10 to $30 or more per fitting.
Fuel Line Size: Selecting the Right Fit for Your Filter
You may want to see also
Explore related products
Barb connectors come in different types, including straight, elbow, and union
Barb connectors, also known as hose barb fittings or barbed fittings, are used to connect hoses and tubes in fluid transfer systems. They are inserted into hoses and tubing and have ridges that grip the tube for a secure connection. While barbs are usually secure enough without a clamp, a clamp may be necessary in certain cases, such as when the tubing is extremely flexible or the barb has been reused multiple times.
Union barb connectors are another type that allows for easy disconnection and reconnection of hoses without cutting. This type of connector is ideal for applications where hoses need to be frequently disconnected and reconnected, such as for maintenance or repair.
In addition to these types, there are also tee, y-shaped, reducer, and stainless steel barb connectors. Tee and y-shaped connectors are used when three hoses need to be joined together, while reducer connectors are used to connect hoses of different diameters. Stainless steel barb connectors are highly durable and can withstand high pressures, but they are more expensive than other types of connectors.
Milwaukee Fuel Line: Worth the Investment?
You may want to see also
Explore related products
Clamps should be compatible with the hose and barb to avoid leaks
When it comes to fuel lines, ensuring a secure and leak-proof connection is crucial for safety and performance. Barb connectors, also known as hose barb fittings, are commonly used in fuel systems to connect hoses to fittings or pipes. While barb fittings provide a dependable seal, the choice of clamp is equally important to prevent leaks and ensure the integrity of the fuel line connection.
Hose clamps are essential components in maintaining the integrity of fluid systems, including fuel lines, by creating a tight seal that prevents leaks. They are available in various types, such as worm gear clamps, fuel injection clamps, and Oetiker clamps, each designed for specific applications. When selecting a clamp, it is important to consider the compatibility of the clamp with the hose and barb.
Fuel injection clamps, for example, have a smooth band and a rolled edge that won't damage the hose, making them suitable for fuel lines. They are designed to withstand the pressures and temperatures found in fuel systems. On the other hand, regular worm gear clamps are not recommended for fuel lines as they can cut into the hose and cause leaks.
To avoid leaks, it is crucial to ensure that the clamp is properly positioned and tightened evenly over the barb. In addition, the hose should be fully seated on the fitting to prevent slippage. Over-tightening the clamp should be avoided as it can lead to hose damage and leaks.
When working with fuel lines, it is important to use the correct type of clamp that is compatible with the hose and barb. This ensures a secure and leak-proof connection, preventing fuel leaks, which can lead to engine failures or safety hazards. By choosing the right clamp and ensuring proper installation, you can maintain the integrity of your fuel line connections.
Treating Rusty Fuel Lines: DIY Cleaning and Prevention Methods
You may want to see also
Frequently asked questions
Yes, a clamp is required for a secure connection. Fuel injection clamps or Oetiker clamps are recommended, while worm gear clamps are not advised.
Fuel injection clamps, also known as Oetiker clamps, are a good choice. For stainless steel clamps, the Mikalor Supra Clamp is highly regarded. For a more affordable option, worm drive clamps are easily available and work well for smaller sizes.
It is important to ensure that the barb connector and the hose are the correct sizes to avoid leakage. For high-pressure applications, consider using stronger fittings like stainless steel or brass instead of plastic.
