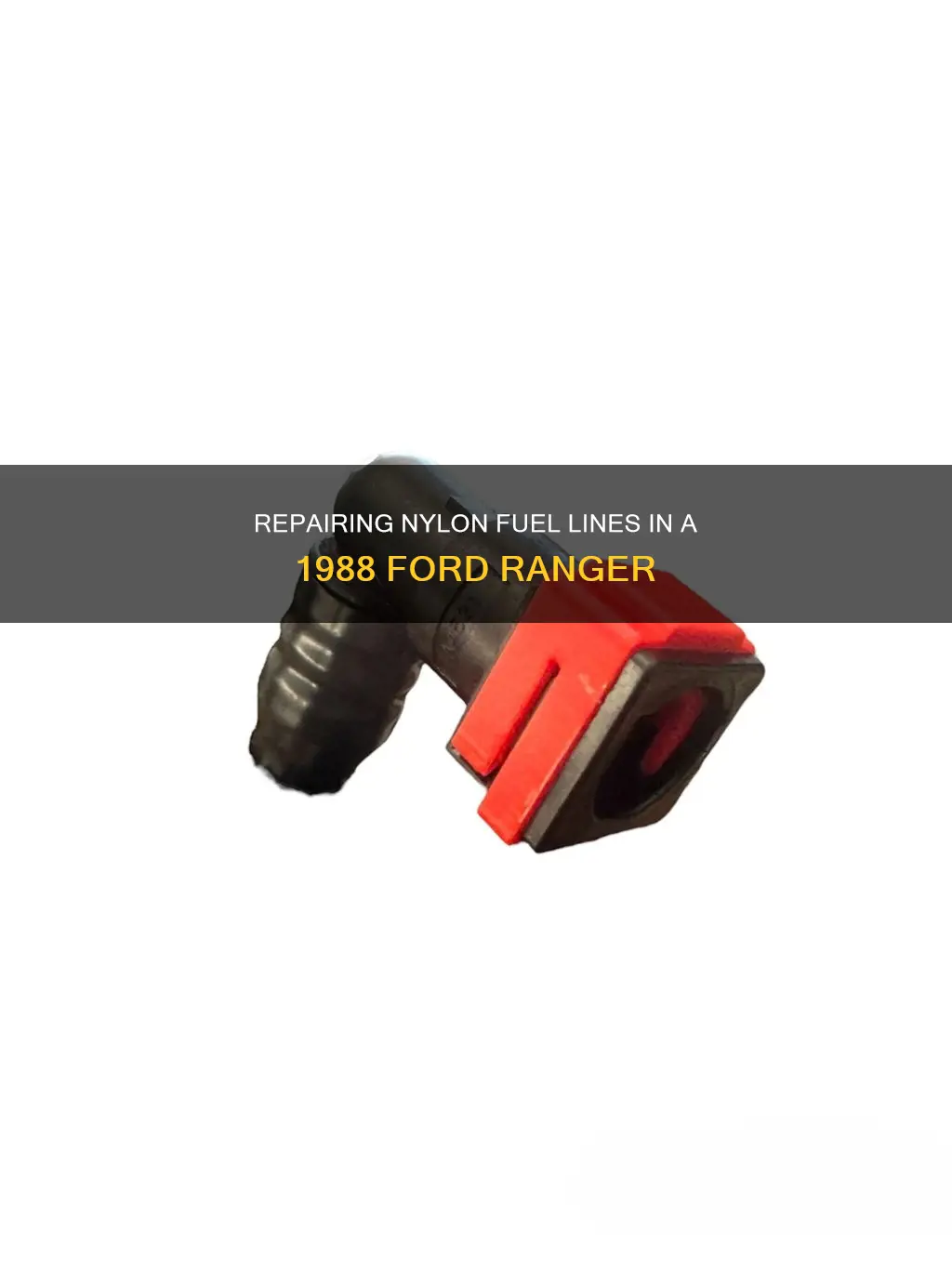

If you're looking to repair a nylon fuel line on a 1988 Ford Ranger, you've come to the right place. This guide will take you through the process step-by-step, from preparing the fuel lines to connecting the new quick connect. We'll also offer some tips and tricks to make the repair process smoother. Keep in mind that repairing a fuel line can be a complex task, so it's always a good idea to consult a professional or a repair manual for your specific vehicle if you're unsure about any steps. With that said, let's get started!
| Characteristics | Values |
|---|---|
| Repair kit manufacturer | Dorman Products |
| Repair kit part number | 800-054 |
| Nylon tube size | 5/16 In. |
| Nylon tube length | 18 In. |
| Repair kit purchase location | NAPA |
| Repair method | Cut the line with a razor knife, heat the line, insert brass, heat the other side and push it on |
Explore related products
What You'll Learn
Fuel line repair kits
First, purchase a suitable repair kit. Kits are available from various retailers, including NAPA auto stores, Pep Boys, Rock Auto, and Walmart. When selecting a kit, ensure it is specifically designed for Ford vehicles, as Chrysler and GM use different fittings. You will also need to determine your existing nylon fuel line size, as they come in various sizes, including 3/8" and 5/16". Additionally, ensure that the kit includes the necessary components, such as a quick-connect fitting, a length of fuel line, and a barb for splicing the fuel lines.
Next, prepare the fuel lines for repair. Clean the lines and remove them from the truck if desired, although repairs can also be performed with the lines still attached. Ensure that all the gas is out of the line before beginning any repair work. Use a heat gun or boiling water to heat the line and soften it, taking care not to apply too much heat.
Once the line is softened, insert the brass or barb connector provided in the kit. Heat the other side of the line and push it onto the connector. You may need to use a digital micrometer to measure the components in millimetres to ensure an accurate fit. Test the repaired line for leaks, and if necessary, apply additional heat or adjust the connector.
It is important to note that nylon fuel lines may not be compatible with alcohol-modified fuels, which can cause leaks. As such, it is recommended to monitor the repaired line for any signs of leakage and consider using non-alcohol-based fuels to prolong the life of the nylon fuel lines in your 1988 Ford Ranger.
Fuel Line Braids: Improved Performance and Safety
You may want to see also
Explore related products
Removing fuel lines
To remove the fuel lines of a 1988 Ford Ranger, you will need to purchase a repair kit. The nylon fuel lines for this model have been discontinued by Ford, but you can still find repair kits online or at your local auto parts store. Make sure the repair kit specifically says "Ford" on it, as Chrysler and GM use different fittings.
Once you have your repair kit, it is recommended to remove the fuel lines from the truck to do the work on the ground, although it is possible to do the repair on the truck. You will need to cut the line with a razor knife and heat it with a heat gun or by boiling water. Do not use too much heat, just enough to soften the line. Then, the brass insert can be slipped in.
If you are removing the fuel lines from the truck, you will need to disconnect the pressure line and ensure the pump is not running. You can do this by cycling the key. Then, you can disconnect the fuel line.
For the Dorman 800-050 5/16 In. Quick Connector, you will need to soak the end of the line in hot water for 10 minutes and then insert it into the barb fitting. You should put some oil on the barb fitting before insertion.
Air Bubbles in Diesel Fuel Line: Good or Bad?
You may want to see also
Explore related products
Cleaning fuel lines
Although nylon fuel lines for Ford trucks have been discontinued, repair kits are available from Dorman Products, which can be purchased from most local auto parts stores, including NAPA, AutoZone, and O'Reiles.
Before repairing the nylon fuel line, it is important to clean the line and ensure it is free from debris. This can be done by removing the fuel lines from the truck and carrying out the repair on the ground, although it is possible to repair the line while it is still attached to the truck.
To clean the nylon fuel line, first cut the line with a razor knife, taking care not to damage the surrounding components. Then, heat the line using a heat gun or by boiling water. Be sure to use just enough heat to soften the line, as excessive heat can cause damage. Once the line is softened, gently push out any debris or residual fuel using an appropriate tool, such as a small brush or a compressed air source. It is important to ensure that the line is thoroughly cleaned to prevent any blockages that may hinder fuel flow or cause future leaks.
After cleaning, the line can be prepared for repair. This may involve inserting brass inserts or fitting a new connector, ensuring a secure and leak-free connection. It is recommended to refer to the repair kit instructions or seek guidance from a professional mechanic if unsure.
The Fuel Line's Location in Destiny 2's Universe
You may want to see also
Explore related products
Heating the line
When repairing a nylon fuel line in a 1988 Ford Ranger, heating the line is a crucial step. It is important to note that you should not use excessive heat, as this can damage the nylon. The goal is to soften the line so that the brass fittings can be inserted easily.
There are two recommended methods for heating the nylon fuel line:
- Heat Gun: One approach is to use a heat gun. This method provides direct and precise heat to the nylon line. However, be cautious not to overheat the line. Gently apply heat to the area that needs softening, and always follow the safety instructions when using a heat gun.
- Boiling Water: Another option is to use boiling water. Soak the end of the nylon line in hot water for approximately 10 minutes. This will gradually soften the nylon, making it pliable for insertion. Be careful when handling boiling water to avoid any accidents or scalding.
It is worth noting that some sources recommend against using a heat gun directly on the nylon fuel line. They suggest that boiling water is sufficient to soften the nylon without risking any potential damage from excessive heat. Therefore, it is essential to use your discretion and choose the method you are most comfortable with.
Once the nylon fuel line is softened, you can proceed with inserting the brass fittings. Remember to apply some oil to the fittings before insertion, as this will help the process and ensure a better seal. Always refer to the repair kit instructions and take the necessary safety precautions when performing any repairs on your vehicle.
Fuel Line Placement on Echo Carb: Know the Correct Side
You may want to see also
Explore related products
Brass inserts
Identifying the Issue
The first step in repairing any issue is to identify the problem. In the case of nylon fuel lines in the 1988 Ford Ranger, leaks are a common issue that may require the use of brass inserts for repair. It is important to inspect the fuel lines thoroughly to pinpoint the exact location of the leak. This will help determine if the issue can be resolved using a brass insert repair method.
Obtaining the Correct Parts
Before initiating the repair, it is crucial to procure the necessary parts, specifically the brass inserts. Brass inserts are small, cylindrical pieces designed to fit snugly inside the nylon fuel lines. They are used to reinforce and seal the lines, preventing further leaks. These inserts can often be found in repair kits, which are available from various automotive parts stores, such as Rock Auto, NAPA, AutoZone, or O'Reilly Auto Parts. Ensure that the repair kit is specifically designed for Ford vehicles, as other manufacturers may have different fittings.
Preparing the Fuel Lines
Once you have the necessary parts, it's time to prepare the fuel lines for repair. Start by removing the fuel lines from the vehicle, as this will make the repair process more accessible. Clean the lines thoroughly to eliminate any dirt, grease, or debris that could interfere with the repair. Use a razor knife to cut the line at the leak site, ensuring a straight and clean cut. It is important to ensure that all fuel is drained from the line before proceeding.
Utilizing Brass Inserts
Now comes the critical part – utilizing the brass inserts. Start by heating the cut end of the fuel line, using a heat gun or soaking it in boiling water. Be cautious not to overheat the nylon, just enough to soften it. Gently insert the brass insert into the softened end of the fuel line. Heat the other side of the line and push it onto the brass insert to complete the seal. This process creates a secure and leak-proof connection.
Final Steps and Precautions
After inserting the brass insert and sealing the connection, it is important to allow the fuel line to cool down completely before reinstalling it in the vehicle. Test the repaired line for any signs of leaks by applying pressure or conducting a test drive. Always refer to the repair kit instructions and take the necessary safety precautions when working with fuel lines to avoid any hazards.
By following these steps and paying close attention to the specifics of your 1988 Ford Ranger's nylon fuel line issue, you can effectively utilize brass inserts to repair leaks and restore the proper functioning of your vehicle's fuel system.
Fuel Lines for EFI: Material and Size Choices
You may want to see also
Frequently asked questions
You can either cut out the bad section and use brass compression fittings, a rubber fuel hose, and worm clamps or use a repair kit to splice the sections back together with new fuel connector ends.
You can use repair kits by Dorman Products, which are available at most local auto parts stores like NAPA, Autozone, and O'Reiles.
First, cut the line with a razor knife and heat it with boiling water. Insert the brass into the line, heat the other side, and push it in.
There are two fuel lines going from the sending unit to the fuel pump, one is the supply line (3/8") and the other is the return line (5/16").
Make sure the repair kit says "Ford" on it as Chrysler and GM use different fittings. Also, ensure that all the gas is out of the line before you heat it.
