Regan Brown
Flaring stainless steel fuel lines can be a challenging task due to the hardness of the material. While stainless steel is known for its durability and resistance to corrosion, it requires special techniques and tools to achieve a proper flare. Achieving a double flare, which is crucial for creating a reliable seal, can be particularly difficult with stainless steel. In this discussion, we will explore the tools, techniques, and challenges associated with flaring stainless steel fuel lines, and share tips and tricks from the automotive community to ensure a successful outcome.
| Characteristics | Values |
|---|---|
| Stainless steel tubing's higher initial cost | Remains a popular choice among automotive enthusiasts |
| Stainless steel tubing's higher initial cost | Does not rust or corrode |
| Stainless steel tubing's higher initial cost | Requires a high-quality forming tool for a double flare |
| Stainless steel | Is a harder material than mild steel |
| Stainless steel | Is harder to deform to fit the taper |
| Stainless steel | Requires a more robust tool for flaring |
| Stainless steel | Requires a hacksaw instead of a tubing cutter |
| Stainless steel | Is harder than galvanized steel |
| Stainless steel | Is more challenging to work with than steel |
| Stainless steel | Requires a double flare on every line end and fitting |
| Stainless steel | Requires a lubricant at the flaring head and line end |
Explore related products
What You'll Learn
Flaring tools for stainless steel
Flaring stainless steel is a challenging task as it is a harder material than galvanized steel. It is also more difficult to get a good double flare from stainless steel. When flaring stainless steel, it is important to ensure that the line ends are free of burrs and imperfections. A hacksaw is often recommended over a tubing cutter as the latter can work-harden stainless steel, making it tougher to get a proper flare.

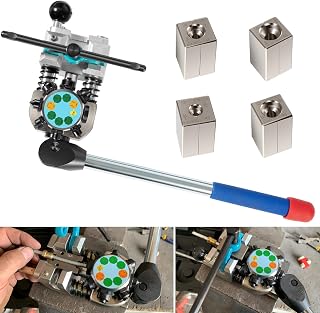

There are several flaring tools available on the market that can be used for stainless steel. For example, the 4LIFETIME Heavy-Duty Turret Brake Line Flaring Tool is a professional-grade tool that can create highly precise 45-degree double, single, and bubble flares in five different tubing sizes. It is compatible with stainless steel, making it ideal for creating flares in fuel lines. This tool features a quick-release T-handle for fast and seamless die changeovers and an integrated turret carrier to keep dies organized.
RIDGID also offers a range of heavy-duty flaring tools that can create uniform flare walls in stainless steel tubing without galling. Their tools come in ratcheting, non-ratcheting, and hammer-type varieties and include features such as ratcheting feed screw handles and long nose guides to make the job easier.
When flaring stainless steel, it is often recommended to use a lubricant at the flaring head and line end to make the process smoother. For fuel lines, a low-viscosity engine oil or WD-40 can be used as a lubricant. It is also important to note that stainless steel tubing should be cut with a hacksaw or a tubing cutter with stainless-steel cutting blades to ensure a clean cut.
Overall, while flaring stainless steel can be challenging, it is possible with the right tools and techniques. Taking the time to prepare the tubing and using the appropriate flaring tools will help ensure a successful outcome.
Understanding A1 and B1 Fuel Lines: Key Differences Explained
You may want to see also
Explore related products
Tube bending
When bending and flaring tubes for fuel lines, it is important to consider the type of tubing material. Stainless steel is a popular choice for automotive enthusiasts due to its durability and corrosion resistance, but it is harder to work with than galvanized steel. It is challenging to get a good double flare with stainless steel, and it requires extra care during the bending process.
To achieve a proper flare, seasoned professionals recommend using a hacksaw instead of a tubing cutter to avoid work-hardening the stainless steel, which can make it tougher to flare. When cutting with a hacksaw, use a fine-toothed blade (32T or finer) to ensure a clean cut. It is also important to ensure that the line ends are free of burrs and imperfections before flaring.
For the bending process, selecting an appropriate bender is crucial. Some stainless steel tubing can be too hard to bend properly, and the brand of bender may not always be a determining factor. Thinner walls and non-annealed conditions can pose challenges during bending. It is recommended to use a specialized bender to achieve a perfect radius. Swagelok benders are commonly used for bending stainless steel tubing, and the minimum distance for a 90-degree bend is noted to be 4 3/4".
Additionally, when flaring fuel lines, it is mandatory to apply a double flare to each line end and fitting. Using a lubricant compatible with the medium the lines will carry can make the process smoother. For fuel lines, a low-viscosity engine oil or WD-40 can be used as a lubricant.
With stainless steel lines, you may need to ""burnish or lap" the flares to create a seal that prevents leaking. This involves snugging the fitting, spinning the line against the seat multiple times, and then tightening the fitting.
Overall, tube bending and flaring stainless steel fuel lines require attention to detail, the right tools, and a careful approach to ensure a proper flare and seal.
Disconnecting Fuel Lines: Tips for Safe Fuel Rail Separation
You may want to see also
Explore related products
Fitting and sealing
Choosing the Right Materials
Before starting, it is crucial to select the appropriate grade of stainless steel tubing for your fuel line. Common grades include 304SS and 316 stainless steel, which offer varying levels of corrosion resistance and durability. Additionally, consider the wall thickness of the tubing; thicker walls provide greater strength but may be more challenging to bend and flare.
Bending and Cutting
The bending process requires specialised tools, such as a tubing bender or a hacksaw, to ensure precise and smooth curves without imperfections. Stainless steel is harder than conventional galvanised steel, so extra care is needed to prevent work-hardening, which can make flaring more difficult. When cutting, a hacksaw with a fine blade can help achieve a flat and level surface.
Flaring Techniques
Flaring the ends of the stainless steel fuel line is essential for creating secure connections. A double 45-degree flare is typically recommended for fuel lines to ensure a tight seal and contain high pressures. Lubrication is crucial during the flaring process; use low-viscosity engine oil or WD-40 as a lubricant for fuel lines.
Sealing and Leak Prevention
To prevent leaks, it is important to "burnish or lap" the flares of stainless steel lines. This involves snugging the fitting, spinning the line against the seat, and then tightening it further. This technique helps stainless steel lines seal properly as they are harder and less malleable than mild steel tubing. Additionally, Flaretite seals can be used on leaky flare connections to create a snug fit and prevent leaks.
Safety Considerations
Fuel line installations can pose safety hazards, so it is crucial to follow guidelines and consult professionals when needed. The ABYC guidelines recommend using two marine-grade stainless steel hose clamps at each connection point of the fuel line over the hose barb to ensure secure connections. It is also recommended to have your work inspected and pressure-tested by a professional to identify any potential fuel leak hazards.
Selecting the Right Hose
There are different grades of fuel lines, including A1, A2, B1, and B2, each with varying levels of fire resistance and permeability. For below-deck installations, A1 fuel hose is mandatory due to its superior fire resistance and low permeability. B-type fuel hoses is more suitable for less volatile fuels like diesel applications.
Brake Lines for Diesel Fuel: Are They Compatible?
You may want to see also
Explore related products
Double flaring
When double flaring stainless steel fuel lines, it is important to use high-quality materials and tools to ensure leak-free connections and reliable performance. The tubing should be cut square using a tubing cutter, and any burrs or imperfections must be removed to achieve a proper flare. Some professionals suggest using a hacksaw instead of a tubing cutter, as the latter can work-harden stainless steel, making it tougher to flare.
To create a double flare, a flaring tool with the proper die is required. The process begins with creating an initial bubble flare using a smaller die, which sets the walls for the 45-degree roll-in. A second, larger die is then used to roll the walls into the final 45-degree double flare. This double flare is mandatory for brake and fuel lines to contain extreme pressures.
It is recommended to use a lubricant at the flaring head and line end when working with stainless steel fuel lines. For these lines, a low-viscosity engine oil or WD-40 can be used as a lubricant. Additionally, when the tubing is plastic-covered, ensure that an adequate amount of the covering is removed from the end to be flared.
Corolla 1997 Fuel Line: DIY Repair Guide
You may want to see also
Explore related products
Stainless steel vs. mild steel
Stainless steel and mild steel are two of the most widely used materials across various industries, including construction, manufacturing, and transportation. They are used for fabricating replacement parts for cars, such as brake lines and fuel lines. While both types of steel have their advantages, there are some key differences to note when deciding which material to use.
Stainless steel is an alloy made primarily from iron, chromium, and nickel. The addition of chromium, ranging from 10.5% to 30% of the alloy composition, gives stainless steel its signature corrosion-resistant properties, making it ideal for environments with moisture or chemicals. It also contains varying amounts of other elements, such as manganese, silicon, and carbon, to achieve specific mechanical properties. Stainless steel is known for its robustness and high yield strength, making it a common choice for engineers in construction. It has superior stress endurance and can withstand heavy loads without warping or bending. Additionally, stainless steel has excellent heat resistance, maintaining its structural integrity at high temperatures, with a maximum threshold of around 870°C. It also has superior toughness, absorbing up to 200 Joules, and is non-magnetic. However, stainless steel is harder to work with due to its higher hardness and lower malleability compared to mild steel. It is more challenging to bend and flare, often requiring more expensive tools, and is generally more expensive due to its alloying elements.
Mild steel, on the other hand, is an unalloyed type of carbon steel with a low carbon content, usually less than 0.25%. Its main components are iron and carbon, with trace amounts of other elements. Mild steel is much more malleable and weldable than stainless steel, making it a preferred choice for complex, high-precision welding tasks. It is also easier to fabricate, bend, and flare, and its lower price makes it a more cost-effective option. Mild steel is commonly used in general fabrication and for car body panels due to its formability. However, mild steel does not possess the same corrosion resistance as stainless steel and requires additional processing, such as galvanising, to create a protective surface. It also has lower tensile strength and heat resistance, with a maximum temperature threshold of around 800°C. Mild steel is magnetic, which can be advantageous in certain applications.
In summary, both stainless steel and mild steel have their unique properties and applications. Stainless steel is superior in terms of corrosion resistance, toughness, tensile strength, and heat resistance, making it ideal for rigorous applications and environments where corrosion or high temperatures are a concern. Mild steel, on the other hand, shines in its malleability, weldability, and ease of fabrication, bending, and flaring, making it a more economical and versatile choice for tasks requiring complex welding or shaping.
Fuel Line Size Guide for 50cc Mopeds
You may want to see also
Frequently asked questions
Flaring stainless steel fuel lines can be challenging as it is a much harder material than conventional galvanized steel. It is recommended to use a hacksaw instead of a tubing cutter to cut the line, as the latter will work-harden stainless steel, making it tougher to get a proper flare. It is also important to ensure that the line ends are completely free of burrs and imperfections. When flaring, it is suggested to use a lubricant at the flaring head and line end to make the process smoother.
There are various tools available for flaring stainless steel fuel lines, including the Ridgid 377 flaring tool, Swagelok 3/8" and 1/2" benders, and the Eastwood tool. If you are looking for a more affordable option, you can consider the double-flaring tools offered by Harbor Freight Tools, which range from $12 to $22. However, keep in mind that cheaper clamp flaring tools might not work as effectively on stainless steel.
A single 37-degree flare is typically sufficient for stainless steel fuel lines. However, some applications may require a double 45-degree flare, especially for brake lines that need to contain extreme pressures.
One challenge with flaring stainless steel fuel lines is that it is difficult to achieve a good double flare. Stainless steel is harder than mild steel, so it may not deform to fit the taper as well. Additionally, stainless steel tubing needs to be treated differently than conventional galvanized steel due to its hardness. It is also important to double-check the flared area for cracks or weak spots before final installation.
