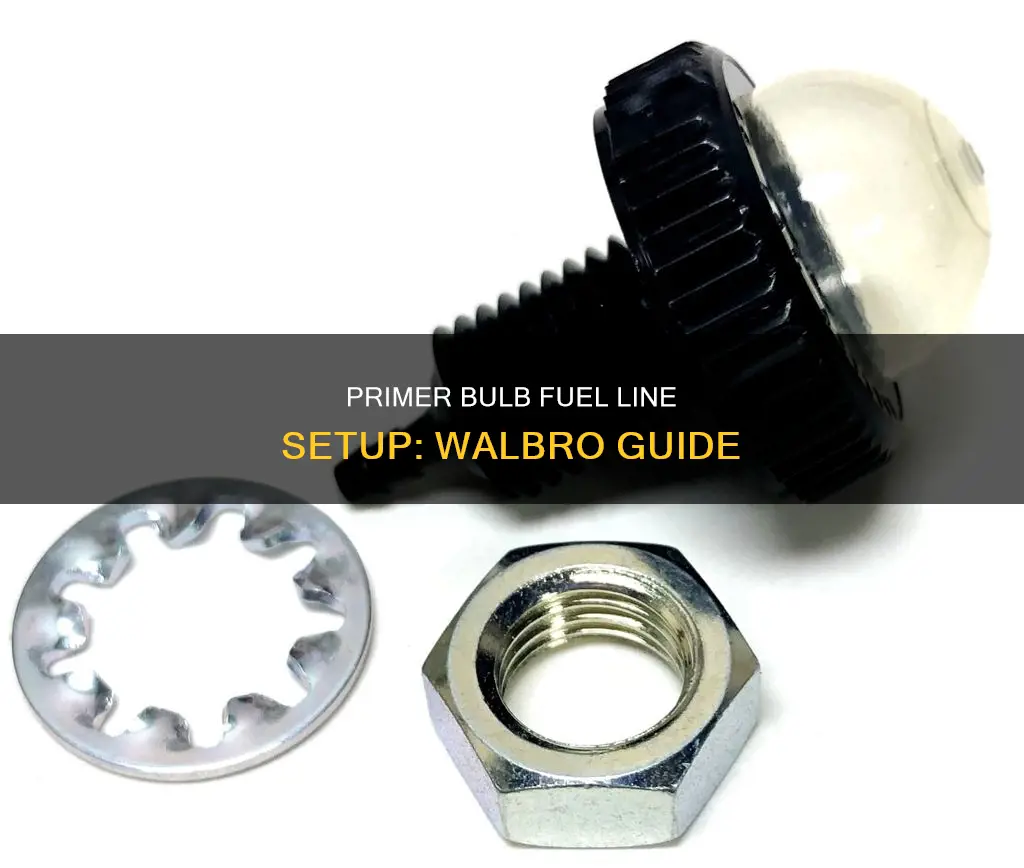

Understanding the fuel system of a vehicle is crucial for maintaining its performance and longevity. When it comes to the Walbro primer bulb, a specific fuel line must be connected to ensure the engine starts efficiently. This guide will help you identify the correct fuel line for the Walbro primer bulb, ensuring your vehicle's engine starts smoothly and reliably.
| Characteristics | Values |
|---|---|
| Location | Typically located near the fuel pump or in the fuel tank |
| Material | Rubber or plastic |
| Diameter | Varies, commonly 3/8" or 1/4" |
| Length | Depends on the specific application, usually 1-2 feet |
| Color | Often black or blue |
| Function | To supply fuel to the primer bulb for engine start-up |
| Compatibility | Specific to the vehicle's make and model |
What You'll Learn
- Primer Bulb Location: Identify the primer bulb's position relative to the fuel lines
- Walbro Primer Bulb: Understand Walbro's specific primer bulb model and its fuel line connection
- Fuel Line Routing: Trace the fuel lines to locate the primer bulb's connection point
- Primer Bulb Function: Explain how the primer bulb primes the fuel system during engine start
- Fuel Line Compatibility: Ensure the fuel line is compatible with the Walbro primer bulb
Primer Bulb Location: Identify the primer bulb's position relative to the fuel lines
The primer bulb, a crucial component in a Walbro fuel system, is typically located near the fuel tank, often in the engine compartment. Its primary function is to ensure that the fuel system receives a consistent and adequate supply of fuel during engine startup. Understanding the primer bulb's location relative to the fuel lines is essential for proper maintenance and troubleshooting.
In a Walbro system, the primer bulb is usually positioned close to the fuel lines that supply the engine. This proximity allows the bulb to draw fuel from the tank and prime the system effectively. The fuel lines are designed to carry fuel from the tank to the engine, and the primer bulb's placement ensures that it can access this fuel source.
Locating the primer bulb involves identifying the fuel lines that lead to the engine. These lines are often color-coded or labeled to indicate their purpose. The primer bulb is typically connected to one of these fuel lines, allowing it to draw fuel as needed. It is important to note that the primer bulb's position may vary slightly depending on the specific Walbro model and engine configuration.
When inspecting the primer bulb, look for a small, usually rubber or plastic, bulb-shaped component. It is often connected to a fuel line via a fitting or adapter. The primer bulb's location can be near the fuel pump or even integrated into the pump itself. Proper identification of this component ensures that you can maintain and troubleshoot the fuel system effectively.
Understanding the primer bulb's location relative to the fuel lines is crucial for various maintenance tasks. For instance, if you need to replace the primer bulb, knowing its position will help you disconnect the fuel line and access the bulb without causing any damage to the fuel system. Additionally, this knowledge can assist in diagnosing issues related to fuel priming, ensuring your engine starts reliably.
