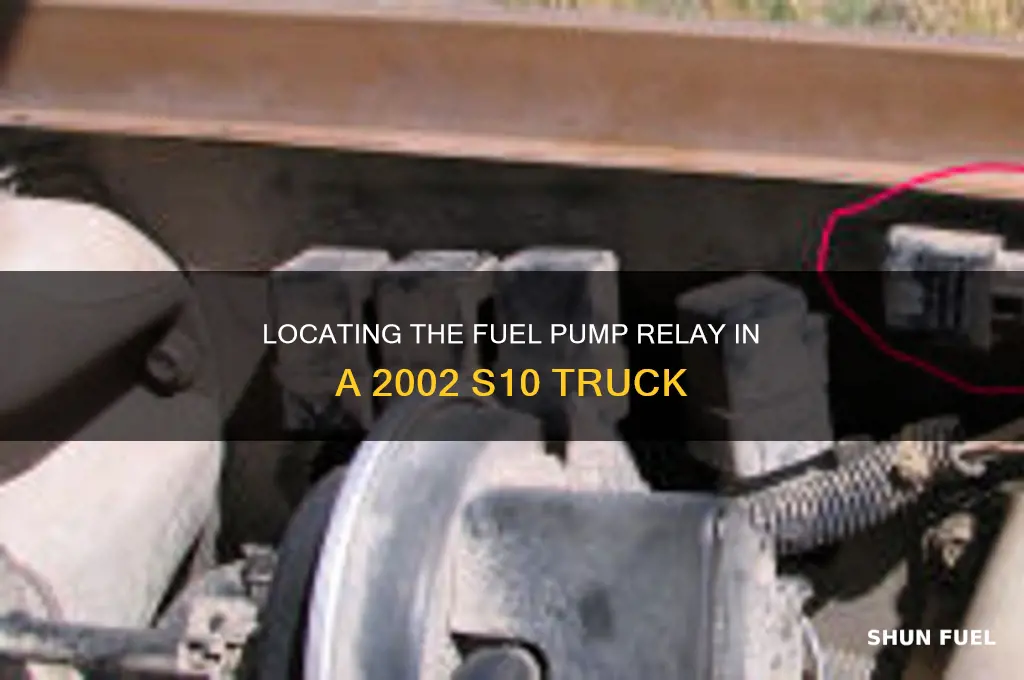

The fuel pump relay on a 2002 Chevrolet S10 is typically located in the underhood fuse/relay box, which is situated near the battery on the driver's side of the engine compartment. This relay is a crucial component of the vehicle's fuel system, as it controls the power supply to the fuel pump, ensuring it operates only when the engine is running or being started. Identifying the correct relay can be done by consulting the fuse/relay box diagram, usually found on the inside cover of the box or in the vehicle's owner's manual. If the relay fails, it can cause issues such as difficulty starting the engine or stalling, making it essential to locate and replace it promptly.
| Characteristics | Values |
|---|---|
| Location | Under the hood, inside the underhood fuse/relay box (also known as the engine compartment fuse block) |
| Fuse/Relay Box Position | Driver's side, near the firewall |
| Relay Label | Often labeled as "FUEL PUMP" or "FP" |
| Relay Slot Number | Typically in slot #45 (may vary, refer to the fuse box diagram in the owner's manual) |
| Access | Remove the fuse box cover to access the relays |
| Function | Controls power to the fuel pump |
| Diagnostic Tip | If the fuel pump is not working, check the relay for proper operation or replacement |
| Vehicle Model | 2002 Chevrolet S10 |
| Additional Notes | Consult the vehicle's service manual for exact diagrams and specifications |
Explore related products
What You'll Learn
- Location in Engine Bay: Under the hood, near the firewall, close to the fuse box
- Relay Identification: Small black cube with four or five pins, labeled FUEL PUMP
- Accessing the Relay: Remove the fuse box cover to easily reach the relay
- Testing the Relay: Use a multimeter to check for continuity and proper function
- Replacement Steps: Disconnect battery, swap relay, reconnect, and test fuel pump operation
Location in Engine Bay: Under the hood, near the firewall, close to the fuse box
The 2002 Chevrolet S10's fuel pump relay is strategically positioned under the hood, near the firewall, and in close proximity to the fuse box. This placement is no accident; it’s a design choice that balances accessibility with protection from the elements. The firewall, a critical barrier between the engine bay and the cabin, provides a stable mounting point, while the nearby fuse box ensures efficient electrical integration. This location minimizes wiring length, reducing the risk of voltage drop and ensuring reliable power delivery to the fuel pump.
For DIY enthusiasts or mechanics, locating the fuel pump relay in this area simplifies troubleshooting and replacement. Start by propping open the hood and identifying the firewall—the large metal panel separating the engine bay from the passenger compartment. Trace the firewall’s edge toward the driver’s side, where you’ll find the fuse box, typically a rectangular or square-shaped unit with a removable cover. The fuel pump relay is often housed within or adjacent to this fuse box, labeled clearly or identifiable by its unique shape and pin configuration. A flashlight and a basic understanding of relay design will make this task straightforward.
Comparing this setup to other vehicles reveals a common industry practice. Many manufacturers place relays near the fuse box to streamline electrical systems and reduce complexity. However, the S10’s specific positioning near the firewall offers an added advantage: it keeps the relay away from excessive heat generated by the engine block, prolonging its lifespan. This contrasts with some designs where relays are mounted directly on the engine, exposing them to higher temperatures and potential damage.
When replacing the fuel pump relay, ensure the engine is cool to avoid burns and disconnect the battery to prevent electrical mishaps. Relays are typically secured with a clip or screw, so have a screwdriver or pliers handy. Verify the replacement relay matches the original in terms of pin count, amperage rating, and terminal layout. A mismatched relay can cause electrical issues or failure to start. Always consult the vehicle’s manual or a reliable repair guide for specific part numbers and torque specifications.
In summary, the fuel pump relay’s location under the hood, near the firewall, and close to the fuse box is a practical design choice that prioritizes accessibility, protection, and efficiency. Understanding this layout not only simplifies maintenance but also highlights the thoughtful engineering behind the 2002 S10’s electrical system. Whether troubleshooting or upgrading, knowing exactly where to look saves time and reduces frustration, making this a critical piece of knowledge for any S10 owner.
Step-by-Step Guide: Safely Removing a Fuel Pump from Your Vehicle
You may want to see also
Explore related products
Relay Identification: Small black cube with four or five pins, labeled FUEL PUMP
The fuel pump relay in a 2002 S10 is a critical component, often overlooked until it fails. Identifying it correctly is the first step in troubleshooting or replacing it. The relay is a small black cube, typically measuring about 1 inch in length, and is located in the underhood fuse/relay box. This box is usually found near the battery or along the firewall, depending on the specific model and configuration of your S10.
Upon opening the fuse/relay box, you’ll notice a grid of relays and fuses. The fuel pump relay stands out due to its labeling. It is clearly marked "FUEL PUMP" on the box’s underside lid or on a diagram provided within the box. The relay itself has four or five pins, which correspond to its electrical connections. These pins are essential for the relay’s function, as they allow it to switch the high-current circuit that powers the fuel pump while being controlled by a low-current signal from the vehicle’s computer.
To identify the relay confidently, compare its appearance to other relays in the box. The fuel pump relay’s small black cube shape is consistent across most GM vehicles of this era, making it a reliable visual cue. If you’re unsure, consult the owner’s manual or a repair guide for your S10, which often includes diagrams and descriptions of relay locations. Additionally, some relays may have a part number molded into the plastic, though this is less common on older models.
When handling the relay, exercise caution. Relays are sensitive to static electricity, which can damage internal components. If you’re testing or replacing the relay, ground yourself by touching a metal surface before handling it. To remove the relay, grasp it firmly and pull straight out of its socket. Avoid twisting or forcing it, as this can damage the socket or the relay itself. If the relay is difficult to remove, gently wiggle it back and forth while pulling to release it.
Finally, if you suspect the fuel pump relay is faulty, test it before replacing it. A simple continuity test using a multimeter can confirm if the relay is functioning. With the ignition off, remove the relay and check for continuity between the specified pins as outlined in your vehicle’s repair manual. If there is no continuity when expected, the relay is likely defective. Replacing it with a new one of the same specifications will restore proper fuel pump operation, ensuring your 2002 S10 runs smoothly.
Does a 1988 Ford Ranger Have a Fuel Pump?
You may want to see also
Explore related products
![ECCPP® Fuel Pump for: Chevy S10 Blazer & GMC S15 Jimmy 98-03, GMC Envoy 98-00, Oldsmobile Bravada 99-01 [4 DOOR MODELS] E3992M 323-01213](https://m.media-amazon.com/images/I/61phqMlJIIL._AC_UY218_.jpg)
Accessing the Relay: Remove the fuse box cover to easily reach the relay
The fuel pump relay in a 2002 S10 is tucked away in the underhood fuse box, a location that, while not immediately obvious, is designed for accessibility once you know where to look. Removing the fuse box cover is the first critical step in accessing this relay, and it’s simpler than it might seem. Start by locating the fuse box, typically positioned near the driver’s side fender or battery area. The cover is usually secured with clips or screws, depending on the model, so inspect it closely to determine the fastening method. A flathead screwdriver or trim removal tool can be handy for prying off clip-secured covers without damaging them.
Once the cover is removed, you’re greeted with a grid of fuses and relays, each labeled according to its function. The fuel pump relay is often marked as “FUEL” or “FP” on the underside of the cover or in the owner’s manual diagram. If the labels are unclear or worn, cross-reference with a vehicle-specific guide or online resource to pinpoint the correct relay. It’s crucial to identify the right one, as relays for other systems (e.g., cooling fans or ignition) may look similar but serve different purposes. A misidentified relay could lead to unnecessary troubleshooting or damage.
Removing the relay itself is straightforward but requires care. Most relays are designed to pull straight out of their slots, but they can be stubborn due to tight fits or corrosion. Gently rock the relay side-to-side while pulling to dislodge it without breaking the plastic housing. If resistance is significant, inspect for debris or corrosion around the relay socket and clean it with electrical contact cleaner before attempting removal again. Always handle relays by their edges to avoid contamination from oils or dirt on your skin, which can interfere with electrical connections.
Reinstalling the relay or replacing it with a new one follows the reverse process. Ensure the new relay is oriented correctly—most have a notch or tab that aligns with the socket—and push it firmly into place until it clicks. Test the fuel pump’s operation by turning the ignition to the “ON” position (without starting the engine) and listening for the pump’s hum, which should last 2-3 seconds as it pressurizes the fuel system. If the pump doesn’t engage, double-check the relay’s position and connections before suspecting a faulty relay or pump.
In summary, accessing the fuel pump relay on a 2002 S10 begins with removing the fuse box cover, a task that demands attention to detail but is well within the capabilities of most DIY enthusiasts. Proper identification, careful removal, and methodical reinstallation ensure the process is both efficient and safe, minimizing the risk of errors that could complicate diagnostics or repairs. With the right tools and a systematic approach, this task transforms from a potential headache into a manageable step in maintaining your vehicle’s fuel system.
Does the Duramax Fuel Pump Have a Fuse? Explained
You may want to see also
Explore related products
$6.99
Testing the Relay: Use a multimeter to check for continuity and proper function
The fuel pump relay in a 2002 S10 is a critical component, often located under the hood in the fuse/relay box near the battery. Once you’ve identified its position, testing it with a multimeter ensures it’s functioning correctly. Start by setting your multimeter to the continuity or resistance mode, typically denoted by a diode symbol or an ohm (Ω) reading. This step is essential because a faulty relay can mimic symptoms of a failing fuel pump, leading to unnecessary replacements.
Begin by disconnecting the relay from its socket and inspecting the pins for corrosion or damage. Clean them if necessary, as poor contact can skew your readings. Place the multimeter probes on the relay’s input and output terminals, usually labeled on the relay’s body or in the vehicle’s manual. A functional relay should show continuity (a low resistance reading) when energized and no continuity when de-energized. If the readings are inconsistent or absent, the relay is likely defective and needs replacement.
To test the relay’s proper function, simulate its operation by applying power to the control circuit terminal. Use a fused jumper wire to connect the battery’s positive terminal to the relay’s control pin, typically pin 85 or 86. Simultaneously, check for continuity between the power input (pin 87) and the switched output (pin 30). If the relay clicks and the multimeter shows continuity, it’s functioning correctly. If not, the internal contacts may be stuck or broken, indicating a failed relay.
A practical tip: Always test the relay outside the vehicle to eliminate external electrical interference. Additionally, compare your multimeter readings to the manufacturer’s specifications for the relay’s resistance values. This ensures accuracy and avoids misdiagnosis. Testing the relay systematically not only saves time but also prevents costly mistakes, making it a crucial step in diagnosing fuel system issues in your 2002 S10.
How Rocket Fuel Pumps Are Powered: A Deep Dive
You may want to see also
Explore related products
Replacement Steps: Disconnect battery, swap relay, reconnect, and test fuel pump operation
The fuel pump relay in a 2002 S10 is typically located under the hood, near the firewall on the driver's side. It’s housed within the underhood fuse/relay center, a black box with a removable lid. Identifying the correct relay is straightforward, as it’s often labeled "FUEL PUMP" or "FP" on the underside of the lid. Before attempting replacement, understanding its location is critical to avoid unnecessary disassembly or damage to surrounding components.
Step 1: Disconnect the Battery
Safety is paramount when working with electrical systems. Begin by disconnecting the negative battery terminal using a 10mm wrench or socket. This prevents accidental short circuits or activation of the fuel pump during the replacement process. Allow the system to discharge for at least 5 minutes to ensure all residual power is drained, particularly if you’re working near the fuel system.
Step 2: Swap the Relay
Locate the underhood fuse/relay center and remove its lid to expose the relays. The fuel pump relay is usually a cube-shaped module with four or five pins. Grip it firmly and pull straight out—do not twist or force it, as this can damage the socket. Insert the new relay, ensuring it clicks into place securely. Relays are polarity-specific, so align the pins correctly to avoid malfunction.
Step 3: Reconnect the Battery
With the new relay installed, reattach the negative battery terminal and tighten it securely. Double-check the connection to ensure it’s snug, as loose terminals can cause voltage drops or intermittent issues. At this stage, avoid starting the engine; proceed directly to testing the fuel pump to verify the relay’s functionality.
Step 4: Test Fuel Pump Operation
Turn the ignition to the "ON" position (without starting the engine) and listen for the fuel pump’s priming cycle—a faint humming sound lasting 2–3 seconds. If the sound is absent, check the relay’s seating and connections. For a more precise test, use a multimeter to measure voltage at the fuel pump connector or inspect for blown fuses in the same relay center. Successful operation confirms the relay replacement was effective.
This process, when executed methodically, ensures a safe and efficient repair, restoring proper fuel system functionality to the 2002 S10.
Can Accidents Damage Your Fuel Pump? Understanding the Risks
You may want to see also
Frequently asked questions
The fuel pump relay on a 2002 S10 is typically located in the underhood fuse/relay box, often near the battery or firewall.
The fuel pump relay is usually labeled "FUEL PUMP" or "FP" on the underside of the fuse box lid. It is a rectangular or square relay with several pins.
Yes, you can test the relay using a multimeter or by swapping it with another relay of the same type in the fuse box to see if the fuel pump engages.
Common symptoms include the engine not starting, stalling, or difficulty starting, especially if the fuel pump is not receiving power.
No, the fuel pump relay and fuse are separate components. The fuse protects the circuit, while the relay controls power to the fuel pump. Check both if you suspect an issue.
