The fuel pump relay on a 2002 Ford F150 is a crucial component in the vehicle's fuel system, responsible for controlling the power supply to the fuel pump. Located in the main engine compartment fuse box, often referred to as the power distribution box, this relay can be found near the battery on the driver's side. It is typically housed in a rectangular module with other relays and fuses, making it essential to consult the owner's manual or a fuse box diagram for precise identification. Accessing the fuel pump relay involves removing the protective cover of the power distribution box, which usually requires basic hand tools. Identifying and understanding the location of this relay is vital for troubleshooting fuel-related issues or performing maintenance on the 2002 F150's fuel system.
| Characteristics | Values |
|---|---|
| Location | Inside the fuse box, typically under the hood on the driver's side. |
| Fuse Box Name | Central Junction Box (CJB) or Power Distribution Box. |
| Relay Position | Often labeled as "Fuel Pump Relay" or "FP Relay" in the fuse box diagram. |
| Diagram Reference | Refer to the fuse box lid or vehicle manual for exact position. |
| Function | Controls power to the fuel pump, ensuring it operates when the engine is on. |
| Common Issues | Relay failure can cause the fuel pump to stop working, leading to no-start conditions. |
| Replacement Part | Ford part number or compatible aftermarket relay. |
| Access Difficulty | Moderate; requires locating the fuse box and identifying the correct relay. |
| Tools Needed | Basic hand tools (e.g., pliers) for relay removal and replacement. |
| Year Applicability | Specific to 2002 Ford F150 models. |
Explore related products
What You'll Learn
- Location in Engine Bay: Identify the exact spot of the fuel pump relay in the 2002 F150
- Relay Box Diagram: Understand the layout of the relay box to locate the fuel pump relay
- Symptoms of Failure: Recognize signs of a faulty fuel pump relay in a 2002 F150
- Replacement Steps: Learn how to replace the fuel pump relay on a 2002 F150
- Common Issues: Discover typical problems associated with the 2002 F150 fuel pump relay

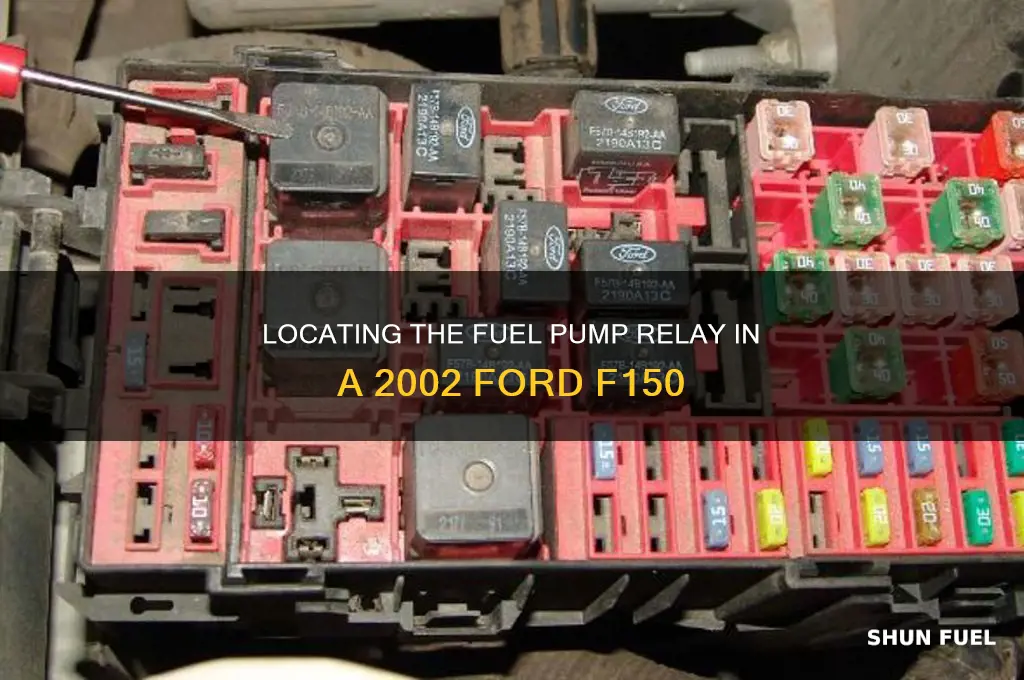

Location in Engine Bay: Identify the exact spot of the fuel pump relay in the 2002 F150
The fuel pump relay in a 2002 Ford F150 is a critical component, often sought after during troubleshooting or maintenance. Located in the engine bay, its exact position can be elusive to those unfamiliar with the vehicle’s layout. To pinpoint it, start by opening the hood and identifying the fuse box, which is typically situated near the driver’s side fender. This rectangular unit houses multiple relays and fuses, making it a central hub for electrical diagnostics. The fuel pump relay is usually labeled and can be found in one of the slots within this box, often accompanied by a diagram on the fuse box cover for reference.
Analyzing the layout of the 2002 F150’s engine bay reveals a systematic organization of components. The fuel pump relay’s placement in the fuse box is deliberate, designed for accessibility while protecting it from extreme heat and moisture. Unlike some vehicles that locate relays near the fuel tank or under the dashboard, Ford opted for a more centralized approach. This design choice simplifies diagnostics but requires familiarity with the fuse box’s layout. If the cover diagram is missing or unclear, consulting the vehicle’s manual or an online resource can provide precise slot numbers for the relay.
For hands-on troubleshooting, follow these steps to locate the fuel pump relay: First, ensure the vehicle is turned off and cooled down to avoid electrical hazards. Next, prop open the hood and secure it in place. Locate the fuse box, typically a black rectangular unit with a removable cover. Remove the cover to expose the relays and fuses. Refer to the diagram on the cover or a reliable source to identify the fuel pump relay’s slot. Once identified, use a relay puller or pliers to carefully extract it for testing or replacement. Always handle relays gently to avoid damage.
A comparative look at relay locations across different F150 models highlights Ford’s consistency in design. While newer models may integrate the fuel pump relay into a more advanced fuse box or power distribution center, the 2002 F150 maintains a straightforward approach. This simplicity is advantageous for DIY enthusiasts but underscores the importance of accurate identification. Misidentifying a relay can lead to unnecessary replacements or further complications. Always double-check the slot number and consult multiple sources if unsure.
Finally, a practical tip for long-term maintenance: label the fuel pump relay slot with a permanent marker or sticker after identifying it. This small step saves time during future diagnostics and reduces the risk of confusion. Additionally, keep a spare relay in your vehicle’s emergency kit, as fuel pump relay failure can leave you stranded. By familiarizing yourself with the engine bay’s layout and taking proactive measures, you ensure smoother troubleshooting and extend the life of your 2002 F150.
