The 2010 Chevrolet Traverse's fuel pump relay is a crucial component in the vehicle's fuel system, responsible for controlling the flow of power to the fuel pump. Located within the underhood fuse/relay center, this relay can be found on the passenger side of the engine compartment, near the firewall. To access it, you'll need to remove the protective cover, which typically requires a screwdriver or a trim removal tool. Once the cover is off, you should see a diagram or label indicating the position of the fuel pump relay, making it easier to identify and replace if necessary. It's essential to consult the vehicle's manual or a trusted repair guide for specific instructions and safety precautions when working with electrical components like the fuel pump relay.
| Characteristics | Values |
|---|---|
| Location | Under the hood, in the underhood fuse/relay box (near the battery) |
| Fuse/Relay Box Label | Underhood Fuse Block (UHB) |
| Relay Position | Typically in slot #47 (refer to the underhood fuse box diagram for confirmation) |
| Relay Function | Controls power to the fuel pump |
| Access Difficulty | Easy; requires opening the hood and locating the fuse/relay box |
| Tools Required | None (relay can be pulled out by hand) |
| Vehicle Model | 2010 Chevrolet Traverse |
| Additional Notes | Always consult the vehicle's manual or diagram for exact relay location |
Explore related products
What You'll Learn
- Location in Engine Bay: Identify the fuse box area near the battery for the relay
- Relay Identification: Look for a black or blue rectangular module labeled Fuel Pump
- Accessing the Relay: Remove the fuse box cover to expose the relay grid
- Testing the Relay: Use a multimeter to check for continuity and proper function
- Replacement Steps: Swap the faulty relay with a new one, ensuring correct orientation

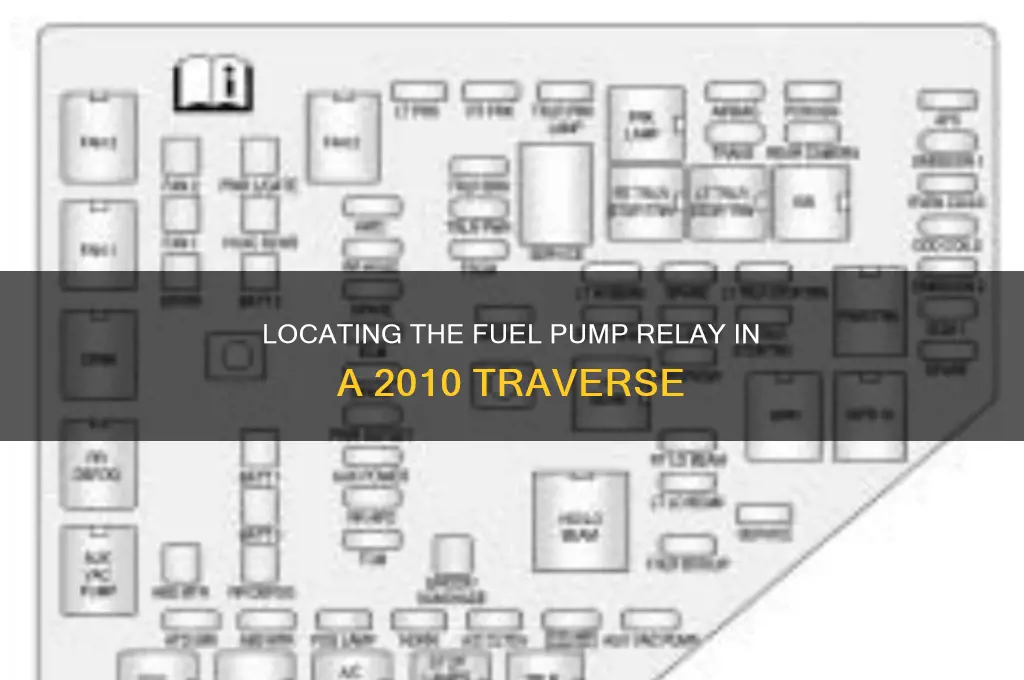

Location in Engine Bay: Identify the fuse box area near the battery for the relay
The 2010 Chevrolet Traverse's fuel pump relay is a critical component for ensuring your vehicle's engine receives the necessary fuel. To locate this relay, you'll need to familiarize yourself with the engine bay's layout, specifically the area surrounding the battery. The fuel pump relay is typically housed within a fuse box, which is a centralized hub for various electrical components.
In the case of the 2010 Traverse, the fuse box is situated in close proximity to the battery, making it a convenient starting point for your search. This strategic placement allows for efficient power distribution and easy access for maintenance purposes. As you approach the engine bay, locate the battery, usually found on the driver's side, and you'll find the fuse box nearby, often mounted on the inner fender or firewall.
Identifying the Fuse Box:
The fuse box is a rectangular or square-shaped container, typically made of durable plastic, designed to protect the fuses and relays from environmental factors. It may have a lid or cover that needs to be removed to access the internal components. Look for a label or diagram on the fuse box cover, which often provides a map of the fuses and relays, making it easier to pinpoint the fuel pump relay's location.
Locating the Fuel Pump Relay:
Once you've identified the fuse box, carefully remove the cover to reveal the array of fuses and relays. The fuel pump relay is usually a small, rectangular component with several pins or terminals. It might be labeled as "Fuel Pump" or have a corresponding diagram on the fuse box cover. If the relay is not clearly marked, consult the vehicle's manual or online resources specific to the 2010 Traverse for accurate identification.
Practical Tips:
- Before attempting any work in the engine bay, ensure the vehicle is turned off and the keys are removed to prevent accidental startup.
- Take note of the relay's position and orientation before removal, as proper reinstallation is crucial for correct functionality.
- If you're replacing the fuel pump relay, consider using a multimeter to test the old relay for faults, ensuring the replacement is necessary.
- Always handle electrical components with care, avoiding excessive force or damage to the surrounding wiring.
By following these steps and familiarizing yourself with the engine bay's layout, locating the fuel pump relay on a 2010 Chevrolet Traverse becomes a straightforward task, empowering you to perform basic maintenance and troubleshooting with confidence.
How to Check Your Dodge Durango's Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Relay Identification: Look for a black or blue rectangular module labeled Fuel Pump
Locating the fuel pump relay in a 2010 Traverse begins with understanding its appearance. The relay is typically a black or blue rectangular module, distinctly labeled "Fuel Pump" for easy identification. This labeling is a manufacturer’s consideration for mechanics and DIY enthusiasts alike, ensuring clarity in a complex under-hood environment. The color and shape serve as visual cues, reducing the time spent searching among other components.
Analyzing the placement of this relay reveals strategic design choices. It is often housed in the under-hood fuse box, a centralized location that protects it from extreme temperatures and moisture. This positioning also allows for quick access during diagnostics or replacements. Understanding this layout not only aids in locating the relay but also highlights the Traverse’s engineering focus on maintenance efficiency.
For those tackling this task, a systematic approach is key. Start by opening the hood and locating the fuse box, usually near the battery or along the firewall. Remove the fuse box cover to expose the relays and fuses. Among the array of components, the black or blue rectangular module with the "Fuel Pump" label will stand out. A flashlight can be invaluable here, as under-hood lighting can be inadequate.
Practical tips can further streamline the process. If the relay is difficult to identify, consult the vehicle’s manual for a diagram of the fuse box layout. Additionally, wearing gloves can protect your hands from sharp edges or hot components. Once located, testing the relay for functionality involves swapping it with a similar relay in the fuse box or using a multimeter to check for continuity.
In conclusion, identifying the fuel pump relay in a 2010 Traverse is straightforward with the right approach. Its black or blue rectangular design and clear "Fuel Pump" label are intentional features meant to simplify maintenance. By understanding its placement and employing practical techniques, even those with minimal automotive experience can successfully locate and assess this critical component.
Kawasaki ZZR1200 Fuel Pump GPM: Performance and Flow Rate Explained
You may want to see also
Explore related products
Accessing the Relay: Remove the fuse box cover to expose the relay grid
The fuse box cover on a 2010 Traverse is your gateway to the fuel pump relay, but it’s not just a simple flip-and-lift operation. Located on the driver’s side of the engine compartment, this cover is secured by a combination of clips and screws designed to withstand vibration and environmental wear. Before you begin, ensure the vehicle is turned off and the key is removed to prevent accidental electrical shorts. Use a flathead screwdriver or a trim removal tool to gently pry the cover’s edges, starting from the bottom corners. Work your way around the perimeter, applying even pressure to avoid cracking the plastic. Once released, lift the cover straight up to expose the relay grid, a neatly organized array of fuses and relays labeled for easy identification.
Analyzing the relay grid layout reveals a systematic approach to vehicle electrical management. The fuel pump relay is typically located in the upper-left quadrant, marked with a symbol resembling a fuel pump or labeled "FUEL" in the accompanying diagram. This placement is strategic, grouping high-demand components together for efficient troubleshooting. However, variations exist across trim levels and manufacturing batches, so cross-referencing your owner’s manual or a reliable online diagram is essential. Misidentifying a relay can lead to unnecessary part replacements or safety hazards, underscoring the importance of precision in this step.
Persuasively, removing the fuse box cover isn’t just about accessing the relay—it’s about empowering yourself as a vehicle owner. By understanding this process, you bypass the need for costly diagnostic visits for issues as simple as a blown fuse or a faulty relay. For instance, a failing fuel pump relay often manifests as a no-start condition or erratic engine behavior. With the cover off, you can test the relay using a multimeter or swap it with a known-good one from another slot (e.g., the horn relay) to confirm functionality. This hands-on approach not only saves money but also builds confidence in tackling more complex repairs.
Comparatively, accessing the relay grid on a 2010 Traverse is more straightforward than on some European models, where fuse boxes are buried behind dashboards or under battery trays. However, it’s less intuitive than newer vehicles with digital fuse monitoring systems. The Traverse strikes a balance, offering physical accessibility while retaining a traditional, label-dependent system. Unlike some Asian models, where relays are color-coded, the Traverse relies on a monochrome grid, making label accuracy critical. This design choice highlights the importance of maintaining a clean, legible fuse box area to avoid confusion during maintenance.
Descriptively, the moment the fuse box cover comes off is both revealing and intimidating. Beneath it lies a labyrinth of wires, fuses, and relays, each playing a silent but vital role in your vehicle’s operation. The relay grid itself is a study in order, with each component snugly seated in its slot. The fuel pump relay, often larger than its neighbors, stands out once you know what to look for. Its spring-loaded terminals and sturdy construction reflect its role as a high-current switch, cycling on and off thousands of times without fail. This visual exposure transforms an abstract electrical system into a tangible, understandable mechanism, making the next steps—testing, replacing, or resetting—far less daunting.
Does a Fuel Pump Activate When the Engine Starts?
You may want to see also
Explore related products
Testing the Relay: Use a multimeter to check for continuity and proper function
The fuel pump relay in a 2010 Traverse is a critical component, often located in the underhood fuse/relay box near the battery. Once you’ve identified its position, testing it with a multimeter ensures it’s functioning correctly. Start by setting your multimeter to the continuity or resistance mode, typically denoted by a diode symbol or an ohm (Ω) reading. This step is essential because a faulty relay can mimic symptoms of a failing fuel pump, leading to unnecessary replacements.
Begin by disconnecting the relay from its socket and identifying its pins. Most fuel pump relays have four or five pins, with a pair dedicated to the coil and another pair for the switch. Touch the multimeter probes to the coil pins while the relay is out of the socket. If there’s continuity (low resistance), the coil circuit is intact. Next, apply power to the coil pins using a fused jumper wire or a test light. With power applied, recheck continuity between the switch pins. If the circuit closes, the relay is functioning properly.
A common mistake is skipping the power application step, which can lead to false negatives. Always ensure the relay is energized during testing to simulate real-world conditions. If the multimeter shows no continuity or erratic readings, the relay is likely defective. However, before condemning it, inspect the socket for corrosion or loose connections, as these issues can mimic relay failure.
For added precision, compare the relay’s performance to a known-good unit if available. This side-by-side analysis can highlight subtle differences in resistance or response. If you’re unsure about pin identification, consult the vehicle’s service manual or a reliable online resource specific to the 2010 Traverse. Proper testing not only saves time but also prevents misdiagnosis, ensuring you address the root cause of fuel system issues.
In conclusion, testing the fuel pump relay with a multimeter is a straightforward yet powerful diagnostic technique. By systematically checking continuity and function, you can confidently determine whether the relay is the culprit or if the issue lies elsewhere. This methodical approach transforms a potentially complex problem into a manageable task, empowering even novice mechanics to troubleshoot effectively.
Diagnosing Your Fuel Pump: Signs It's Functioning Properly
You may want to see also
Explore related products
Replacement Steps: Swap the faulty relay with a new one, ensuring correct orientation
The fuel pump relay in a 2010 Traverse is a critical component, often located in the underhood fuse/relay box near the battery. Identifying its exact position is the first step in addressing potential fuel delivery issues. Once located, replacing a faulty relay is a straightforward process that can restore your vehicle’s performance. However, the key to a successful swap lies in ensuring the new relay is correctly oriented, as improper installation can lead to further complications.
Begin by disconnecting the vehicle’s battery to prevent electrical mishaps. Open the underhood fuse/relay box and carefully inspect the relay’s orientation before removing it. Most relays have a notched or keyed design to prevent incorrect insertion, but it’s crucial to note the position of any tabs or markings. Gently pull the faulty relay straight out of its slot, avoiding excessive force that could damage the surrounding components. Keep the old relay as a reference for orientation when installing the new one.
When inserting the new relay, align it precisely with the slot, ensuring the notched side matches the orientation of the old relay. Apply even pressure until the relay clicks securely into place. Avoid twisting or forcing it, as this can damage the relay or the socket. Double-check the fit by gently tugging on the relay to confirm it’s seated correctly. Reattach the fuse/relay box cover and reconnect the battery to complete the process.
While the replacement itself is simple, caution is essential. Relays are sensitive components, and mishandling can cause immediate failure. Always handle the new relay by its edges to avoid contamination from oils or dirt on your skin. If the relay doesn’t fit smoothly, recheck its orientation rather than forcing it into place. Testing the vehicle’s fuel pump operation post-replacement is a prudent step to ensure the issue is resolved.
In summary, swapping a faulty fuel pump relay in a 2010 Traverse is a task that demands attention to detail. By focusing on correct orientation and handling the relay with care, you can efficiently restore your vehicle’s fuel system functionality. This small but vital repair underscores the importance of precision in automotive maintenance.
Quick Fixes for a Faulty Fuel Pump Nozzle: DIY Guide
You may want to see also
Frequently asked questions
The fuel pump relay on a 2010 Traverse is located in the underhood fuse/relay box. It is typically labeled as "FUEL PUMP" or "FP" on the box's cover diagram.
To access the fuel pump relay, open the hood and locate the underhood fuse/relay box, usually on the driver's side near the firewall. Remove the lid to find the relay, which is often a black or gray cube-shaped component.
The fuel pump relay controls the power supply to the fuel pump, ensuring it only operates when the engine is running or being started. It acts as a switch to prevent the fuel pump from running continuously, which could be a safety hazard.
To test the fuel pump relay, locate the relay in the underhood fuse/relay box and swap it with a relay of the same type (e.g., another relay in the same box). If the fuel pump begins to work, the original relay is likely faulty. You can also use a multimeter to check for continuity or voltage at the relay terminals.
