The 1993 Chevrolet Corvette, a classic American sports car, houses its fuel pump relay in a location that may require some familiarity with the vehicle's under-hood layout. Typically, the fuel pump relay on this model is found in the main under-hood fuse/relay center, which is located on the driver's side near the firewall. This center is often covered by a protective lid that needs to be removed to access the relays and fuses. Identifying the correct relay can be done by consulting the owner's manual or a repair guide, as relays are usually labeled for easy identification. Accessing this component is essential for troubleshooting fuel system issues or performing maintenance on the Corvette's fuel delivery system.
| Characteristics | Values |
|---|---|
| Location | Under the hood, in the main fuse block (also known as the underhood fuse block) |
| Fuse Block Position | Typically located near the driver's side fender or firewall |
| Relay Identification | Labeled as "Fuel Pump" or "FP" on the fuse block cover or diagram |
| Relay Function | Controls power to the fuel pump, ensuring it operates only when the engine is running or being started |
| Access | Requires opening the hood and locating the fuse block cover |
| Tools Needed | None (easily accessible by hand) |
| Year Applicability | Specific to 1993 Chevrolet Corvette (C4) models |
| Additional Notes | Always refer to the vehicle's service manual for exact location and diagram |
Explore related products
What You'll Learn

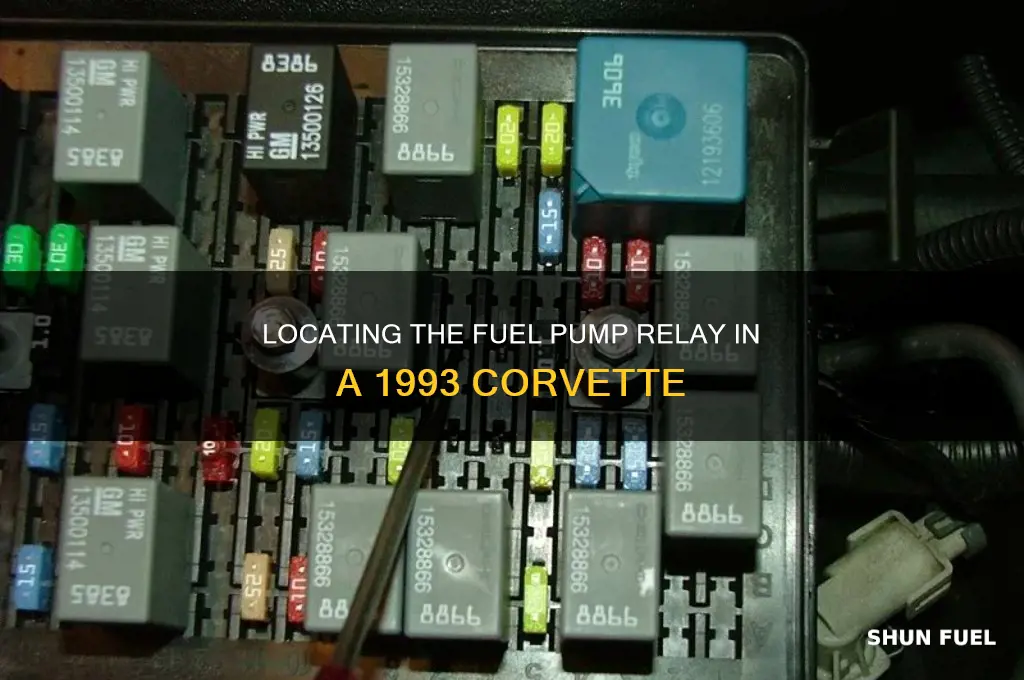

Location of Fuel Pump Relay
The fuel pump relay on a 1993 Corvette is a critical component for ensuring proper fuel delivery to the engine. Located under the hood, it is part of the underhood fuse/relay center, which is situated near the driver’s side fender. This center houses multiple relays and fuses, making it a central hub for electrical diagnostics. To access the fuel pump relay, start by opening the hood and locating the black rectangular box labeled “Underhood Fuse/Relay Center.” Remove the lid to reveal the relays and fuses inside. The fuel pump relay is typically labeled and can be identified by its position in the diagram provided on the underside of the lid.
Analyzing the placement of the fuel pump relay reveals thoughtful engineering. By grouping it with other relays and fuses, GM streamlined troubleshooting and replacement processes. This design ensures that if the fuel pump relay fails—a common issue causing no-start conditions—it can be quickly swapped out without extensive disassembly. However, its location under the hood exposes it to heat and moisture, which can accelerate wear. Regular inspection of the underhood fuse/relay center for corrosion or damage is advisable, especially in older vehicles like the 1993 Corvette.
For those tackling DIY repairs, replacing the fuel pump relay is straightforward. First, disconnect the battery to prevent electrical shorts. Then, locate the relay within the underhood fuse/relay center and pull it straight out of its socket. Insert the new relay, ensuring it clicks into place securely. Reattach the center’s lid and reconnect the battery. Test the vehicle to confirm the issue is resolved. Keep in mind that a faulty fuel pump relay often mimics symptoms of a failing fuel pump, so diagnosing correctly is key.
Comparing the 1993 Corvette’s fuel pump relay location to other GM models of the era highlights consistency in design. Many vehicles from the early ’90s share this underhood fuse/relay center layout, making it easier for mechanics familiar with one model to work on another. However, the Corvette’s performance-oriented nature means its fuel pump relay may experience higher stress due to increased fuel demands. This underscores the importance of using a high-quality replacement part to ensure reliability.
Descriptively, the fuel pump relay itself is a small, cube-shaped component with multiple pins that connect to the vehicle’s electrical system. Its function is to control power to the fuel pump, activating it when the ignition is turned on. In the 1993 Corvette, this relay is crucial for maintaining the high-pressure fuel delivery required by the LT1 V8 engine. Over time, internal contacts can wear or burn out, leading to intermittent or complete failure. Recognizing this, GM designed the relay to be easily accessible, reflecting an understanding of the part’s role in the vehicle’s overall performance and longevity.
Testing Your Fuel Pump Inertia Switch: A Step-by-Step Guide
You may want to see also
Explore related products
Identifying the Relay in Engine Bay
The 1993 Corvette's fuel pump relay is a critical component, often tucked away in the engine bay's underhood fuse/relay center. This black plastic box, typically located near the firewall on the driver's side, houses a multitude of relays and fuses. To identify the fuel pump relay, you'll need to consult the underhood fuse/relay center's diagram, usually found on the lid's underside. This diagram will pinpoint the exact location of the fuel pump relay, often labeled as "FUEL PUMP" or "FP."
Analyzing the underhood fuse/relay center's layout reveals a systematic organization. Relays are typically grouped by function, with engine management and fuel system relays clustered together. The fuel pump relay, being a high-current component, is usually one of the larger relays in the center. Its size and location can vary slightly depending on the Corvette's production date and options, but it's generally situated in the middle or lower section of the fuse/relay center. To avoid confusion, compare the relay's appearance with the diagram, noting its shape, color, and terminal configuration.
When attempting to identify the fuel pump relay, it's essential to exercise caution. Before accessing the underhood fuse/relay center, ensure the vehicle is turned off and the key is removed from the ignition. This prevents accidental activation of electrical components and reduces the risk of short circuits. Once the center is accessible, use a relay puller or a pair of long-nose pliers to carefully extract the relay. Avoid forcing the relay out, as this can damage the center's terminals or the relay itself. If you're unsure about the relay's identification, consult a Corvette-specific repair manual or seek guidance from a qualified mechanic.
A comparative analysis of the fuel pump relay's function highlights its importance in the Corvette's fuel system. The relay acts as a high-current switch, allowing the powertrain control module (PCM) to control the fuel pump's operation. When the ignition is turned on, the PCM sends a signal to the fuel pump relay, which closes its internal circuit and supplies power to the fuel pump. This enables the pump to deliver fuel from the tank to the engine, ensuring proper combustion and performance. Understanding the relay's role in the fuel system can help diagnose issues related to fuel delivery, such as hard starting or stalling.
In practice, identifying the fuel pump relay in the engine bay requires a systematic approach. Start by locating the underhood fuse/relay center, then consult the diagram to pinpoint the relay's position. Verify the relay's identification by comparing its appearance with the diagram, and exercise caution when handling the center to avoid damage. By following these steps, you can confidently identify the fuel pump relay and perform diagnostics or repairs as needed. Remember to prioritize safety and accuracy, as incorrect identification or handling can lead to costly mistakes or safety hazards. With patience and attention to detail, you'll be well-equipped to tackle fuel pump relay-related issues in your 1993 Corvette.
Understanding the Mechanics of a 2-Cycle Fuel Pump Operation
You may want to see also
Explore related products
$42.79 $46.11
Accessing the Relay Panel
The relay panel in a 1993 Corvette is a critical hub for various electrical functions, including the fuel pump relay. Located under the driver’s side dashboard, it’s designed for accessibility but requires careful navigation due to its proximity to other components. To begin, ensure the vehicle is turned off and the key is removed to prevent accidental activation of circuits. This initial step is non-negotiable for safety and precision in identifying the correct relay.
Accessing the panel involves a sequence of steps that blend simplicity with attention to detail. Start by removing the lower dash panel, typically secured by a few screws or clips. Use a screwdriver or trim removal tool to avoid damaging the plastic. Once removed, you’ll expose the relay panel, a rectangular unit with multiple relays labeled for their respective functions. The fuel pump relay is often marked clearly, but consulting the owner’s manual or a Corvette-specific repair guide can confirm its exact position.
While the process seems straightforward, there are nuances to consider. The relay panel’s orientation may require you to work in an awkward position, so a flashlight and a small mirror can aid visibility. Additionally, relays are sometimes grouped closely together, making it easy to confuse them. Double-check the label or use a multimeter to test for continuity if uncertainty arises. This extra step ensures you’re working on the correct component, avoiding unnecessary troubleshooting later.
Practical tips can streamline the task. For instance, labeling relays with removable stickers before removal can prevent mix-ups during reinstallation. If the relay panel is dusty or corroded, a gentle clean with compressed air or electrical contact cleaner can improve functionality. These small actions not only facilitate the current task but also contribute to long-term reliability of the vehicle’s electrical system.
In conclusion, accessing the relay panel on a 1993 Corvette is a task that combines basic mechanical skills with careful observation. By following a methodical approach and leveraging practical tools, even a novice can locate and service the fuel pump relay effectively. This process underscores the importance of patience and preparation in automotive maintenance, ensuring both safety and success.
Locate the Fuel Pump Harness in Your 2000 Nissan Maxima
You may want to see also
Explore related products
Testing the Fuel Pump Relay
The fuel pump relay in a 1993 Corvette is a critical component, often located in the underhood fuse/relay box near the battery. Testing it can help diagnose fuel delivery issues, ensuring your engine runs smoothly. To begin, locate the relay by consulting the owner’s manual or a Corvette-specific repair guide, as its position may vary slightly depending on the model. Once identified, testing involves a systematic approach to verify its functionality.
Start by removing the relay from its socket, ensuring the ignition is off to prevent electrical mishaps. A multimeter is your primary tool here—set it to the ohmmeter function to check for continuity. With the relay pins identified (typically labeled on the relay or in the manual), test the primary circuit by placing the multimeter probes on the coil pins. A functional relay should show infinite resistance initially, then drop to near zero ohms when the circuit is activated. If these readings are inconsistent, the relay may be faulty.
Next, test the secondary circuit, which controls the fuel pump. Apply power to the relay’s primary circuit using a jumper wire or a relay tester, then check for continuity between the common and normally open (NO) pins on the secondary side. If the relay is working, the multimeter should show continuity, indicating the circuit is complete. Lack of continuity here suggests a failed relay, necessitating replacement. Always double-check connections and ensure the multimeter is correctly set to avoid misdiagnosis.
A practical tip: if you’re unsure about pin identification, swap the relay with another of the same type in the fuse box (e.g., the A/C compressor relay) and observe if the issue persists. If the problem moves to the new location, the relay is likely the culprit. However, exercise caution when swapping relays, as some may control critical systems. Testing the fuel pump relay is a straightforward yet essential diagnostic step, saving time and money by pinpointing the root cause of fuel system issues in your 1993 Corvette.
DIY Guide: Removing the Fuel Pump in a 2006 Chevy Impala
You may want to see also
Explore related products
$23.99
Replacing a Faulty Relay
The fuel pump relay in a 1993 Corvette is a critical component, often located in the underhood fuse/relay box near the battery. Identifying a faulty relay can be tricky, as symptoms like engine stalling or failure to start may mimic other issues. Before replacing it, test the relay using a multimeter or swap it with a similar relay from another circuit to confirm the diagnosis. This ensures you’re addressing the root cause rather than replacing parts unnecessarily.
Replacing a faulty fuel pump relay is a straightforward task, but precision is key. Start by locating the relay box, typically on the driver’s side of the engine compartment. Consult the owner’s manual or a repair guide to identify the specific relay, as it may be labeled "FUEL" or "FP." Once identified, disconnect the battery to prevent electrical mishaps. Carefully pull the relay straight out of its socket—do not twist or force it, as this can damage the connector. Install the new relay by aligning the pins and pushing it firmly into place until it clicks securely.
While the process is simple, there are pitfalls to avoid. Ensure the replacement relay matches the original in terms of part number and specifications. Using an incorrect relay can lead to improper fuel pump operation or even damage the electrical system. Additionally, inspect the relay socket for corrosion or damage; clean it with electrical contact cleaner if necessary. Reattach the battery only after the new relay is installed to prevent accidental shorts during the process.
A practical tip for Corvette owners is to keep a spare fuel pump relay in the glove compartment. Given the car’s age, relays can fail unexpectedly, and having a replacement on hand can save time and frustration. Regularly testing the relay as part of routine maintenance can also preempt issues, especially if the vehicle is driven infrequently. By addressing this small but vital component, you ensure the Corvette’s fuel system operates reliably, preserving its performance and longevity.
