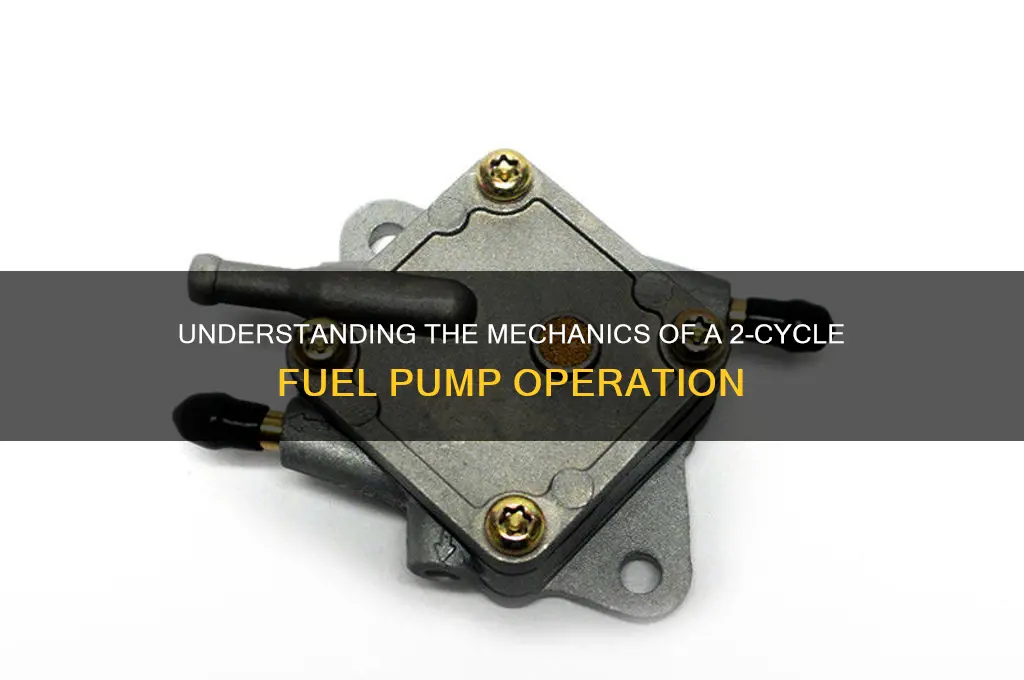

A 2-cycle fuel pump operates within the unique combustion system of a 2-stroke engine, which completes a power cycle in just one crankshaft revolution. Unlike 4-stroke engines, 2-stroke engines don't have separate intake and compression strokes, so the fuel pump must deliver a precise mixture of air, fuel, and oil directly into the crankcase during the intake phase. Typically, a diaphragm-type pump is used, driven by the engine's pulsating pressure changes. As the piston moves downward, it creates a vacuum that draws the fuel mixture into the pump chamber. When the piston rises, the pressure forces the diaphragm to push the fuel mixture through a one-way valve and into the crankcase, where it's then drawn into the cylinder for combustion. This efficient, synchronized process ensures the engine receives the necessary fuel-air-oil blend for optimal performance.
| Characteristics | Values |
|---|---|
| Engine Type | 2-stroke (2-cycle) |
| Fuel Delivery | Mixes oil and gasoline in a single tank |
| Fuel Pump Mechanism | Typically diaphragm-type pump |
| Pump Operation | Driven by engine pulse or mechanical linkage |
| Fuel/Oil Ratio | Specific ratio (e.g., 50:1) required for lubrication |
| Fuel Flow | Continuous flow during engine operation |
| Lubrication | Oil mixed with fuel lubricates engine components |
| Exhaust Port | Releases exhaust gases and excess fuel/oil mixture |
| Intake Port | Draws fresh fuel/air mixture into the crankcase |
| Transfer Port | Transfers fuel/air mixture from crankcase to cylinder |
| Power Stroke | Combustion occurs every revolution of the crankshaft |
| Efficiency | Generally less fuel-efficient than 4-stroke engines |
| Emissions | Higher emissions due to oil burning |
| Maintenance | Requires regular oil changes and spark plug replacements |
| Applications | Commonly used in small engines (e.g., chainsaws, weed eaters, outboard motors) |
| Advantages | Simple design, lightweight, high power-to-weight ratio |
| Disadvantages | Poor fuel efficiency, higher emissions, shorter engine life |
Explore related products
What You'll Learn
- Intake Stroke: Air-fuel mix enters crankcase via open port as crankshaft moves down
- Compression Stroke: Piston rises, compressing mix in crankcase and combustion chamber
- Power Stroke: Spark plug ignites mix, forcing piston down, powering crankshaft rotation
- Exhaust & Transfer: Exhaust port opens, expelling gases; fresh mix moves to chamber
- Reed Valve Mechanism: Controls air-fuel intake flow into crankcase during strokes
Intake Stroke: Air-fuel mix enters crankcase via open port as crankshaft moves down
The intake stroke in a 2-cycle engine is a symphony of precision, where timing and mechanics converge to ensure optimal performance. As the crankshaft begins its downward journey, it creates a partial vacuum within the crankcase. This vacuum acts as a silent beckon, drawing the air-fuel mixture through the open intake port. The process is seamless yet critical, as it sets the stage for the subsequent combustion that powers the engine. Unlike 4-cycle engines, which dedicate an entire stroke to intake, 2-cycle engines integrate this function into a single revolution, making every movement count.
To visualize this, imagine a well-choreographed dance. The crankshaft’s downward motion lowers the pressure in the crankcase, creating a pressure differential between the atmosphere and the engine’s interior. This difference propels the air-fuel mixture—typically a 40:1 to 50:1 ratio of gasoline to oil for lubrication—through the carburetor and into the crankcase via the intake port. The port’s timing is crucial; it opens and closes at precise intervals, controlled by the piston’s position. If the timing is off, the mixture may not enter efficiently, leading to poor performance or even engine damage. For DIY enthusiasts, ensuring the carburetor is clean and the fuel mixture is accurate is a practical tip to optimize this phase.
Comparatively, the intake stroke in a 2-cycle engine is more than just a passive process—it’s an active participant in the engine’s lubrication system. As the air-fuel mix enters the crankcase, it carries oil particles that coat the internal components, reducing friction and wear. This dual role of the intake stroke highlights its efficiency, a hallmark of 2-cycle design. However, this efficiency comes with a trade-off: higher fuel consumption and emissions compared to 4-cycle engines. For applications like chainsaws, outboard motors, or motorcycles, where compactness and power-to-weight ratio are prioritized, this trade-off is often acceptable.
A cautionary note for operators: improper fuel mixing or a clogged intake port can disrupt this delicate process. Always use a high-quality oil designed for 2-cycle engines and ensure the fuel-to-oil ratio is precise. For example, a 50:1 ratio means 2.6 ounces of oil per gallon of gasoline. Regularly inspect the intake port for debris or carbon buildup, as even minor obstructions can hinder airflow. In colder climates, consider using a fuel stabilizer to prevent gelling, which can block the carburetor and disrupt the intake stroke.
In conclusion, the intake stroke in a 2-cycle engine is a masterclass in efficiency and multifunctionality. It’s not just about drawing in the air-fuel mixture; it’s about timing, lubrication, and setting the foundation for combustion. By understanding this process and maintaining the engine properly, operators can ensure their 2-cycle machines run smoothly and reliably, whether they’re powering through a forest trail or gliding across a lake.
Does Your Boat's Electric Fuel Pump Receive Signal During Startup?
You may want to see also
Explore related products
$28.7
Compression Stroke: Piston rises, compressing mix in crankcase and combustion chamber
The compression stroke in a 2-cycle engine is a critical phase where the piston’s upward movement transforms a simple air-fuel mixture into a potent force for combustion. As the piston rises, it simultaneously compresses the mixture in two distinct areas: the crankcase below the piston and the combustion chamber above it. This dual compression is unique to 2-cycle engines and is essential for their efficiency and power output. Unlike 4-cycle engines, which dedicate entire strokes to intake and compression, 2-cycle engines combine these processes, making every stroke count.
To understand this process, imagine the piston as a plunger in a syringe. As it moves upward, it reduces the volume of the crankcase, forcing the air-fuel mixture through transfer ports and into the combustion chamber. This action not only increases the pressure but also ensures a fresh charge is ready for ignition. The compression ratio—typically higher in 2-cycle engines—determines how much the mixture is compressed, directly influencing the engine’s power and fuel efficiency. For optimal performance, aim for a compression ratio between 8:1 and 12:1, depending on the engine’s application.
A practical tip for maintaining this stroke’s effectiveness is to regularly check the piston rings and cylinder walls for wear. Even minor scoring can reduce compression, leading to poor performance and increased fuel consumption. Use a compression tester to verify the engine’s health; readings below 100 psi often indicate a problem. Additionally, ensure the air-fuel mixture is correctly tuned—a lean mixture can overheat the engine, while a rich mixture can foul the spark plug. Adjust the carburetor or fuel injection system as needed, following the manufacturer’s guidelines.
Comparing the compression stroke in 2-cycle engines to their 4-cycle counterparts highlights their efficiency. In a 4-cycle engine, the compression stroke only prepares the combustion chamber, while the crankcase remains inactive. In contrast, the 2-cycle engine’s crankcase acts as a secondary compression chamber, pre-compressing the mixture before it enters the combustion chamber. This design allows 2-cycle engines to produce power with every revolution, making them lighter and more compact—ideal for applications like chainsaws, outboard motors, and motorcycles.
Finally, the compression stroke’s success relies on precise timing and synchronization. The transfer ports must open at the right moment to allow the compressed mixture from the crankcase to flow into the combustion chamber. If the timing is off, the engine may run poorly or not start at all. For DIY enthusiasts, adjusting port timing requires careful measurement and a steady hand. Always refer to the engine’s manual for specific timing marks and procedures. By mastering this stroke, you’ll ensure your 2-cycle engine operates at its peak, delivering the power and efficiency it’s designed for.
Does the BCM Control the Fuel Pump? Exploring the Connection
You may want to see also
Explore related products
Power Stroke: Spark plug ignites mix, forcing piston down, powering crankshaft rotation
The power stroke is the heart of a 2-cycle engine's operation, where the spark plug ignites the air-fuel mixture, converting chemical energy into mechanical work. This process begins as the piston nears the top of its compression stroke. The spark plug fires, creating a controlled explosion that forces the piston downward with significant force. This downward movement is transferred to the crankshaft via the connecting rod, converting linear motion into rotational energy. In a 2-cycle engine, this stroke is particularly critical because it not only generates power but also overlaps with the scavenging process, ensuring efficient fuel-air intake and exhaust.
To maximize efficiency during the power stroke, the timing of the spark plug ignition is crucial. In most 2-cycle engines, the spark occurs just before the piston reaches top dead center (TDC), typically 20 to 30 degrees before TDC. This timing ensures that the expanding gases have maximum leverage on the piston, delivering optimal power. For small engines like those in chainsaws or outboard motors, this precision is often achieved through a fixed ignition system, while larger 2-cycle engines may use more advanced timing controls. Proper fuel-to-oil ratio (typically 50:1) is also essential to prevent premature ignition or fouling of the spark plug, which can disrupt the power stroke.
Comparatively, the power stroke in a 2-cycle engine is more compact and rapid than in a 4-cycle engine, as it occurs with every revolution of the crankshaft rather than every second revolution. This design allows 2-cycle engines to produce more power relative to their size and weight, making them ideal for applications requiring high power-to-weight ratios. However, this efficiency comes at the cost of higher fuel consumption and emissions, as the scavenging process often results in some unburned fuel exiting through the exhaust. Modern 2-cycle engines mitigate this with improved port designs and direct fuel injection systems.
For practical maintenance, ensuring the spark plug is clean and properly gapped is vital for a consistent power stroke. A gap of 0.020 to 0.030 inches is common for small 2-cycle engines, but always refer to the manufacturer’s specifications. Fouled or worn spark plugs can lead to misfires, reducing power output and increasing fuel consumption. Additionally, using high-quality 2-cycle oil and maintaining the correct fuel mixture will prevent carbon buildup in the combustion chamber, ensuring the spark plug ignites the mixture efficiently. Regularly inspecting the piston and cylinder for wear is also important, as scoring or damage can disrupt the power stroke’s effectiveness.
In summary, the power stroke in a 2-cycle engine is a finely tuned process that relies on precise ignition timing, proper fuel mixture, and well-maintained components. Its unique design allows for compact, high-power operation, but demands careful attention to detail in both operation and maintenance. By understanding and optimizing this phase, users can ensure their 2-cycle engines perform reliably and efficiently, whether in recreational, industrial, or marine applications.
Does Your Fuel Pump Make a Hissing Noise? Causes and Fixes
You may want to see also
Explore related products
Exhaust & Transfer: Exhaust port opens, expelling gases; fresh mix moves to chamber
The exhaust port in a 2-cycle engine is a critical component that operates in tandem with the transfer port to ensure efficient combustion and power generation. As the piston nears the bottom of its power stroke, the exhaust port opens, allowing the spent combustion gases to escape rapidly. This process is not merely about expulsion; it’s a carefully timed event that creates a low-pressure zone behind the exiting gases. Simultaneously, the transfer port, located on the opposite side of the cylinder, begins to uncover as the piston descends. This port directs a fresh air-fuel mixture from the crankcase into the cylinder, leveraging the pressure differential to push the mixture upward. The timing of these ports is precise, ensuring that the fresh charge is pre-compressed before the piston begins its upward compression stroke, optimizing the engine’s efficiency.
Consider the analogy of a lung inhaling and exhaling. The exhaust port acts as the exhale, forcefully clearing the cylinder of waste gases, while the transfer port functions as the inhale, drawing in a new, oxygen-rich mixture. This dual action is essential for maintaining the engine’s power cycle. For optimal performance, the ports must be sized and positioned correctly. A common rule of thumb is that the exhaust port should be approximately 30% of the bore diameter, while the transfer port should be slightly smaller to control the flow rate. Misalignment or improper sizing can lead to incomplete scavenging, where residual exhaust gases mix with the fresh charge, reducing power and increasing emissions.
From a practical standpoint, understanding this phase of the 2-cycle engine’s operation is crucial for troubleshooting and maintenance. For instance, if an engine is running rough or lacks power, inspect the exhaust and transfer ports for carbon buildup or damage. Carbon deposits can restrict flow, disrupting the delicate balance of exhaust and transfer. Cleaning these ports with a carburetor cleaner and a wire brush can restore performance. Additionally, ensure the reed valve (if present) is functioning properly, as it controls the flow of the air-fuel mixture into the crankcase, directly impacting the transfer phase. Regular inspection of these components is particularly important for high-performance applications, such as in motorcycles or outboard motors, where efficiency and reliability are paramount.
A comparative analysis highlights the difference between 2-cycle and 4-cycle engines in this phase. In a 4-cycle engine, exhaust and intake occur in separate strokes, allowing for more complete scavenging and better fuel efficiency. However, 2-cycle engines compensate for their shorter cycle by using the transfer port to simultaneously expel exhaust and introduce fresh mixture. This design trade-off results in a lighter, simpler engine with a higher power-to-weight ratio, making 2-cycle engines ideal for applications where weight and size are critical, such as chainsaws or dirt bikes. Despite their advantages, 2-cycle engines require precise tuning and maintenance to avoid issues like oil contamination or incomplete combustion, underscoring the importance of mastering the exhaust and transfer process.
Finally, for enthusiasts and mechanics, experimenting with port timing can yield performance gains. Aftermarket modifications, such as porting and polishing, can enhance flow dynamics, but caution is advised. Over-modifying ports can lead to overheating or detonation, especially in high-compression engines. Start with small adjustments, such as smoothing sharp edges or slightly enlarging the ports, and test the engine under load to evaluate changes. Always refer to manufacturer specifications or consult a professional before making significant alterations. By mastering the exhaust and transfer phase, you not only ensure the longevity of your 2-cycle engine but also unlock its full potential, whether for racing, work, or recreation.
US Coast Guard Approved Fuel Pumps: A Comprehensive Guide to Obtaining One
You may want to see also
Explore related products
Reed Valve Mechanism: Controls air-fuel intake flow into crankcase during strokes
The reed valve mechanism is a critical component in the operation of a 2-cycle engine, acting as a one-way gate that regulates the flow of the air-fuel mixture into the crankcase during specific strokes of the engine cycle. Unlike 4-cycle engines, which have separate strokes for intake and compression, 2-cycle engines combine these processes, making the reed valve’s role indispensable. Positioned between the intake manifold and the crankcase, the reed valve opens and closes in response to pressure differentials, ensuring that the air-fuel mixture enters the crankcase only during the appropriate phase of the cycle.
To understand its function, consider the engine’s operation: during the upward stroke of the piston, a vacuum is created in the crankcase, causing the reed valve to open. This allows the air-fuel mixture to be drawn into the crankcase. As the piston moves downward on the power stroke, the pressure in the crankcase increases, forcing the reed valve to close. This closure prevents backflow and ensures the mixture is compressed and pushed into the combustion chamber for ignition. The reed valve’s simplicity and reliability make it a cornerstone of 2-cycle engine design, enabling efficient fuel delivery without the need for complex valve trains.
Material selection for reed valves is crucial, as they must withstand rapid, repetitive flexing and exposure to fuel and oil mixtures. Traditional reed valves are made from fiberglass-reinforced composites or carbon fiber, offering a balance of flexibility and durability. Modern advancements include coated metal reeds, which enhance longevity in high-performance applications. Proper maintenance, such as regular inspection for cracks or warping, is essential to prevent performance degradation. Replacing worn reeds is a straightforward task, typically requiring only basic tools and costing between $10 to $30 per valve, depending on the material and brand.
Comparing reed valves to other intake control mechanisms, such as rotary valves or piston-controlled ports, highlights their advantages. Reed valves offer lower mechanical complexity, reduced weight, and minimal power loss, making them ideal for small engines like those in motorcycles, chainsaws, and outboard motors. However, they are less suitable for high-RPM applications due to potential valve float, where the reed fails to close properly at extreme speeds. For enthusiasts modifying 2-cycle engines, upgrading to stiffer reeds or dual-reed setups can improve high-end power, though this requires careful tuning to avoid intake restrictions.
In practical terms, the reed valve’s efficiency directly impacts engine performance. A properly functioning reed valve ensures optimal scavenging, where fresh air-fuel mixture displaces exhaust gases, maximizing power output and fuel efficiency. For DIY mechanics, diagnosing reed valve issues involves listening for irregular intake noises or monitoring for reduced power. If the engine struggles to start or runs unevenly, inspect the reeds for damage or debris. Cleaning the intake tract and ensuring proper carburetor synchronization can also alleviate minor issues. By mastering the reed valve mechanism, users can maintain peak performance in their 2-cycle engines, extending their lifespan and reliability.
Accessing the Fuel Pump on Your 2006 Chrysler 300C: A Guide
You may want to see also
Frequently asked questions
A 2-cycle fuel pump is designed for engines that use a 2-stroke (or 2-cycle) combustion process, where the engine completes a power cycle in one crankshaft revolution. Unlike 4-stroke engines, 2-stroke engines mix oil with fuel for lubrication. The fuel pump in a 2-cycle system typically delivers a pre-mixed fuel-oil blend to the engine, ensuring proper lubrication and combustion. It differs from other fuel pumps by being specifically calibrated for the unique requirements of 2-stroke engines.
In small 2-cycle engines, the fuel pump often operates via a diaphragm mechanism. It uses engine pulses or a manual primer bulb to create suction, drawing fuel from the tank into the carburetor. The pump ensures a consistent fuel-oil mixture is delivered to the engine, maintaining optimal performance. The simplicity and reliability of this design make it ideal for portable, handheld equipment.
Common issues include clogged fuel lines, diaphragm failure, or air leaks in the system. To fix these, inspect and clean the fuel lines, replace a damaged diaphragm, and ensure all connections are tight. Regular maintenance, such as using fresh fuel and cleaning the pump, can prevent most problems. If the pump fails completely, it may need to be replaced.
