The 1993 Ford Ranger's fuel pump relay is a crucial component in the vehicle's fuel system, responsible for controlling the flow of power to the fuel pump. Located under the hood, this relay is typically found in the power distribution box, which houses various fuses and relays. For the 1993 model, the fuel pump relay is often situated near the firewall, close to the driver's side fender. Identifying its exact location can be essential for troubleshooting fuel-related issues or performing maintenance tasks, as a faulty relay can lead to starting problems or engine performance issues. Consulting the vehicle's manual or a repair guide can provide specific details to locate and replace the fuel pump relay efficiently.
| Characteristics | Values |
|---|---|
| Location | Under the dashboard, on the driver's side, near the firewall. |
| Relay Box | Mounted on the inner fender or firewall, depending on the model. |
| Relay Identification | Typically labeled as "Fuel Pump Relay" or "FP Relay." |
| Shape and Color | Rectangular or square-shaped, often black or gray in color. |
| Pin Configuration | Usually a 4- or 5-pin relay, depending on the specific relay design. |
| Access | Accessible by removing a panel or reaching under the dashboard. |
| Function | Controls power to the fuel pump, ensuring it operates only when needed. |
| Replacement | Relays are typically plug-and-play, requiring no special tools for replacement. |
| Common Issues | Relay failure can cause the fuel pump to stop working, leading to no-start conditions. |
| Diagnostic Tip | Test the relay by swapping it with a similar relay in the same fuse box to check for functionality. |
Explore related products
What You'll Learn

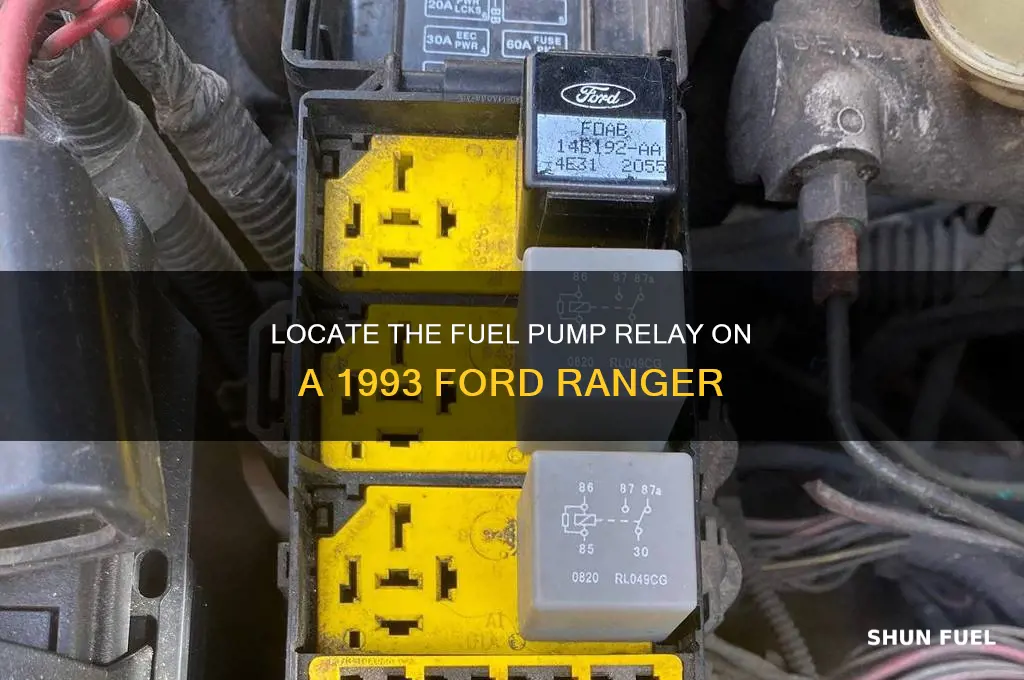

Location of Fuel Pump Relay
The fuel pump relay in a 1993 Ford Ranger is a critical component for ensuring your vehicle’s fuel system operates efficiently. Located under the dashboard on the driver’s side, this relay is part of the larger fuse box assembly. To access it, you’ll need to remove the lower dash panel, which typically involves unscrewing a few Phillips-head screws and gently prying the panel away. Once exposed, the relay is usually labeled "Fuel Pump" or "FP" on the fuse box cover diagram, making it easier to identify among other relays and fuses.
Analyzing the placement of the fuel pump relay reveals Ford’s design emphasis on accessibility for diagnostics and repairs. Unlike some vehicles that bury the relay in the engine bay or under the seats, the 1993 Ranger’s relay is positioned for relatively straightforward access. However, its location under the dash means you’ll need to work in a confined space, so having a flashlight and a basic understanding of automotive interiors is helpful. This design choice balances convenience with protection from environmental factors like heat and moisture.
If you’re troubleshooting fuel delivery issues, testing the relay is a practical first step. To do this, locate the fuel pump relay and swap it with a similar relay in the fuse box, such as the horn relay. Then, attempt to start the vehicle. If the fuel pump engages, the original relay is likely faulty. Replacement relays are inexpensive and widely available, but ensure the new one matches the amperage and pin configuration of the original. Always disconnect the battery before working on electrical components to prevent short circuits.
Comparing the 1993 Ford Ranger’s fuel pump relay location to other models highlights its user-friendly design. For instance, some older Ford vehicles place the relay in the engine bay, exposing it to higher temperatures and potential corrosion. The Ranger’s under-dash location minimizes these risks while keeping the component within reach for DIY mechanics. This design choice underscores Ford’s consideration of both durability and ease of maintenance in their early ’90s lineup.
In conclusion, understanding the location and function of the fuel pump relay in a 1993 Ford Ranger is essential for diagnosing and resolving fuel system issues. Its under-dash placement, while requiring some disassembly, offers protection and accessibility. By familiarizing yourself with this component’s location and testing procedures, you can save time and money on repairs, ensuring your Ranger remains reliable on the road.
Step-by-Step Guide: Removing Fuel Pump in a 1999 Ford Taurus
You may want to see also
Explore related products
Identifying the Relay in Fuse Box
The 1993 Ford Ranger's fuel pump relay is a critical component for ensuring your vehicle starts and runs smoothly. Identifying its location within the fuse box can be a straightforward process if you know what to look for. The fuse box in this model is typically located under the dashboard on the driver's side, though some variations may place it in the engine compartment. Understanding the layout of the fuse box is key to pinpointing the fuel pump relay quickly.
Analyzing the fuse box diagram is the first step in identifying the fuel pump relay. Most 1993 Ford Rangers come with a diagram either on the fuse box cover or in the owner’s manual. This diagram labels each relay and fuse, making it easier to locate the fuel pump relay. If the diagram is missing or unclear, online resources or automotive forums often provide detailed images or descriptions specific to this model. Cross-referencing multiple sources ensures accuracy, especially if you’re dealing with a modified or non-standard fuse box configuration.
Once you’ve located the fuse box, visually inspect the relays for identifying marks. The fuel pump relay is often labeled with "FP" or "FUEL PUMP" on its top or side. If labels are absent, compare the size and shape of the relays to the diagram. The fuel pump relay is typically a larger relay with four or five pins, distinguishing it from smaller relays used for other functions. Using a multimeter to test for continuity can confirm its identity, but this step is usually unnecessary if the labeling is clear.
Practical tips can streamline the identification process. For instance, if the vehicle isn’t starting, the fuel pump relay is a common culprit. Tapping the relay gently while attempting to start the engine can sometimes temporarily restore function, indicating a faulty relay. Additionally, keeping a spare relay in your vehicle can save time and frustration if the original fails. Always ensure the ignition is off when handling components in the fuse box to avoid electrical hazards.
In conclusion, identifying the fuel pump relay in a 1993 Ford Ranger’s fuse box requires a combination of visual inspection, diagram reference, and practical knowledge. By understanding the fuse box layout, recognizing relay characteristics, and applying troubleshooting tips, you can efficiently locate and address issues with this essential component. This approach not only saves time but also empowers you to maintain your vehicle with confidence.
Understanding the Functionality of a Small Block 360 Fuel Pump
You may want to see also
Explore related products
Common Issues with Relay Failure
Relay failure in a 1993 Ford Ranger can manifest in several ways, often leaving drivers stranded or facing performance issues. One common issue is the relay sticking in the "open" position, preventing the fuel pump from receiving power. This typically occurs due to internal corrosion or worn contacts, which can be exacerbated by moisture or dirt infiltration. To diagnose, listen for a faint clicking sound under the dashboard when turning the ignition—a silent response may indicate a stuck relay. Immediate replacement is recommended, as temporary fixes like tapping the relay often provide only short-term relief.
Another frequent problem is the relay overheating, which can melt the plastic housing or damage surrounding components. This is often caused by excessive current draw, usually from a failing fuel pump or faulty wiring. Inspect the relay for discoloration or a burnt odor, and check the fuel pump’s amperage draw using a multimeter—it should not exceed 10-12 amps. If overheating persists, address the root cause before installing a new relay to prevent recurrence. Always use a relay rated for the Ranger’s specific electrical demands to avoid further issues.
Intermittent fuel pump operation is a subtle yet frustrating issue tied to relay failure. This occurs when the relay’s contacts become pitted or loose, causing the circuit to open and close unpredictably. Symptoms include the engine stalling at high speeds or difficulty starting after the vehicle has been running. A quick test involves swapping the fuel pump relay with a similarly rated relay (e.g., the horn relay) to see if the issue persists. If the problem moves to the new location, the relay is likely at fault. Regularly cleaning relay contacts with electrical cleaner can prolong lifespan, but replacement is often the most reliable solution.
Lastly, a failing relay can sometimes mimic other fuel system issues, such as a bad fuel pump or clogged filter. For instance, if the relay fails to close during cranking, the fuel pump won’t prime, leading to hard starts. To differentiate, use a test light to check for power at the fuel pump connector when the key is turned to the "on" position. If power is absent, trace the issue back to the relay or its associated wiring. Always consult the Ranger’s wiring diagram to ensure accurate diagnosis, as misidentifying the problem can lead to unnecessary part replacements.
Mastering Electric Fuel Pump Plumbing: A Step-by-Step Installation Guide
You may want to see also
Explore related products
Steps to Replace the Relay
The fuel pump relay in a 1993 Ford Ranger is typically located in the engine compartment fuse box, often near the firewall on the driver's side. Identifying its exact position is crucial before attempting a replacement, as this ensures you’re working on the correct component. Once located, replacing the relay is a straightforward process that requires minimal tools and time, but precision is key to avoid damaging surrounding components.
Begin by disconnecting the negative battery terminal to prevent electrical mishaps. This step is non-negotiable, as it safeguards both you and the vehicle’s electrical system. Next, open the hood and locate the fuse box. The fuel pump relay is usually labeled, but if not, consult the owner’s manual or a repair guide for its specific position. Once identified, carefully pull the relay straight out of its slot—do not twist or force it, as this can damage the socket.
With the old relay removed, inspect the new relay to ensure it matches the original in terms of part number and pin configuration. Mismatched relays can cause system failures or damage. Insert the new relay into the slot, ensuring it clicks securely into place. Reattach the negative battery terminal and test the vehicle to confirm the fuel pump operates correctly. If the engine starts and runs smoothly, the replacement was successful.
While the process is simple, caution is advised. Avoid touching the relay’s electrical contacts with bare hands or metal tools, as oils and debris can interfere with conductivity. Additionally, if the relay is difficult to remove, use a relay puller tool rather than forcing it. Finally, if the vehicle still fails to start after replacement, the issue may lie elsewhere, such as a faulty fuel pump or wiring, necessitating further diagnosis.
Resetting Your 2008 Nissan Altima's Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Testing the Fuel Pump Relay
The fuel pump relay in a 1993 Ford Ranger is a critical component that ensures the fuel pump operates correctly, delivering fuel from the tank to the engine. Testing this relay is essential when diagnosing fuel system issues, as a faulty relay can mimic symptoms of a failing fuel pump or other related problems. Understanding how to test the relay can save time and money by pinpointing the exact cause of the issue.
To begin testing the fuel pump relay, locate it first. In a 1993 Ford Ranger, the relay is typically found in the under-hood fuse/relay box, often labeled as "FPR" or "Fuel Pump Relay." Once located, visually inspect the relay for signs of damage, such as corrosion or burnt pins. If the relay appears intact, proceed with a functional test using a multimeter. Set the multimeter to the ohms setting and test the relay’s internal contacts by placing the probes on the appropriate pins. A properly functioning relay should show continuity when energized and no continuity when de-energized.
Another effective method for testing the fuel pump relay is to swap it with a relay of the same type from another circuit, such as the horn or cooling fan relay. If the fuel pump begins to operate after swapping, the original relay is likely faulty. Conversely, if the swapped relay fails to activate the fuel pump, the issue may lie elsewhere, such as with the fuel pump itself or the wiring harness. This method is straightforward and requires no specialized tools beyond a basic understanding of relay operation.
When testing the fuel pump relay, it’s crucial to consider safety precautions. Always disconnect the battery before handling electrical components to prevent short circuits or accidental activation of the fuel pump. Additionally, work in a well-ventilated area to avoid inhaling fuel vapors. If you’re unsure about any step, consult a repair manual or seek assistance from a professional mechanic to ensure accuracy and safety.
In conclusion, testing the fuel pump relay on a 1993 Ford Ranger is a practical skill that can help diagnose fuel system issues efficiently. By combining visual inspection, multimeter testing, and relay swapping, you can confidently determine whether the relay is functioning correctly. This approach not only saves time but also ensures that you address the root cause of the problem, avoiding unnecessary repairs or part replacements.
Diagnosing a Bad Fuel Pump in Your 2006 GMC Sierra
You may want to see also
Frequently asked questions
The fuel pump relay on a 1993 Ford Ranger is typically located in the power distribution box under the hood. It is often found near the firewall on the driver's side.
The fuel pump relay is usually labeled as "FUEL PUMP" or "FP" on the underside of the power distribution box lid. It is a rectangular or square-shaped relay with several pins.
If the relay is not in the power distribution box, check the fuse panel inside the cab or consult the vehicle’s owner’s manual for the exact location. It may also be located near the fuel pump itself, though this is less common.
