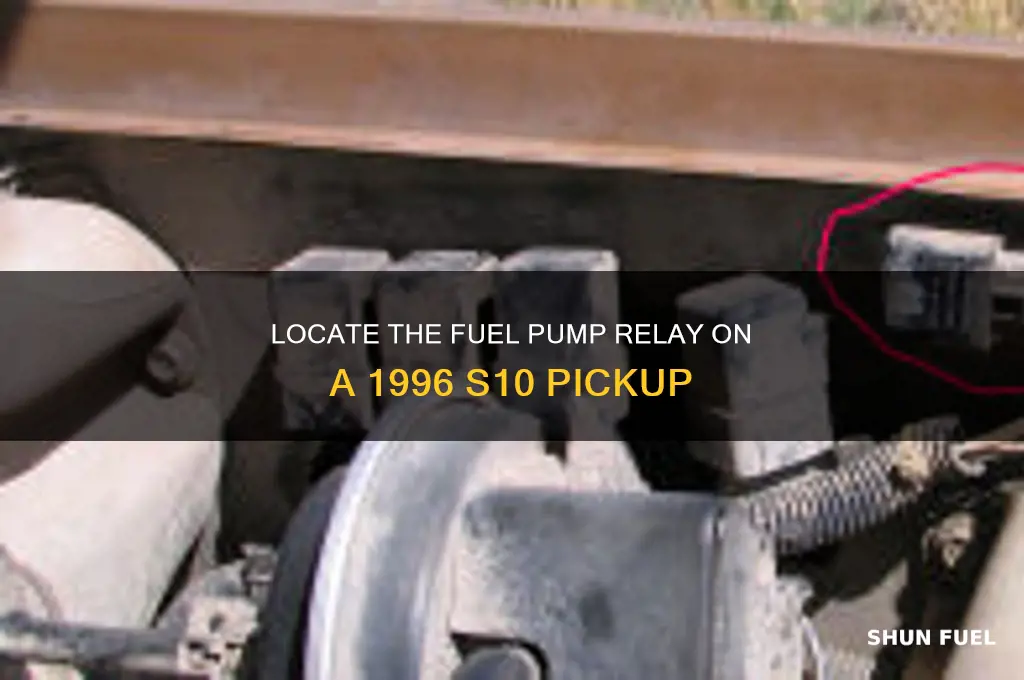

The fuel pump relay on a 1996 Chevrolet S10 pickup is typically located in the underhood fuse/relay box, which is situated near the battery on the driver's side of the engine compartment. This relay is a crucial component of the vehicle's fuel system, as it controls the power supply to the fuel pump, ensuring proper fuel delivery to the engine. Identifying its exact location can be essential for troubleshooting fuel-related issues or performing maintenance tasks, and consulting the vehicle's manual or a repair guide can provide specific diagrams and instructions for accessing the relay.
| Characteristics | Values |
|---|---|
| Location | Under the hood, inside the fuse/relay box near the battery. |
| Fuse/Relay Box Label | Often labeled as "Underhood Fuse/Relay Center" or "Engine Compartment Fuse Block." |
| Relay Position | Typically in the top row, labeled as "Fuel Pump" or "FP." |
| Relay Color | Usually black or gray, depending on the manufacturer. |
| Function | Controls power to the fuel pump, ensuring it operates when the engine is running or cranking. |
| Diagnostic Tip | If the fuel pump is not working, check the relay for proper operation or swap it with a similar relay in the same box. |
| Replacement Part | Standard fuel pump relay compatible with 1996 Chevy S10 pickups. |
| Access Difficulty | Easy to access; requires opening the hood and locating the fuse/relay box. |
| Tools Required | None or a small flathead screwdriver to pry open the relay box cover. |
| Year Applicability | Specific to 1996 Chevrolet S10 pickups. |
Explore related products
What You'll Learn
Fuel pump relay location in 96 S10 pickup
The fuel pump relay in a 1996 Chevrolet S10 pickup is a critical component for ensuring your vehicle’s fuel system operates correctly. Located under the hood, this relay is typically housed in the underhood fuse/relay center, a black box near the firewall on the driver’s side. To access it, you’ll need to remove the lid of the fuse/relay center, which often requires a simple pry tool or screwdriver. Once open, the fuel pump relay is usually labeled, making identification straightforward. If the label is missing or unclear, consult the owner’s manual or a repair guide for the exact position, as relays are often arranged in a specific order.
Understanding the function of the fuel pump relay is key to diagnosing issues. This relay acts as a switch, allowing power to flow to the fuel pump when the ignition is turned on. If your S10 struggles to start or stalls, a faulty relay could be the culprit. Testing the relay involves swapping it with another identical relay in the fuse box (like the horn relay) to see if the issue persists. If the problem moves, the relay is likely defective. Replacement relays are inexpensive and widely available at auto parts stores, ensuring a quick fix.
For DIY enthusiasts, replacing the fuel pump relay is a simple task. Start by disconnecting the battery to prevent accidental shorts. Locate the relay in the underhood fuse/relay center, then grasp it firmly and pull straight out. Insert the new relay, ensuring it clicks into place. Reattach the fuse box cover and reconnect the battery. Test the vehicle to confirm the issue is resolved. Keep in mind that while the relay is a common failure point, persistent fuel system issues may indicate a problem with the pump itself or the wiring harness.
Comparing the 1996 S10’s fuel pump relay location to other GM vehicles of the same era reveals a consistent design. Many trucks and cars from the mid-90s share this underhood fuse/relay center layout, making troubleshooting familiar across models. However, the S10’s relay is sometimes less accessible due to its proximity to the firewall and surrounding components. Using a flashlight and taking your time to avoid damaging nearby parts is essential. This consistency in design also means that troubleshooting steps and replacement procedures are often transferable, saving time for experienced mechanics.
Finally, a practical tip for S10 owners: keep a spare fuel pump relay in your glove compartment. Given its low cost and the relay’s role in starting the vehicle, having a backup can prevent being stranded. Additionally, if you’re unsure about the relay’s condition, test it with a multimeter to check for continuity. This proactive approach ensures you’re prepared for one of the most common electrical failures in older vehicles. By familiarizing yourself with the fuel pump relay’s location and function, you’ll maintain your S10’s reliability for years to come.
Bypassing the Fuel Pump on a 1995 Dodge Dakota: A DIY Guide
You may want to see also
Explore related products
Identifying the fuel pump relay in 96 S10
The fuel pump relay in a 1996 Chevrolet S10 pickup is a critical component for ensuring your vehicle’s fuel system operates correctly. Located under the hood, this relay is typically housed in the underhood fuse/relay center, a black box near the battery on the driver’s side. To identify it, first consult your S10’s service manual for a diagram of the relay center, as the fuel pump relay is often labeled as "FUEL" or "FP." If the manual isn’t available, look for a rectangular relay with four or five pins, usually positioned in a row with other relays of similar size. Its placement may vary slightly depending on the S10’s trim or engine configuration, but it’s consistently found in this underhood center.
Once you’ve located the relay center, identifying the fuel pump relay requires a methodical approach. Relays in this center are often interchangeable, so physical appearance alone isn’t always conclusive. A practical tip is to use a multimeter to test for continuity or power when the ignition is turned on. With the key in the "ON" position, the fuel pump relay should click momentarily, indicating it’s activating the pump. If you’re unsure, swap it with another relay of the same type (e.g., the horn relay) to see if the fuel pump issue persists or transfers to another system. This diagnostic approach ensures you’re targeting the correct relay.
A common mistake when identifying the fuel pump relay is assuming it’s located inside the cab or near the fuel tank. Unlike some vehicles, the 96 S10 places this relay under the hood for easier access and protection from the elements. If you’re still struggling, consider the relay’s function: it’s designed to handle high current loads briefly, so it’s typically larger than other relays in the center. Additionally, the fuel pump relay often has a higher amperage rating, which may be stamped on its side. Cross-referencing this with the relay center diagram can confirm its identity.
For those troubleshooting a no-start condition, verifying the fuel pump relay’s functionality is a critical step. A faulty relay can prevent the pump from priming the engine, leading to symptoms like cranking without starting. If the relay appears intact but the issue persists, check the fuse associated with the fuel pump circuit, usually located in the same underhood center. Replacing the relay is straightforward—simply pull it straight out and insert a new one, ensuring it’s seated firmly. Always use a relay with the same part number or specifications to avoid compatibility issues.
In summary, identifying the fuel pump relay in a 96 S10 involves locating the underhood fuse/relay center, consulting diagrams or testing for function, and ruling out common misconceptions. By focusing on its position near the battery, using diagnostic tools, and understanding its role in the fuel system, you can efficiently pinpoint and address issues related to this component. This knowledge not only saves time but also empowers you to maintain your S10’s reliability with confidence.
Does the King Air Use a Vane-Type Fuel Pump?
You may want to see also
Explore related products
Accessing the fuel pump relay in 96 S10
The fuel pump relay in a 1996 Chevrolet S10 pickup is a critical component for ensuring your vehicle’s engine receives the necessary fuel. Located under the hood, this relay is part of the underhood fuse/relay center, which houses several other relays and fuses. To access it, start by opening the hood and locating the fuse/relay box on the driver’s side fender. This box is typically a black rectangular unit with a snap-on lid. Once identified, carefully remove the lid to expose the relays and fuses inside.
Analyzing the layout of the fuse/relay center is essential to avoid confusion. The fuel pump relay is usually labeled as "FUEL PUMP" or "FP" on the underside of the lid or in the owner’s manual. If the label is missing or unclear, consult a repair manual or online diagram specific to the 1996 S10. The relay itself is a small, cube-shaped component with several pins. It’s important to note that relays in this center are often interchangeable in size, so visual identification alone may not be sufficient.
To remove the fuel pump relay, grasp it firmly and pull straight up. Avoid wiggling or twisting, as this can damage the relay or its socket. If the relay is stubborn, use a flathead screwdriver to gently pry it out, taking care not to apply excessive force. Once removed, inspect the relay for signs of corrosion, melting, or damage. A faulty relay may cause the fuel pump to fail, leading to engine stalling or difficulty starting.
Practical tips for accessing the fuel pump relay include working in a well-lit area and using a flashlight if necessary. Keep a diagram or manual handy for reference, especially if you’re unfamiliar with the layout. If testing the relay, use a multimeter to check for continuity across the terminals. Replacing the relay is straightforward—insert the new one into the socket, ensuring it clicks into place securely. After installation, test the vehicle to confirm the fuel pump operates correctly.
In conclusion, accessing the fuel pump relay in a 96 S10 is a manageable task with the right approach. By locating the fuse/relay center, identifying the correct relay, and handling it carefully, you can diagnose or replace this component efficiently. Always prioritize safety and accuracy to avoid further issues with your vehicle’s fuel system.
Understanding the Fuel Pump Setup in a 2004 Powerstroke Engine
You may want to see also
Explore related products
Troubleshooting fuel pump relay issues in 96 S10
The fuel pump relay in a 1996 S10 pickup is a critical component that ensures your vehicle’s fuel system operates efficiently. Located under the hood in the fuse/relay box near the battery, this relay acts as a switch, controlling power to the fuel pump. If your S10 struggles to start, stalls, or fails to run, a faulty fuel pump relay could be the culprit. Before assuming the pump itself is defective, troubleshooting the relay can save time and money.
Step 1: Locate and Inspect the Relay
Begin by opening the hood and identifying the fuse/relay box on the driver’s side, near the battery. The fuel pump relay is typically labeled "FP" or "FUEL PUMP" on the box’s underside diagram. Remove the relay by pulling it straight out. Visually inspect it for signs of corrosion, burnt pins, or damage. If the relay appears compromised, replace it with a known good one to test functionality.
Step 2: Test for Power and Ground
Use a multimeter to verify the relay’s electrical connections. With the key in the "ON" position, check for power at the relay’s input terminal (pin 86). If power is present, test for ground at pin 85. If either is missing, the issue may lie in the wiring or the PCM (Powertrain Control Module). A lack of power or ground prevents the relay from activating the fuel pump.
Step 3: Swap Relays for Diagnostic Clarity
If the fuel pump relay appears functional, swap it with a relay of the same type (e.g., the A/C compressor relay) to rule out internal failure. If the engine starts or the fuel pump primes after the swap, the original relay is likely faulty. Always consult the S10’s service manual for pin configurations to avoid damaging other systems during this test.
Caution: Avoid Common Pitfalls
Resist the urge to bypass the relay by jumping power directly to the fuel pump, as this can damage the pump or wiring. Additionally, ensure the ignition is off when handling relays to prevent electrical shorts. If troubleshooting reveals no issues with the relay, consider testing the fuel pump fuse, inertia switch (if equipped), or the pump itself for further diagnosis.
Troubleshooting the fuel pump relay in a 96 S10 requires methodical steps and attention to detail. By systematically inspecting, testing, and swapping components, you can isolate the problem efficiently. If the relay is indeed faulty, replacing it with a high-quality part ensures reliable fuel delivery. Always prioritize safety and accuracy to avoid misdiagnosis and unnecessary repairs.
Oil Pump vs. Fuel Pump: Understanding Their Distinct Roles in Engines
You may want to see also
Explore related products
Replacing the fuel pump relay in 96 S10 pickup
The fuel pump relay in a 1996 S10 pickup is a critical component that ensures your vehicle’s fuel system operates efficiently. Located under the hood, this relay is typically housed in the main fuse/relay box near the battery. Identifying its exact position can be tricky, as the box often contains multiple relays and fuses, but it’s usually labeled as "FUEL PUMP" or "FP" on the underside of the lid. Before attempting replacement, consult your vehicle’s manual or a reliable online diagram to confirm its location.
Replacing the fuel pump relay is a straightforward task that requires minimal tools and time. Start by disconnecting the battery to prevent electrical mishaps. Open the hood and locate the fuse/relay box, then remove its cover to access the relays. Identify the fuel pump relay by matching its position to the diagram on the lid or using a multimeter to test for continuity. Once identified, grasp the relay firmly and pull it straight out of its socket. Insert the new relay, ensuring it clicks into place securely. Reattach the cover and reconnect the battery to complete the process.
While the replacement process is simple, there are a few cautions to keep in mind. First, avoid touching the relay terminals with your fingers to prevent oil or dirt from causing a poor connection. Second, ensure the replacement relay matches the specifications of the original; using an incorrect part can lead to system malfunctions. Lastly, if the vehicle still fails to start after replacement, the issue may lie elsewhere, such as a faulty fuel pump or clogged fuel filter, requiring further diagnosis.
In conclusion, replacing the fuel pump relay in a 96 S10 pickup is a cost-effective DIY repair that can restore your vehicle’s performance. By locating the relay accurately, following proper steps, and observing precautions, you can complete the task efficiently. This small fix can save you from unnecessary trips to the mechanic and keep your S10 running smoothly for years to come.
Step-by-Step Guide to Safely Pumping Out a Fuel Dispenser
You may want to see also
Frequently asked questions
The fuel pump relay on a 1996 S10 pickup is typically located in the underhood fuse/relay box. This box is usually found near the driver's side fender or firewall.
The fuel pump relay is often labeled as "FUEL PUMP" or "FP" on the underside of the fuse/relay box cover. It is a small, rectangular relay with several pins.
If the relay is not in the underhood box, check the interior fuse panel or consult the vehicle’s service manual for the exact location. It’s also possible the relay may have been relocated due to previous repairs.
