The fuel pump relay on a 1989 Chevy 1500 is typically located in the underhood fuse/relay box, often found near the firewall on the driver's side. This relay is a crucial component of the vehicle's fuel system, as it controls the power supply to the fuel pump, ensuring it operates only when the engine is running or being started. Identifying its exact location can vary slightly depending on the specific model and any modifications, so consulting the vehicle's manual or a wiring diagram can provide precise guidance. Accessing the relay usually involves opening the hood, locating the fuse/relay box, and removing its cover to identify the correct relay based on its labeling or diagram.
| Characteristics | Values |
|---|---|
| Location | Under the hood, in the fuse/relay box near the firewall or battery area. |
| Fuse/Relay Box Label | Often labeled as "Fuse Block" or "Underhood Fuse Block." |
| Relay Identification | Typically labeled as "Fuel Pump" or "EEC" (Electronic Engine Control). |
| Relay Color | Usually black or gray, but color may vary. |
| Relay Pin Configuration | 4 or 5 pins, depending on the specific relay model. |
| Function | Controls power to the fuel pump, enabling it to operate. |
| Diagnostic Tip | If the fuel pump is not working, check the relay for clicking when ignition is turned on. |
| Replacement Part | Available at auto parts stores; ensure compatibility with 1989 Chevy 1500. |
| Additional Notes | Some models may have the relay integrated into the main fuse block. |
Explore related products
What You'll Learn
- Location under hood: Near the fuse box, driver's side, close to the firewall
- Identifying the relay: Small black cube with four prongs, labeled FUEL PUMP
- Testing the relay: Use a multimeter to check for continuity and proper function
- Common issues: Relay failure causes no-start, requires replacement or cleaning contacts
- Replacement steps: Disconnect battery, swap relay, reconnect, and test fuel pump operation
Location under hood: Near the fuse box, driver's side, close to the firewall

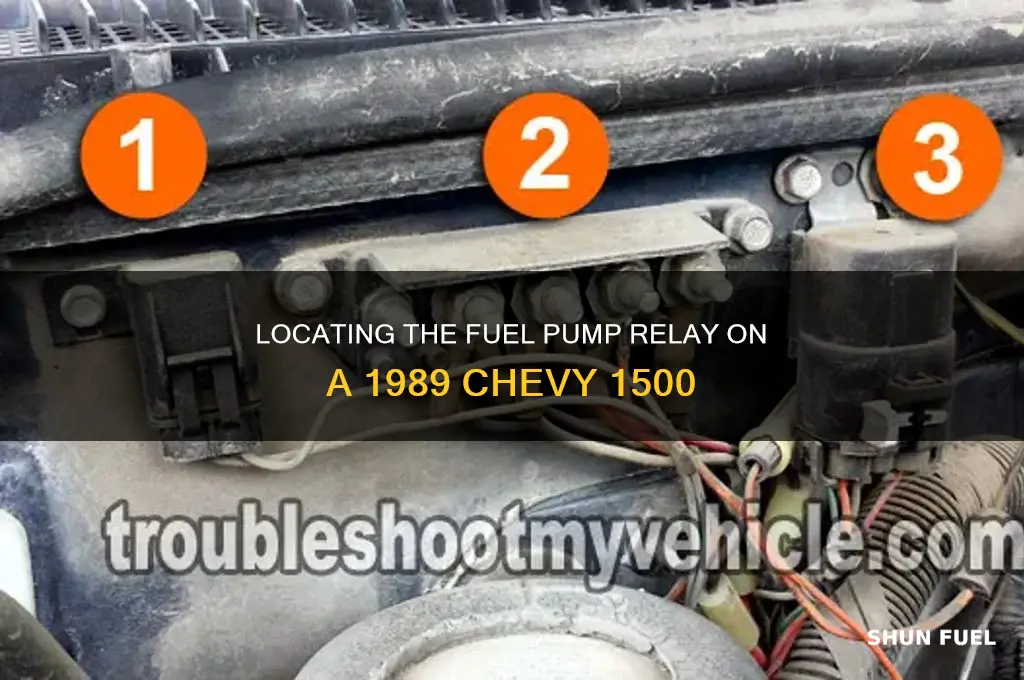

The 1989 Chevy 1500's fuel pump relay is strategically positioned under the hood, near the fuse box on the driver's side, close to the firewall. This location is no accident; it’s a design choice that balances accessibility with protection from the elements. The firewall acts as a shield, safeguarding the relay from excessive heat and moisture, while its proximity to the fuse box simplifies wiring and reduces the risk of electrical interference. This placement also ensures that the relay is within easy reach for diagnostics or replacement, making it a practical choice for both mechanics and DIY enthusiasts.
For those unfamiliar with under-hood layouts, locating the fuel pump relay can be straightforward if you know what to look for. Start by opening the hood and identifying the fuse box, typically a rectangular or square-shaped unit with a removable cover. The relay is usually a small, cube-shaped component with a series of prongs or terminals, often labeled or color-coded for identification. Its position near the firewall means it’s slightly recessed, but still visible once you’re familiar with its appearance. A flashlight can be helpful in low-light conditions to spot it quickly.
One practical tip for accessing the fuel pump relay is to ensure the vehicle is turned off and cooled down before beginning. This not only prevents accidental electrical shorts but also makes it safer to work under the hood. If you’re replacing the relay, compare the new part with the old one to ensure compatibility, as some models may have slight variations. Additionally, keep a diagram or manual handy to confirm the correct orientation of the relay during installation, as improper placement can lead to malfunctions.
Comparing the 1989 Chevy 1500’s fuel pump relay location to newer models highlights how automotive design has evolved. Modern vehicles often integrate relays into a centralized module, reducing the number of individual components under the hood. However, the 1989 model’s approach has its advantages: simplicity and ease of access. This design allows for quicker troubleshooting and repairs, particularly in situations where time is of the essence, such as diagnosing a no-start condition.
In conclusion, understanding the location of the fuel pump relay on a 1989 Chevy 1500—near the fuse box, driver’s side, close to the firewall—is key to efficient maintenance and repairs. Its placement is a thoughtful balance of protection and accessibility, making it a standout feature in the vehicle’s under-hood layout. Whether you’re a seasoned mechanic or a first-time DIYer, knowing exactly where to find this component can save time and frustration, ensuring your Chevy stays on the road.
Does the Ford Ranger Have Two Fuel Pumps? Explained
You may want to see also
Explore related products
Identifying the relay: Small black cube with four prongs, labeled FUEL PUMP
The fuel pump relay in a 1989 Chevy 1500 is a critical component, often overlooked until it fails. To identify it, look for a small black cube with four prongs, clearly labeled "FUEL PUMP." This relay is typically located under the hood, near the firewall, within the fuse and relay box. Its compact design and distinct labeling make it relatively easy to spot once you know what you're looking for.
Analyzing its design, the four prongs serve specific functions: two for power input and output, and two for switching the fuel pump circuit. The black casing is made of durable plastic to withstand under-hood temperatures and vibrations. Despite its simplicity, this relay plays a vital role in ensuring your fuel pump operates correctly, delivering fuel from the tank to the engine.
When troubleshooting fuel delivery issues, start by inspecting this relay. A faulty relay can cause the fuel pump to fail, leading to a no-start condition. To test it, swap the fuel pump relay with another relay of the same type (e.g., the horn relay) and check if the issue persists. If the fuel pump activates after the swap, the relay is likely the culprit and needs replacement.
Practical tip: Keep a spare fuel pump relay in your glove compartment. Relays are inexpensive and easy to replace, making them a handy item for roadside repairs. Ensure the replacement relay matches the original in terms of prong configuration and labeling to avoid compatibility issues.
In summary, identifying the fuel pump relay in a 1989 Chevy 1500 is straightforward once you know its characteristics. Its small black cube design, four prongs, and "FUEL PUMP" label make it distinguishable. Understanding its function and location can save time and frustration when diagnosing fuel system problems, making it a valuable piece of knowledge for any Chevy owner.
DIY Guide: Replacing the Fuel Pump on a 2003 Ford Expedition
You may want to see also
Explore related products
Testing the relay: Use a multimeter to check for continuity and proper function
The fuel pump relay in a 1989 Chevy 1500 is a critical component that ensures your engine receives the necessary fuel for operation. Located under the hood, typically near the firewall on the driver's side, this relay can be a culprit if your truck struggles to start or stalls unexpectedly. Testing the relay with a multimeter is a straightforward way to diagnose issues before replacing parts unnecessarily.
To begin testing, disconnect the relay from its socket and identify its terminals. Most fuel pump relays have four or five pins, with specific functions like power input, ground, and coil control. Set your multimeter to the continuity mode (usually indicated by a diode symbol or a beep sound). Place the probes on the appropriate terminals to check for continuity. For instance, there should be continuity between the power input and ground terminals when the relay is activated. If the multimeter shows no continuity or an open circuit, the relay is likely faulty and needs replacement.
Next, test the relay’s coil to ensure it’s functioning properly. Apply power to the coil terminals using a 12-volt source, such as a battery or jumper wires. When energized, the relay should click, indicating the internal switch has closed. Use the multimeter to verify continuity across the switched terminals during this test. If the relay doesn’t click or the multimeter shows no continuity, the coil or internal contacts may be damaged.
A practical tip is to compare the relay’s behavior with a known good one if available. Swap the relays and observe if the issue persists. If the problem resolves, the original relay is defective. Always ensure the ignition is off during testing to avoid electrical hazards. Testing the relay systematically with a multimeter not only saves time but also prevents misdiagnosis, ensuring you address the root cause of your fuel system issues.
Subaru Fuel Pump Compatibility: Do All Models Fit Interchangeably?
You may want to see also
Explore related products
Common issues: Relay failure causes no-start, requires replacement or cleaning contacts
A failing fuel pump relay in a 1989 Chevy 1500 can be a frustrating culprit behind a no-start condition. This small component, often overlooked, plays a critical role in delivering power to the fuel pump, ensuring your engine receives the necessary fuel for ignition. When the relay malfunctions, it disrupts this vital flow, leaving you stranded.
Understanding the symptoms and remedies for relay failure is crucial for any Chevy 1500 owner.
Diagnosing a faulty fuel pump relay often begins with observing telltale signs. If your engine cranks but refuses to start, and you've ruled out issues like a dead battery or clogged fuel filter, the relay could be the culprit. A clicking noise from the relay when attempting to start the engine is another common indicator. This sound suggests the relay is trying to engage but failing to complete the circuit.
In some cases, a failing relay might allow the engine to start intermittently, further complicating diagnosis.
Replacing the fuel pump relay is a relatively straightforward task, often requiring basic tools and minimal mechanical expertise. Locate the relay, typically found in the underhood fuse box, and consult your Chevy 1500's manual for its exact position. After disconnecting the battery for safety, simply swap out the old relay for a new one, ensuring the replacement is the correct type for your vehicle.
This cost-effective solution can often restore your Chevy's starting ability in a matter of minutes.
Before resorting to replacement, consider cleaning the relay contacts as a potential temporary fix. Over time, corrosion or dirt can accumulate on the contacts, hindering proper electrical connection. Carefully remove the relay, clean the contacts with a contact cleaner or fine-grit sandpaper, and reinsert it. While this may not be a permanent solution, it can buy you time until you can source a replacement relay. Remember, safety is paramount; always disconnect the battery before working on any electrical components.
Does a Fuel Pump Have a Kill Switch? Exploring Safety Features
You may want to see also
Explore related products
Replacement steps: Disconnect battery, swap relay, reconnect, and test fuel pump operation
The fuel pump relay in a 1989 Chevy 1500 is typically located under the hood, near the firewall on the driver's side. It’s often housed in a relay center or fuse box, which may require some disassembly to access. Before attempting any replacement, understanding its exact location is crucial, as misidentification can lead to unnecessary work or damage. Once located, the replacement process is straightforward but demands precision and safety precautions.
Step 1: Disconnect the Battery
Safety is paramount when working with electrical systems. Start by disconnecting the negative battery terminal to eliminate the risk of electrical shock or short circuits. Use a wrench or socket to loosen the terminal clamp, then carefully pull the cable away from the battery. This step ensures no power flows through the system while you handle the relay, preventing accidental activation of the fuel pump or other components.
Step 2: Swap the Relay
With the battery disconnected, locate the fuel pump relay and identify its position within the relay center. Relays are typically labeled, but if not, consult the vehicle’s manual or a diagram for confirmation. Grip the relay firmly and pull it straight out of its slot—avoid twisting or forcing it, as this can damage the socket. Insert the new relay in the same orientation as the old one, ensuring it clicks securely into place. Double-check the alignment to prevent malfunctions.
Step 3: Reconnect the Battery
Once the relay is replaced, reattach the negative battery terminal. Tighten the clamp securely but avoid over-tightening, which can strip the threads or damage the terminal. Ensure the connection is firm to maintain proper electrical flow. At this point, the vehicle’s electrical system is live again, so proceed with caution during the final step.
Step 4: Test Fuel Pump Operation
With the battery reconnected, turn the ignition key to the "On" position (without starting the engine). Listen carefully for the fuel pump’s priming cycle—a faint humming sound that lasts 2-3 seconds. If the sound is absent, check the relay’s connection and ensure it’s seated correctly. If the pump still doesn’t operate, test the relay with a multimeter or consider other potential issues, such as a faulty pump or wiring. Successful operation confirms the relay replacement was effective.
This process, when followed meticulously, ensures a safe and efficient fuel pump relay replacement, restoring proper fuel system functionality to your 1989 Chevy 1500.
Fix Your Fuel Pump Relay: A Step-by-Step Repair Guide
You may want to see also
Frequently asked questions
The fuel pump relay on a 1989 Chevy 1500 is typically located in the underhood fuse/relay box. It is often found near the firewall on the driver's side.
The fuel pump relay is usually labeled as "FUEL PUMP" or "FP" on the underside of the fuse box lid. It is a rectangular or square-shaped relay with several pins.
If the relay is not in the underhood fuse box, check the cab fuse panel or consult the vehicle's service manual for the exact location, as some models may have it in a different spot.
Yes, you can test the relay using a multimeter or by swapping it with another relay of the same type in the fuse box. Listen for the fuel pump to engage when the key is turned to the "ON" position.
