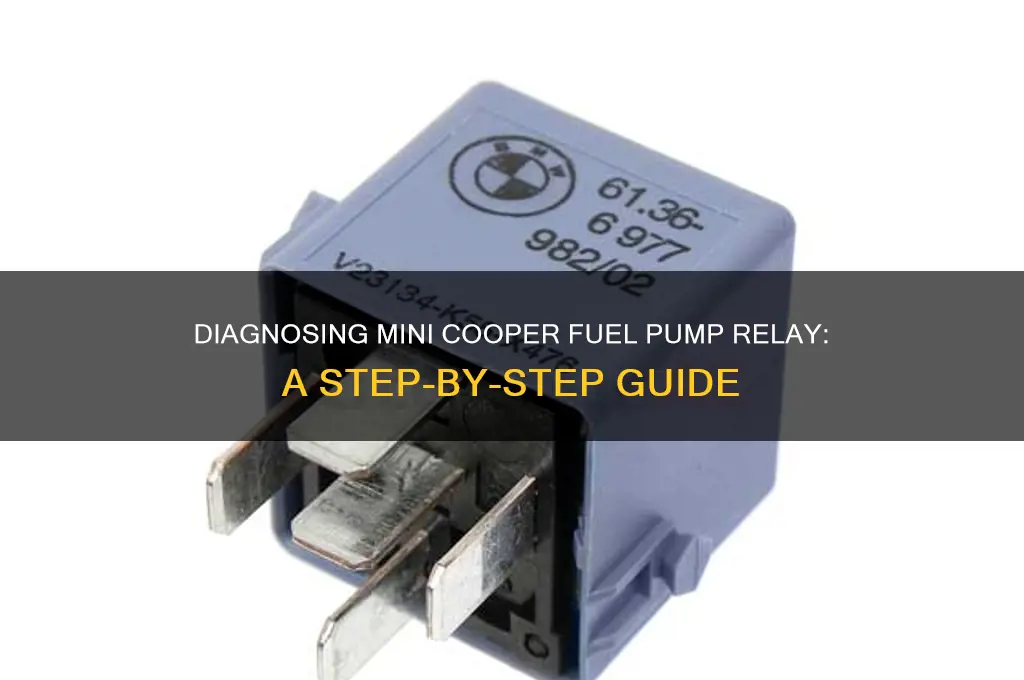

Checking the fuel pump relay on a Mini Cooper is a crucial diagnostic step if you suspect issues with fuel delivery, such as a no-start condition or erratic engine performance. The fuel pump relay is responsible for controlling power to the fuel pump, ensuring it operates correctly. To inspect it, locate the relay, typically found in the fuse box under the hood or near the battery. Consult your Mini Cooper’s manual for the exact location. Once identified, swap the fuel pump relay with a similar relay in the fuse box to test for functionality. If the issue persists, use a multimeter to check for continuity or voltage across the relay’s terminals. If the relay is faulty, replace it with a new one to restore proper fuel pump operation. Always ensure the ignition is off when working with electrical components to avoid accidents.
| Characteristics | Values |
|---|---|
| Vehicle Model | Mini Cooper (All Generations: R50, R52, R53, R55, R56, F54, F55, F56, etc.) |
| Relay Location | Typically found in the fuse box under the hood or near the battery. |
| Relay Identification | Often labeled as "FUEL PUMP" or "FP" on the fuse box diagram. |
| Tools Required | Multimeter, small screwdriver, and a test light (optional). |
| Steps to Check Relay | 1. Locate the relay in the fuse box. 2. Swap the fuel pump relay with a similar relay (e.g., horn relay) to test functionality. 3. Use a multimeter to check for continuity or voltage across the relay terminals. 4. Listen for the fuel pump humming sound when turning the ignition to the "ON" position. |
| Common Symptoms of Faulty Relay | Engine cranks but doesn’t start, no fuel pressure, or intermittent starting issues. |
| Replacement Relay Part Number | Varies by model; check Mini Cooper service manual or parts catalog. |
| Safety Precautions | Disconnect the battery before working on the electrical system. |
| Additional Tips | Check the fuse associated with the fuel pump relay for blows. |
| Professional Assistance | If unsure, consult a certified Mini Cooper technician for diagnosis. |
Explore related products
What You'll Learn
- Locate the Relay: Identify the fuel pump relay's position in the fuse box
- Test for Power: Use a multimeter to check voltage at relay terminals
- Swap Relays: Temporarily replace with a similar relay to test functionality
- Inspect Connections: Ensure all wires and connectors are secure and undamaged
- Listen for Operation: Start the car and listen for relay clicking sounds
Locate the Relay: Identify the fuel pump relay's position in the fuse box
The fuel pump relay in a Mini Cooper is a critical component, ensuring your engine receives the necessary fuel for operation. Locating this relay is the first step in any diagnostic or replacement process. The Mini Cooper's fuse box, often referred to as the junction box, houses various relays and fuses, making it a central hub for electrical troubleshooting. To begin, you'll need to familiarize yourself with the layout of this box, which can be found in the engine bay, typically on the driver's side.
A Visual Inspection: Start by opening the hood and locating the fuse box. It is usually a black rectangular unit with a removable cover. Upon removing the cover, you'll be greeted by a grid of fuses and relays, each labeled with a specific function. The fuel pump relay is often labeled as "FUEL PUMP" or "FP," but this can vary depending on the model year and region. A quick visual scan of the fuse box diagram, often found on the inside of the cover or in the owner's manual, will provide you with the exact location. For instance, in some Mini Cooper models, the fuel pump relay is positioned in the top row, second from the left.
Model Variations: It's essential to note that Mini Cooper models, especially those from different generations, may have variations in their fuse box layouts. The R50 and R53 models, for instance, have a slightly different arrangement compared to the later F56 models. In the R50/R53 series, the fuel pump relay is typically located in the engine bay fuse box, while some F56 models may have an additional fuse box in the cabin, requiring you to check both locations. This highlights the importance of consulting the specific model's manual or online resources for accurate information.
Practical Tips: When locating the fuel pump relay, ensure the vehicle is turned off and the keys are removed to prevent any accidental starts. Use a flashlight to illuminate the fuse box, making it easier to read the labels. If you're unsure about the relay's position, cross-referencing with the diagram is crucial. Some relays may look similar, so double-checking the label is a simple yet effective way to avoid mistakes. Additionally, keeping a record of the relay's position can save time during future inspections or repairs.
Identifying the fuel pump relay's position is a straightforward task with the right resources. By understanding the layout of the fuse box and considering model-specific variations, Mini Cooper owners can efficiently locate this vital component. This knowledge empowers car enthusiasts and DIY mechanics to tackle fuel system-related issues with confidence, ensuring a well-maintained and reliable vehicle.
