The fuel pump relay on a 1995 Pontiac Firebird is a critical component in the vehicle's fuel system, responsible for controlling the power supply to the fuel pump. Locating this relay can be essential for troubleshooting fuel delivery issues or performing maintenance. In the 1995 Firebird, the fuel pump relay is typically found in the underhood fuse/relay box, which is usually located near the driver's side fender or firewall. It is often labeled for easy identification, though consulting the owner's manual or a repair guide can provide specific details for your model. Accessing the relay may require removing a protective cover, and it is important to ensure the vehicle is turned off before handling any electrical components to avoid potential hazards.
| Characteristics | Values |
|---|---|
| Location | Under the hood, in the main fuse/relay box near the driver's side fender. |
| Relay Box Name | Underhood Fuse/Relay Center (URC). |
| Relay Position | Typically labeled as "FUEL PUMP" or "FP" in the relay box diagram. |
| Relay Function | Controls power to the fuel pump to ensure proper fuel delivery. |
| Access Difficulty | Moderate; requires locating the relay box and consulting the diagram. |
| Tools Required | None (for visual identification); a relay puller for removal if needed. |
| Common Issues | Relay failure can cause no-start conditions or fuel pump malfunction. |
| Replacement Part | AC Delco Part # 22067243 or equivalent fuel pump relay. |
| Year Applicability | Specific to 1995 Pontiac Firebird models. |
| Diagram Availability | Found in the vehicle's service manual or online repair guides. |
Explore related products
What You'll Learn
- Location under hood: Near the battery, inside the fuse box, left side, easy to access
- Relay identification: Black or blue, rectangular shape, labeled FUEL PUMP, 4-pin connector
- Testing the relay: Use a multimeter, check for continuity, swap with another relay if faulty
- Common issues: Relay failure causes no-start, clicking noise, or fuel pump not priming
- Replacement steps: Disconnect battery, remove relay, install new one, reconnect battery, test
Location under hood: Near the battery, inside the fuse box, left side, easy to access
The 1995 Firebird's fuel pump relay is strategically positioned for accessibility, nestled under the hood near the battery. This placement is no accident; it’s a design choice that balances convenience with protection. The relay’s proximity to the battery minimizes voltage drop, ensuring reliable power delivery to the fuel pump. For owners troubleshooting fuel system issues, this location means less time spent searching and more time diagnosing.
Inside the fuse box on the left side of the engine bay, the fuel pump relay is integrated into a compact, organized system. This arrangement shields the relay from environmental hazards like moisture and debris, which could otherwise compromise its function. To locate it, simply follow the positive battery cable toward the fuse box—the relay is typically labeled for easy identification. This design not only simplifies maintenance but also reduces the risk of misdiagnosis by keeping critical components grouped together.
Accessing the fuel pump relay on a 95 Firebird is straightforward, even for those with limited mechanical experience. Open the hood, locate the battery on the left side, and trace your fingers along the adjacent fuse box. The relay is often a rectangular module with a removable lid, allowing for quick inspection or replacement. No special tools are required, though a basic understanding of electrical systems is helpful to avoid accidental shorts.
For DIY enthusiasts, knowing this location can save time and frustration. If your Firebird exhibits symptoms like hard starting or stalling, the fuel pump relay is a logical starting point. Test it by swapping it with a similar relay in the fuse box or use a multimeter to check for continuity. Replacement relays are affordable and widely available, making this a cost-effective repair. Always disconnect the battery before working on electrical components to prevent injury or damage.
In summary, the fuel pump relay’s location under the hood—near the battery, inside the fuse box on the left side—exemplifies thoughtful engineering. It’s easy to access, logically placed, and designed for durability. Whether you’re a seasoned mechanic or a first-time car owner, understanding this layout empowers you to tackle fuel system issues with confidence. Keep this guide handy for future reference, and you’ll find that maintaining your 95 Firebird’s fuel system is simpler than you might think.
Step-by-Step Guide: Removing Fuel Pump from 1986 Lincoln Continental
You may want to see also
Explore related products
Relay identification: Black or blue, rectangular shape, labeled FUEL PUMP, 4-pin connector

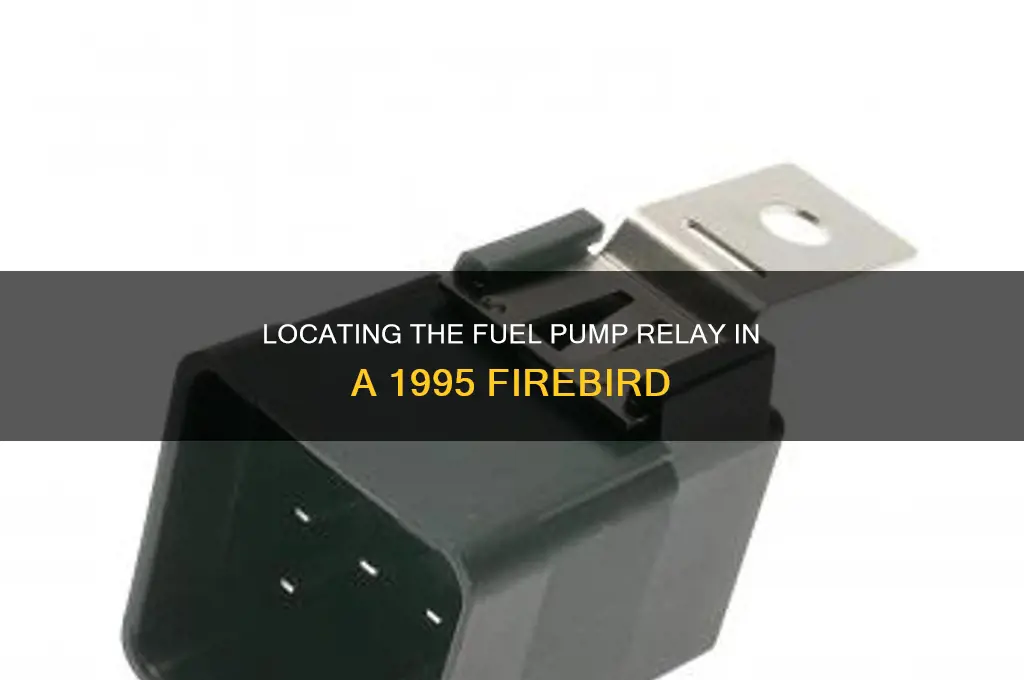

Locating the fuel pump relay in a 1995 Firebird begins with identifying its distinct physical characteristics. The relay is typically black or blue, with a rectangular shape that fits neatly into the fuse box. Its most distinguishing feature is the label "FUEL PUMP," which eliminates guesswork during troubleshooting or replacement. Additionally, it features a 4-pin connector, a critical detail for ensuring compatibility with your vehicle’s electrical system. These specifics make it easier to distinguish from other relays in the fuse box, streamlining the process for both novice and experienced mechanics.
Understanding the relay’s function is key to appreciating its importance. The fuel pump relay acts as a switch, controlling power delivery to the fuel pump. When the ignition is turned on, the relay closes the circuit, allowing current to flow and activate the pump. If the relay fails, the pump may not receive power, leading to engine stalling or failure to start. Recognizing its black or blue casing, rectangular shape, and "FUEL PUMP" label ensures you’re addressing the correct component when diagnosing issues. This knowledge saves time and prevents unnecessary part replacements.
For hands-on troubleshooting, start by locating the fuse box, typically found under the dashboard or in the engine compartment, depending on the Firebird’s configuration. Once opened, scan for the black or blue rectangular relay with the "FUEL PUMP" label and 4-pin connector. If the relay appears damaged or fails a continuity test, replacement is straightforward. Ensure the new relay matches the original’s specifications, including the 4-pin connector, to maintain proper functionality. Always disconnect the battery before handling electrical components to avoid short circuits.
Comparing the 1995 Firebird’s fuel pump relay to those in other vehicles highlights its simplicity. Unlike some modern systems with integrated modules, this relay is a standalone component, making it accessible for DIY repairs. Its clear labeling and standardized 4-pin connector design align with GM’s mid-90s engineering, emphasizing reliability and ease of maintenance. This contrasts with newer vehicles, where relays may be embedded in complex control units, requiring specialized tools for access.
In conclusion, identifying the fuel pump relay in a 1995 Firebird is a matter of recognizing its black or blue rectangular casing, "FUEL PUMP" label, and 4-pin connector. This knowledge not only aids in quick diagnostics but also empowers owners to perform repairs confidently. By understanding its role and location, you can address fuel system issues efficiently, ensuring your Firebird remains reliable on the road. Always refer to a service manual for specific details, but these identifying features provide a solid starting point for any repair.
Detecting a Defective Fuel Pump: Signs, Symptoms, and Solutions
You may want to see also
Explore related products
Testing the relay: Use a multimeter, check for continuity, swap with another relay if faulty
The fuel pump relay in a 1995 Firebird is a critical component that ensures your engine receives the necessary fuel for operation. Located under the hood in the fuse/relay box, this small but mighty part can be the culprit behind a no-start condition or poor engine performance. Testing the relay is a straightforward process that can save you time and money, especially if you suspect it’s faulty. Armed with a multimeter, you can diagnose the issue with confidence.
To begin testing, disconnect the relay from the fuse box and identify its terminals. A typical fuel pump relay has four pins: two for the coil (control circuit) and two for the contacts (power circuit). Set your multimeter to the continuity mode (usually indicated by a diode symbol or a beep sound). Place the probes on the coil terminals with the ignition off; you should see no continuity. Turn the ignition to the "on" position and recheck—now, continuity should be present, indicating the coil is energizing. If there’s no change, the coil is likely faulty.
Next, test the contacts for proper switching. With the ignition off, check continuity between the power input and output terminals. There should be no continuity initially. Turn the ignition on and retest; continuity should now exist, showing the contacts are closing as intended. If continuity is absent during this test, the relay’s contacts are stuck open or damaged. A lack of continuity in either the coil or contacts confirms a faulty relay.
If your tests reveal a problem, swapping the fuel pump relay with another identical relay in the fuse box (such as the horn or A/C relay) can serve as a quick workaround to confirm the diagnosis. If the issue resolves, replace the faulty relay with a new one. Always ensure the replacement relay has the same part number and pin configuration to avoid compatibility issues. Testing the relay systematically not only isolates the problem but also prevents unnecessary replacement of other components like the fuel pump or ignition module.
Step-by-Step Guide to Repairing Your GM Fuel Pump Efficiently
You may want to see also
Explore related products
Common issues: Relay failure causes no-start, clicking noise, or fuel pump not priming
Relay failure in a 1995 Firebird can manifest in several frustrating ways, each pointing to a potential issue with this critical component. One of the most common symptoms is a no-start condition, where the engine cranks but refuses to fire. This occurs because the relay fails to send power to the fuel pump, starving the engine of the fuel it needs to ignite. Another telltale sign is a clicking noise from the relay itself, often heard when the key is turned to the "on" position. This sound indicates the relay is attempting to engage but is unable to complete the circuit due to internal damage or wear. Lastly, a fuel pump that fails to prime—a process where the pump builds pressure in the fuel lines before starting—can also signal relay failure. Without proper priming, the engine may crank but lack the fuel pressure required for combustion.
Diagnosing relay failure requires a systematic approach. Start by locating the fuel pump relay, typically found in the underhood fuse/relay box on the 1995 Firebird. Consult the owner’s manual or a repair guide for the exact location, as it may vary slightly depending on the model. Once located, use a multimeter to test the relay for continuity. A failed relay will show no continuity between the input and output terminals, indicating it needs replacement. Additionally, swapping the fuel pump relay with another relay of the same type (e.g., the horn relay) can help confirm if the issue is relay-specific. If the problem persists with the swapped relay, the issue may lie elsewhere, such as a faulty fuel pump or wiring.
Preventive maintenance can reduce the likelihood of relay failure. Relays are prone to wear due to their electrical contacts degrading over time, especially in high-current applications like fuel pumps. Regularly inspecting the relay for signs of corrosion, overheating, or physical damage can catch issues early. Replacing the relay as part of routine maintenance, particularly if the vehicle has over 100,000 miles, can also prevent unexpected failures. Keep in mind that using a relay with the correct amperage rating is crucial; mismatched relays can fail prematurely or cause further damage to the electrical system.
When replacing a failed relay, opt for a high-quality, OEM-spec part to ensure reliability. Aftermarket relays may be cheaper but can vary in quality, potentially leading to recurring issues. After installation, test the fuel pump by turning the key to the "on" position and listening for the pump’s priming hum, which should last 2-3 seconds. If the pump primes correctly and the engine starts, the relay replacement was successful. However, if the issue persists, further diagnosis of the fuel system—such as checking the fuel pump fuse, wiring, or the pump itself—may be necessary. Addressing relay failure promptly not only restores drivability but also prevents potential damage to the fuel pump or other components due to prolonged operation without proper power.
Understanding Solid State Electric Fuel Pumps: Functionality and Operation Explained
You may want to see also
Explore related products
Replacement steps: Disconnect battery, remove relay, install new one, reconnect battery, test
The fuel pump relay in a 1995 Firebird is typically located under the hood, near the firewall on the driver’s side, within the main fuse and relay center. Identifying it correctly is crucial, as it controls power to the fuel pump, ensuring your engine receives fuel. Before diving into replacement, verify the relay’s position using your vehicle’s manual or a reliable online resource, as slight variations may exist across models.
Step 1: Disconnect the Battery
Safety first. Start by disconnecting the negative battery terminal to prevent electrical shorts or accidental activation of the fuel pump. Use a 10mm wrench or socket to loosen the terminal clamp, then pull the cable away from the battery. Wait at least 5 minutes to allow any residual charge in the system to dissipate. This step is non-negotiable, as working on live electrical systems can be hazardous.
Step 2: Remove the Old Relay
Locate the fuel pump relay within the fuse and relay center. It’s often labeled "FP" or "FUEL PUMP" on the underside of the center’s cover. Press down on the relay’s locking tab and pull it straight out. Inspect the relay for signs of corrosion, melting, or damage, which could indicate underlying electrical issues. If the relay is difficult to remove, gently wiggle it side-to-side while pulling to avoid breaking the plastic housing.
Step 3: Install the New Relay
Insert the new relay into the same slot, ensuring it clicks securely into place. Double-check that the relay’s orientation matches the old one—most relays have a notch or marking to guide proper installation. A loose or misaligned relay can cause intermittent fuel pump operation, leading to engine stalling or failure to start.
Step 4: Reconnect the Battery and Test
Reattach the negative battery terminal and tighten the clamp securely. Turn the ignition to the "ON" position (without starting the engine) and listen for the fuel pump’s priming cycle, a brief humming sound lasting 2–3 seconds. If the sound is absent, recheck the relay’s connection and ensure the new part is functional. Finally, start the engine to confirm the fuel pump operates smoothly under load.
This process, while straightforward, demands attention to detail. A faulty fuel pump relay can mimic symptoms of a failing fuel pump, so proper diagnosis and replacement save time and money. Always use a relay that matches the original specifications, and consider testing the old relay with a multimeter if you’re unsure it’s the root cause of your issue.
Testing Your Chevy 350 Fuel Pump: A Step-by-Step Guide
You may want to see also
Frequently asked questions
The fuel pump relay on a 1995 Firebird is typically located in the underhood fuse/relay box. It is usually labeled as "FUEL PUMP" or "F/P" for easy identification.
To test the fuel pump relay, locate the relay in the underhood fuse/relay box, swap it with a relay of the same type (e.g., the A/C compressor relay), and check if the fuel pump operates. You can also use a multimeter to test for continuity or voltage at the relay terminals.
Common symptoms include the engine not starting, stalling, or difficulty starting. You may also notice the fuel pump not priming when you turn the ignition to the "ON" position, which is a key indicator of a faulty relay.
