The fuel pump relay in a 1997 Chevrolet is a critical component of the vehicle's fuel system, responsible for controlling the power supply to the fuel pump. Located in the underhood fuse/relay center, typically near the battery or firewall, this relay ensures the fuel pump operates only when the engine is running or being started. For specific models like the Chevrolet Silverado or Tahoe, the relay is often found in a black box under the hood, labeled with a diagram on the lid for easy identification. If you're experiencing fuel delivery issues, such as a no-start condition, checking the fuel pump relay is a common troubleshooting step, as a faulty relay can prevent the fuel pump from engaging. Always consult the vehicle’s manual or a repair guide for precise location details.
| Characteristics | Values |
|---|---|
| Location | Under the hood, in the fuse/relay box near the firewall or battery area. |
| Fuse/Relay Box Label | Often labeled as "Underhood Fuse Block" or "Engine Compartment Fuse Block." |
| Relay Position | Typically labeled as "Fuel Pump" or "FP" in the fuse box diagram. |
| Function | Controls power to the fuel pump, ensuring it operates only when the engine is running or being started. |
| Symptoms of Failure | Engine cranks but doesn’t start, no fuel pressure, or intermittent starting issues. |
| Testing Method | Use a multimeter to check for continuity or swap with another relay of the same type. |
| Replacement Part | Specific fuel pump relay for 1997 Chevrolet models (part number varies by vehicle). |
| Vehicle Compatibility | Applies to 1997 Chevrolet models (e.g., Silverado, Tahoe, Suburban, etc.). |
| Diagram Availability | Found in the vehicle’s owner’s manual or online automotive repair resources. |
| Additional Notes | Some models may have the relay integrated into the fuel pump module or ECM. |
Explore related products
What You'll Learn
Location in engine bay

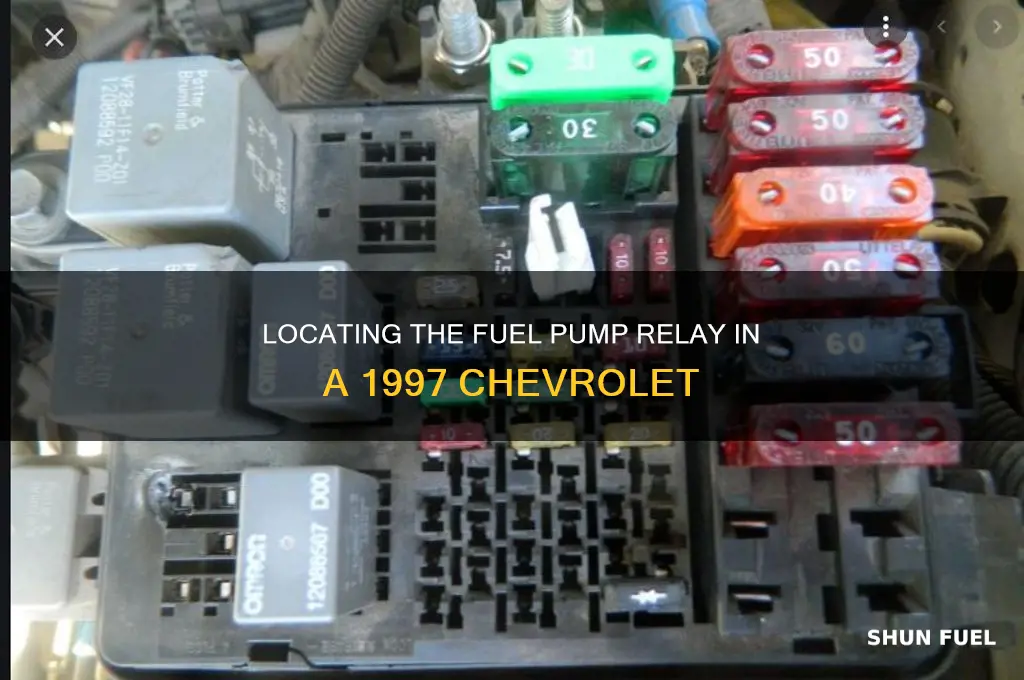

The fuel pump relay in a 1997 Chevrolet is typically located in the engine bay, but its exact position can vary depending on the model. For most Chevrolet vehicles of this era, the relay is often found in the under-hood fuse/relay box, which is usually situated near the battery or along the inner fender. This placement is strategic, as it allows for easy access while keeping the relay protected from extreme heat and moisture. If you’re unsure where to start, consult your vehicle’s manual or look for a rectangular or square-shaped box with a removable lid, often labeled with a diagram indicating the relay’s position.
Analyzing the engine bay layout of a 1997 Chevrolet reveals that the fuel pump relay is designed for both functionality and safety. Its location in the fuse/relay box ensures it’s shielded from debris and water, which could otherwise cause electrical issues. Additionally, this placement minimizes the length of wiring needed to connect the relay to the fuel pump, reducing the risk of voltage drop or interference. For DIY enthusiasts, understanding this design choice can save time and frustration when troubleshooting fuel system problems.
To locate the fuel pump relay in your 1997 Chevrolet, follow these steps: first, open the hood and secure it in place. Next, identify the fuse/relay box, typically a black or gray rectangular unit near the battery or firewall. Remove the lid to reveal a diagram or label indicating the relay positions. The fuel pump relay is often marked as “FUEL” or “FP.” If the diagram is missing or unclear, cross-reference with your vehicle’s manual or an online resource specific to your model. Once identified, use a relay puller tool (if necessary) to carefully remove the relay for testing or replacement.
A comparative look at other vehicle makes reveals that Chevrolet’s placement of the fuel pump relay in the engine bay is consistent with industry standards of the late 1990s. Unlike some European models, which may locate relays in the interior cabin, Chevrolet prioritized under-hood accessibility. This approach aligns with American automotive design trends of the era, emphasizing ease of maintenance for mechanics and owners alike. However, it’s worth noting that newer vehicles often integrate relays into more compact, module-based systems, reflecting advancements in automotive technology.
For practical tips, keep in mind that working in the engine bay requires caution. Always disconnect the battery before handling electrical components to avoid short circuits. If the relay is difficult to access, consider using a flashlight or mirror to improve visibility. Additionally, when testing or replacing the fuel pump relay, ensure the vehicle is on a level surface and the ignition is off. These precautions not only protect you but also prevent damage to the vehicle’s electrical system. With patience and the right tools, locating and servicing the fuel pump relay in a 1997 Chevrolet becomes a manageable task.
