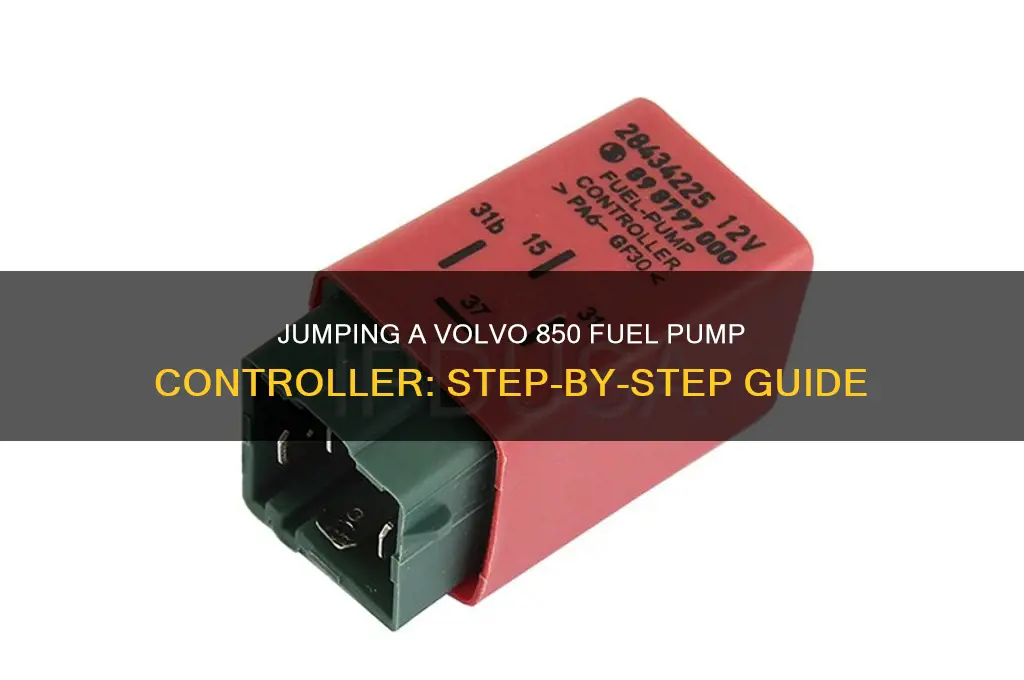

Jump-starting a fuel pump controller on a Volvo 850 requires careful attention to safety and the vehicle's electrical system. The fuel pump controller, often located in the trunk near the fuel pump relay, plays a critical role in delivering fuel to the engine. If the controller fails, the vehicle may not start. To jump it, first ensure the car is off and in a safe location. Locate the fuel pump controller and identify its power and ground wires, typically marked with specific colors. Using a jumper wire, connect the power wire to a known good power source, such as the positive terminal of the battery, and the ground wire to a solid chassis ground. This temporary bypass can help diagnose whether the controller is faulty or if the issue lies elsewhere in the fuel system. Always consult the Volvo 850 service manual for specific wiring diagrams and safety precautions before attempting this procedure.
| Characteristics | Values |
|---|---|
| Vehicle Model | Volvo 850 |
| Component to Jump | Fuel Pump Controller (FPC) |
| Location of FPC | Typically located in the engine bay near the fuel rail or under the intake manifold |
| Tools Required | Jumper wires, multimeter (optional), safety gloves |
| Power Source | Battery or external power source (12V) |
| Wiring Connections | Connect positive (+) to FPC power wire and negative (-) to ground |
| Voltage Required | 12V DC |
| Safety Precautions | Ensure ignition is off, disconnect battery if necessary, avoid sparks |
| Symptoms of Faulty FPC | Engine not starting, no fuel pressure, or erratic fuel delivery |
| Diagnostic Steps | Check FPC fuse, relay, and wiring for continuity before jumping |
| Alternative Method | Use a fuel pump test kit or direct power supply to test FPC functionality |
| Common Mistakes | Incorrect wiring polarity, insufficient power supply, or damaged FPC |
| Professional Assistance | Recommended if unsure or if jumping does not resolve the issue |
| Related Components | Fuel pump relay, fuel pump, fuel pressure regulator |
| Reference Sources | Volvo service manuals, online forums (e.g., Volvo Forums, Reddit) |
Explore related products
What You'll Learn
- Locate the Fuel Pump Relay: Identify the relay's position in the fuse box under the hood
- Test the Relay for Faults: Use a multimeter to check for continuity and proper function
- Bypass the Relay Temporarily: Connect the battery directly to the fuel pump to test operation
- Replace a Faulty Relay: Purchase the correct relay and swap it out in the fuse box
- Check Fuse and Wiring: Inspect the fuse and wiring harness for damage or corrosion
Locate the Fuel Pump Relay: Identify the relay's position in the fuse box under the hood
The fuel pump relay in a Volvo 850 is a critical component that ensures your vehicle’s fuel system operates efficiently. Located within the fuse box under the hood, this relay acts as a switch, controlling the power supply to the fuel pump. Identifying its exact position is the first step in troubleshooting or jumping the fuel pump controller. The fuse box in the Volvo 850 is typically situated near the battery, making it accessible for inspection and maintenance. Familiarizing yourself with the layout of this box is essential, as relays and fuses are often labeled with diagrams or codes specific to their function.
To locate the fuel pump relay, start by opening the hood and securing it in place. The fuse box is usually a rectangular, black plastic unit with a removable lid. Once the lid is off, you’ll see rows of fuses and relays. The fuel pump relay is often labeled as "FUEL PUMP" or "FP" on the diagram inside the lid or on the box itself. If the labeling is unclear, consult your Volvo 850’s service manual for precise identification. Relays are generally larger than fuses and have a distinct shape, making them easier to distinguish once you know what you’re looking for.
Once you’ve identified the fuel pump relay, take note of its position for future reference. Jumping the relay involves bypassing its function to test whether the fuel pump is operational. To do this, you’ll need a jumper wire or a piece of insulated wire with exposed ends. Locate the two terminals on the relay that correspond to the power input and output. These are typically the larger pins, often labeled as "87" and "30" on standard relays. Connect the jumper wire between these terminals, effectively bypassing the relay’s internal switch.
Before proceeding, ensure the ignition is off to avoid electrical hazards. Once the jumper is in place, turn the ignition to the "on" position and listen for the fuel pump to activate. If you hear a humming sound, the pump is functioning, indicating the relay may be faulty. If there’s no sound, further inspection of the fuel pump or wiring is necessary. Always exercise caution when working with electrical components, and disconnect the jumper wire after testing to prevent damage.
In summary, locating the fuel pump relay in your Volvo 850’s fuse box is a straightforward process that requires attention to detail. By identifying the correct relay and understanding how to jump it, you can diagnose fuel pump issues effectively. This method is a practical troubleshooting technique that can save time and money, especially when dealing with intermittent or hard-to-diagnose problems. Always refer to your vehicle’s manual for specific guidance and safety precautions.
Falcon 9 Fuel Pumps: Size, Power, and Engineering Marvels
You may want to see also
Explore related products
Test the Relay for Faults: Use a multimeter to check for continuity and proper function
A faulty fuel pump relay can leave your Volvo 850 stranded, but before replacing it, test for faults using a multimeter. This diagnostic step saves time and money by confirming whether the relay is truly the culprit.
Understanding Relay Functionality
The fuel pump relay acts as a switch, directing power from the battery to the fuel pump when the ignition is turned on. It consists of several pins: two for the coil (control circuit) and two for the contacts (power circuit). A multimeter tests continuity and resistance across these pins to ensure the relay opens and closes correctly.
Steps to Test the Relay
- Locate the Relay: In the Volvo 850, the fuel pump relay is typically found in the fuse box under the hood. Consult your manual for the exact location.
- Remove the Relay: Pull the relay straight out of its socket. Identify the pins using a diagram or markings on the relay itself.
- Test Coil Continuity: Set the multimeter to the continuity or resistance mode. Touch the probes to the coil pins (usually pins 85 and 86). A reading of 50 to 150 ohms indicates a functioning coil.
- Test Contact Function: Apply 12 volts to the coil pins (using a battery or jumper wires) while testing continuity across the power pins (usually pins 30 and 87). The multimeter should show continuity, confirming the contacts close properly.
Interpreting Results
If the coil shows no continuity or the contacts fail to close, the relay is faulty and needs replacement. However, if the relay tests fine, the issue may lie elsewhere, such as a bad fuel pump, wiring, or ECU signal.
Practical Tips
Always disconnect the battery before testing to avoid short circuits. Use a relay diagram specific to your Volvo 850 model for accurate pin identification. If unsure, compare the relay’s behavior to a known-good one for clarity. This methodical approach ensures you diagnose the problem accurately before proceeding with repairs.
Testing a 5-Prong Fuel Pump Relay: Step-by-Step Guide
You may want to see also
Explore related products
Bypass the Relay Temporarily: Connect the battery directly to the fuel pump to test operation
If your Volvo 850’s fuel pump isn’t operating, bypassing the relay temporarily can isolate whether the pump itself is the issue. This method involves connecting the battery directly to the fuel pump to test its functionality, bypassing the relay and associated wiring. It’s a straightforward diagnostic step that requires minimal tools but demands caution due to the electrical risks involved.
Steps to Bypass the Relay Temporarily:
- Locate the Fuel Pump Connector: Access the fuel pump by removing the rear seat or trunk lining, depending on your Volvo 850 model. The pump is typically located on top of the fuel tank, with a wiring connector attached.
- Disconnect the Fuel Pump Connector: Unplug the connector to access the wires leading to the pump. Identify the power wire, usually a thick, colored wire (often red or black with a stripe).
- Prepare a Jumper Wire: Use a length of 12-gauge wire with alligator clips on both ends. Ensure the wire is long enough to reach the battery without strain.
- Connect to the Battery: Attach one clip to the positive (+) battery terminal and the other to the fuel pump’s power wire. Ensure a secure connection to avoid arcing or disconnection.
- Test the Pump: Turn the ignition to the "on" position (without starting the engine) and listen for the pump’s hum. If it operates, the pump is functional, and the issue likely lies in the relay or wiring.
Cautions:
- Fire Risk: Fuel is flammable, and sparks can ignite vapors. Work in a well-ventilated area, away from open flames or hot surfaces.
- Electrical Hazards: Avoid short-circuiting the battery. Insulate exposed wires and ensure clips don’t touch metal surfaces.
- Temporary Fix: This is a diagnostic test, not a long-term solution. Prolonged direct connection can damage the pump or drain the battery.
Takeaway: Bypassing the relay is a quick way to confirm fuel pump functionality. If the pump operates, focus on diagnosing the relay or wiring. If it doesn’t, the pump itself may be faulty. Always prioritize safety and address the root cause promptly.
Understanding the Fuel Pump System in Your BMW E30
You may want to see also
Explore related products
Replace a Faulty Relay: Purchase the correct relay and swap it out in the fuse box
A faulty relay in your Volvo 850's fuel pump controller can leave you stranded. Before jumping the system, consider the simpler, safer, and more permanent solution: replacing the relay itself. This component, often overlooked, acts as the switchboard for your fuel pump, ensuring it receives power when needed. When it fails, the pump may not engage, leading to a no-start condition.
Identifying the culprit is crucial. Relays are typically housed in the fuse box, often located under the hood or near the driver's side dashboard. Consult your Volvo 850's manual for the exact location. Once found, visually inspect the relays for signs of damage like melting or corrosion. If unsure, a multimeter can test for continuity, confirming the relay's functionality.
Replacing the relay is a straightforward process. First, purchase the correct replacement relay, ensuring it matches the specifications of the original. Auto parts stores or online retailers specializing in Volvo parts are good sources. With the new relay in hand, locate the faulty one in the fuse box. It's usually labeled "fuel pump" or has a corresponding diagram. Using a fuse puller or pliers, carefully remove the old relay, noting its orientation. Insert the new relay in the same position, ensuring it clicks securely into place.
Replacing a faulty relay is a cost-effective and empowering solution. It eliminates the need for temporary jumps, which can be risky and potentially damage other components. By understanding the relay's role and following these steps, you can restore your Volvo 850's fuel delivery system and get back on the road with confidence. Remember, always prioritize safety and consult a professional if you're unsure about any step in the process.
Fuel Pump Repair Costs: What to Expect for Your Vehicle
You may want to see also
Explore related products
Check Fuse and Wiring: Inspect the fuse and wiring harness for damage or corrosion
Fuses and wiring harnesses are the unsung heroes of your Volvo 850's electrical system, quietly ensuring power flows where it needs to. When your fuel pump controller acts up, a faulty fuse or corroded wiring can be the culprit. Start by locating the fuse box, typically found in the engine bay or under the dashboard. Consult your Volvo 850 manual for the exact location and fuse designation for the fuel pump.
Inspection Process:
- Visual Check: Remove the fuse using a fuse puller or pliers. Hold it up to a light source—a blown fuse will have a broken or melted wire inside. If it appears intact, test it with a multimeter to confirm continuity.
- Wiring Harness Examination: Trace the wiring harness connected to the fuel pump controller. Look for frayed wires, exposed copper, or signs of heat damage. Corrosion, often greenish or white, can accumulate at connectors, especially in older vehicles.
Common Issues:
Corrosion is a silent killer, particularly in regions with high humidity or where road salt is used. It disrupts electrical flow, causing intermittent or complete loss of power to the fuel pump. Similarly, rodent damage to wiring harnesses is more common than you’d think, especially if your Volvo is parked outdoors or in a garage with pests.
Remedy Tips:
- Replace a blown fuse with one of the exact same amperage rating—using a higher-rated fuse can damage the circuit.
- Clean corroded connectors with a wire brush and apply dielectric grease to prevent future corrosion.
- For damaged wiring, splice in a new section or replace the entire harness if the damage is extensive.
By systematically inspecting the fuse and wiring harness, you’re not just troubleshooting the fuel pump controller—you’re ensuring the overall reliability of your Volvo 850’s electrical system. This step is often overlooked but can save you from unnecessary part replacements and costly diagnostics.
Pump Precision: Unveiling the Accuracy of Octane Ratings at Fuel Stations
You may want to see also
Frequently asked questions
The fuel pump controller on a Volvo 850 is typically located in the trunk, near the fuel pump relay or under the trunk lining. Refer to your vehicle’s manual for the exact location.
You’ll need a multimeter, a jumper wire, and basic hand tools to access the controller. Ensure the car is off and the battery is disconnected before starting.
Yes, you can jump the fuel pump controller by connecting a jumper wire between the power and ground terminals of the controller. This will activate the fuel pump for testing purposes.
Symptoms include the engine not starting, stalling, or difficulty starting. You may also notice a lack of fuel pressure or no sound from the fuel pump when the key is turned to the "on" position.
